Product parameters:

1. Enter the selection key
2. Standby key
3. Multi function display window

1. Reset switch.
2. Bluetooth antenna interface.
3. Remote control signal input interface.
4. USB digital signal input interface.
5. Unbalanced left and right cable output interface.
6. Optical fiber digital signal input interface.
7. Balanced left and right cable output interfaces.
8. Coaxial digital signal input interface.
9. Coaxial digital signal output interface.
10. Power switch.
11. Power adapter interface.
12. Left and right cable input interface.

Product parameters:

Size: 230x244x118mm (W*H*D)
Net weight: about 4.8kg
Coaxial sampling rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz/16bit-24bit

USB sampling rate: DSD128 (5.6448 MHZ), DSD 64 (28224 MHZ), 1 bit
PCM384kHz, 352kHz, 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1 kHz, 16bit-32bit

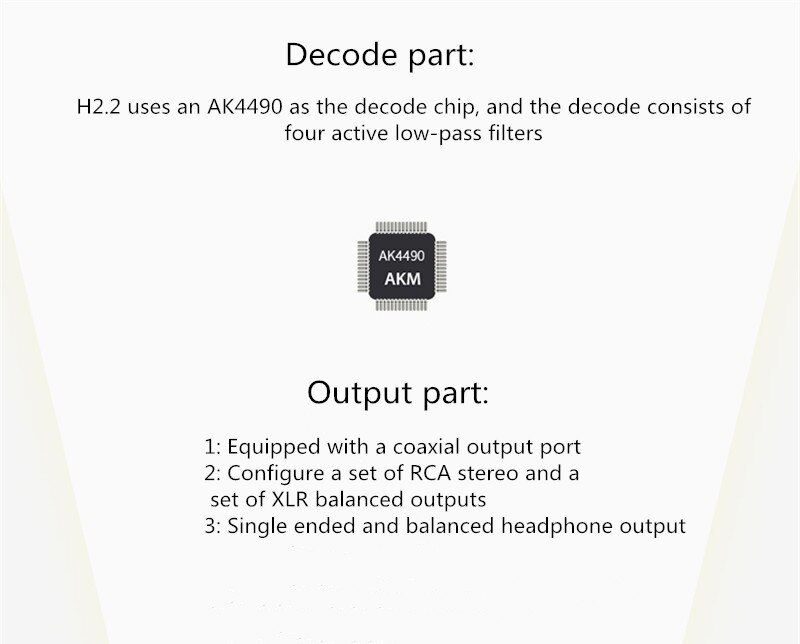

D/A conversion chip: AK4490
Low-pass filter chip: OPA1612
Output: headphone output: single port/flat port, LO (single port/balanced port), COAX

Technical index of cable：Unbalanced output level: 4V
Balanced output level: 8V
Frequency response: 20Hz~20kHz(-0.1dB)
Distortion: 0.003%
Dynamic range: 110dB
Signal to noise ratio: 115dB

Headphone amplifier technical indicators：Output power :155mW@300ohm
Frequency response: 20Hz ~ 20kHz (- 0.1dB)
Distortion: 0.005%
Dynamic range: 105dB
Signal to noise ratio: 110dB

Supported bit width: 6bit. 24bit. 32bit
Support sampling rate (PCM):44.1kHz-384kHz

Support sampling rate (DSD):5. 6MHZ

System: Windows XP, Windows 7, 8, 10 (32 / 64bit)
