Pay attention to Bundle when placing an order:

Bundle 1: PD6X Power Upgrade Enhanced Version.

Bundle 2: PD6 Warm Compensation Clock Edition.

PD6X Technical Parameters:

Product Category: HiFi Blu-ray Player.

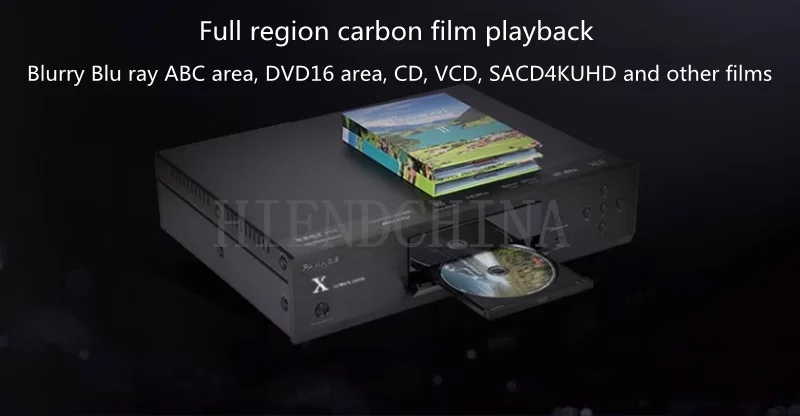

Disc formats: UHD Blu-ray, Blu-ray, Blu-ray 4D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL,BD-R/RE

Output Resolution:HDMI Video: Ultra HD 4K/1080p24/780p/1280i/720p/376p/376i/480p/280i, 7800p24/720p standard 4D format.

Video function: support 8K UHD image quality and HDR15/Dolby Vision video technology.

Audio function: Analog audio: XLR balanced output, RCA single-ended output

Optical/Coaxial Audio: Up to 2ch/192kHz PCM, Dolby Digital, DTS.

HDMI audio; up to 7.1ch/192kHz PCM, up to 5.1ch DSD, Bitstream.

Frequency range: 20Hz-20kHz (-1dB~+0.05dB).

Signal-to-noise ratio :>110dBr

Total Harmonic Distortion + Noise: 0.0005%

Output level: (RCA) 2.1±0.3Vrms (XLR) 4.2±0.4Vrms

Dynamic range: >115dB

Channel separation: >130dB

Other functions Operating temperature: 41°F-95°F; 5°C-35°C

Working humidity: 115%-75%, non-condensing

Input and output ports: coaxial/optical output, dual HDMI I2S output (HDMI 2.0 & HDMI1.4), one USB3.0 interface USB2.0 interface

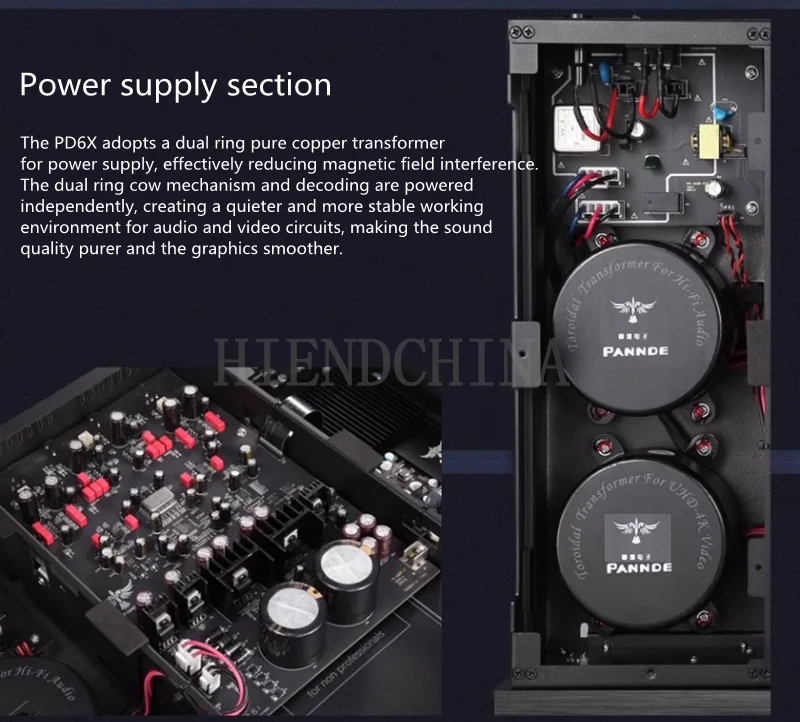

Power performance Power supply: 110V-120V/220V-240V, 50/60Hz

Power: 30W

Size: 430*330*112.5mm

Weight: 14.6kg

HiFi Audio

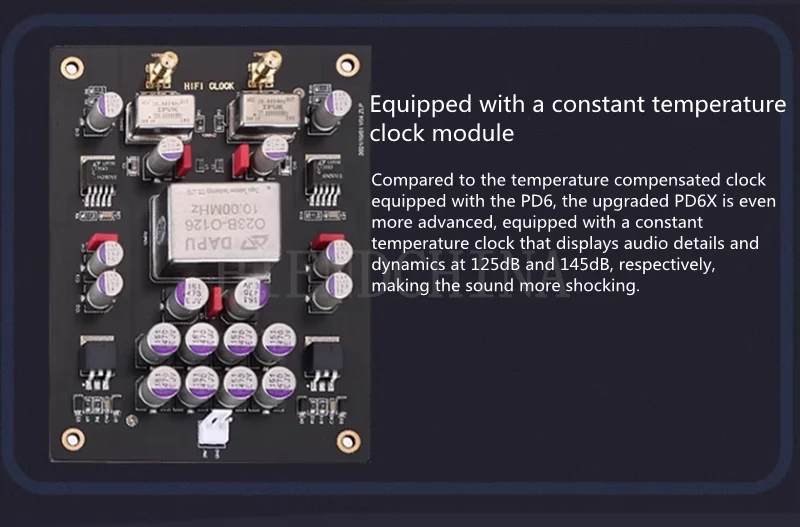

The PD6X stereo output part adopts the ESS9038PRODAC audio decoding chip, RCA+XLR output, supports DSD audio decoding output, LDO voltage stabilization circuit, ELNA FOR AUDIO audio series filter capacitor, equipped with a 100M temperature compensation clock (PD6X is equipped with a 100M constant temperature clock), presenting audio details and dynamics at 125dB and 130dB, respectively, making the sound more shocking. 6 MUSES8920 fever grade operational amplifiers (PD6X can be replaced by oneself) and 20 German WIMA Red Immortal capacitors make the sound quality output more pure, allowing every detail to be fully displayed, specially designed for audio enthusiasts.

The PD6X supports Dolby sound decoding for discs, and DolbyAudio combines dynamic objects and playback channels with a new mixing and sound orientation method, allowing you to be surrounded by sound in all directions, ensuring that you play as close to the original effect as possible in any environment and different speaker configurations.

PD6X allows users to control the vocal dialogue in movies, making them stand out from the background sound, creating a more personalized entertainment experience and greatly enhancing users' control over movie sound listening. Users can control the volume of specific sound objects at home, such as adjusting the volume of dialogue according to their personal preferences. For content creators, these features can also be used during mixing production to enhance performance in this area.

1: Flowing sound that surrounds the surroundings

You'll feel like you're in the middle of a storyline, with characters, music, and everything sounding so alive, leaving a compelling sense of realism in three-dimensional space and beautiful sound effects that surround you.

2: Reproduce all audio objects in the original cinema mix

Recreate up to 128 simultaneous audio objects in a mix for rich, lifelike, and captivating sound effects.

3: Compatible playback

Dolby Atmos discs are fully compatible with online content and can be played back on traditional stereo as well as 51 and 71 channel systems for the same great experience

4: Constantly expanding program library

As more and more film directors choose Dolby Atmos for their soundtracks, you'll enjoy an ever-increasing number of movies and other programming available through high-end services such as Blu-ray Disc and online access.

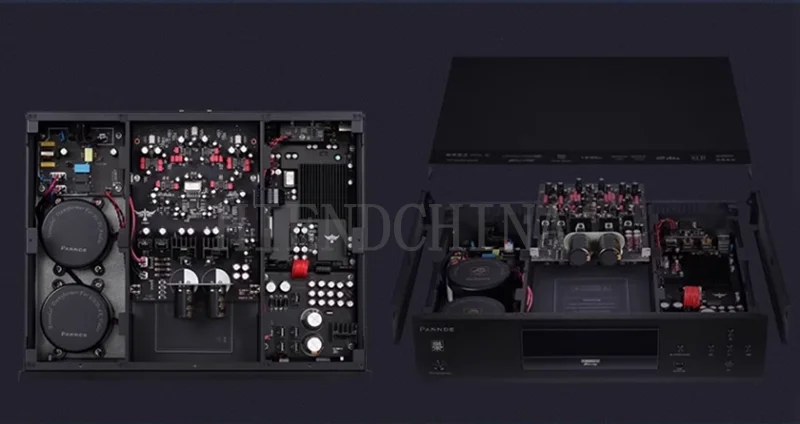

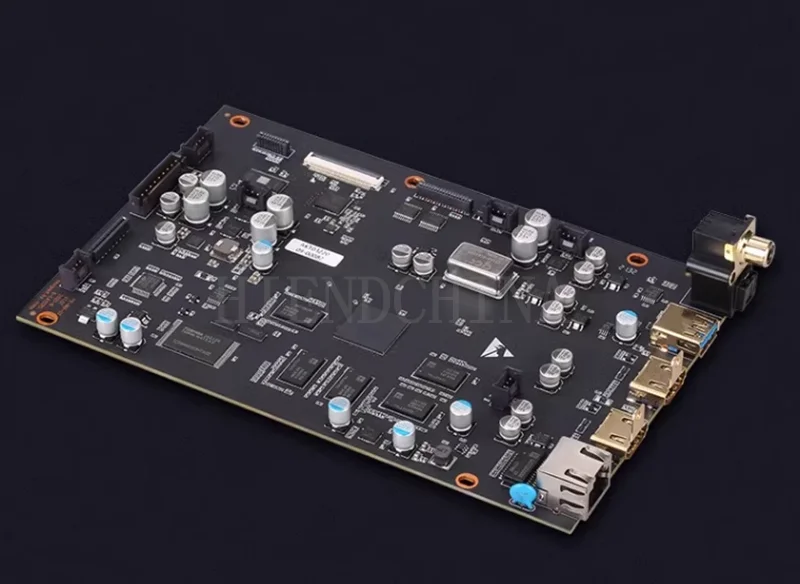

Motherboard:

1: Self-designed 6-layer motherboard, stronger power supply line, better signal loop

2: 27 M TCXO crystal oscillator, 0.5ppm, high precision, ultra-low phase noise

3: 2 Toshiba NAND(4Gb+2Gb): 4G for 1# system, 2G for 2# system

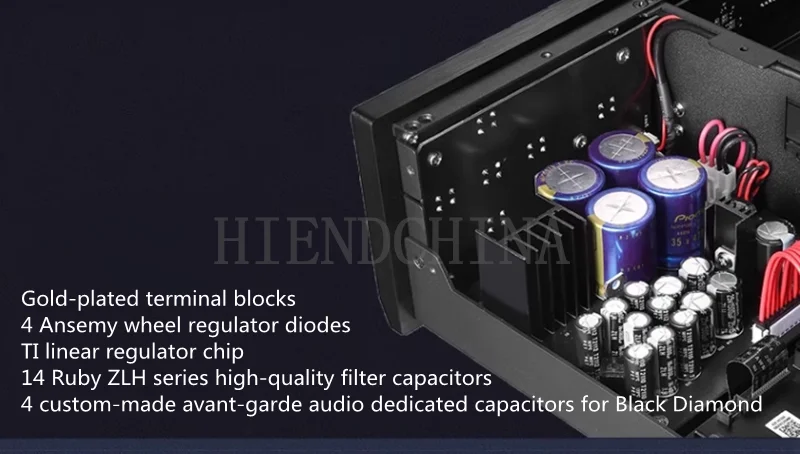

4: 18 LDO power supply of different specifications (5 TPS7A8300RGW, 4 S-1172B33, 5 LM1117), 7 solid capacitors, 17 ELNA SMD aluminum electrolysis, to ensure stable and clean power supply

5: Samsung DDR3-1800 (12Gb)

6:6 layers imported high TG PCB board, gold plating process

7: Customized high-quality gold-plated terminals

8: Murata MLCC (Murata Chip Capacitor)

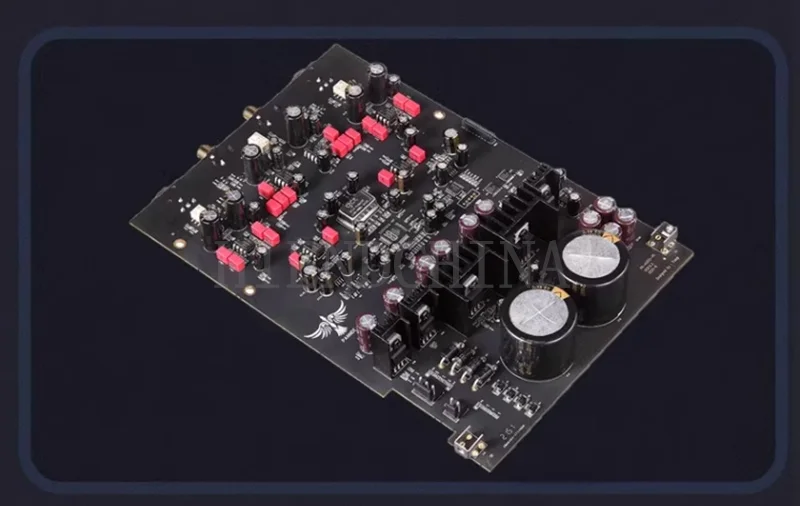

Stereo audio DAC decoding circuit

The stereo output part adopts the ESS9038PRO DAC audio decoding chip, RCA+XLR output, supports DSD audio decoding output, LDO voltage stabilization circuit, ELNA FOR AUDIO audio series filter capacitor, equipped with a 100M constant temperature clock, presenting audio details and dynamics at 125dB and 130dB respectively, making the sound more shocking. 6 MUSES8920 fever grade operational amplifiers that can be replaced on your own, and 20 German WIMA Red Immortal capacitors make the sound quality output more pure, making every detail perfectly visible, specially designed for audio enthusiasts.

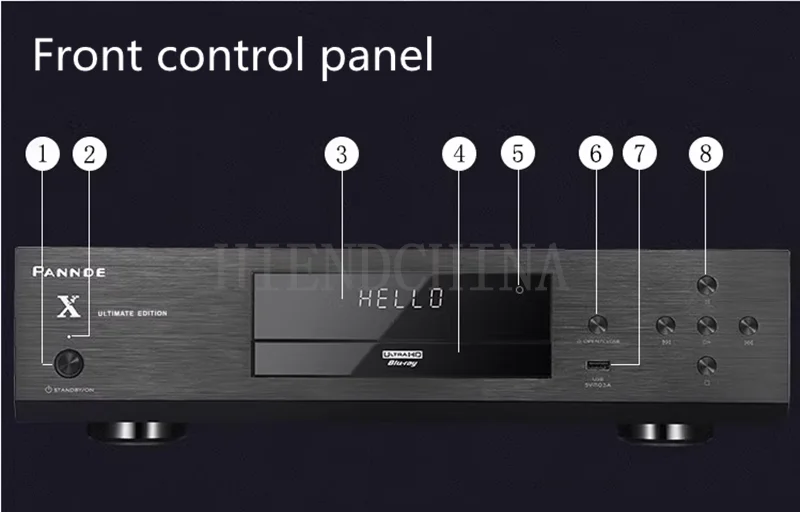

1: Power button

2: Power status indicator light

3: Front panel display screen

4: Disc tray

5: Remote control sensor

6: On/Off Bin Key

7: USB 2.0 input port

8: Playback controls and navigation keys

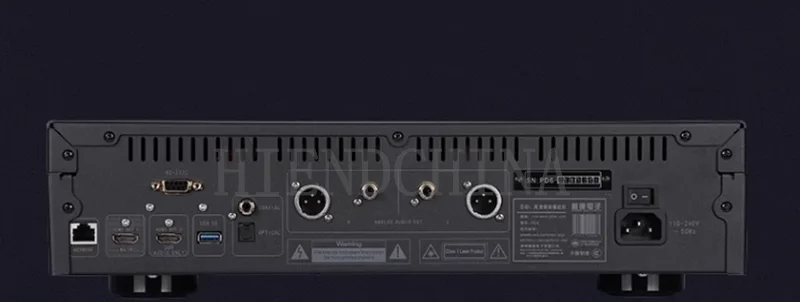

Multiple interfaces and connections

1: Gigabit wired network port

2: HDMI main output port

3: HDMI independent audio output port

4: USB3.0 input port

5: Upper coaxial and lower optical fiber

6: The two large analog stereo output ports on both sides are XLR balanced output ports, and the two small ones in the middle are RCA audio output ports

7: Power input and power switch

8: Like computer VGA, this is an RS232 intelligent central control interface
