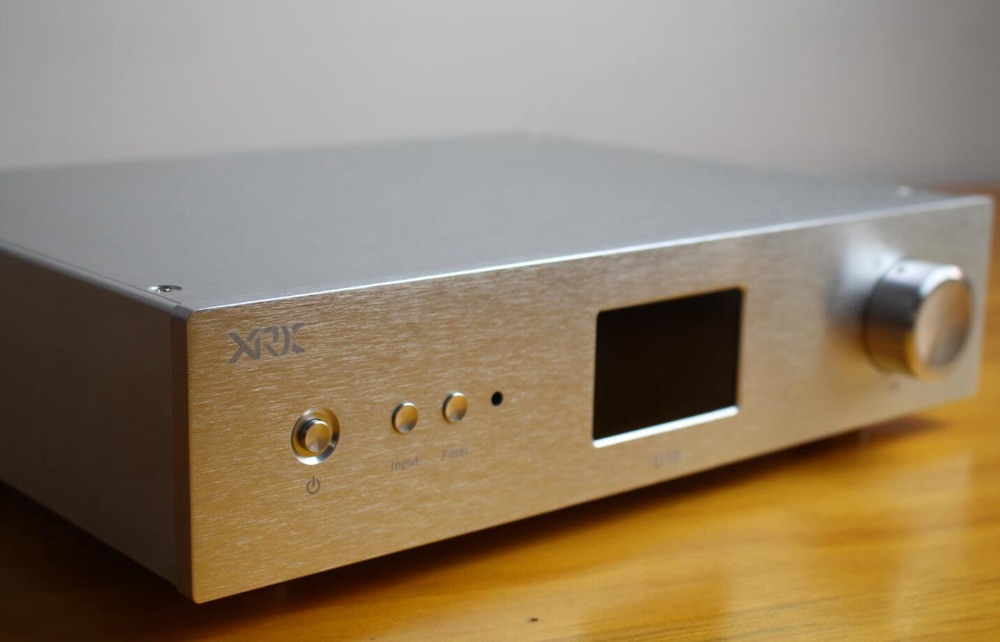

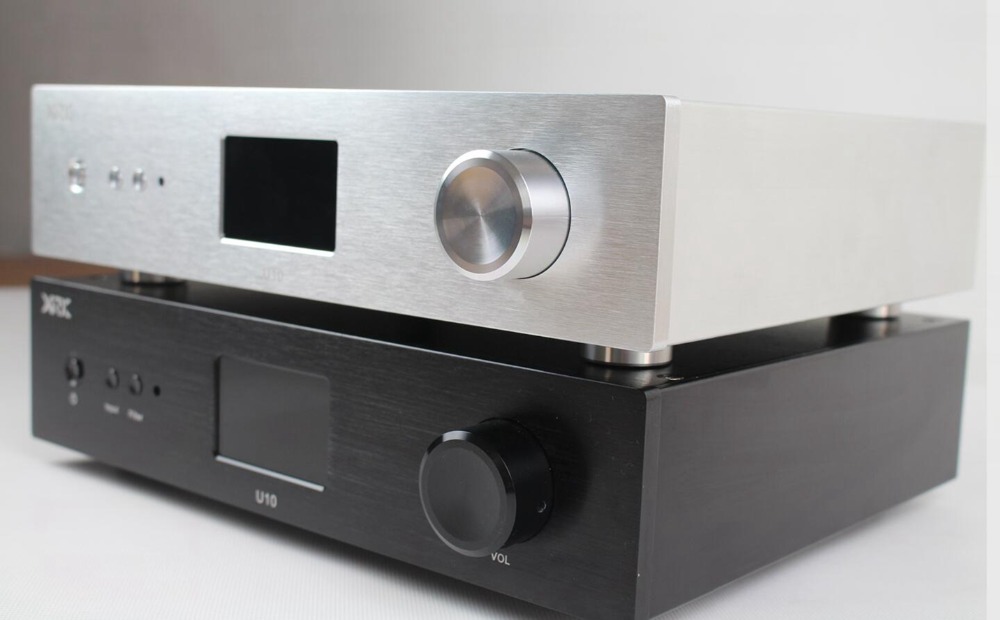

U10 XMOS Dual ESS9038Pro DAC Balanced Decoder
$949.00
Ex Tax: $949.00
- Stock: 10
- Model: 4000259709991
- Weight: 10.00kg
- Dimensions: 45.00cm x 40.00cm x 25.00cm
- SKU: 4000259709991
U10 XMOS Dual ESS9038Pro DAC Balanced Decoder
The overall architecture of the XRK U10 circuit:
USB Module + FPGA + MCU + Dual ES9038PRO DAC + OPA1611 Op Amp
XRK U10 decoder technical characteristics:
• Uses two ESS company flagship chip ES9038PRO for decoding; one ES9038PRO chip has 8 independent audio lines, signal to noise ratio of up to 132dB, total harmonic distortion of -122dB, more powerful resolving power, a wider sound field, a wider range of sound , higher quality and better sound quality;
• The OPA1611, an ultra-low noise, ultra low distortion op amp with unity gain stability, excellent dynamic performance over a wide range of load conditions, and excellent sound quality;
• Adopt two high-quality imported TALEMA transformers to supply power for digital and analog power supply respectively, to achieve independent power supply without disturbing each other, and the sound is cleaner; multiple power supplies are independently regulated to supply power and reduce interference;
• Native full-balanced architecture;
• USB adopts XMOS chip, stable and fast, and can support PCM384, DSD256;
• FPGA architecture, full interface support DSD hardware solution;
IIS supports DSD64, DSD128, DSD256, DSD512, DOP hard solutions;
SPDIF, Coaxial, Optical, AES support DSD64 hard solution (DOP mode);
USB support DSD64, DSD128, DSD256 hard solution; USB support Xin Chang D7 digital broadcast DSD Native output, up to support DSD256;
• The PCM7 digital filter inside the ES9038PRO and the DSD4 digital filter can be set.
• Input interface: USB/IIS&DSD/coaxial/fiber/AES;
Output interface: balanced left and right channels, unbalanced output;
• Machine size: width 320* depth 250* height 85 mm (without protruding part);
• With package weight: 5.5KG;
• 110V version, 220V version (two voltages are not switchable); default 220V;110V Please leave a message；
USB input can be connected to a computer, and can also be connected to D7, SHD20 digital audio output USB digital audio;
The differences between xmos version and femtosecond version
Xmos Version driver :
Femtosecond Version Reference and Drivers
References: http://amanero.com
Driver Download: http://amanero.com/drivers.htm
Package contains:
1.XRK U10 host
2. Power cord
3. Remote control
4.USB cable
XMOS Version Internal structure:

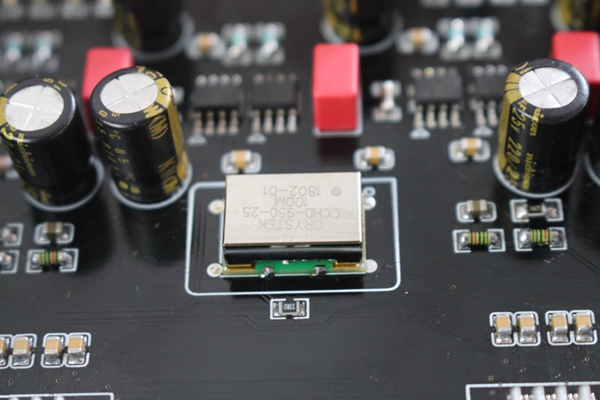

Femtosecond Version USB module and femtosecond crystal
