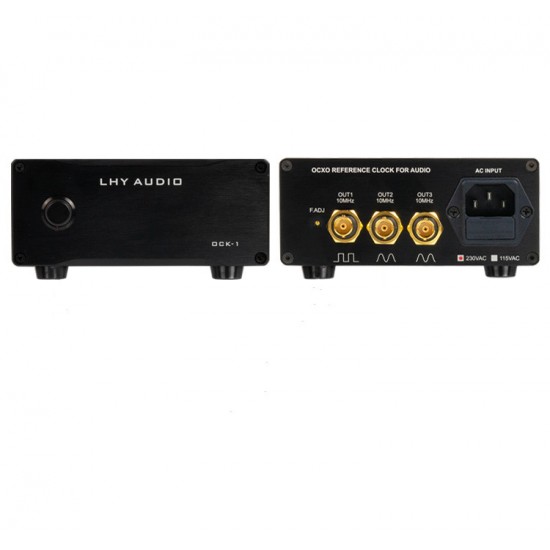

The back is equipped with 3 sets of clock signal interfaces, which can provide up to three devices supporting 10MHz input at the same time, including USB DAC network player SA-CD player, which can be connected in parallel. Each set of circuits in the OCK-1, from the power section output to the stage's buffer driver, is designed to be isolated to prevent cross-interference and flickering when multiple devices are connected to the BNC interface. By adding a buffer driver to each circuit, the signal waveform is also less prone to decay when all three sets of generated clock signals are shared. Therefore, each BNC interface output provides an ultra-high-precision 10MHz clock signal

Model: OCK-1

Output frequency: 10MHz

Output Ports: 3

Output Accuracy: <±300ppb.

Frequency Stability: <±50ppb.

Output amplitude: ≥7dbm @50Rz

Output waveform: sine wave square wave

Output Impedance: 50Ω

Near-end corresponding noise @ 1Hz(typ): -110dBc

AC power supply: AC 115 / 230V (default 220v delivery)

Power consumption of the whole machine: <15w

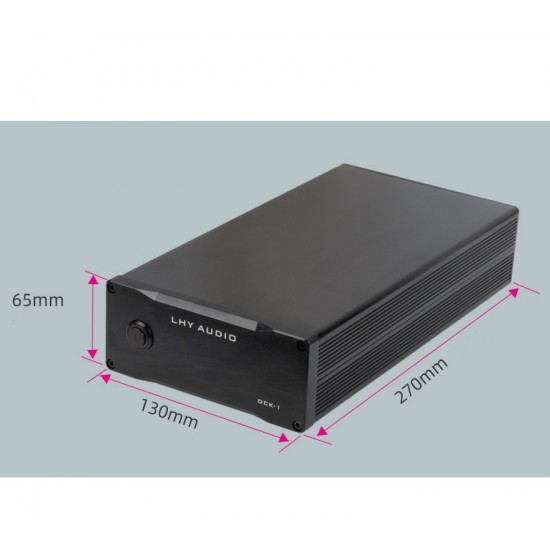

Body size: 130 width x 270 depth x 65mm height

Weight: 2.7Kg

Supports up to three 10MHz clock input devices

The back is equipped with 3 sets of BNC 50 ohm signal interfaces to provide clock signals to multiple devices. Up to three devices supporting 10MHz input, including USB DAC network player SA-CD player, can be connected in parallel.

Each set of circuits in the OCK-1, from the power supply section to the stage's buffer driver, is designed to be isolated to prevent cross-interference and flickering when multiple devices are connected to the BNC interface.

By adding a buffer driver to each circuit, when all three groups of generated clock signals are shared, the signal waveform is not easily attenuated. Therefore, each BNC interface output provides an ultra-high-precision 10MHz clock signal
