At present, the internal Crystek clock has been upgraded to a model specially customized for Musheng, and the performance has been greatly improved. So the price went up slightly. See in-store link for a description of the clock. The real pictures of the interface have not been updated yet, please pay attention to buyers..

.




At the request of the majority of users, after more than a year of hard work, we finally launched a very good quality external independent USB interface. This USB interface adopts the Italian Amanero Combo384 program. After Amanero's license is authorized, users can freely update various official firmware..

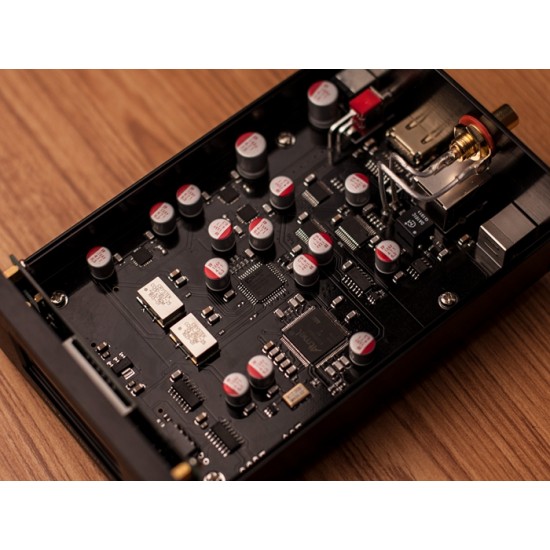

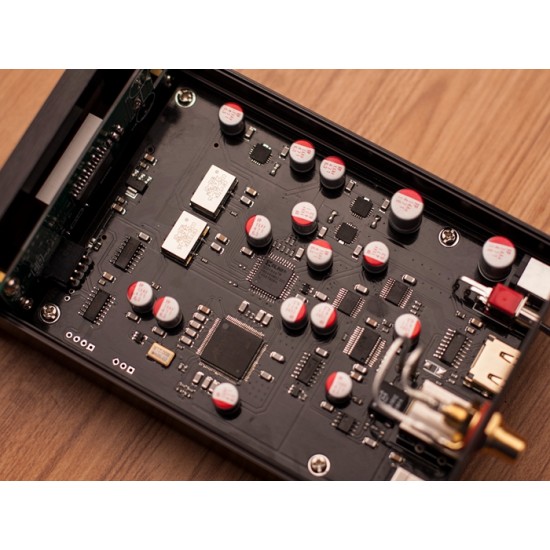

For the more critical material selection, we adopted a specially designed high-precision clock to obtain accurate digital audio signal reconstruction. In terms of power supply, this interface uses a single 5V DC power supply, with multiple branch power supply internally, and each branch uses TI's ultra-low noise TPS7A4700 imported independent power supply, the purpose is to minimize the power noise crosstalk of each part. (The crystal oscillator also uses a separate TPS7A4700 for regulated power supply)

The capacitors all use Panasonic ultra-low ESR solid capacitors and NPO/COG ceramic capacitors for power supply stabilization and decoupling (removing high-frequency noise and improving transient discharge capability).

Since this interface does not have a power supply, it is recommended that users use our linear power supply: please click LPS-25-USB

In terms of sound quality, the overall sound image is very stable, the shape of the instrument is strong, the sound texture is strong, the low-frequency dive has good cohesion, the sound field is open, the sound is fresh and moist, full, and transparent, with excellent extension at both ends, and sound density Excellent, the sound is exquisite and delicate, balanced and natural.

Driver and installation instructions (please copy to the browser to open and download): http://www.mu-sound.com/ch/about.asp?id=3







■ Specification—————————————————————————————————

1. USB connection to computer, support windows xp, win7, win8, win10 (32/64 bit system), support MAC system, support Linux kernel system, support most Android systems with OTG function, Apple system (using Apple camera Kit connection line)

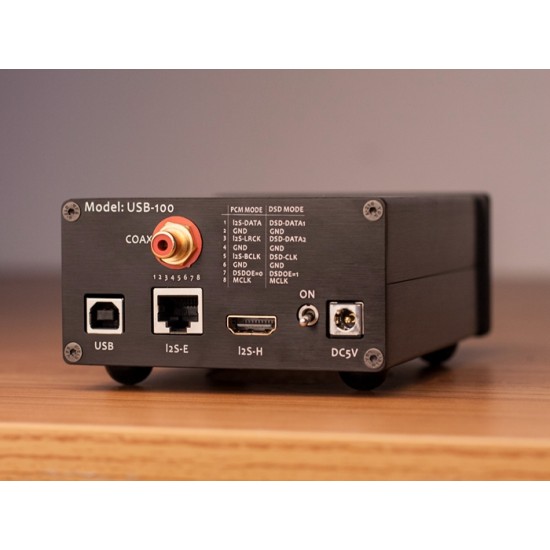

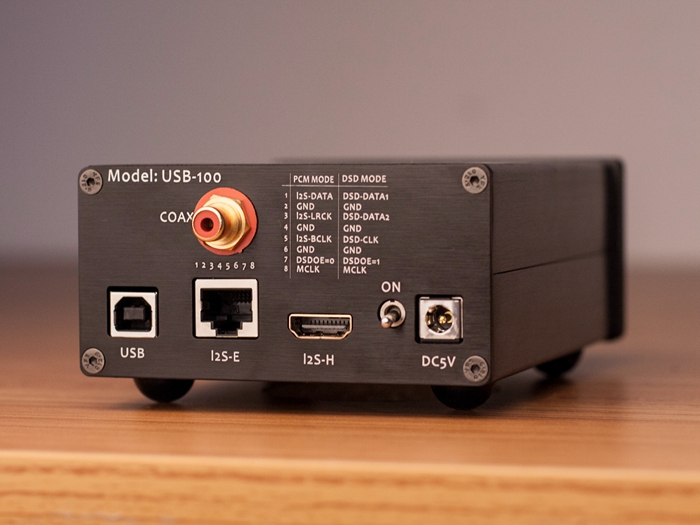

2. The output has a coaxial port (support PCM 44.1K~192K), coaxial without DoP output;

3. Output I2S port (I2S-E) and I2S-H, support PCM44.1K~384K, DSD64~DSD512 native DSD output, no DoP signal.

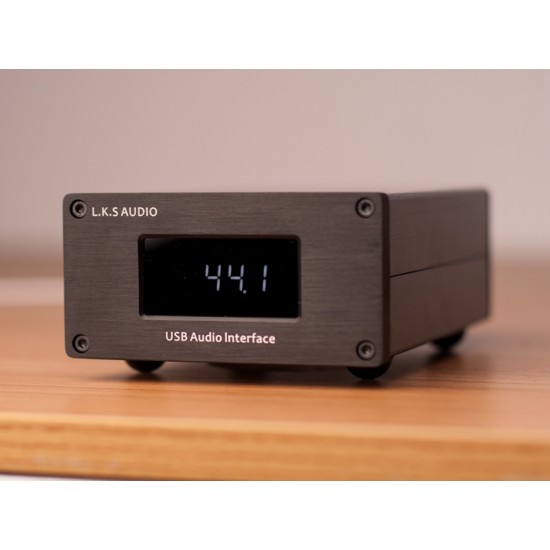

4. The white LED display can display the current working sampling rate.





■ Packing list—————————————————————————————————

Machine accessories include:

1. USB-100 interface*1

2. USB-DC5V cable 0.5m length*1
