●Exclusive clock module, TCXO: Silent Angel's 0.1ppm TCXO (Temperature Compensated Crystal Oscillator) is 50 times more accurate than general crystal clocks, reducing delay issues and jitter effects

●Improved jitter effect: Distortion is a common effect when transmitting high frequency network packets. The N8Pro was able to effectively bring it down to 369ps compared to 705ps for other general purpose switches

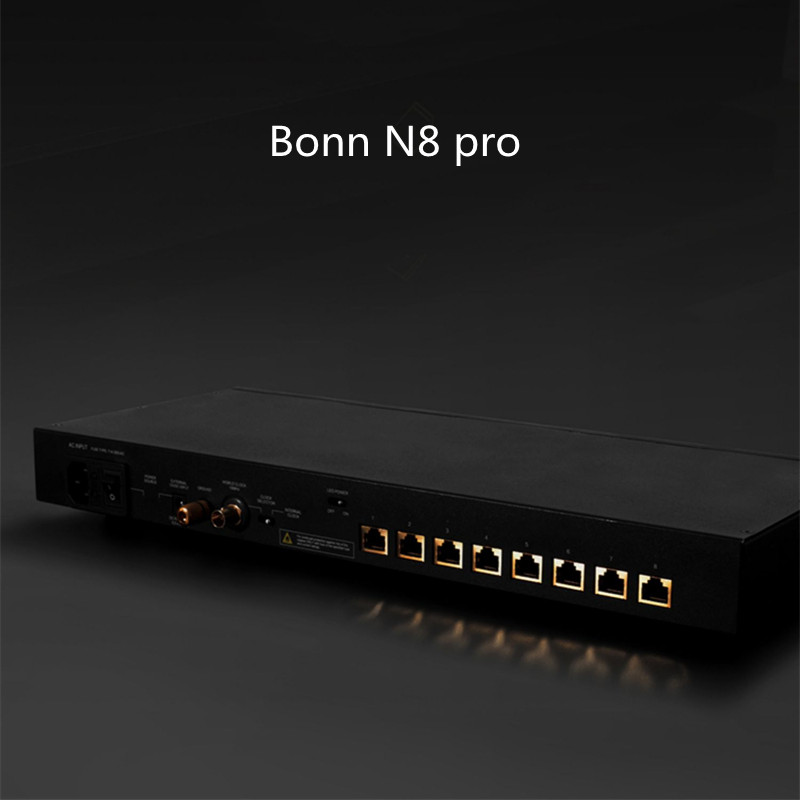

● 8 gold-plated enclosed Gigabit Ethernet ports with spacer ports to physically reduce possible signal interference.

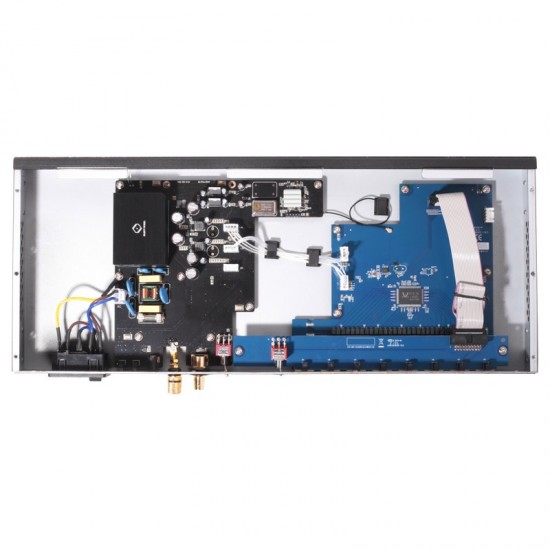

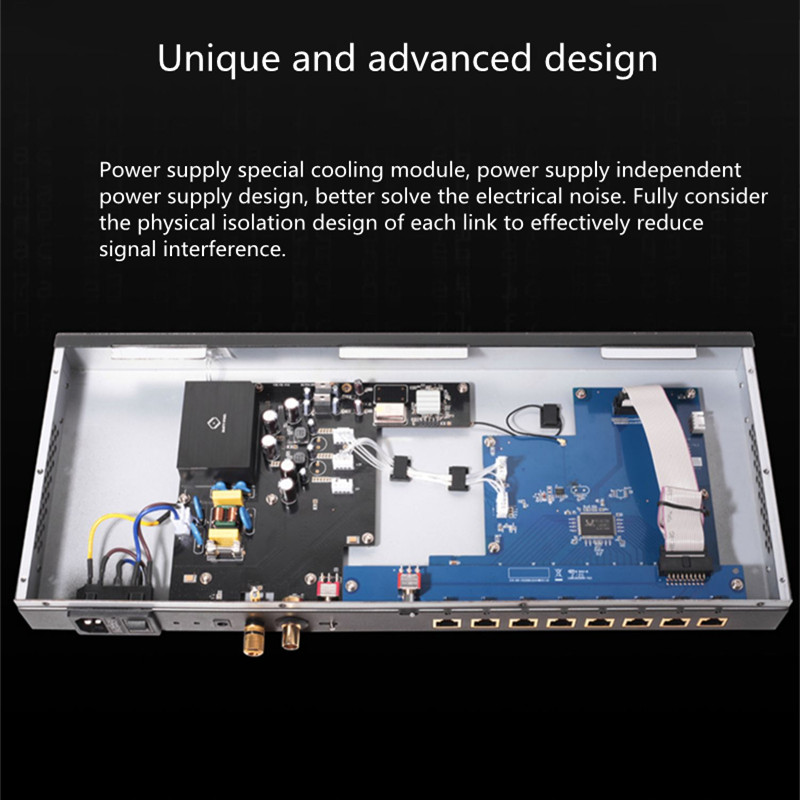

●Class-leading radar-grade internal switching power supply module, dedicated to noise-sensitive acoustic equipment.

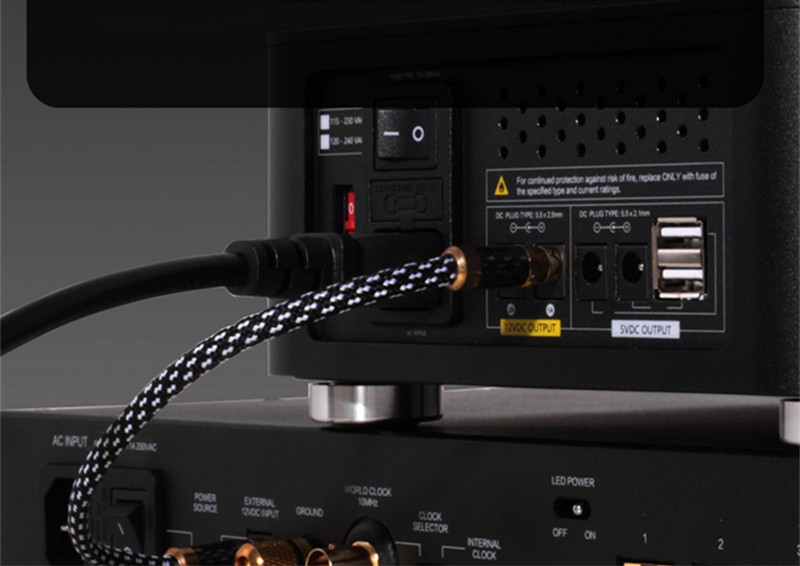

●The extra DC power jack (12V) can bypass the internal switching power supply module and connect an external linear power supply for upgrade.

●Gold-plated ground connector (banana terminal) for ground box, which can further reduce power supply noise.

●LED light switch, enabling users to turn off the port status indicator

●A first-class clock receiving module for external clock input.

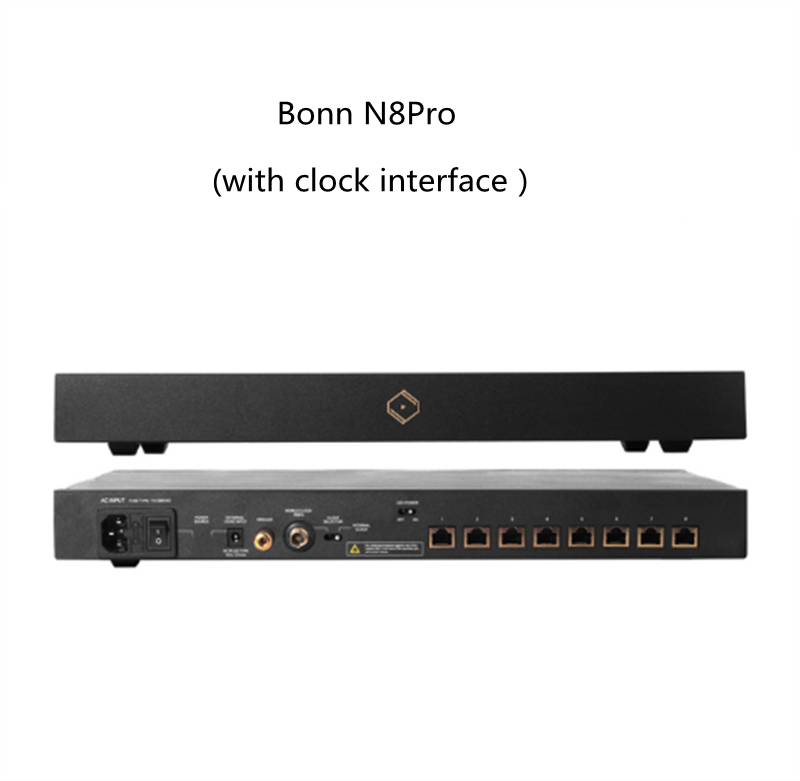

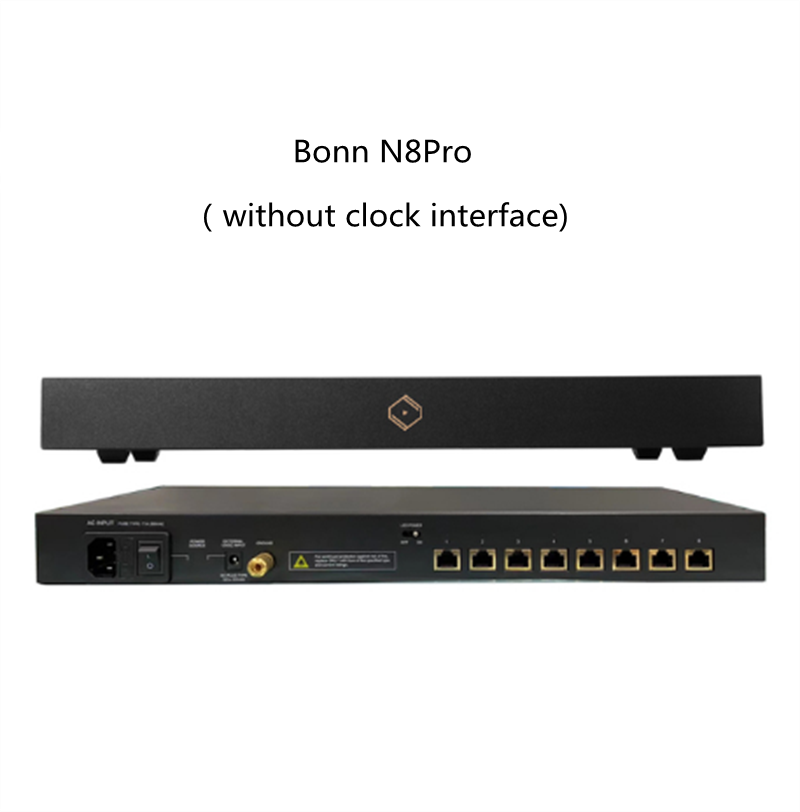

●Two available N8Pro models: one with a 10MHz external world clock input and one without

Product parameters:

Colour: Black

power input:

(AC)100-240V, 50/60Hz

(DC)12V/0.8A at max

Power consumption: up to 10 watts

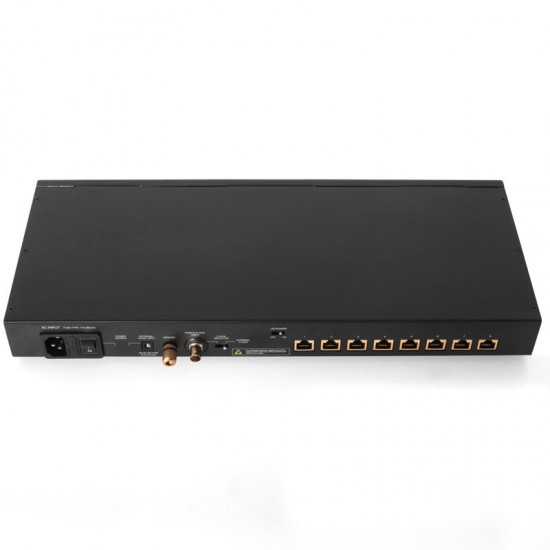

Network Ports: 8 Gigabit Ethernet ports (RJ-45 with gold plated housing)

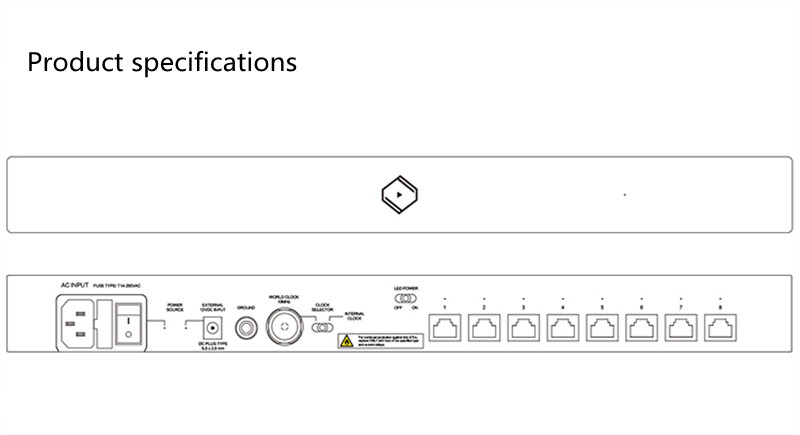

Interface:

Clock input switch*1 (external/internal)

-BNC interface 10MHz external world clock

-Silent Angle dedicated TCXO clock module

LED indicator switch*1

- Control the on/off status LED of the LAN port

Ground port x1

- Connect to ground box for purer, more accurate signal quality without interference

LED indicator:

Power LED (green) on the front panel x1

Port Status LED*8 on the rear panel (on when linked; flashing when activated)

Green: 1000Mbps; Amber: 100Mbps

Temperature: Working temperature: 0~30°C; Storage temperature: -20~70°

Humidity: Operation: 10%~90%RH (non-condensing): Storage: 5%~95%RH (non-condensing)

Product size: 441mm*175mm*44mm

Shell material: black paint, galvanized steel sheet, thickness 1.2MM.

Product weight: net weight 2.6kg.
