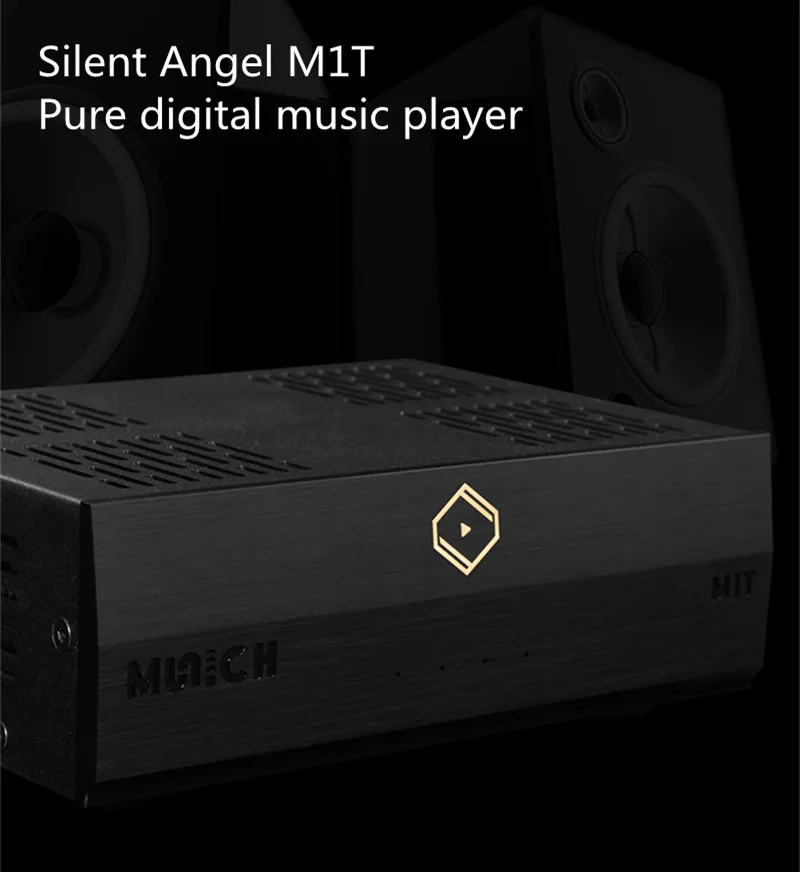

1: Low power consumption Vitos Orbiter makes M1T more focused on sound quality

2: Local music, streaming music at a glance

3: From connecting the machine to importing music playback in one go

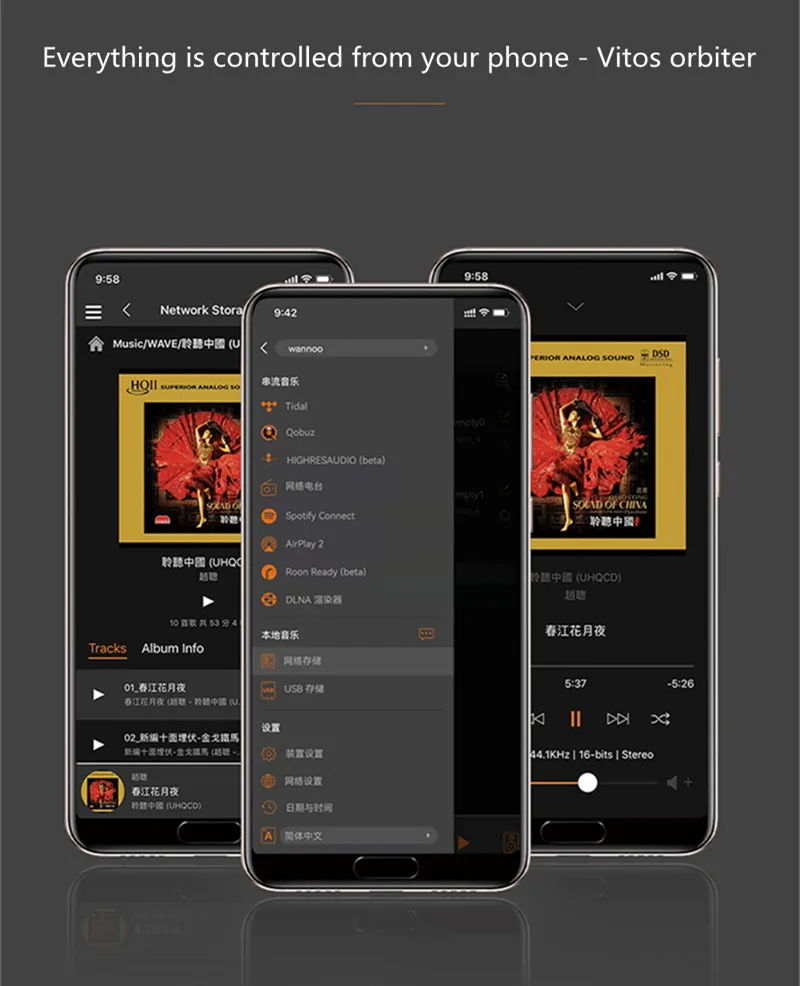

4: Your phone is your music library, local music supports network storage and USB storage

5: Streaming music supports Internet radio, Spotify Connect, Airplay2, Roon, Ready, TIDAL, Qobuz, DLNA renderer

Product design features:

Hardware：

· Fanless cooling system using Raspberry Pi 4 ModelB. ·

· Effectively reduce internal noise interference.

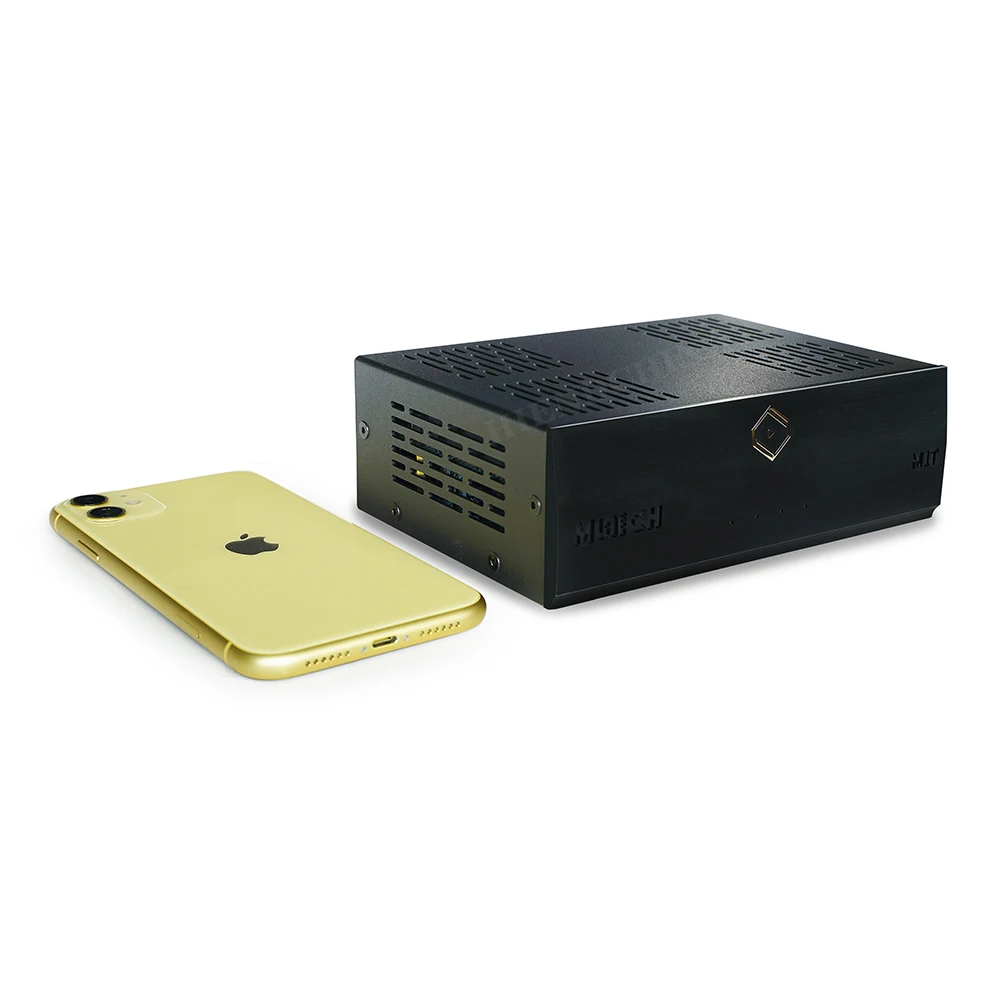

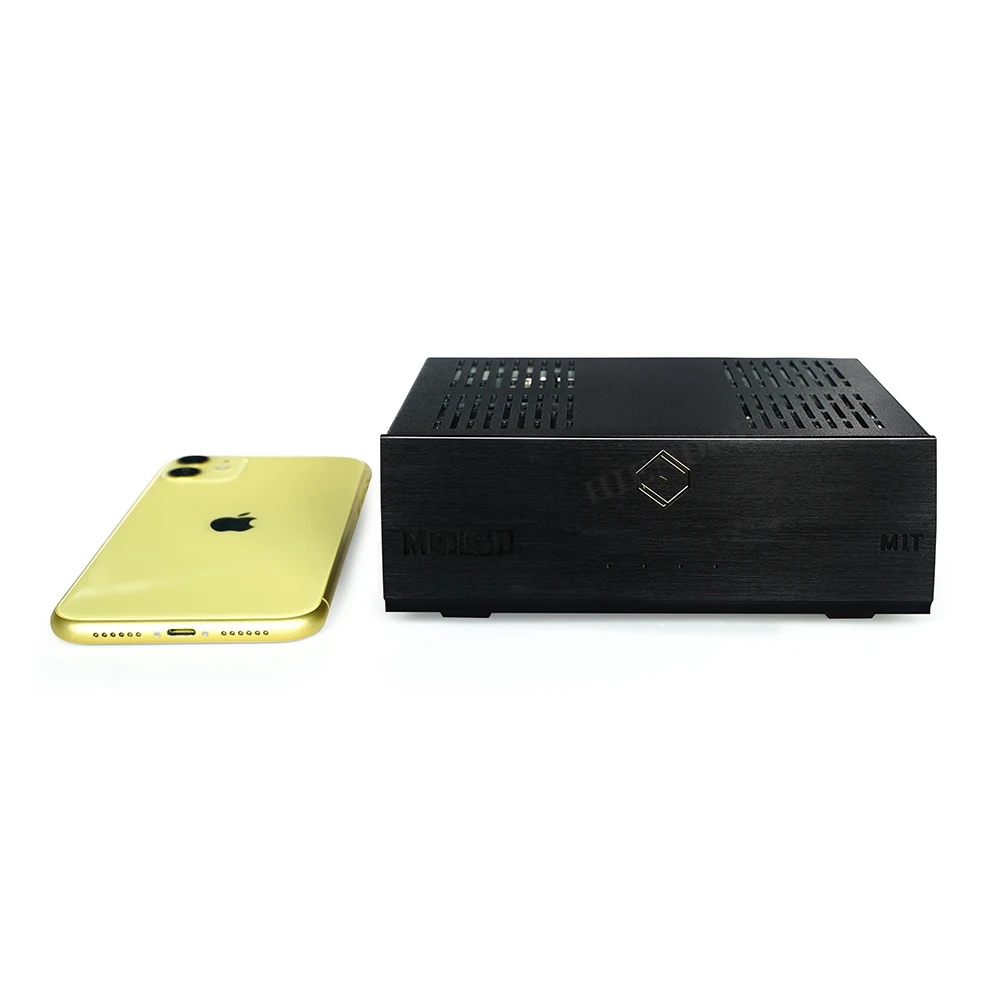

·The exquisite and meticulous size is suitable for any environment, 155mm*50.4mm*110mm. · Rendering more optimized audio quality

Software:

· Seamless integration with Vitos orbiter.

· Quickly connect and configure audio equipment

·Control playback functions, including: quick search for music, high-quality playback of music, detailed viewing of music album information, optimized music transmission, etc.

Audio function:

· Digital Audio Path Processor

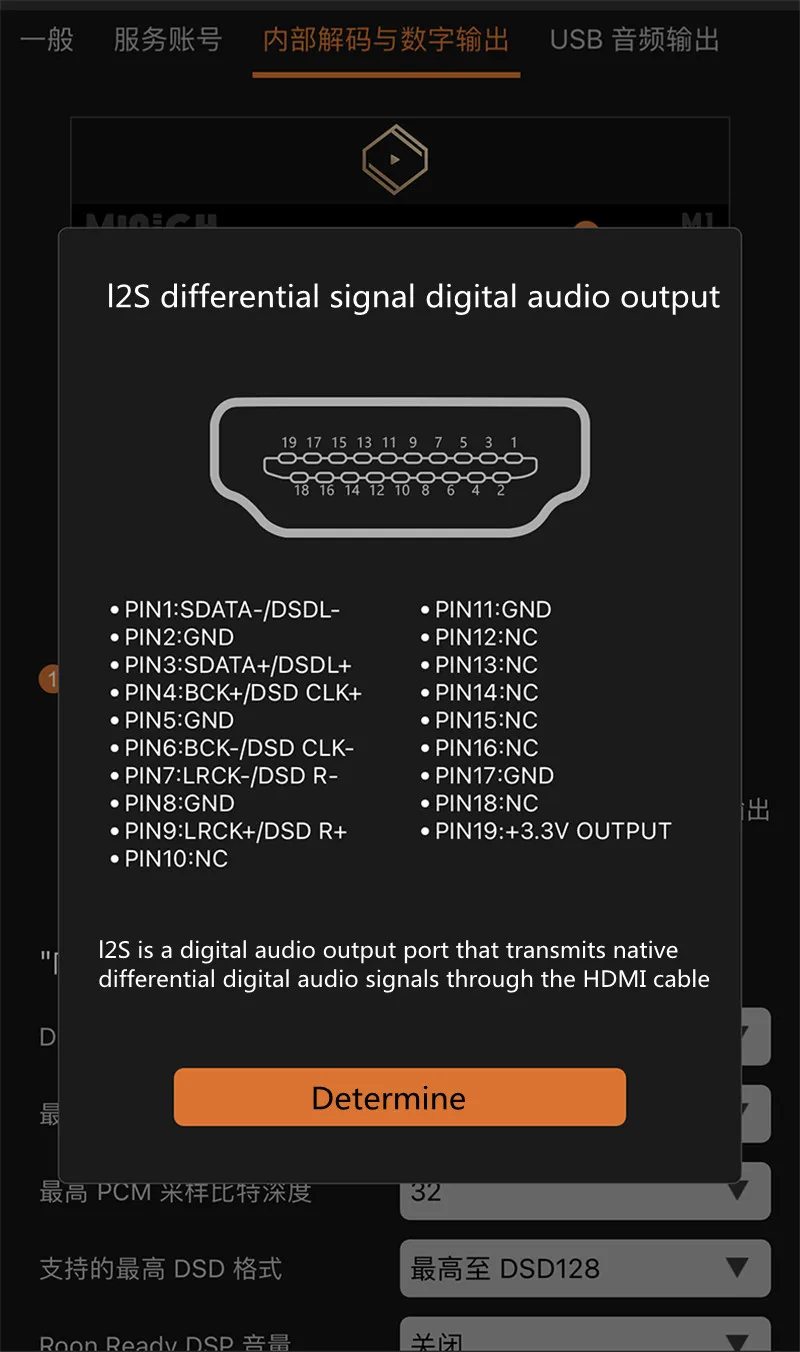

-AES/EB∪, I2S, coaxial digital output supports up to PCM384KHz and DSD5.6M (DSD128)

·USB audio output

-Up to PCM 768KHz and DSD1.2MHz (DSD256)

High-speed network interface: Gigabit Ethernet (1000Mbps)

Product function: high-fidelity digital music playback, decoding

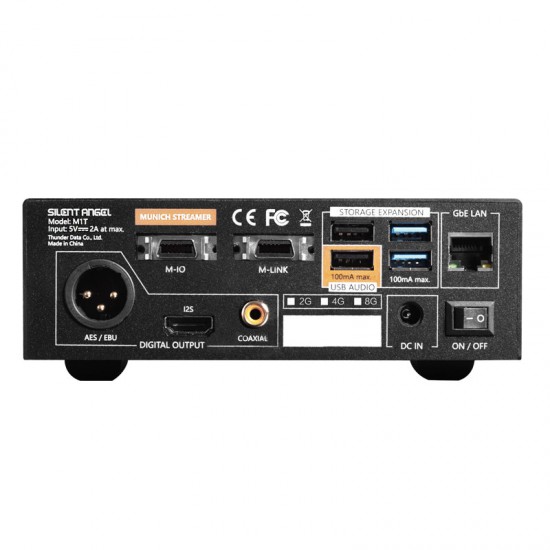

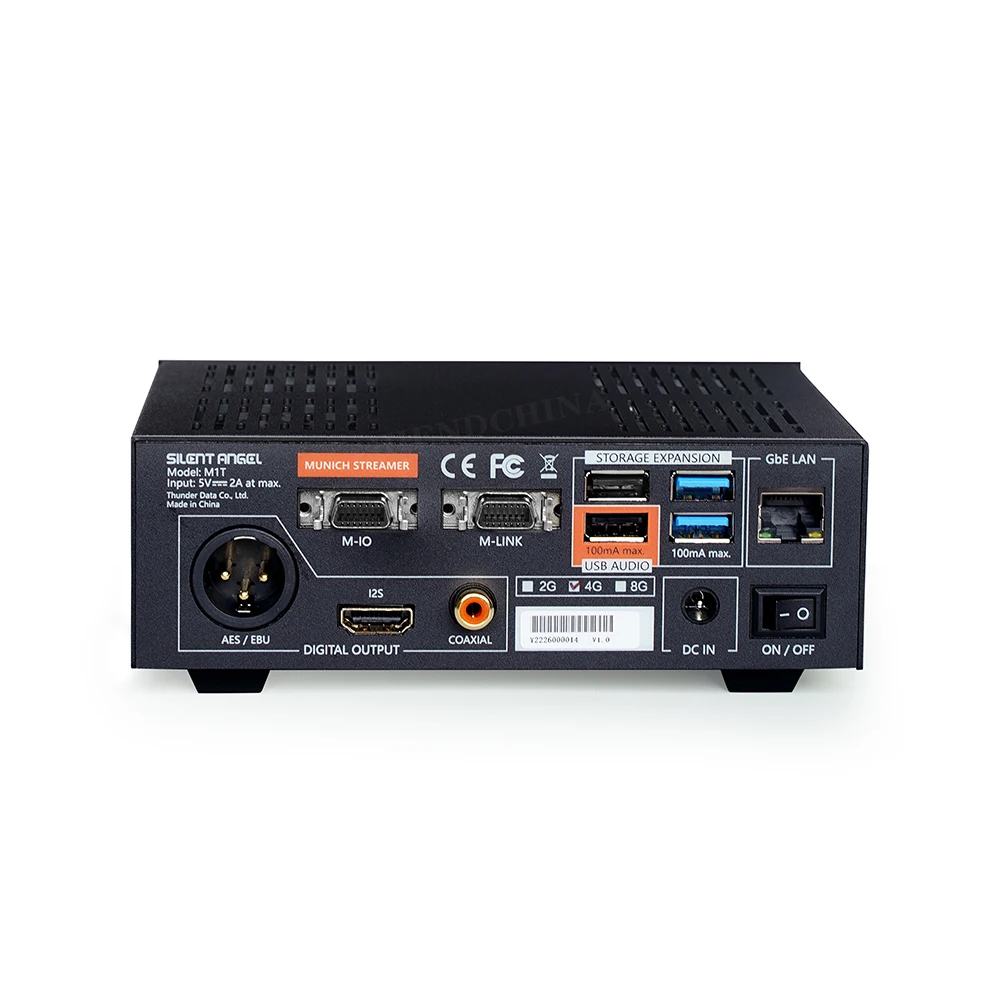

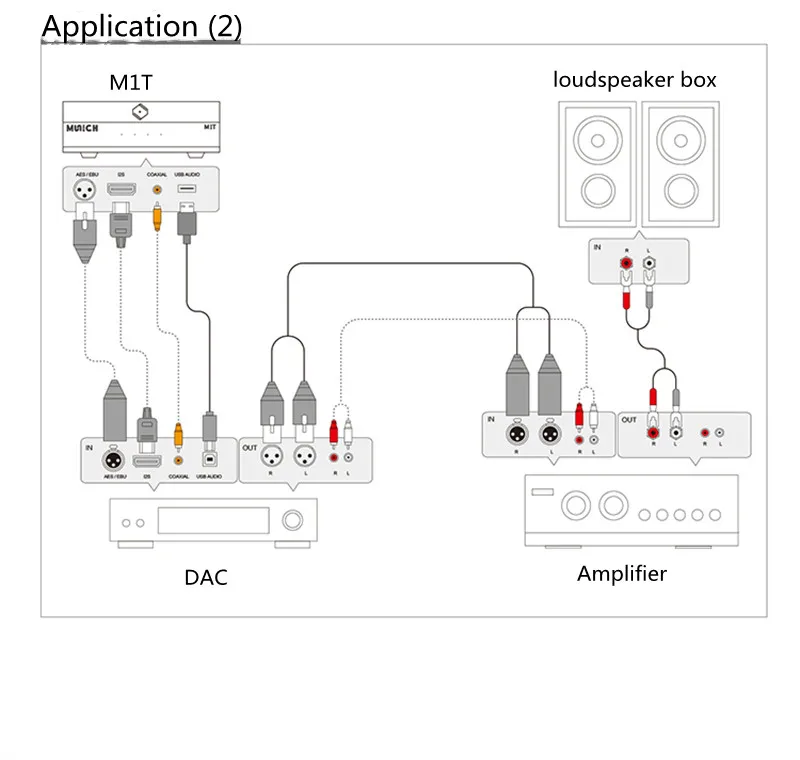

Digital audio output: USB AUDIO, AES/EBU, coaxial, I2S

Expansion interface: M-IO and M-LNK for peripheral device expansion

Compact size: 155mm x504mm x 110mm

CPU: Quad-core 1.5GHZ ARM Cortex-A72

DRAM: Low Noise 2GB DDR4 DRAM.

ROM High Speed: 32GB Flash ROM.

OS: Silent Angel Vitos Orbiter (Dual Firmware Protection Mechanism)

Scalable application functions: NAS, USB storage, Internet radio, Spotify Connect, Airplay2, Roon Ready, TIDAL, Qobuz, DLNA renderer, etc.

Recommended upgrade equipment: Forester F1, Bonn n8, Bastei DC cable
