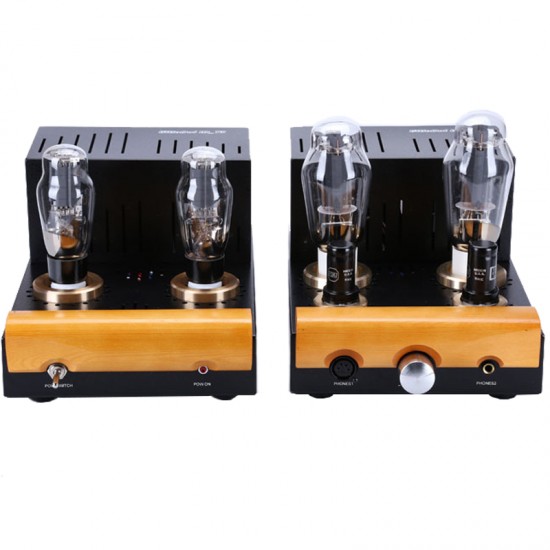

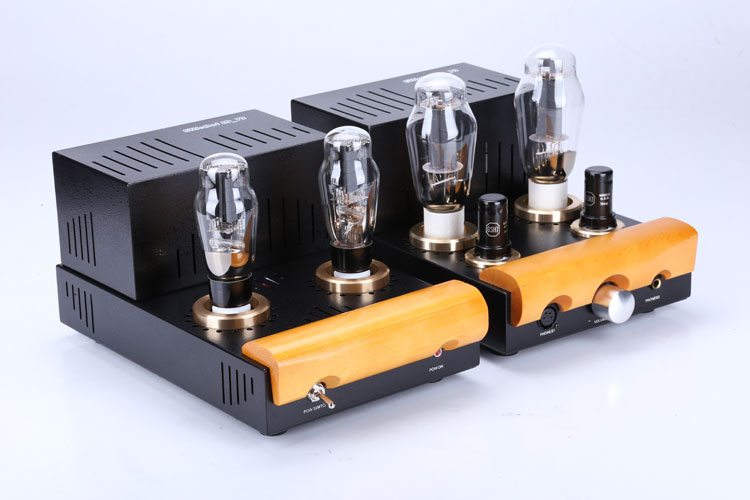

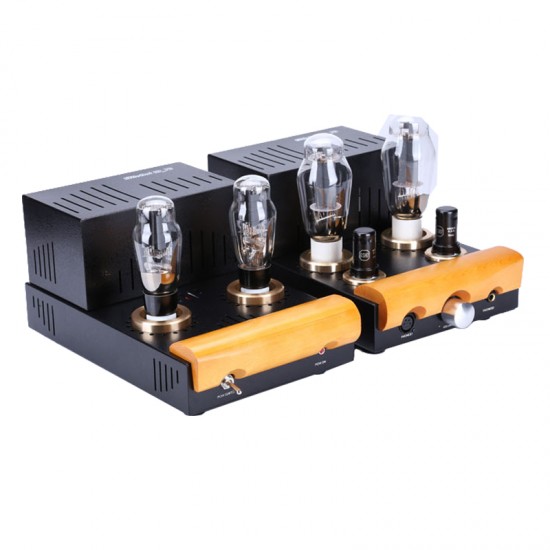

Little Dot LD-Y2 6SH7 JJ 300B Tube Full Balanced Tube Power Amplifier HIFi Headphone AMP Earphone Amplifier Split Power Supply
$3,698.00
Ex Tax: $3,698.00
- Stock: 4
- Model: 4000112486300
- Weight: 25.00kg
- Dimensions: 45.00cm x 45.00cm x 25.00cm
- SKU: 4000112486300
Welcome to Queenway Store!
1.Some items parameters produce from AliExpress system, some of them aren't correct, even fully wrong, the detailed description of products should be correct for us.
2.110V and 220V, If you are in 110V area, please tell us.
3.International shipping/transportation cost, it is 2~10 dollars/Kg, many items of our store are very heavy or big volume, it is 65Kg~500Kg, or 0.5~3.0m 3
, the plane shipping fee will be too expensive, the sea shipping is the cheapest and trade safe, but it has no tracking numberm, and need more time(35~70 days)on the process, we must talk about some details deeply if using sea shipping.
4. Some items price wave often, but we try to give the best price to you, because the international shipping is high, we must use a low product price to balance the international shipping fee.
Features:
American RCA antique five-stage tube 6SH7
The 6SH7 has excellent sound balance and layering in high school, and the same five-stage tube drive as RCA's original 300B circuit makes the sound of the whole machine more vivid and delicate.
Lundahl alloy input transformer from Sweden
The world's leading high-performance audio transformer is used by many European and American famous devices such as JR, Linn, ASR, VTL. Lundahl represents the industry standard for input transformers!
Denmark DACT 24-bit step potentiometer
The use of a supplement-grade device such as DACT, despite the increase in overall machine cost, yields extraordinary data with a channel deviation of only +/--0.05 dB and a distortion of less than 0.0001%.
Parameter:
Product Name: Little Dot LD-Y2 Full Balance Tube Amp / Power Amplifier
Preamplifier: RCA 6SH7 tube
Post-stage amplification: JJ 300B tube

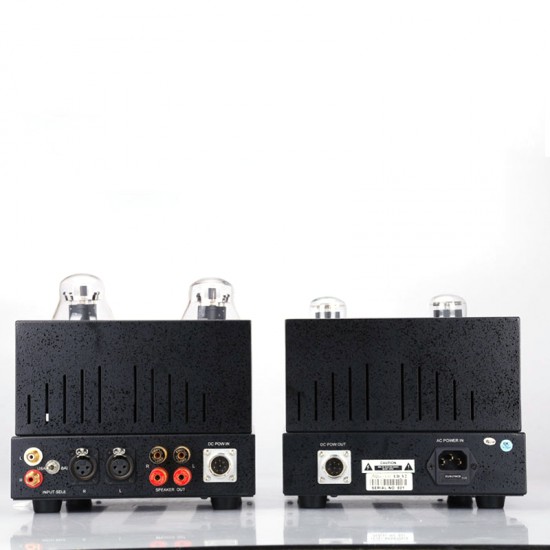

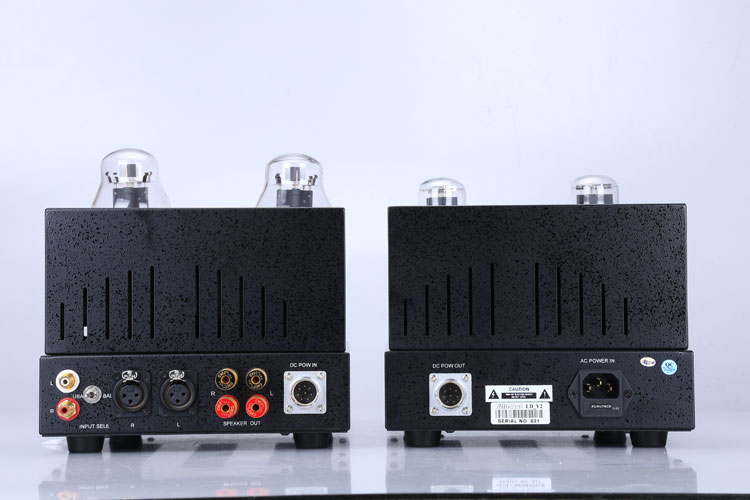

Input terminal:
XLR balanced input x2
RCA unbalanced input x2
Headphone output terminal:
XLR (4-core) x1 (balanced headphone output)
6.35 (3-core) x1 (unbalanced headphone output)
Speaker output terminal: 4 left and right channels
Distortion: 0.1% (1000Hz)
Signal to noise ratio: 98dB
Frequency response:
20Hz-20KHz (-0.2dB)
10Hz-50Hz (-2dB)
Output Power:
10W (8 ohm)
6W (120 ohm)
3W (300 ohm)
Gain:
GAIN=HIGH: 7
GAIN=LOW: 4
Rate consumption: 150VA
Weight: 23Kg
