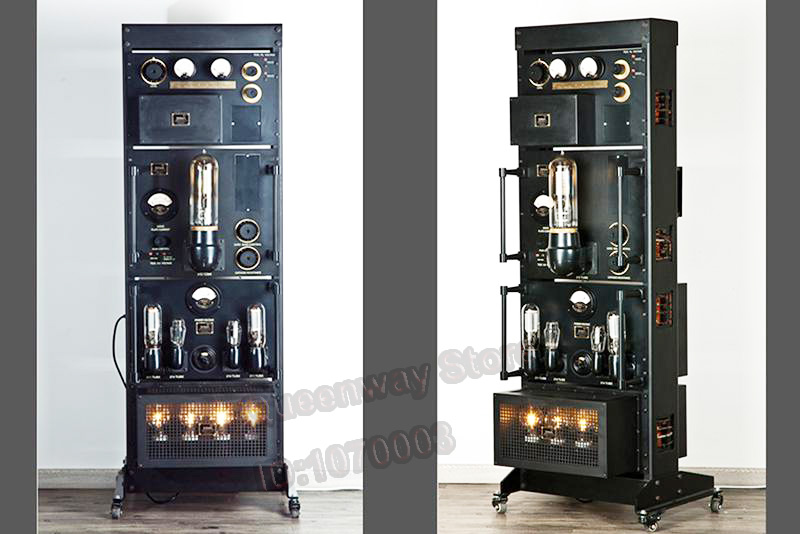

Line Magnetic Tube Amplifier Analog Sound LM-212

 Mono Single-end Vacuum Tube Amplifier  Power Amplifier

WE Duplication Version

​Features

1. LM-212 is a direct radiating vacuum tube amplifier which use expensive direct radiating vacuum tube.

2. Use rectification vacuum tube chock and transformer for filament power-supply.

3. Use 24 WE iron cores which designed for audio transformer.

4. There are 300B single-ended amplification attachments, which can output 2 ways at the same time.

Specifications

Brand: Analog Sound

Item: LM-212

Power output：212-20W

 (211 attachment 18W)（300B attachment 6W）（RMS）

Frequency response：10Hz～20kHz（1W）

Input Impedance：100kΩ

Output impedance: 4 Ω, 8 Ω, 16 Ω , 600 Ω

 Tube Complement： 205D×2 / 102D×2 / 211×6 /5U4×4 /313×2 /300B×4 / 6X5×2 / 6J7×2 /EL-6C×8 /
(attachment of 300B should purchase additionally：300B×2)

Dimension (WxHxD)：1740mmx520mmx570mm

Net weight: 204 kg

Attention:

About the specific parameters , you can contract us if you are interested in.

​
