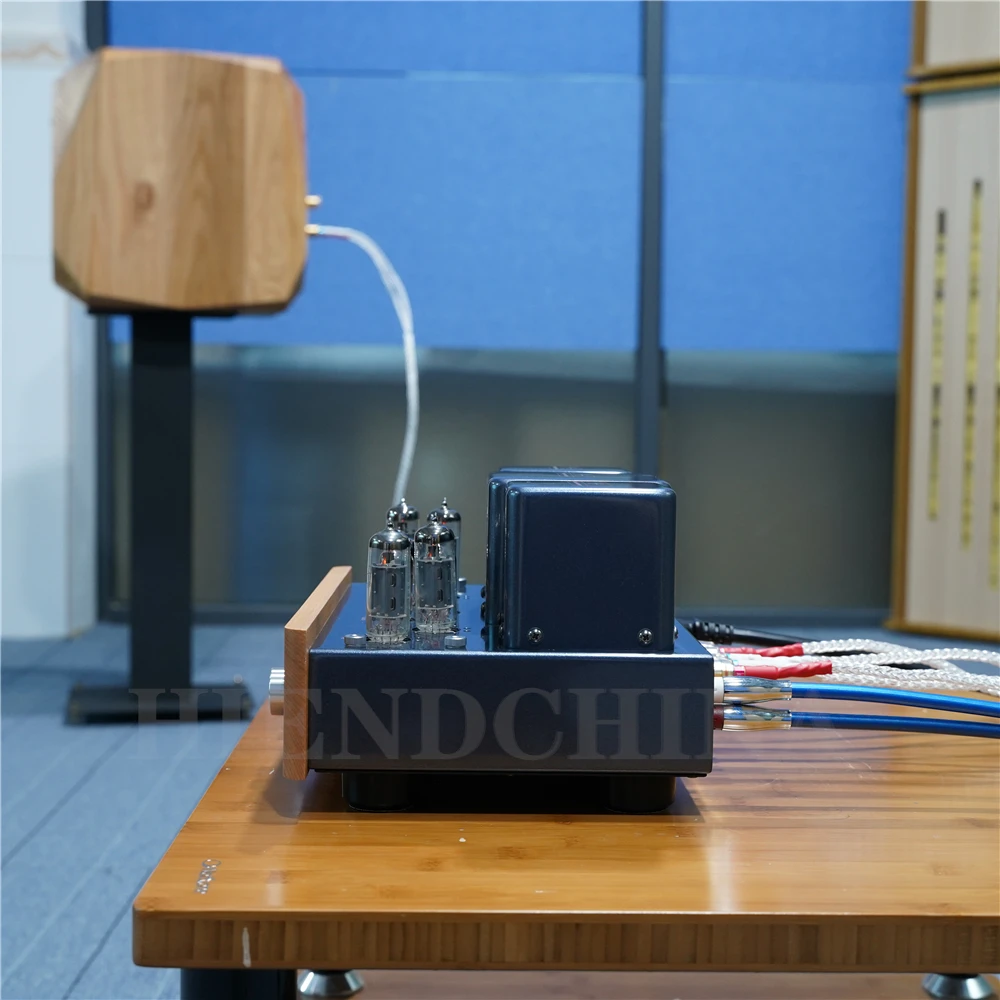

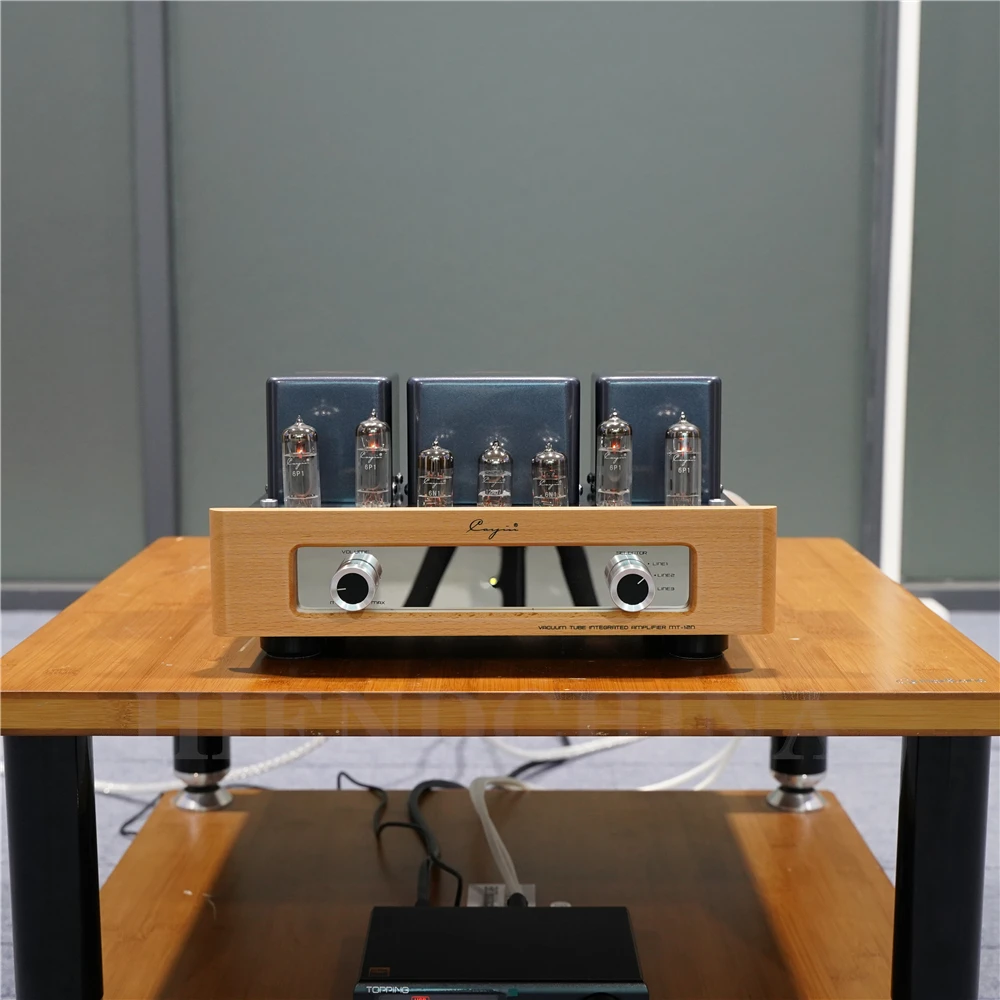

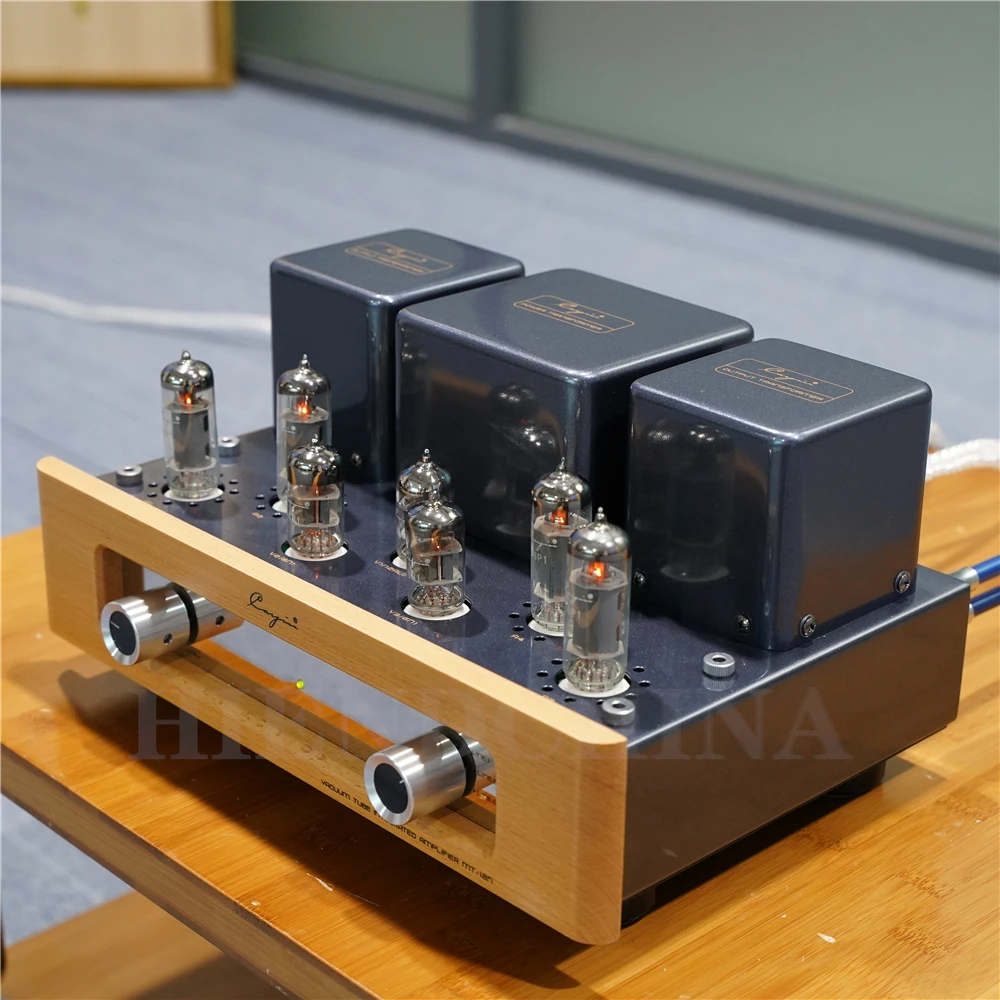

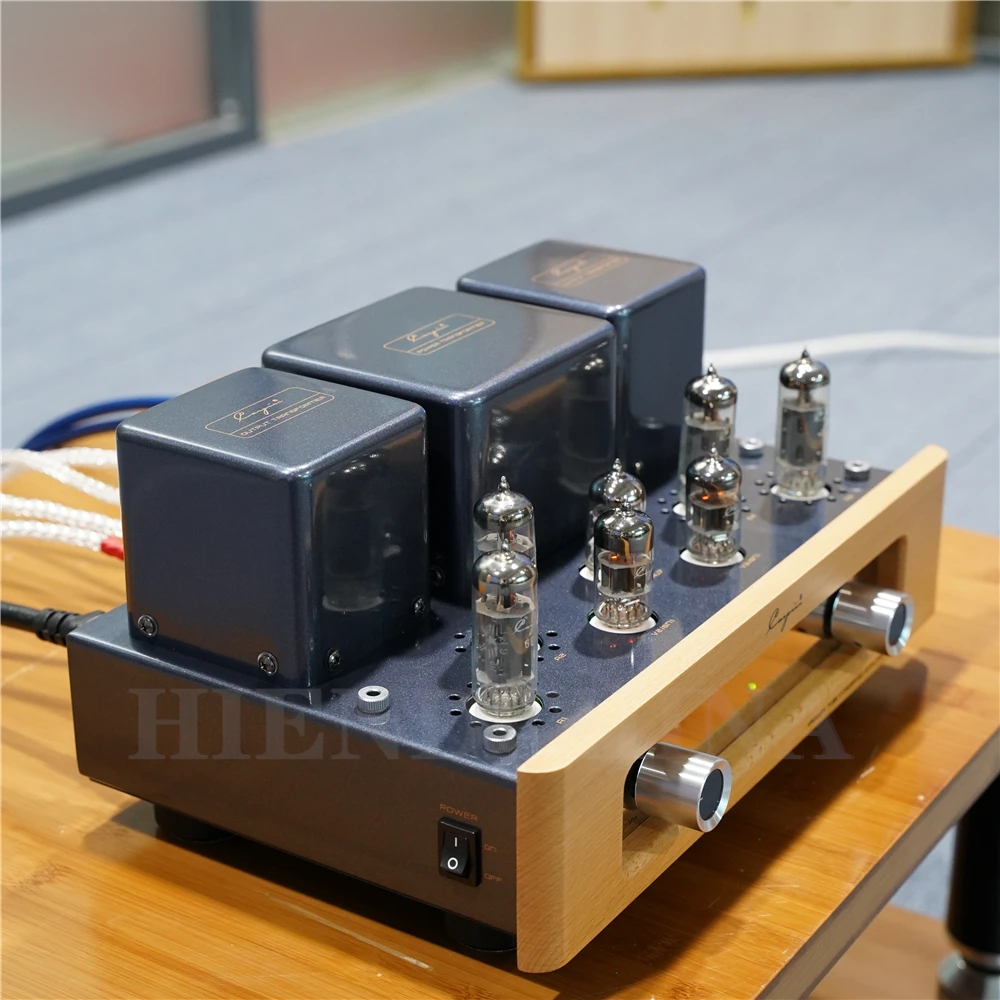

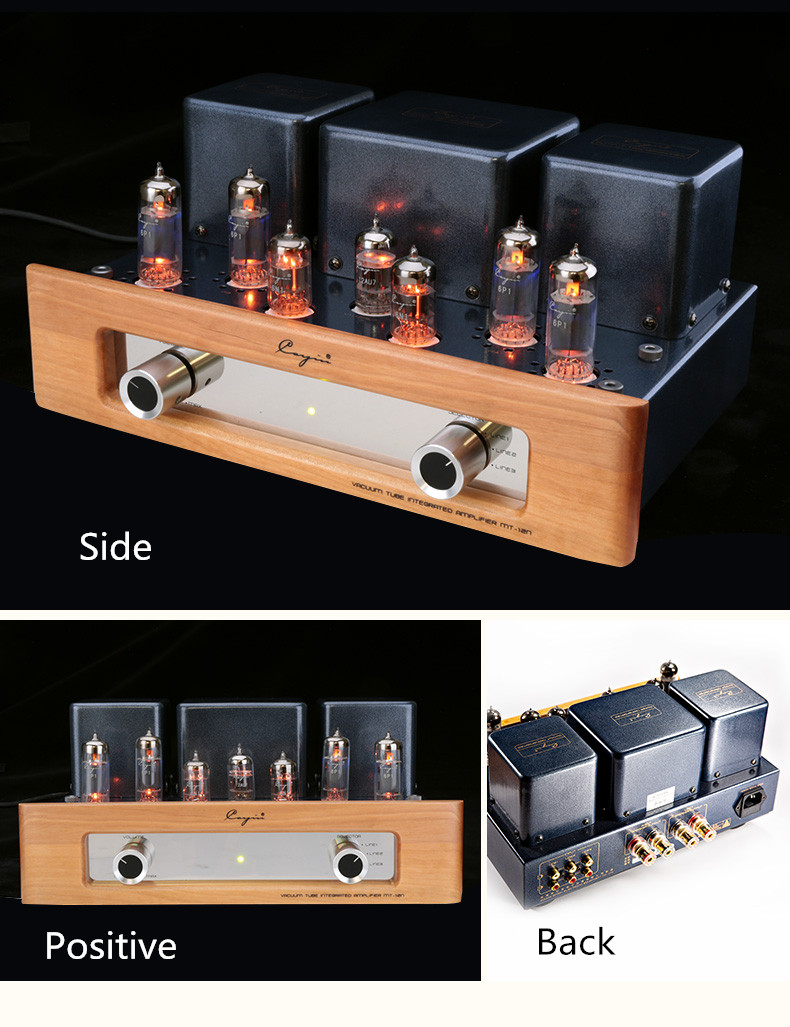

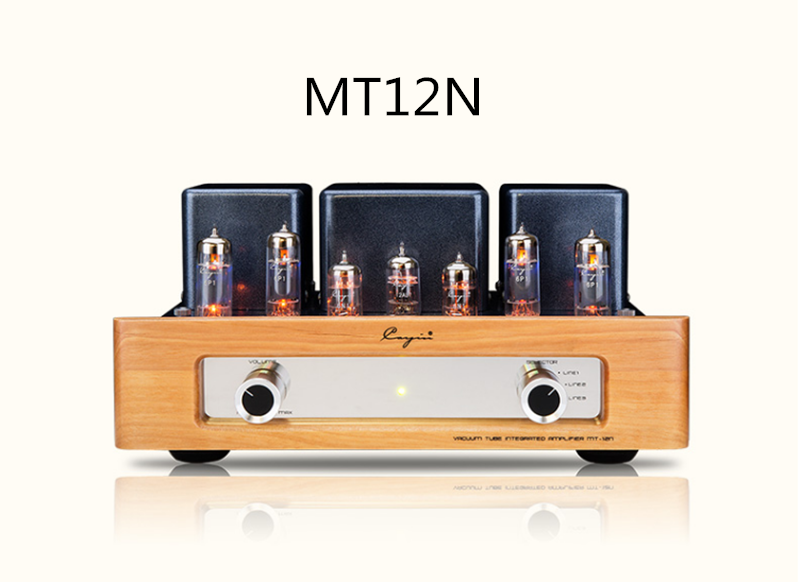

Cayin MT-12N Vacuum Tube Amplifier Vacuum Tube 6P1*4 Push-pull 9W*2 220V Combination With A65 Tube Amplifier Speaker
$453.00
Ex Tax: $453.00
- Stock: 20
- Model: 2255800034580259
- Dimensions: 3.00cm x 27.00cm x 33.00cm
- SKU: 2255800034580259

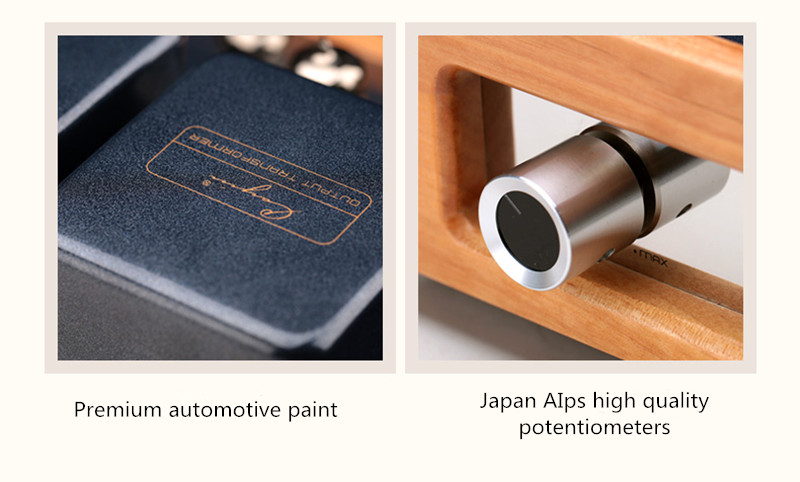

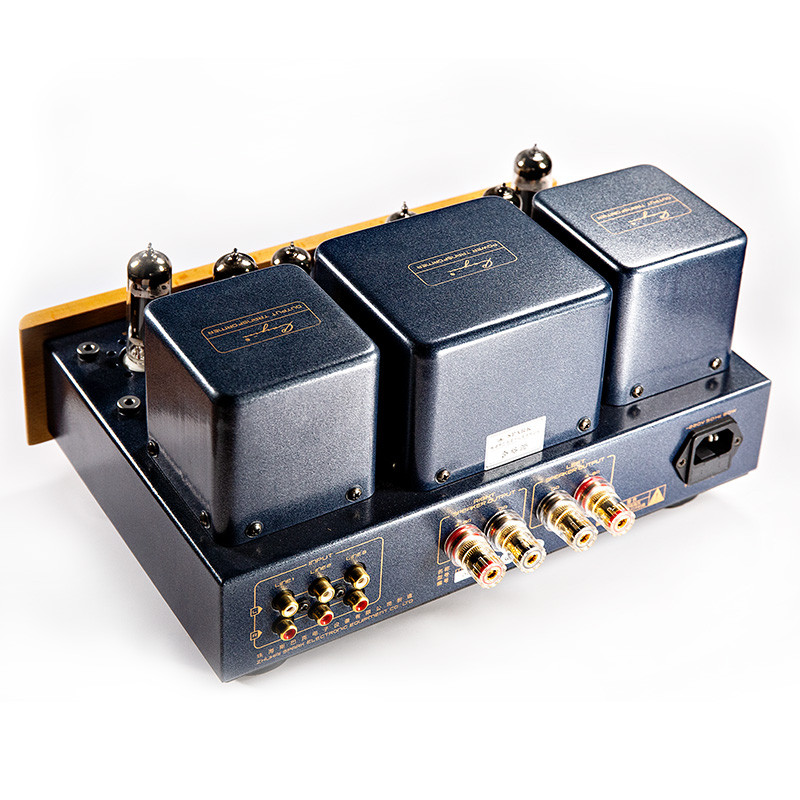

1. Using a special high-quality wide frequency response EI type output transformer,
2. Using a special toroidal power transformer,

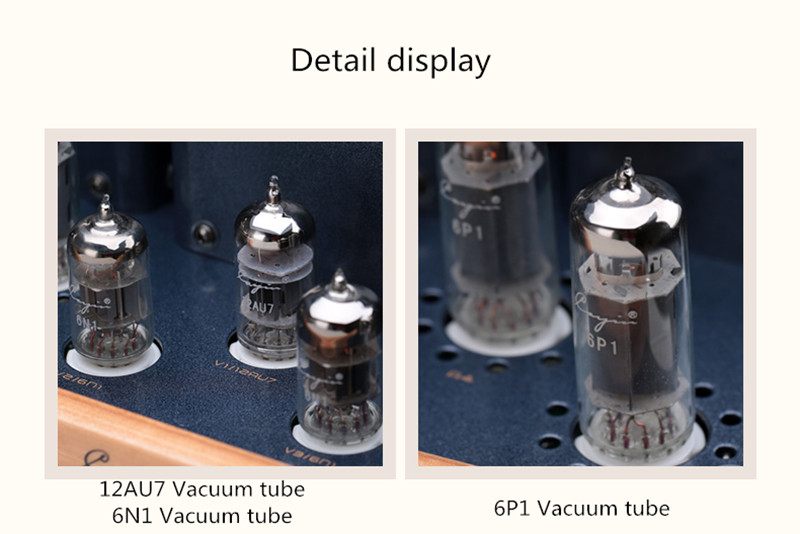

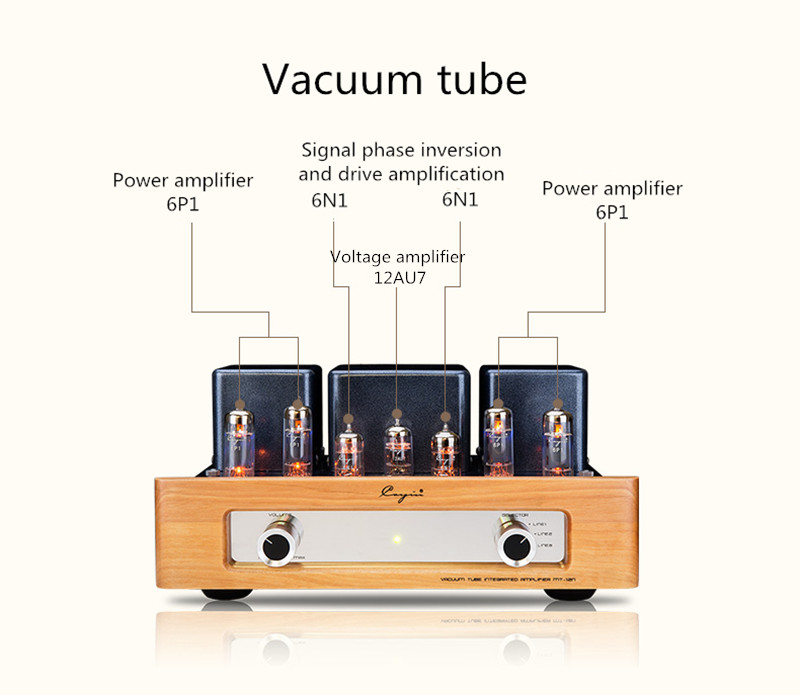

3. The voltage amplifier stage using a 12AU7 served, two 6N1 responsible for the left and right channel signals and inverting driver amplifier,
4. Use the four selected pairs 6P1 class AB1 do push-pull tube power amplifier,
5. plug vacuum tube shield..
Specifications:
Vacuum tube | 6P1 | EL84 |
Rated output power | 9W+9W | 11W+11W |
Frequency Response | 10HZ～35KHZ ( -3dB) | 9HZ～45KHZ ( -3dB) |
THD/Harmonic distortion | 0.5 % ( 1KHZ ) | 0.5 % ( 1KHZ ) |
Signal-to-noise ratio | 86dB | 87dB |
Input Sensitivity | 260mV | 230mV |
Input impedance | 100KΩ | |
Output impedance | 4Ω-8Ω | |
Power supply voltage | ～220V±5%50Hz | |
Power consumption of the whole machine | 80W | |
Use vacuum tube | 12AU7×1,6N1×2,6P1×4(EL84x4) | |

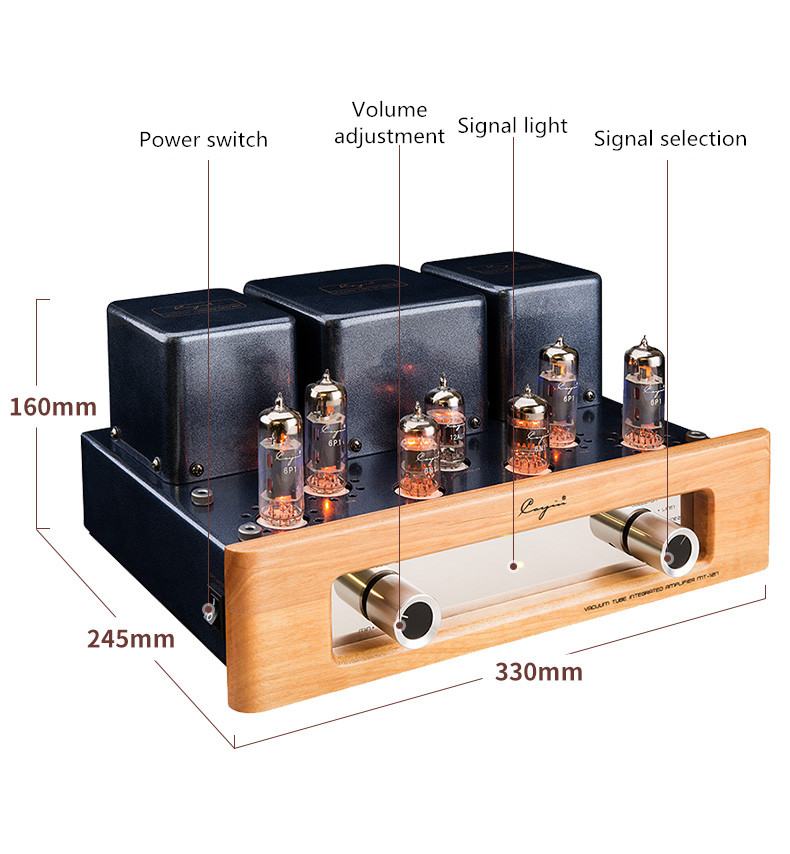

Product volume | 330x245x160mm | |
Net weight | 8.3Kg | |
Working conditions | Temperature 0℃-40℃ Humidity 20%-80% | |
Storage conditions | Temperature ·20℃-70℃ temperature 20%-90% | |
Vacuum tube amps the use of attention:
1. Disable output short circuit and output load, before you start you must first connect speakers or headphones, the best is always keep them connected,
2. Start with minimal volume,
3. The supply voltage should be stable, with the use of conditional HiFi clean power for better protection and sound,
4. When the vacuum tube amplifier operating temperature is high, pay attention to ventilation, not to touch hot tube,
5. Do not put water on a hot vacuum tubes,
5. Do not put water on a hot vacuum tubes,
6. Boot and shutdown interval of 5 minutes,
7. Do not over 6 hours of continuous work,
8.6 ohm speaker connected to the 4 ohm, 8 ohm interfaces are available,
9. vacuum tube amplifier sound 40% depending on the power amplifier tube quality, 40% depends on the quality of output transformer, 10% depends on other electronic components quality, 10% depending on the manufacturing process,
10. power supply voltage can be free custom (please consult).
