- Stock: 100
- Model: 4000582320492
- Weight: 11.00kg
- Dimensions: 25.00cm x 50.00cm x 25.00cm
- SKU: 4000582320492
Technical parameter:
|
Specification: |
|
|
MM Level: |
1Mv |
|
MM Input Impedance: |
47KΩ |
|
MM Voltage Gain: |
60dB |
|
MM Signal-to-Noises: |
90dB |
|
Output impedance: |
600Ω |
|
MC Level: |
0.1mV |
|
MC Input Impedance: |
100Ω |
|
MC Voltage Gain: |
80dB |
|
MC Signal-to-Noises: |
78dB |
|
Vacuum Tubes: |
6N6*2, 6P6P*1, 6N11*4, 12AT7*1, 12AU7*1 |
|
Net Size: |
W15*D34*H15 cm |
|
Gross weight: |
11KG |
Product introduction:

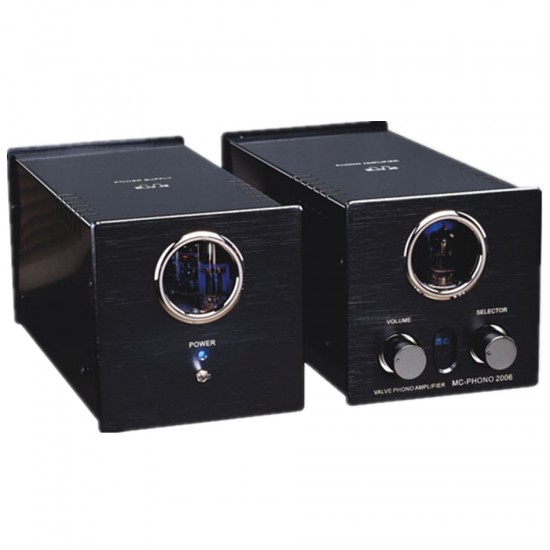

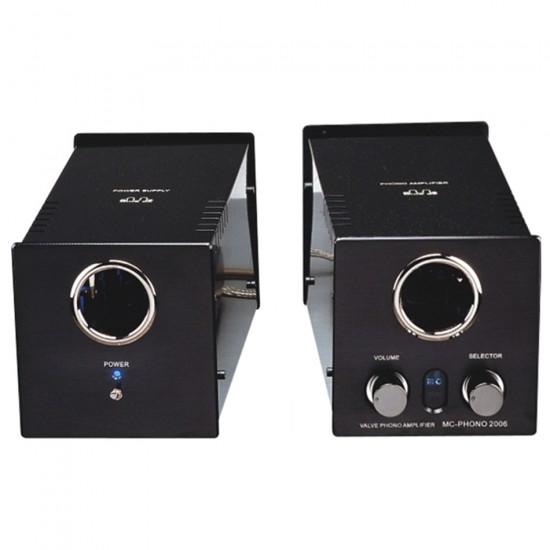

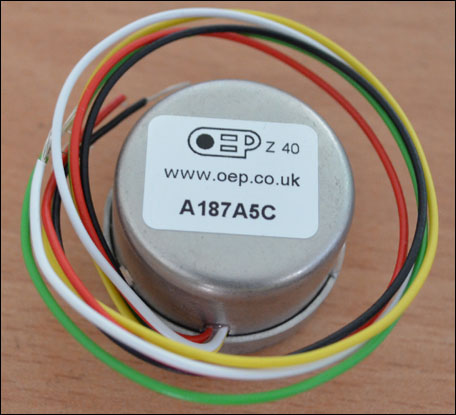

It is time to present proudly a new model from our production- the MC2006 Phono stage. The MC2006 is designed around a separate power supply composed of imported OEP LP transformers and valve rectification as well as valve voltage stabilization. This design reduces the network noise to a non audible minimum and results in a spring clean pure sound.
