Product parameters:

System: CD-ROM digital audio system

Frequency response: 20Hz~20KHZ, +3DB.

Power supply: AC 220V/115V50Hz.

Signal to noise ratio: 110DB.

Power consumption: 25W (for reference only).

Dynamic range: 110DB.

Machine volume (W×D×H): 350×310×100MM (excluding protruding parts).

Total harmonic distortion: 0.0025%.

Output level: 2.2VP-P.

Weight: 9KG.

Reading time: ≤5 seconds.

Digital coaxial output characteristics: in line with S/PDIF.

Standard working conditions: Temperature: 5℃~35℃ Humidity: 9%~90% (no condensation).

Features of this machine:

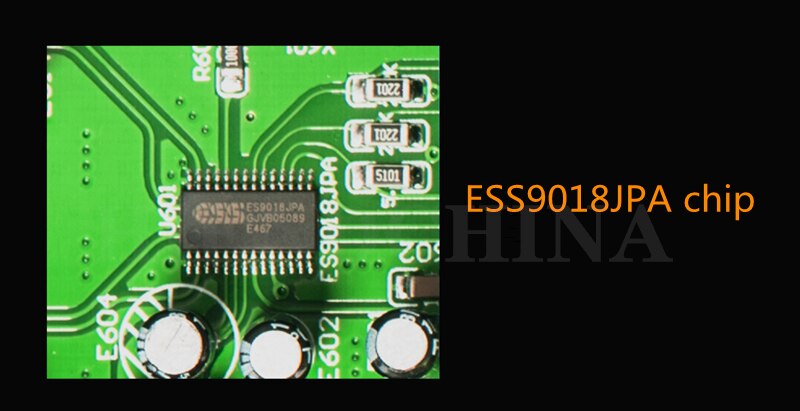

1: Adopt American BB company ESS9018JPA decoder chip, OPA2134 operational amplifier supports up to 32BIT/384KHZ, up to 120DB signal-to-noise ratio

2: Support 44.1KHZ, 88.2KHZ, 176.4KHZ, unique up-conversion switching function

3: Using Sanyo movement, Philips CD servo system

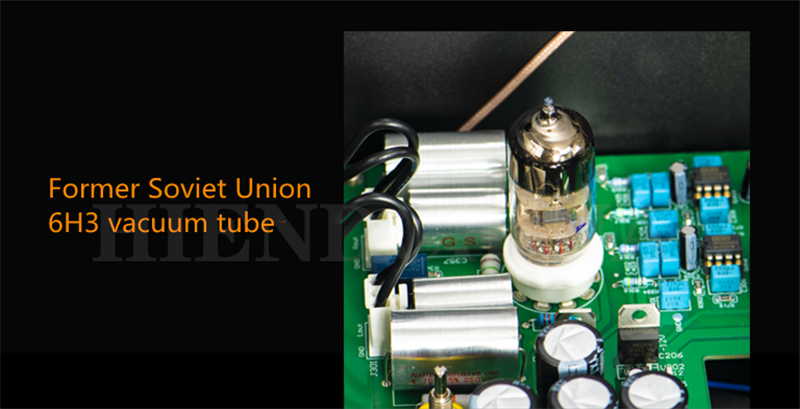

4: Full bile low-pass filtering, especially the original Soviet Union 6H3 vacuum tube amplifies the output of the true bile CD

5: American Qualcomm CSR8675CD audio dedicated Bluetooth, supports high-definition formats such as AAC.APTX and DAC.
