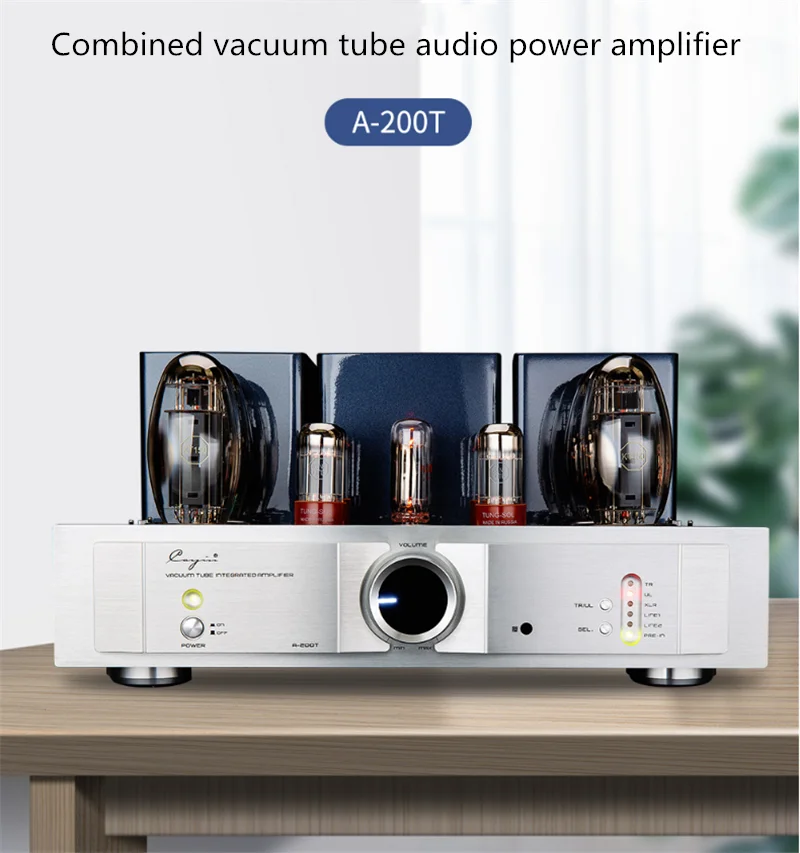

Cayin A-200T Vacuum Tube Integrated Power Amplifier TUNG-SOL KT150*4 Push-pull High Power Vacuum Amplifier TR: 55W*2 UL: 100W*2
$3,929.00
Ex Tax: $3,929.00
- Stock: 50
- Model: 4000672516823
- Dimensions: 47.00cm x 44.00cm x 27.00cm
- SKU: 4000672516823
The tube amplifier must be connected to the speaker before running, otherwise the power amplifier may be damaged.
Product parameters:
Rated output power: 55W+55W (RMS three-pole tube working state)
100W+100W (RMS super linear working state)
Whole machine frequency response: 9Hz~55kHz(-3dB)
Total harmonic distortion: 2% (1kHz)
Signal to noise ratio: 90dB.

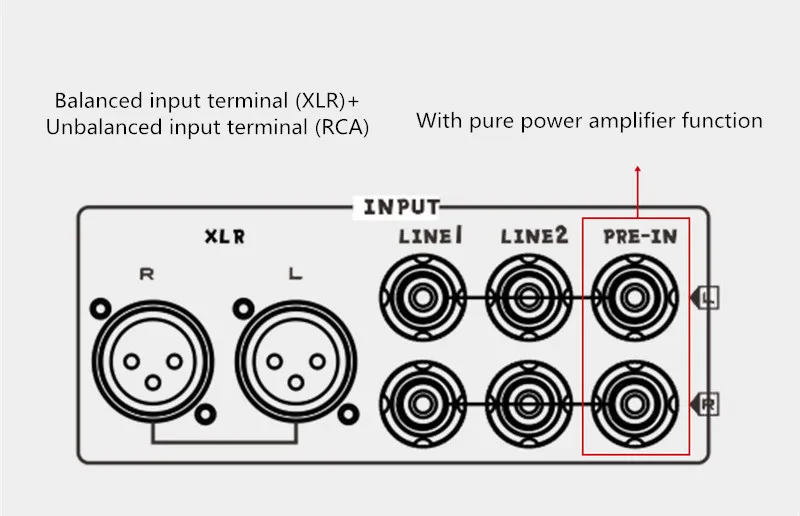

Input sensitivity: 380mV (when combined input)
1200mV (when pure power amplifier input)
Input impedance :100 kΩ
Output impedance: 4Ω, 8Ω
Power supply voltage: ~220V±5% 50 Hz
Power consumption of the whole machine: 520W

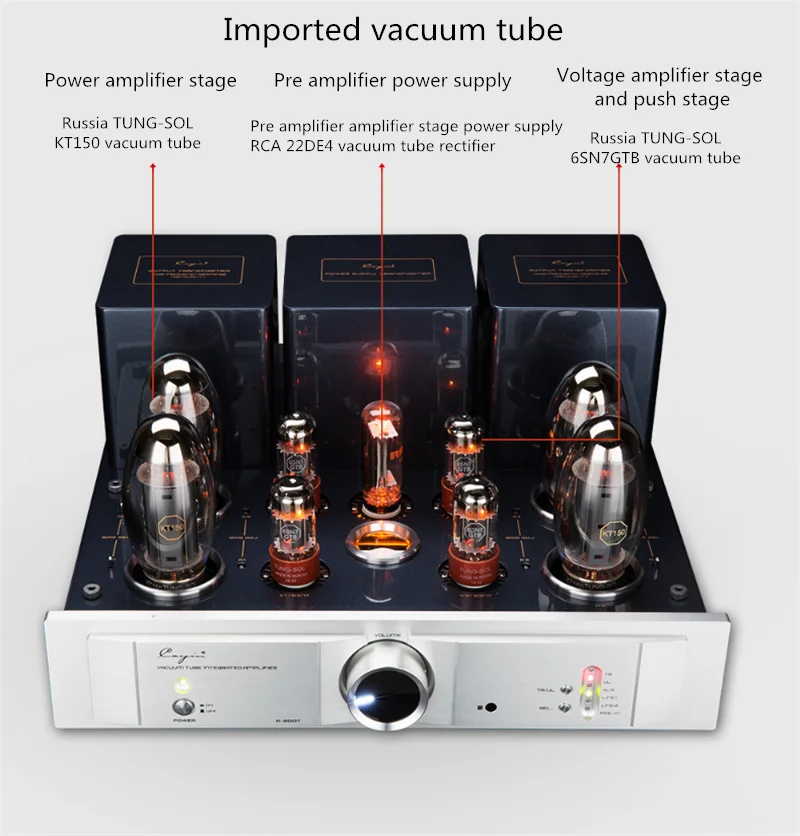

Use vacuum tube: TUNG-SOL 6SN7x4 TUNG-SOL KT150x4,
RCA 22DE4x1

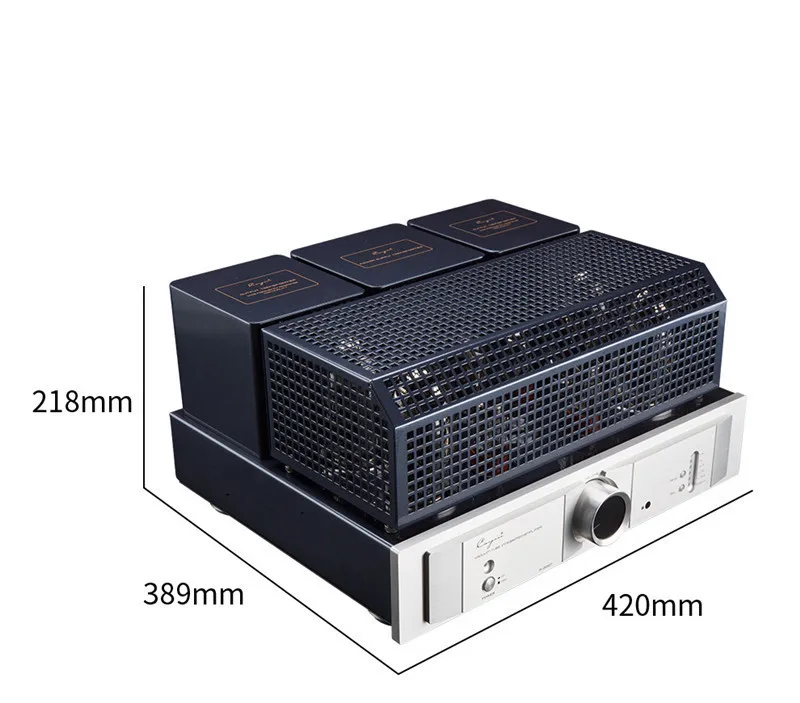

Product volume: 420x389x218mm³
Net weight: 34 Kg.
Working conditions: Temperature 0℃~40℃ humidity 20%~80%
Storage conditions: Temperature -20℃~70℃ Humidity 20%~90%
