Product parameters:

Amplifier part

Output power: 32W×2(8Ω).

Frequency response: 10Hz~80KHz (-2dB).

Distortion: ≤1% (8Ω, 22W).

Signal-to-noise ratio: ≥93B (A-weighted).

Input sensitivity: ≤260mV

Power consumption: ≤230W

Load impedance: 4Ω-8Ω

Vacuum tube front stage: 12AU7/ECC82×2, 12AX7/ECC83×1, rectifier tube 624×1

Power stage: Russian EH-EL34×4

Input terminal: AUX1, AUX2, USB, Bluetooth

Gross weight about: 24.5kg

Size: length 400mm, width 355mm, height 220mm

Bluetooth part:

Bluetooth version: V5.0

Bluetooth chip: CSR8675

Audio transmission format: UAt, LDAC, AC, SBC

Effective distance: ≤10 meters

1: Pre amplifier uses two 12A7/ECC82 and one 12AX7/ECC83 vacuum tubes for voltage amplification and promotion, and 4 diodes for rectification. Using the unidirectional conductivity of the diode, the alternating current in alternating directions can be converted into the pulsating direct current in a single direction, and the combination of two excellent vacuum tubes can make the sound more analytical and expressive, and give play to the softness and warmth of the sound of the tube amplifier. specialty.

2 : Power amplifier uses four EH-EL34 vacuum tubes imported from Russia to do AB1 class push-pull power amplification. Push-pull can reduce the quiescent current of the circuit, reduce distortion and improve the output power

1: Input/Volume knob: Press the knob down to select the input channel, the sequence is: CH1→CH2→DIG→>BT Turn counterclockwise to decrease the volume, turn clockwise to increase the volume

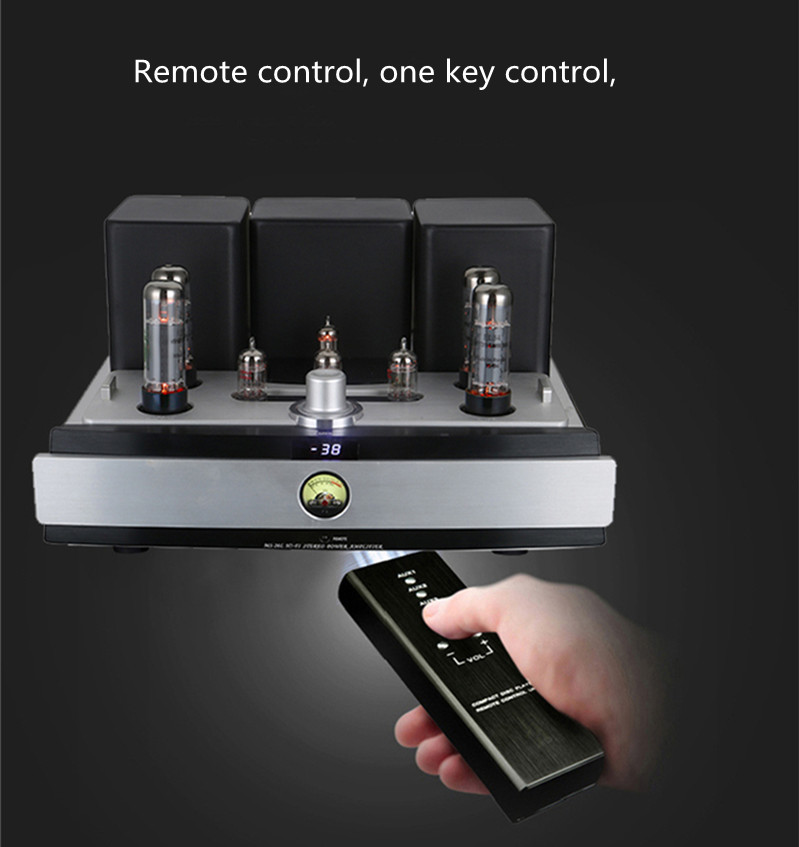

2: Remote control receiving window/Bluetooth indicator: flashes when there is no device connected in the Bluetooth state, and stays on when the device is connected

3: Volume VU meter

4: Display: Display the input channel and volume value

1: Two sets of audio input interfaces (AUX1, AUX2)

2: Right channel vacuum tube fuse

3: Right channel output binding posts (4Ω and 8Ω respectively)

4: USB digital audio input port

5: Left channel output binding post (4Ω and 8Ω respectively)

6: Left channel vacuum tube fuse

7: 230V/115V voltage switch: adjust to 230V for domestic use

8: Power input interface and power fuse

9: Bluetooth receiving antenna
