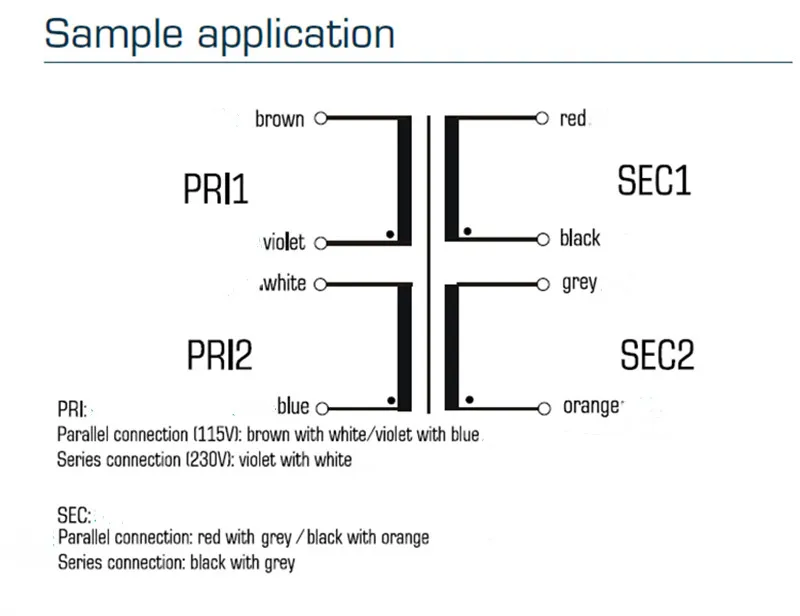

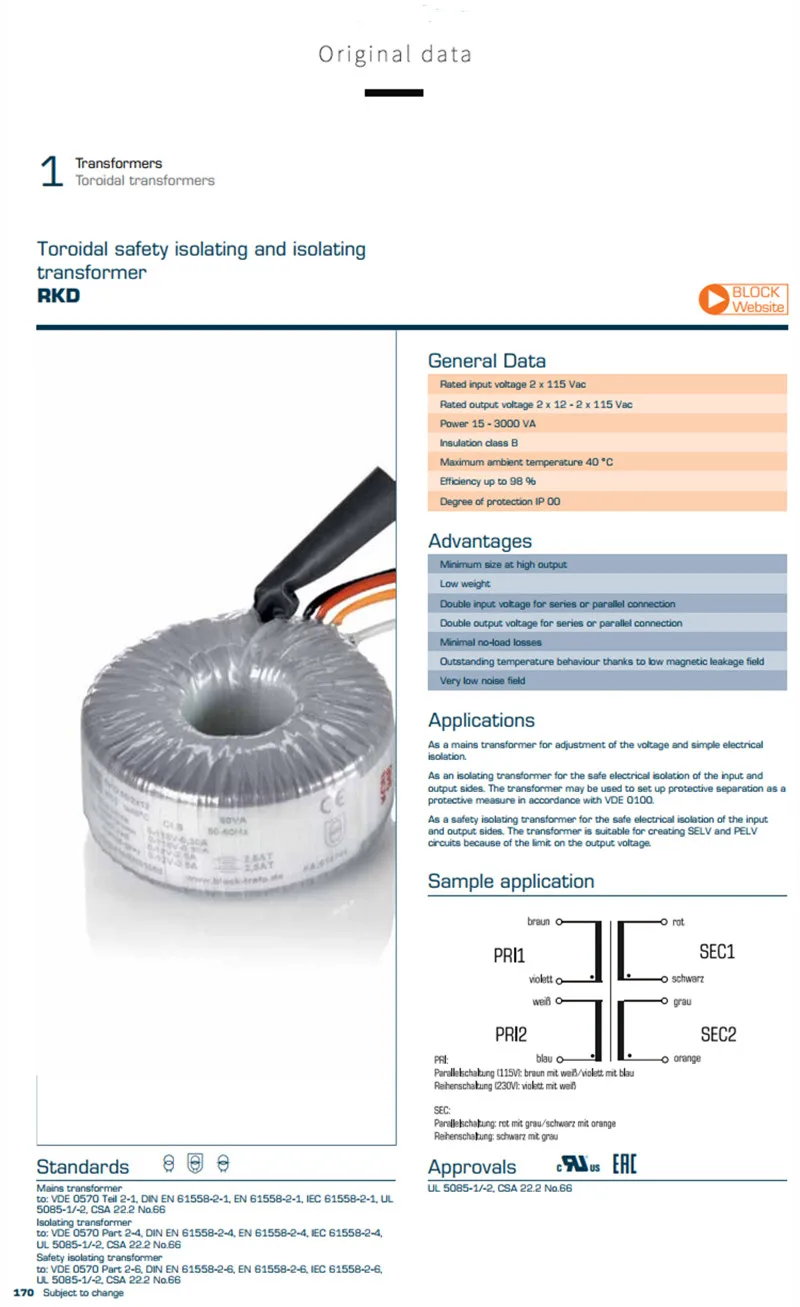

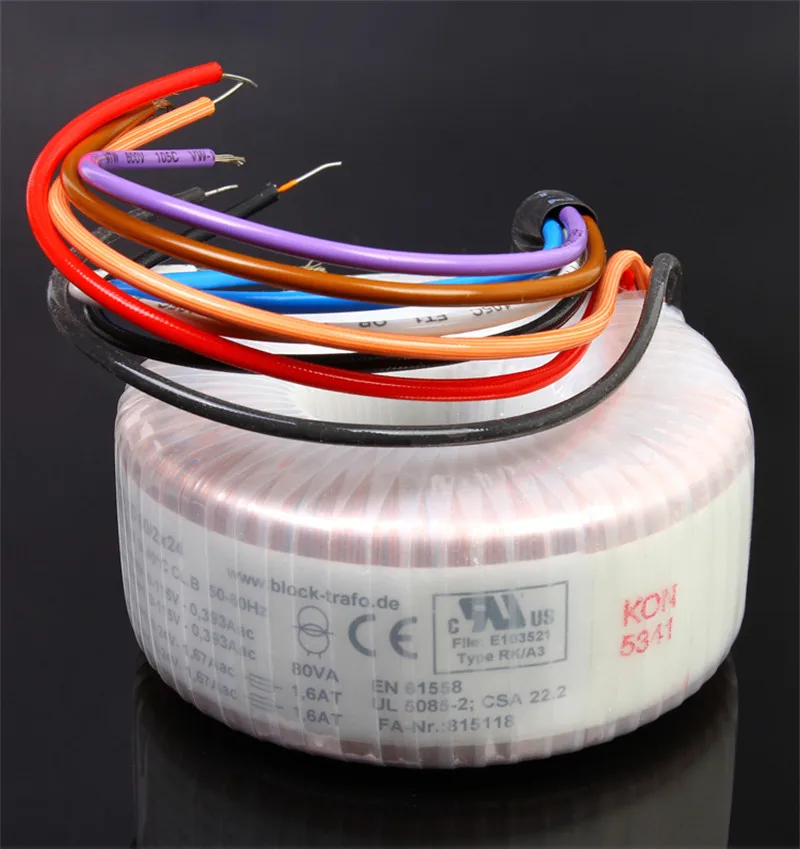

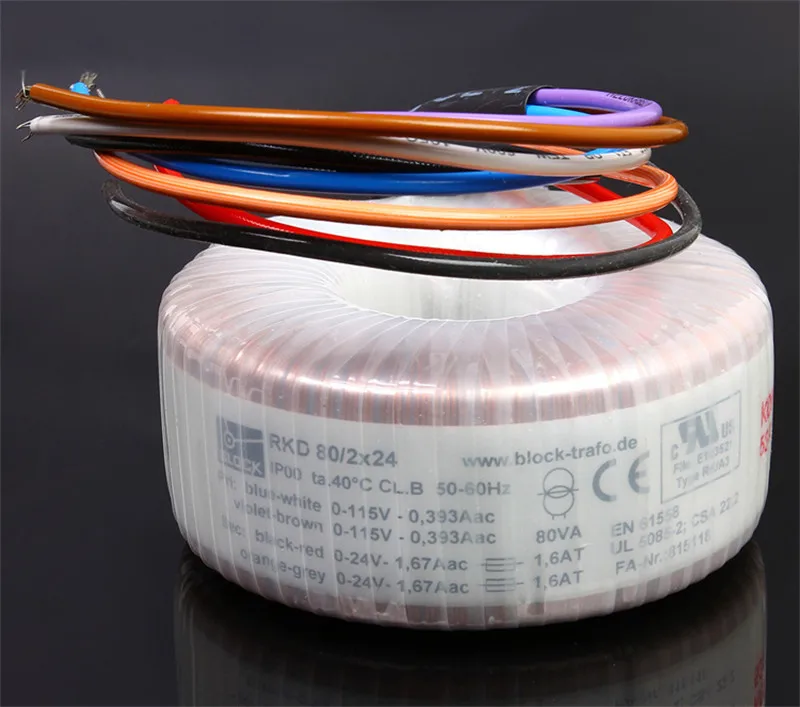

RKD series toroidal transformer, high-quality open toroidal transformer, dual 115V AC input, can be connected to 230V input, power 15VA-3000Va, insulation class B. Small size, low weight, dual input voltage for series or parallel. The dual output voltage is the most no-load loss in series or parallel, and the low leakage magnetic field makes it have excellent temperature characteristics. Compared with the traditional lamination type, the ultra-low noise field is small in size and light in weight, with extremely low radiation magnetic field and ultra-low iron loss.

Specifications:

Structure: Open circular transformer.

Weight: about 1.1kg.

Terminal Type: Lead

Number of outputs: 2

Maximum temperature temperature: +40°C

Power: 80VA.

Efficiency: 86%

Primary rated voltage: 115V AC

Secondary rated voltage: Dual 12/15/18/24V

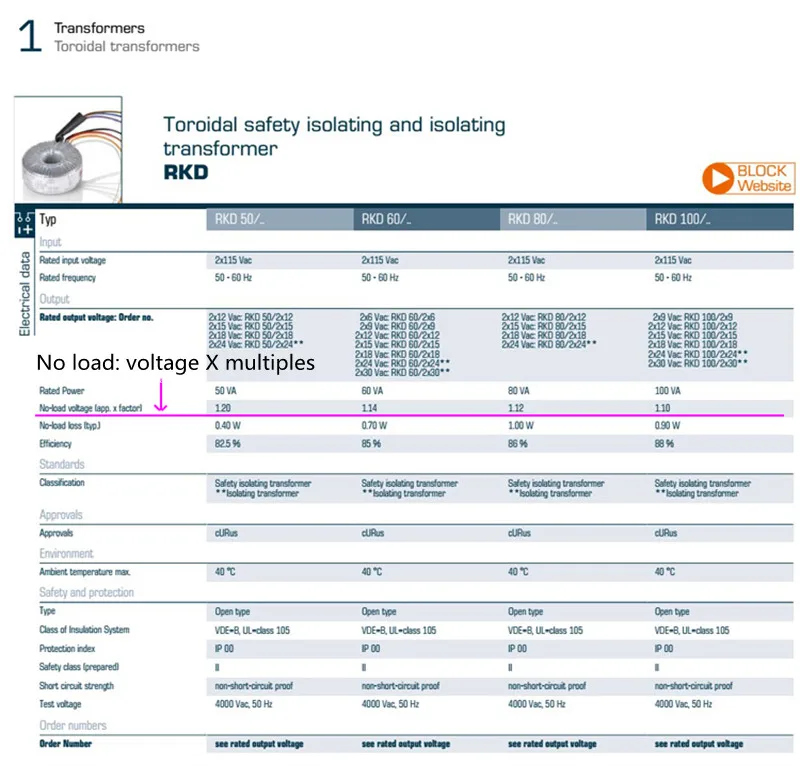

AC output no-load voltage: marked voltage X1.12

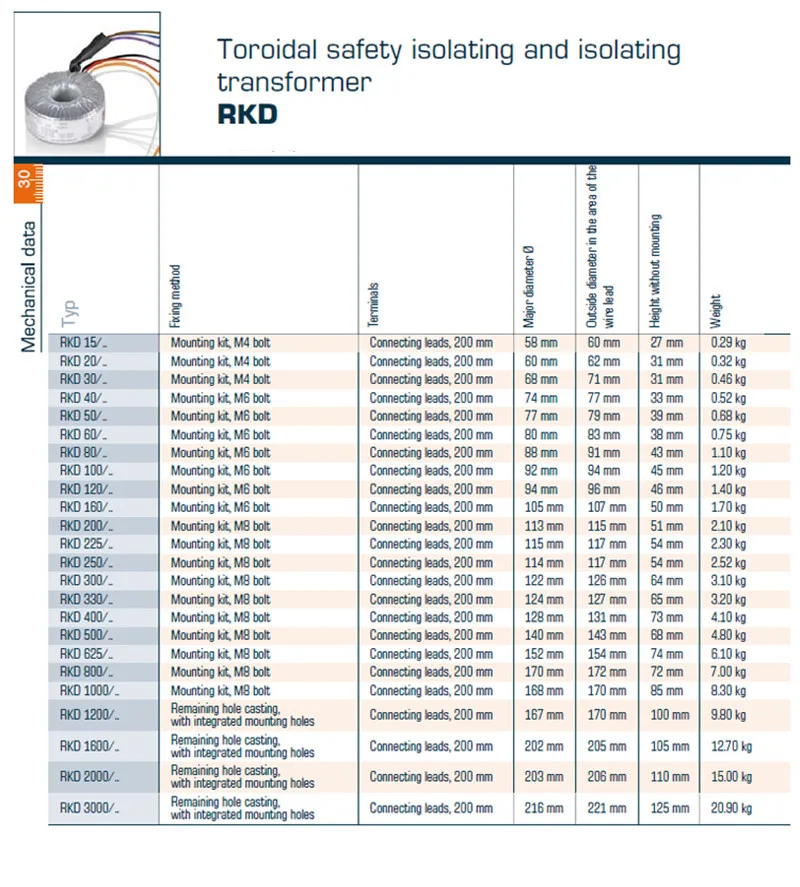

Size: Diameter 91X Height 43mm

Screw size: M6X55mm
