Product parameters:

Frequency response range: 10Hz-50khz (+1/-3dB)

Distortion: ≤0.01.

Signal-to-noise ratio: >110dB (A-weighted)

Overall size: 440×178(197)×420(445)WxHXD

Rated output power: 930Rms/4Ω (THD=3%, mono, 1KHz)

560WRms/8Ω(THD=1%, mono, 1KHz).

Rated impedance: 8Ω.

Overall gain: ≥29dB

Net weight: 23.5KG

Features:

1: 560W high power

2: HI-FI circuit

3: Giant Transformers

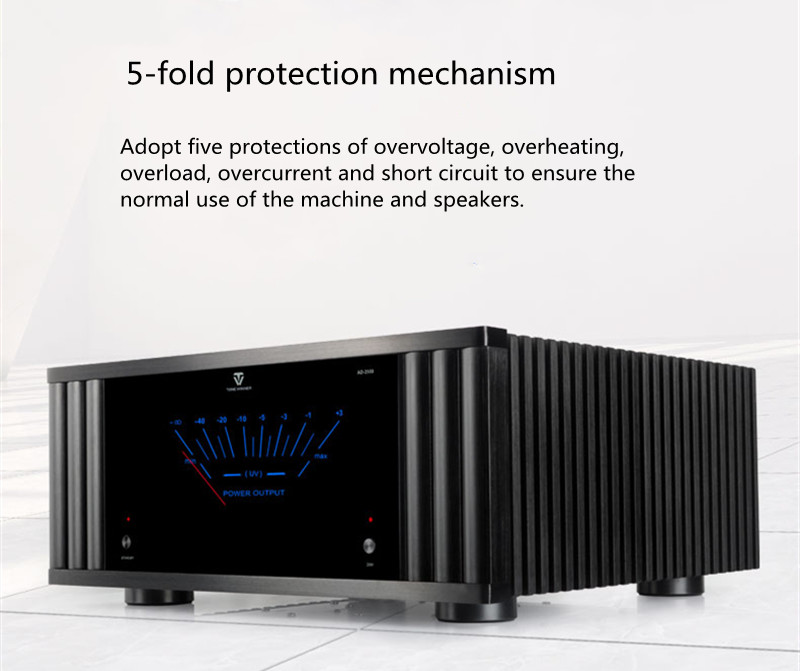

4: Five layers of protection

5: Fully balanced output

6: High-power famous tube

7: Large-capacity capacitors

8: Sub-chamber and sub-chamber structure

9: Aluminum alloy body

●AD-2500 selects eight pairs of high-power famous tubes of ON Semiconductor NJW0281G/NJW0302G paired with high precision. The performance of the tube is quite stable when the working current changes in a large range, and it will not affect the sound quality and timbre.

●The tube has excellent listening performance in the whole frequency range, with delicate texture and oily texture, full timbre, transparent and strong resolution; it will neither appear dull in low frequency nor feel frizzy in high frequency, and has strong plasticity, which is Not only is it a style favored by sound designers and tuners, but it is also a good sound pursued by the majority of audiophiles.

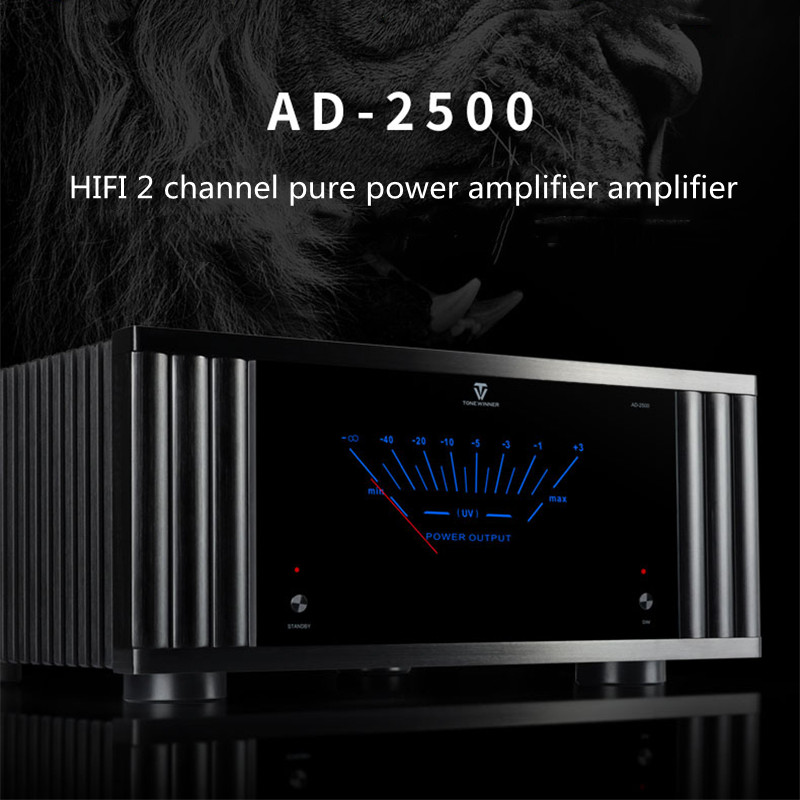

The whole machine adopts HI-FI design and structure technology, the panel is inlaid with black aluminum alloy and elegant and restrained acrylic plate, and the inner lining is eye-catching lake blue mechanical pointer type voltmeter.
