- Stock: 100
- Model: 32808537081
- Weight: 13.00kg
- Dimensions: 53.00cm x 45.00cm x 20.00cm
- SKU: 32808537081
XA320MKII (09) Vacuum Tube PRE
POWER AMP
Features

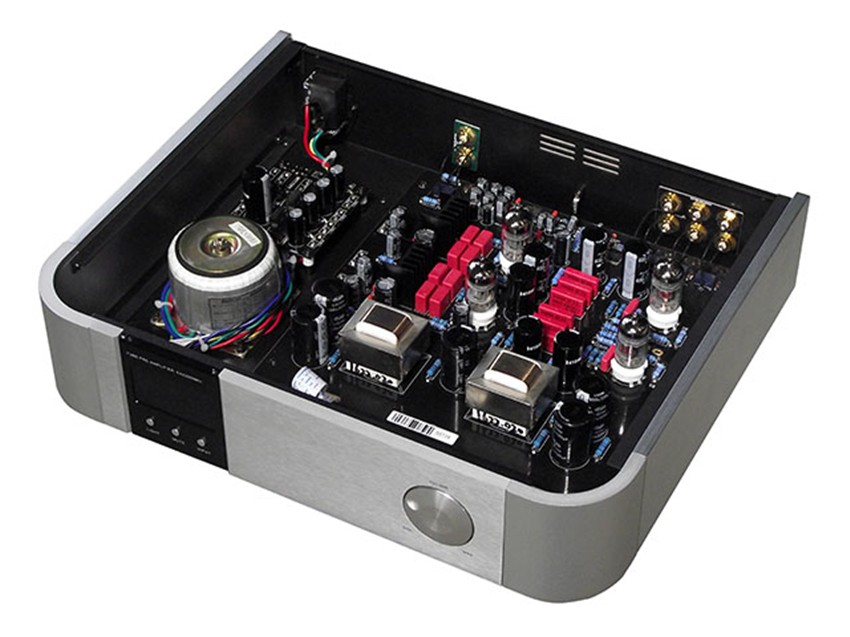

XA3200MKII (09) is a Tube Pre-amplifier, and the upgrade version on XA3200MKII. It adopts Marants-7 circuit for its main amplification. On the input stage, Tubes 12AU7 are connected through cathode by Xindak patent technology for coupling output.
This item can performance excellent sound and well balanced timbre with low distortion, High SNR, and can match with all kinds of power amplifiers.
Technical Parameters:
S/N Ratio: ≥83dB
THD: ≤0.2%
Input Impedance: 50kΩ
Output Impedance: 1*RCA
Number of Channels: 2
Tubes: 12AX7*2, 12AU7*2
Frequency Response: 20Hz~100KHz(±1dB)
Input: 3*RCA
Remote Control: Supported
Net Weight: 11Kg
Dimensions (W*H*D): 430mm*110mm*368mm
This form is for customers to better understand our products. If you want to know more details or purchase our products, please enter the link of the products.
|
Number |
Picture |
Name |
Frequency Response |
SNR |
Price |
Link |
|
W-001 |
|
MEIXING MINGDA MC300-PSE XLR Input XLR Output Flagship Vacuum Tube Preamp Premplifier Full Music 300BN*4 Power Amplifier |
5Hz~150KHz |
≥94dB |
7650$ |
W-001 |
|
W-002 |
|
Line Tube Magnetic amplifier LM-512CA preamp PRE AMP 3*RCA 1*XLR input 6KZ8 6922 22DE4 with Remote control |
15 Hz~30 kHz |
90 db |
5200$ |
W-002 |
|
W-003 |
|
QUEENWAY HIFI AUDIO XA3200MKII Vacuum Tube Pre Amplifier 12AT7*2, 12AX7*2 Remote Control PRE AMP Input: 1*RCA |
10Hz~100KHz |
≥87dB |
656$ |
W-003 |
|
W-004 |
|
1PCS YAQIN MS-845 Vacuum Tube Preamp Pre-amplifier Preamplifier SRPP Circuit Best Appearance 12AX7x2 12AU7x1 AC110~220V |
10Hz-40kHz |
≥86dB |
699$ |
W-004 |
|
W-005 |
|
QUEENWAY XA3200MKII (09) Vacuum Tube Pre Amplifier 12AX7*2, 12AU7*2 Remote Control PRE AMP Input: 3*RCA |
20Hz~100KHz |
≥83dB |
1320$ |
W-005 |
|
W-006 |
|
QUEENWAY Classic No.290 Vacuum Tube Pre amplifier Pre-amplifier Pre-amp 12AT7EH x 2, 6H30EH x 1 infrared remote control |
3Hz-1.5MHz/3Hz-200KHz |
112dB |
2460$ |
W-006 |
|
W-007 |
|
MEIXING MINGDA MC-7R the Latest Version Psvane 247B Tube Pre-amplifier Preamp Pre-amplifier Pre amplifier AC110/220V |
10Hz - 75KHz |
≥91dB |
599$ |
W-007 |
|
W-008 |
|
QUEENWAY MC67-PL Pre amplifier preamp with MM phono amp MC7R-II electric circuit AC110V/220V 60Hz/50Hz With Remote |
See the details |
88dB |
1200$ |
W-008 |
|
W-009 |
|
MEIXING Mingda MC2A3-PRE Vacuum Tube Pre Amplifier Preamp 1*XLR 4*RCA Input 6SN7*2 2A3*4 Output: 0.1V - 8V Gain 19dB |
5Hz - 150KHz |
92dB |
3920$ |
W-009 |
