- Stock: 10
- Model: 32903598852
- Weight: 21.00kg
- Dimensions: 36.00cm x 38.00cm x 50.00cm
- SKU: 32903598852

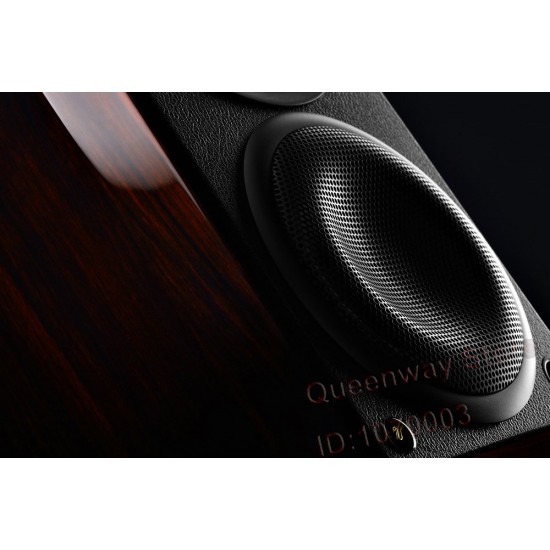

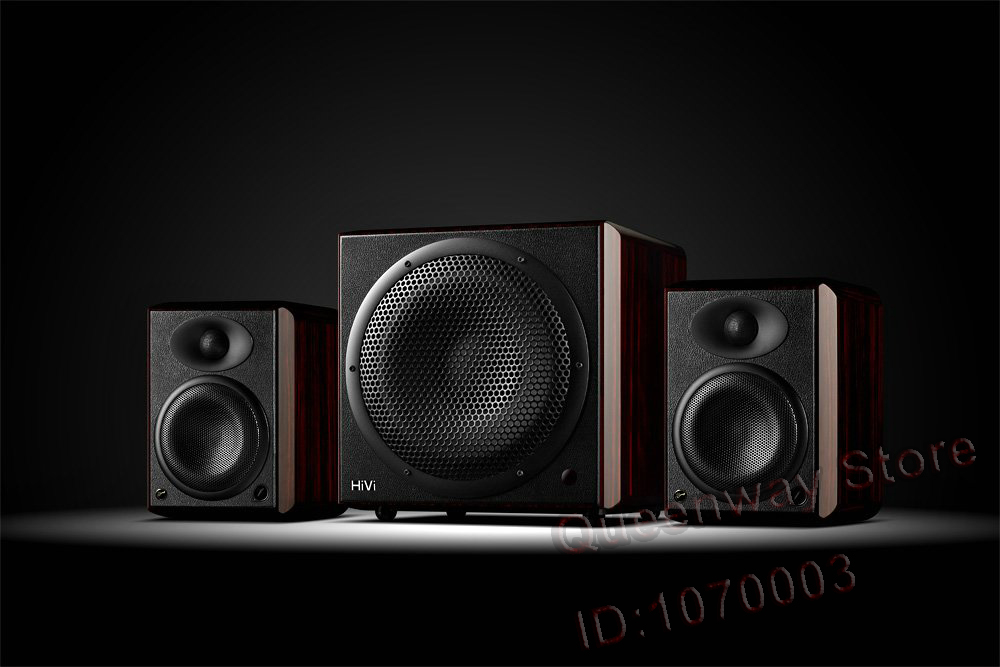

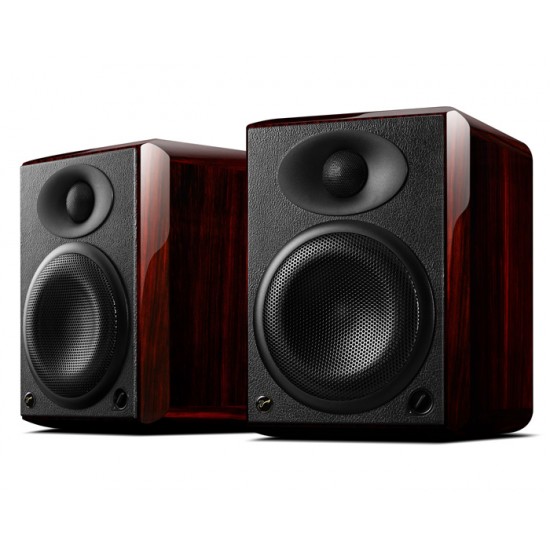

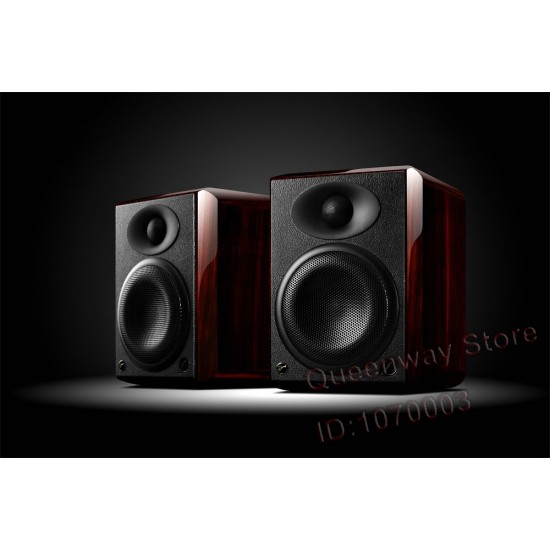

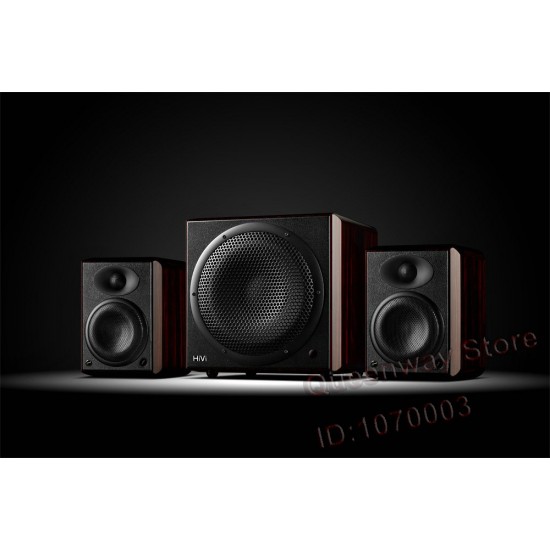

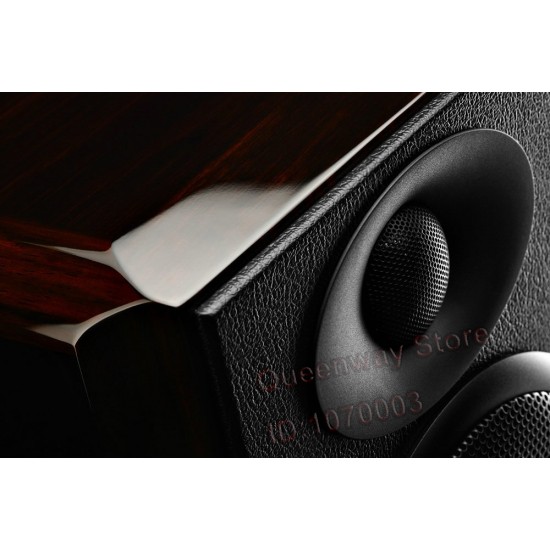

H5 2.0 Multimedia Speaker powered bookshelf speaker Active 2.0 music monitor speaker Two-way 4th vented speaker 87dB 4ohms
Parameters
System Series：Active Crossover Monitor Speaker System
System Type：Two-way 4th vented speaker system
Drivers Configuration：5.25” Bass-midrange driver+28mm dome tweeter
Frequency Range：53Hz-20kHz
Sensitivity(2.83V/1m)：87dB
Nominal Impedance：4Ω
Power Range：10-80 W
Amplifiers System
Power Range：45W RMS/Channel，90W RMS/Dual Channel
Active Crossover Frequency：1.8kHz
Bass Adjust：±2dB (200Hz)
Mid Range Adjust：0/-2/-4dB(500Hz)
Treble Adjust：±1dB (10KHz)
Signal-to-Noise: >94dB(Unweigthed)
Distortion: THD<0.05% ( 8Ω、1kHz、)
Input sensitivity: 350mV
Input impedance: 12kΩ
Input Max: 3000mV
Dimensions (W×D×H): 7.5" x 9.0" x 10.4"
Swans H System is finished in an ebony veneer covered by piano lacquer, giving a profound and full texture.
The electronic circuit design of each unit is both modern and innovative. The H5 powered bookshelf speaker
uses professional active electronic filter design and has easy access to front mounted volume control. On the
back panel of the H5, is a switch with selectable low frequency cut-off settings and treble / mid / bass
attenuation switches that can be used to adjust the H5 to fit different listening modes.
|
|
|
