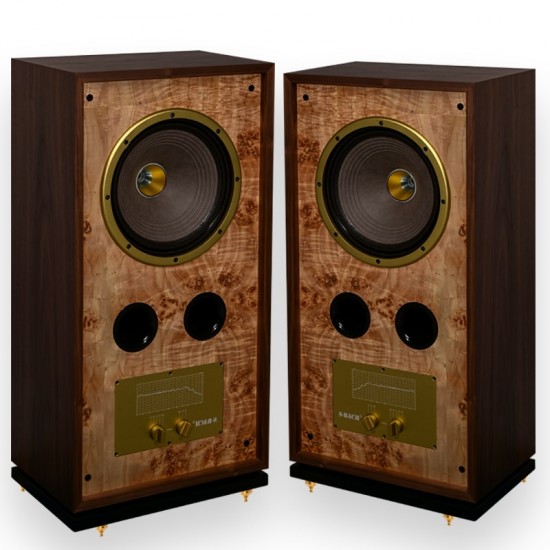

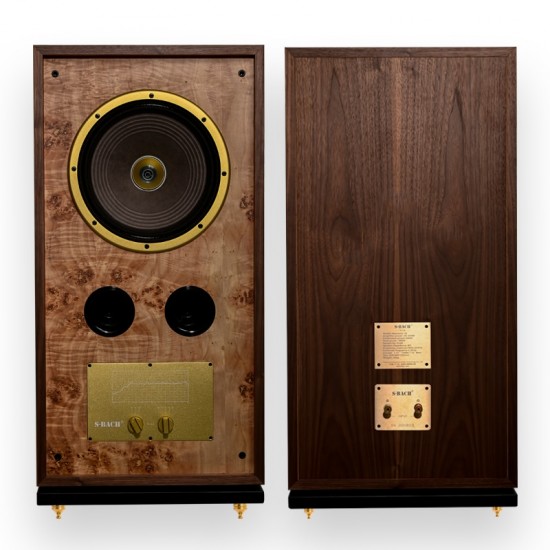

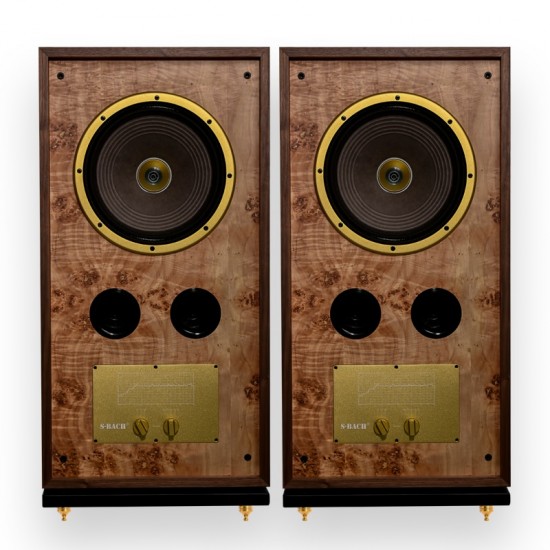

S-BACH H-12F adopts loudspeakers 2 frequency division 2 unit/2 way 1 order/ two hole front inverted design.

The front two hole leading phase design retains the classic practice of coaxial loudspeakers, and takes into account the placement characteristics of large speakers to the maximum extent, and solves the contradiction between the movement and positioning of the large box.

The speaker adopts an adjustable frequency divider design, the crossover point is adjustable in three steps, and the tweeter gain is adjustable in five steps..

The adjustable frequency divider is a dedicated HiFi circuit developed by S-BACH acoustic engineers for the cabinet. It uses ceramic axial HiFi audio resistors, American imported oxygen-free copper inductors, and MKT axial pure copper pin thin film hi-end capacitors.

ROLL OFF

0: Frequency division point 2.2k, - 1.5: Frequency division point 2.0k, - 3.0: Frequency division point 1.8K

HIDH

0: Tweeter normal factory settings;

-1.5:tweeter reduce 1.5dB-3:tweeter reduce 3dB

1.5: tweeter increases by 1.5dB3: Tweeter increases by 3dB

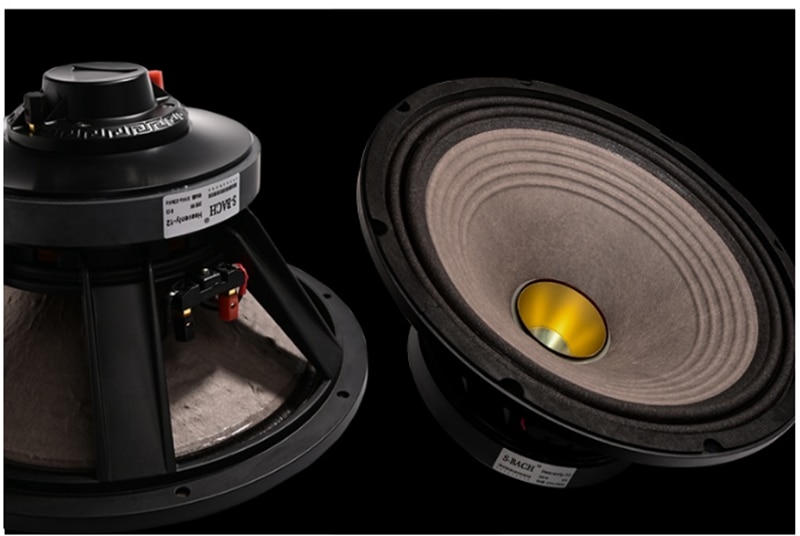

S-BACH acoustic engineers developed an advanced 1.75-inch diaphragm tweeter unit with an exquisite matrix structure.

The small horn tweeter matrix structure design is completely out of resonance with the mid-woofer unit. The matrix and horn design features of the tweeter unit.

12 / inch mid woofer unit: the paper basin is used as the basic material of the unit, and easy driving is one of the biggest advantages of the paper basin.

High density board imported from Australia is used in the whole box. The physical characteristics of the board can disperse and absorb the invalid bending wave in the acoustic cavity and the box resonance. The design of the leading two holes completely integrates the frequency resonance principle of aerodynamics, and enhances the density and performance of the original low and medium frequency by multiple amplification.

The material selection and color matching of camphor board are made of matte North American black walnut bark, regardless of the cost, and the box camphor board is made of expensive matte golden poplar solid wood + gold alloy ornament

Product parameters:

                       15 inch coaxial loudspeakers HiFi box

Adjustable frequency divider

ROLL OFF:

Frequency division point 2.3k,-1.5:Frequency division point 2.0k,-3.0:Frequency division point 1.8k

HIDH

0:Tweeter normal factory settings;

1.5:Tweeter reduce1.5dB -3:Tweeter reduce 3dB

1.5:Tweeter increases 1.5dB 3:Tweeter increases 3dB

15 inch product parameters:

Audio type: floor-to-ceiling 2-way 2-unit/2-way 1-stage/three-hole front phase inversion

Recommended amplifier power: 30W-300W

Continuous power: 250W

Peak power: 500W

Sensitivity: 95dB

Impedance: 8Ω

Efficiency response: 42Hz-23KHz (+/-3dB)

Cross: 2.2KHZ

Distortion: 85Hz-20kHz ≤1% (2.83V/1m)

Unit configuration: electric/coaxial tweeter 1.75/woofer 15 inches

Frequency divider: adjustable frequency divider

Cabinet appearance: 18mm Australian pine high-density professional board + matt North American black walnut solid wood

Box camphor board: matt gold poplar solid wood bark + 30MM Australian pine board + copper-plated aluminum ring

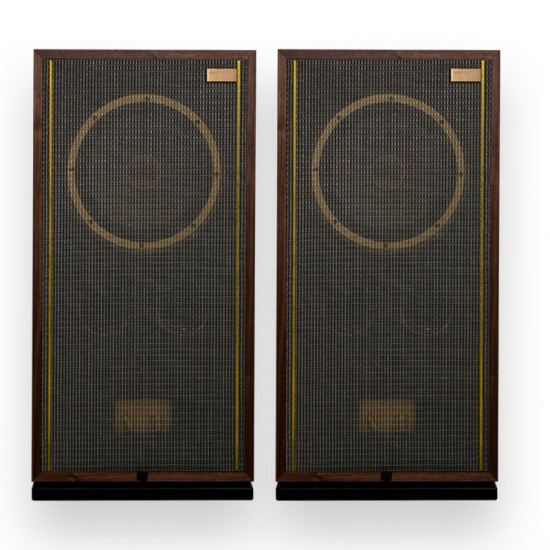

Mask material: special woven, highly breathable and dust-proof mask with exquisite copper trim

Mask color: noble dark coffee/tech silver gray (two colors optional)

Net product (W*H*D) 600*910*360mm

Net product weight: 49.5KG/piece (without packaging)
