H5 H10SUB Multimedia Active Monitor Cinema Speaker home theater active electronic crossover  active bookshelf monitor  speaker

​Attention: Because this home theater is customized , so  If you want to , please wait for 7-15 days .

Because this home theater is too  big , so the shipping freight is not inaccurate , if you are interested in this

one, please contact us .

Parameters

Speaker series: Monitor level active electronic crossover speaker system

System form: Two-way four-order inverted system

Unit configuration: 5.25 inch mid-bass+28mm dome tweeter

Frequency Range : 53Hz-20kHz

Sensitivity (2.83V/1m): 87dB

Rated impedance: 4Ω

Power range:10-80 W

Amplifier system

rated power :Total power of 45W RMS per channel, total channel 90W RMS

Active electronic crossover point: 1.8kHz

Bass adjustment: ±2dB (200Hz)

Midrange adjustment: 0/-2/-4dB (500Hz)

Treble adjustment: ±1dB (10KHz)

Signal to noise ratio: >94dB (without weighting)

Unreality: THD<0.05% (8Ω, 1kHz,)

Input sensitivity: 350mV

input resistance : 12kΩ

Enter the maximum peak: 3000mV

Size (W × D × H): 190×228×264mm

net weight : 6.25Kg / only

The appearance of the cabinet: Luxury ebony leather piano paint / metal speaker decorative ring / leather panel

H10 SUB

System form: One way closed active subwoofer

Unit configuration: 10-inch professional subwoofer

Frequency Range : 25Hz-200Hz (Direct)

25Hz-80Hz (80Hz)

Sensitivity: 85dB (2.83V/1m)

Rated impedance: 4Ω

rated power : 150W

Signal to noise ratio: >90dB (without weighting)

Input sensitivity: 200mV

input resistance : 32kΩ

Dimensions (WxDxH): 370×353×341mm

net weight : 19.5kg /per

The appearance of the cabinet: Luxury ebony leather piano paint / metal speaker decorative ring / leather panel

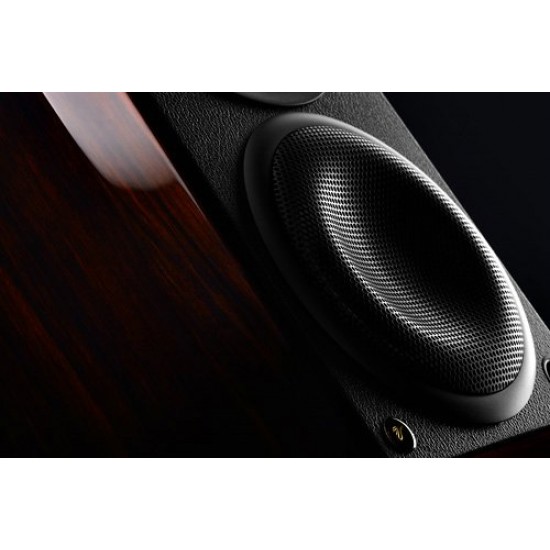

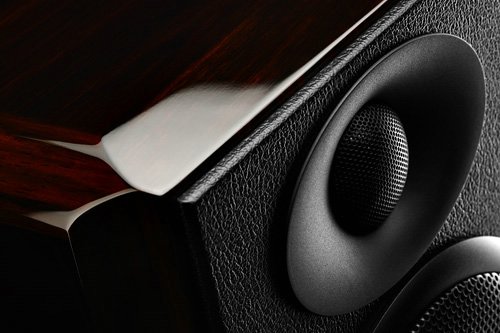

HiVi H5 is part of the H.System active bookshelf monitor series, featuring a professional electronic crossover

design with a 5.25-inch long-stroke mid-woofer and a 28-mm natural fiber soft dome tweeter. The advanced

tweeter acoustic horn design provides smooth on-axis and off-axis frequency response throughout the

playback band, ensuring accurate sound image localization and better pointing characteristics, while reducing

hearing fatigue to a greater extent.

The H5 has a built-in 25W RMS 2-channel power amplifier with a front volume adjustment knob for easy

control of sound pressure output. In addition, the H5 is equipped with a 3-band frequency fine-tuning function,

which can be finely adjusted in three frequency bands of 200Hz/500Hz/10kHz to ensure smooth final

response. The Qualcomm frequency adjustment function can select a frequency point of 50Hz/65Hz/80Hz,

which is convenient for use with a subwoofer. H5's default frequency response range is 53Hz-20kHz, its

sound quality has completely surpassed the ordinary 5-inch professional monitor, but the sound

characteristics retain the passion and touch of the music box, become a set of products that are not pure

monitor box and better than monitor speakers. .

With the addition of the new H5, the combination of HiVi H·System has become more diverse. Users can

choose H4 or H5 with H10 SUB to form a sound system that can be customized according to user needs. 2

H5 active bookshelf monitors can form a 2.0 channel music monitor system; 2 H5 active bookshelf monitors

plus 1 H10 SUB active subwoofer can form a 2.1 channel music monitor system; and 5 H5 have The source

bookshelf monitor with one or more H10 SUB active subwoofers can form a 5.X channel video monitor

system.

This is a combination of H5 and H10 SUB to become H.System. The built-in 6-channel frequency manager in

H10 SUB can accurately divide the frequency of the sound source. The frequency above 80Hz is output to

each channel and played back by the main speaker. The frequency below 80Hz is input to the bass. The

gun's built-in power discharge routes the subwoofer for playback.

Five H5 active bookshelf monitors plus one H10 SUB active subwoofer form a 5.1-channel film monitor

system. The combination of H5 and H10 SUB becomes H·System. The built-in 6-channel frequency manager

in H10 SUB can accurately divide the sound source frequency. The frequency above 80Hz is output to each

channel and played back by the main speaker. The frequency below 80Hz is input to the subwoofer. Built-in

power discharge routing subwoofer playback.

When H5+H10 SU B is composed of H·System, the whole system frequency response is 25Hz-20kHz, which

can meet the demanding requirements of professional music and film monitoring. In addition, H·System is

also designed with Bypass pass-through mode, which can disconnect H10 SUB's built-in frequency manager

to allow users to enjoy or monitor music signals in 2.0. In addition, the HiVi H·System comes with a full-

featured remote control that quickly sets the output sound pressure of the entire system with the H10 SUB's

built-in control circuitry.
