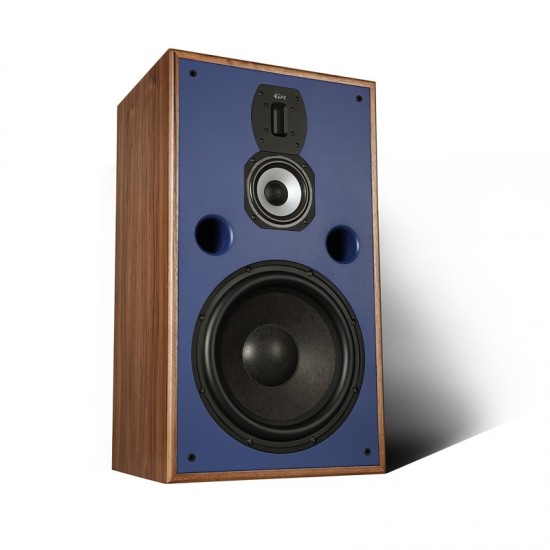

P3112MKIII 12 inch threefrequency large bookshelf HiFi speaker aluminum belt treble

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

How does P3112MKIII Change:

1, the box capacity has increased.

2, the real wood appearance

3, 5.25-inch midrange unit, fuller and more mellow tenor

4, 90db sensitivity

5, divider re-design

6, real gold-plated copper terminals, lower impedance

7, the internal using Japanese imports of good resistance to the USA HIFI speaker cable.

• Introduction：

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Precise speaker unit configuration

NeoX1.0 pure aluminum treble

. Aluminum belt treble has the best high-frequency performance in known moving coil unit. aluminum diaphragm (which is made from quality is only 18 mg’s composite material)has been installed in the two high-grade NdFeB strong magnetic,directly driven by the electromagnetic force .and the aluminum belt itself has both diaphragm and voice coil functions, so it has commission extremely Good transient response, and a strong ability to restore to the weak signal. With the frequency response of the aluminum treble easily beyond 4OKhz, it can fully support the new generation of broadband music formats such as SACD, DVD-AUDIO and Blu-ray HD AUDIO.

Hard aluminum basin midrange unit

. Aluminum material itself ‘s Young's modulus is more than 10 times as paper and synthetic materials, ,it has been made the ceramic treatment to improve the surface hardness,which is 6 times as the diamond and boron carbide. The vibratory state of the piston is almost ideal under the segmented vibration point, and the frequency response of the middle cell is up to 8KHz. Imported foam edge material to improve the damping of the sound wave along, making the IF performance is more clear and natural.

Composite pot high sensitivity long stroke woofer

. The new 12-inch woofer uses the carbon fiber multi-layer composite material, the overall strength is better than the previous cone with the order of magnitude.

The long-stroke design ensures that the voice coil always moves within the magnetic path in the low-frequency, large-dynamic state of the unit.

High sensitivity ,to ensure the same sound pressure smaller distortion.

. The computer-aided design of the high-order crossover network facilitates smooth transitions and tone accuracy of frequency response. 3-way design of high ,medium and low units are full of features , easily showing the full range of sound field. The crossover uses a new custom-made high-order MKP capacitor and a thicker-diameter inductor coil to minimize signal loss and to upgrade the wire grade within the enclosure.

. The basic material of the cabinet is a 18 mm thick HDF plate with a front panel thickness of 25 mm and a reinforced structure is designed internally to ensure structural stability. Dual-phase inverters are similar to large-diameter inverters to reduce noise caused by air turbulence.

. Gold plated large low impedance speaker Composite pot high sensitivity long stroke woofer

. The new 12-inch woofer with carbon fiber multi-layer composite material, the overall strength than the previous cone with the order of magnitude increase.

The long-stroke design ensures that the voice coil always moves within the magnetic path in the low-frequency, large-dynamic state of the unit.

High sensitivity to ensure the same sound pressure smaller distortion.

. The computer-aided design of the high-order crossover network facilitates smooth transitions and tone accuracy of frequency response. 3-way design High and medium low full of features of the unit to easily show the full range of sound field. The crossover uses a new custom-made high-order MKP capacitor and a thicker-diameter inductor coil to minimize signal loss and to upgrade the wire grade within the enclosure.

. The basic material of the cabinet is a 18 mm thick HDF plate with a front panel thickness of 25 mm and a reinforced structure is designed internally to ensure structural stability. Dual-phase inverters are similar to large-diameter inverters to reduce noise caused by air turbulence.

. Gold plated large low impedance speaker post.

• product pictures:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

PARAMETER:

Frequency response:38-40KHZ+/-3db

Nominal Impedance:8ohm

Sensitivity:90dB/1w1m

Nominal power:150w

Box veneer: Panel painting,real wood.

net weight:29kg/piece

Crossover frequency:400/3.5khz/2

Harmonic distortion:0.40%

Box material:HDF

Maximum power:300w

Cabinet size (including foot nails, net-cover):H720*W393*D339mm
