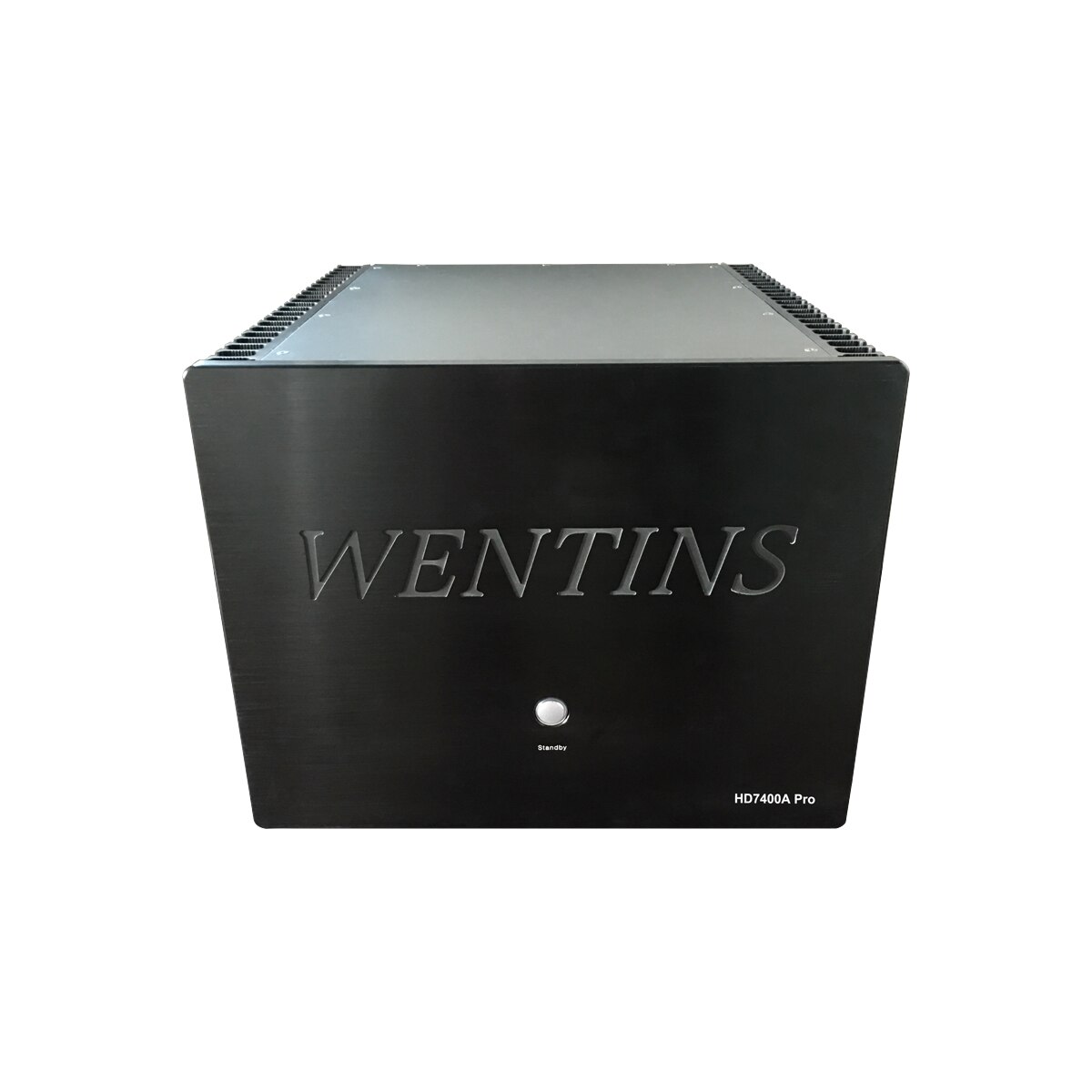

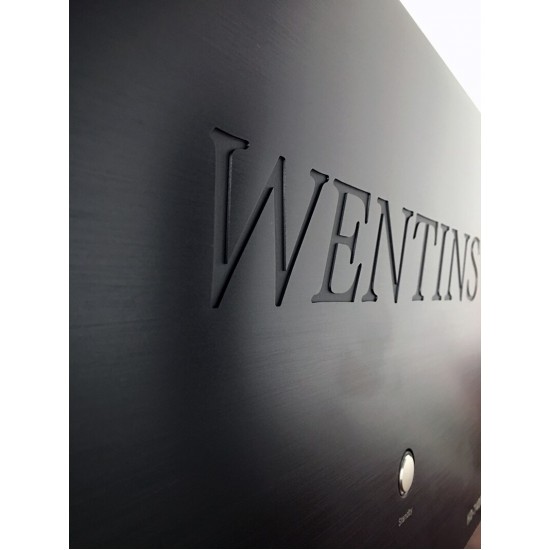

W-022 WENTINS HD7400A Pro HIFI version 7 channels 400W power amplifier per channel Home theater voltage 220V/50Hz
$3,823.20
Ex Tax: $3,823.20
- Stock: 20
- Model: 1005003040556237
- Weight: 60.00kg
- Dimensions: 49.00cm x 42.00cm x 51.00cm
- SKU: 1005003040556237
HD7400A Pro multi-channel power amplifier technical parameters:
Number of channels: 7 channels
Output power: (ELA 1kHz 8 Ohms): 400 watts
Output power: (ELA 1kHz 4 Ohms): 600 watts
Output power: (FTC 20-20kHz 8 Ohms): 375 watts
Output power: (FTC 20-20kHz 4 Ohms): 525 watts
Input sensitivity: (rated power): 1.6 Volts
Phase response: +5 to -15 (20Hz-20kHz, 1 watts)
Signal to noise ratio: 112dB
Total harmonic distortion: (THD) ≤0.09% (FTC, 20Hz to 20kHz); 0.005% (ELA, 1kHz)
Load impedance range: 4 to 16 ohms
Frequency response: 5Hz to 100kHz, FTC +0-3dB
Input impedance: 28k ohms
Damping coefficient: ≥1 80.
Trigger input: 12 Volts Trigger.
Power consumption: 5000 watts.
Voltage: 220 VAC 50Hz.
Size: 443x368x460mm (WxHxD).
Net weight: 52kg.
Shipping weight: 60kg.
Output power: (ELA 1kHz 8 Ohms): 400 watts
Output power: (ELA 1kHz 4 Ohms): 600 watts
Output power: (FTC 20-20kHz 8 Ohms): 375 watts
Output power: (FTC 20-20kHz 4 Ohms): 525 watts
Input sensitivity: (rated power): 1.6 Volts
Phase response: +5 to -15 (20Hz-20kHz, 1 watts)
Signal to noise ratio: 112dB
Total harmonic distortion: (THD) ≤0.09% (FTC, 20Hz to 20kHz); 0.005% (ELA, 1kHz)
Load impedance range: 4 to 16 ohms
Frequency response: 5Hz to 100kHz, FTC +0-3dB
Input impedance: 28k ohms
Damping coefficient: ≥1 80.
Trigger input: 12 Volts Trigger.
Power consumption: 5000 watts.
Voltage: 220 VAC 50Hz.
Size: 443x368x460mm (WxHxD).
Net weight: 52kg.
Shipping weight: 60kg.
