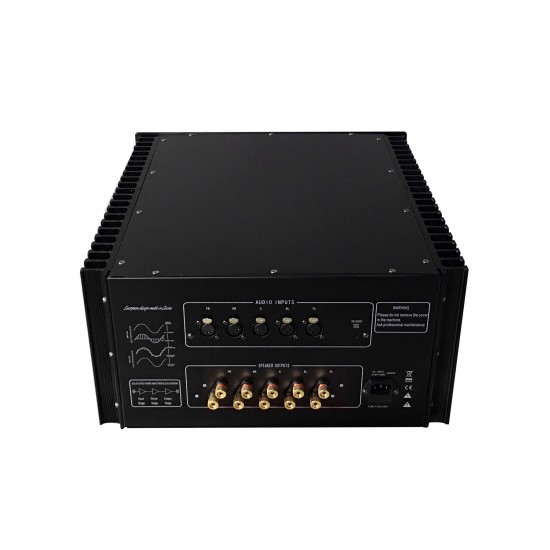

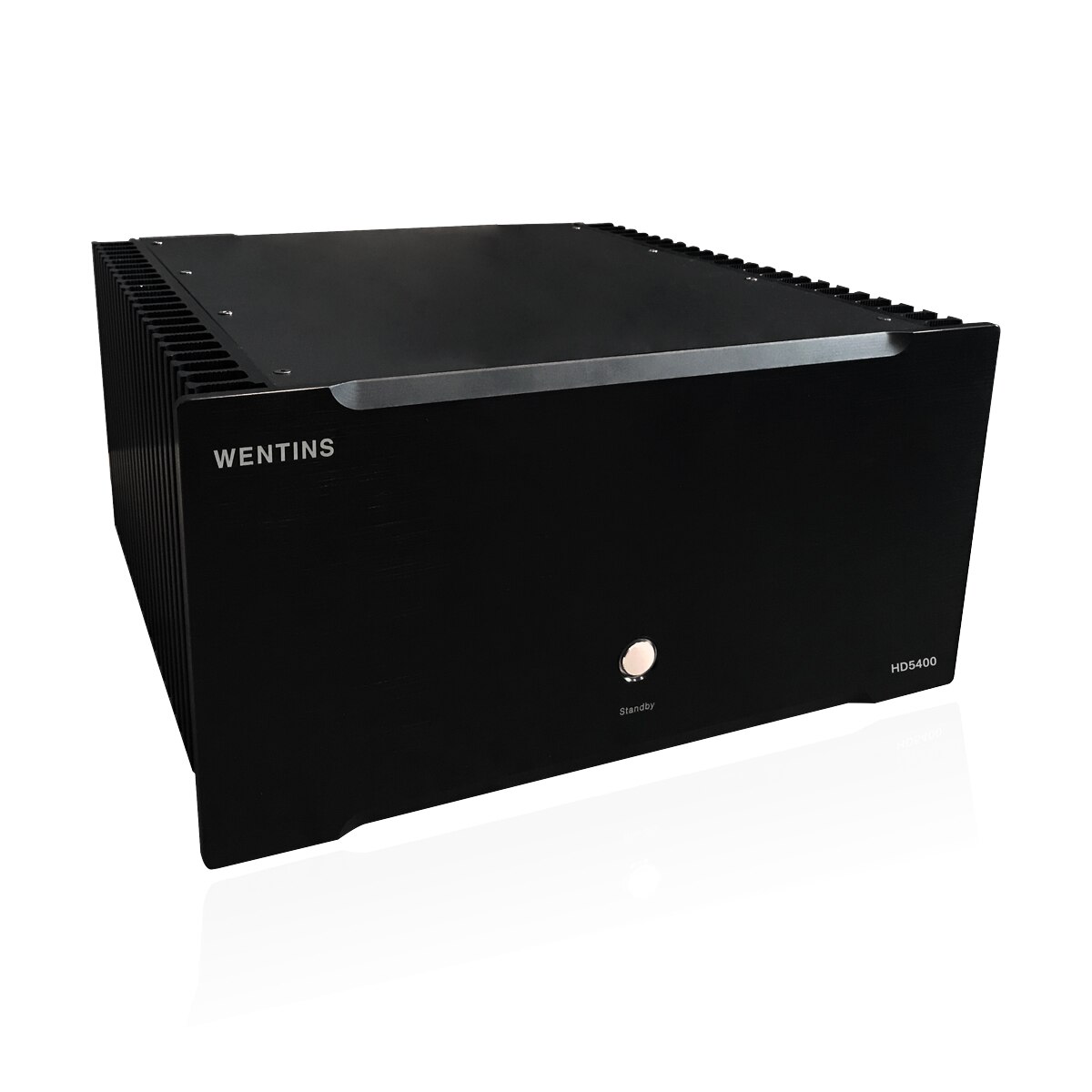

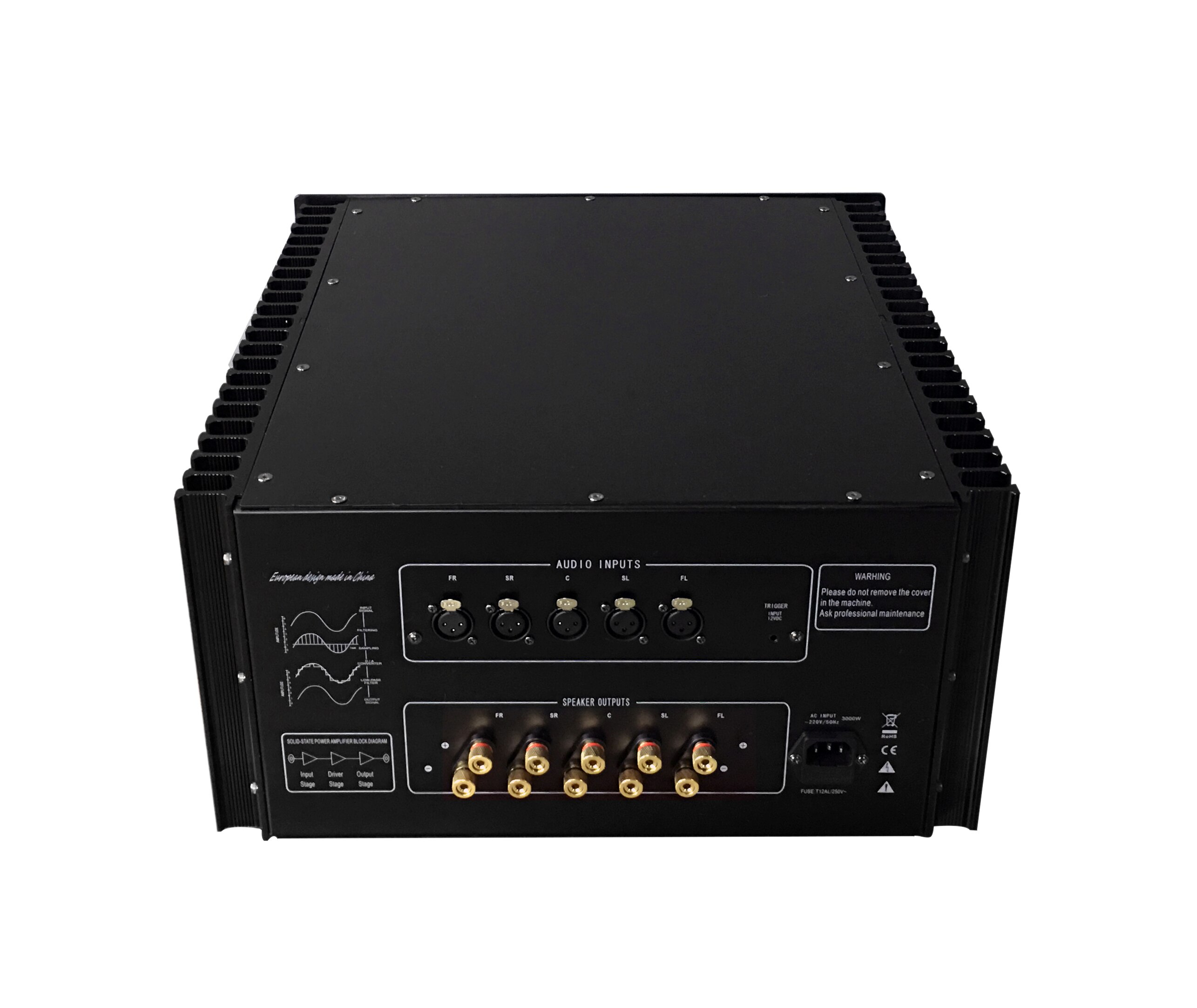

W-023 WENTINS HD5400 high-power power amplifier 5 channels 400W per channel Class AB home theater voltage 220V/50Hz
$2,794.50
Ex Tax: $2,794.50
- Stock: 20
- Model: 1005003041088040
- Weight: 46.00kg
- Dimensions: 48.00cm x 31.00cm x 51.00cm
- SKU: 1005003041088040
Technical parameters of HD5400 multi-channel power amplifier:
Number of channels: 5 channels
Output power: (ELA1kHz 8Ohms): 500watts
Output power: (ELA 1kHz 4Ohms): 600 watts
Output power: (FTC20-20kHz 8Ohms): 400 watts
Output power: (FTC 20-20kHz 4Ohms): 500watts
Input sensitivity: (rated power): 1.6Volts.
Phase response: +5 to -15 (20Hz-20kHz, 1watts)
Signal to noise ratio: 110dB.
Total harmonic distortion: (THD)≤0.09%(FTC, 20Hz to 20kHz); 0.005%(ELA, 1kHz)
Load impedance range: 4 to 16 ohms
Frequency response: 5Hz to100kHz, FTC+0 -3dB
Input impedance: 28k ohms
Damping coefficient: ≥180.
Trigger input: 12 Volts Trigger.
Power consumption: 3200 watts.
Voltage: 220 VAC 50Hz.
Size: 430x255x460mm (WxHxD).
Net weight: 40kg.
Shipping weight: 46kg.
