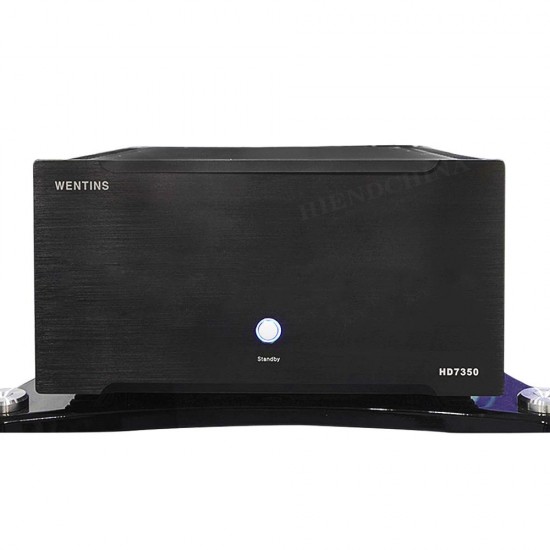

HD7350 multi-channel power amplifier technical parameters

Number of channels: 7 channels.

Output power: (ELA 1kHz 8Ohms): 400watts.

Output power: (ELA 1kHz 4Ohms): 500watts.

Output power: (FTC20-20kHz8 Ohms): 350watts.

Output power: (FTC20-20kHz4Ohms): 450watts.

Input sensitivity: (rated power): 1.6Volts.

Phase response: +5 to -15 (20Hz-20kHz, 1watts).

Signal to noise ratio: 108dB.

Total harmonic distortion: (THD)≤0.09%(FTC, 20Hz to 20kHz);

0.005% (ELA, 1kHz).

Load impedance range: 4 to16 ohms

Frequency response: 5Hz to100kHz, FTC+0-3dB

Input impedance: 28k ohms

Damping coefficient: ≥180

Trigger input: 12 Volts Trigger

Power consumption: 3800 watts

Voltage: 220VAC 50Hz

Dimensions (W width x H height x D depth) mm: 430x255x460

Net weight (kg): 50kg

Shipping weight (kg): 60kg
