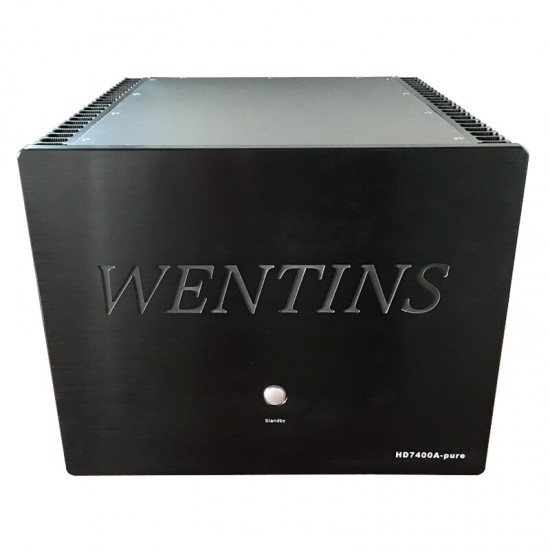

W-014 WENTINS HD7400A-pure 7 channels per channel 400W pure power amplifier home theater voltage 220V/50Hz
$3,199.50
Ex Tax: $3,199.50
- Stock: 20
- Model: 32897121882
- Weight: 72.00kg
- Dimensions: 48.00cm x 43.00cm x 51.00cm
- SKU: 32897121882
HD7400A-pure multi-channel power amplifier technical parameters:
Number of channels: 7 channels
Output power: (ELA1kHz8Ohms): 400watts
Output power: (ELA1kHz4Ohms): 600watts
Output power: (FTC20-20kHz8Ohms): 375 watts
Output power: (FTC 20-20kHz 4Ohms): 525 watts
Input sensitivity: (rated power): 1.6 Volts
Phase response: +5 to -15 (20Hz-20kHz, 1watts)
S/N ratio 108dB
Total harmonic distortion: (THD)≤0.09%(FTC, 20Hz to 20kHz); 0.005%(ELA, 1kHz)
Load impedance range: 4 to 16 ohms
Frequency response: 5Hzto100kHz, FTC+0-3dB
Input impedance: 28kohms
Damping coefficient: ≥180
Trigger input: 12 Volts Trigger
Power consumption: 5000 watts
Voltage: 220 VAC 50Hz.
Size: 443x368x460mm (WxHxD)
Net weight: 64kg.
Shipping weight: 72kg.
