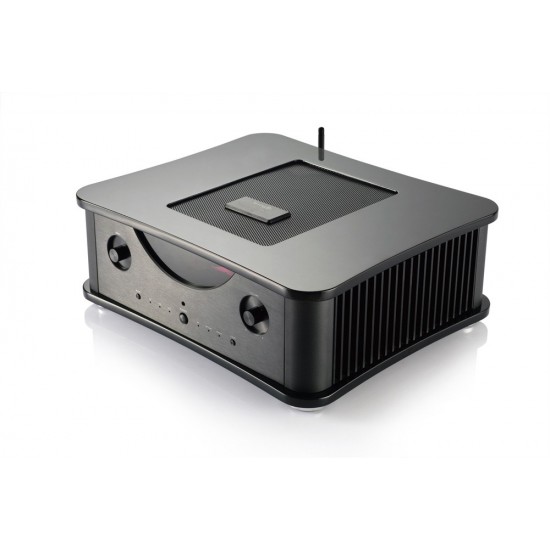

Y-001 Shengya A-22CS Tube and Transistor Combined Hybrid Amplifier HIFI Bluetooth Wireless Digital Audio Connection 24Bit / 192K

Based on 0 reviews. - Write a review

$1,590.00

Ex Tax: $1,590.00

Stock: 1
Model: 32810420103
Weight: 18.00kg
Dimensions: 50.00cm x 45.00cm x 25.00cm
SKU: 32810420103

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Tags: Amplifier , Consumer Electronics , Cheap Amplifier , High Quality Consumer Electronics , hybrid amplifier , amplifier hifi , hifi amplifier bluetooth

Description
Reviews

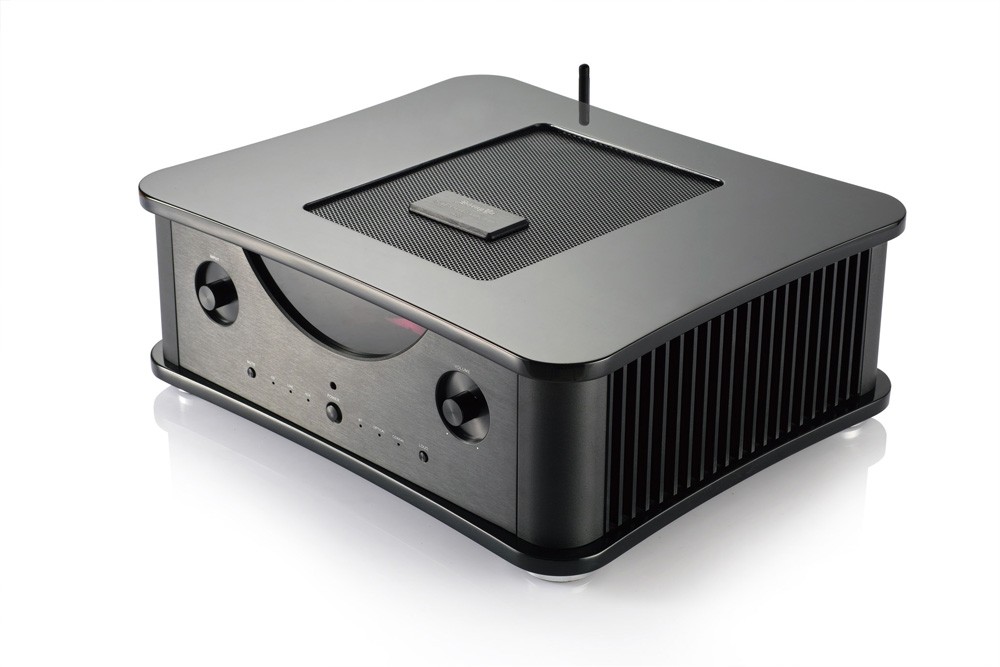

Shengya A-22CS Tube and Transistor Combined hybrid Amplifier

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Details:

1.A22CS can be used with mobile phones, laptops, tablet PCs and other devices for Bluetooth wireless digital audio connection. It can also connect with iPod, iPhone, iPad, CD, DVD, TV HD case box for digital or analog audio connection. With fiber / coaxial digital signal input interface, and with a 24Bit / 192K digital-analog conversion accuracy.

2. Preamplifier part of the import of ECC83 common cathode-type tube amplifier circuit, the import E88CC tube as SRPP buffer for amplification; the machine has a beautiful voice and large dynamic performance.

3. Tube and transistor hybrid precision high-voltage power supply, high voltage stability. AC ripple coefficient is very low, sound performance more "bile taste."

4. Amplifier part of the high-power transistors composed of 0dB current amplification circuit, the performance of sweet warm sound, sound energy and great dynamic performance is very good, easy to drive a variety of high-level brand-name speakers.

5. Tube circuit to connect and return to the capacitor for the German WIMA brand MKP series of advanced audio capacitors. Transistor power amplifier used in the filter capacitor for the Japanese ELNA brand FORAUDIO series 10000uf / 80v specifications, regardless of the sound and sound field has a good performance; the whole sound and tone play an important role in improving.

6. Japan ALPS large remote volume potentiometer, with low noise, no noise, the two-channel between the minimum error characteristics.

7. Equipped with equal loudness switch function, can increase the bass at low volume performance.

8. Input and output with large gold-plated terminal can be easily connected with any signal line and speaker cable.

9. Aluminum multi-function infrared advanced remote control, make the operation feel better and more fashionable.

Technical Parameters:

1. Frequency response ......................................................: 20Hz-20kHz ± 0.5dB

2. Rated output power ..................................................: 150W + 150W (8Ω)

3. Harmonic Distortion ......................................: ≤ 0.1% (1kHz 1W)

4. Input Sensitivity ...........................................: 400mV

5. Signal to noise ratio .........................................: 90dB

6. Input Impedance ......................................: 47kΩ

7. Dimensions (W x H x D) .................................. .: 430 x 155 x 375 (mm)

8. Weight ..........................................................: 16kg

Shopping notice:

①Product attributes are automatically generated, and the specific attributes are in the detailed descriptions.

②If the product is updated, it cannot be notified in time, all are based on the goods you received.

This form is for customers to better understand our products. If you want to know more details or purchase our products, please enter the link of the products.

Number	Picture	Name	Frequency Response	SNR	Rated output power	Price	Link
Y-001		Shengya A-22CS Tube and Transistor Combined Hybrid Amplifier HIFI Bluetooth Wireless Digital Audio Connection 24Bit / 192K	20Hz-20kHz ± 0.5dB	90dB	150W + 150W (8Ω)	1590$	Y-001
Y-002		Shengya / A-80CSII Pure HIFI2.0 Amplifier Professional Listening Song Gallstone Mixed Amplifier Built-in Bluetooth	20Hz-20kHz ± 0.5dB	90dB	130W + 130W	888.88$	Y-002
Y-003		H-80A Hybrid Power Integrated Amplifier AMP Vacuum tube Field effect tube 80Wx2 With CPU Control 12AU7 or 6922EH	20Hz~20kHz(-1dB)	90dB	80W+80W(RMS:8Ω)	1900$	Y-003
Y-004		Shengya A-221 High-level Class A Pure Combination of Tubes and Gallbladder Full-balanced Amp HIFI Amp Hybrid Amplifier	20Hz - 20kHz ± 0.5dB	90dB	250W + 250W (8Ω)	2799$	Y-004
Y-005		Shengya A17CS Power Amplifier HIFI Hi-END Combined Amplifier Tube Transistor Hybrid Amp	20Hz-20kHz ± 0.5dB	90dB	150W + 150W (8Ω)	1363$	Y-005
Y-006		QUEENWAY HIFI AUDIO XA6950 (II) Hybrid Power Amplifier AMP	10Hz-100KHz (+ 1dB)	≥95dB	40W 40W (Class A)	1390$	Y-006
Y-007		QUEENWAY HIFI AUDIO XA6200 (08 Edition) Hybrid Power Amplifier	10Hz-100KHz (±0.5dB)	≥85dB	100W (8Ω)	770$	Y-007
Y-008		QUEENWAY HIFI AUDIO XA6900 (II) Hybrid Power Amplifier AMP	10Hz-100KHz (±1dB)	≥90dB	100W (8Ω)	960$	Y-008
