Product Description:

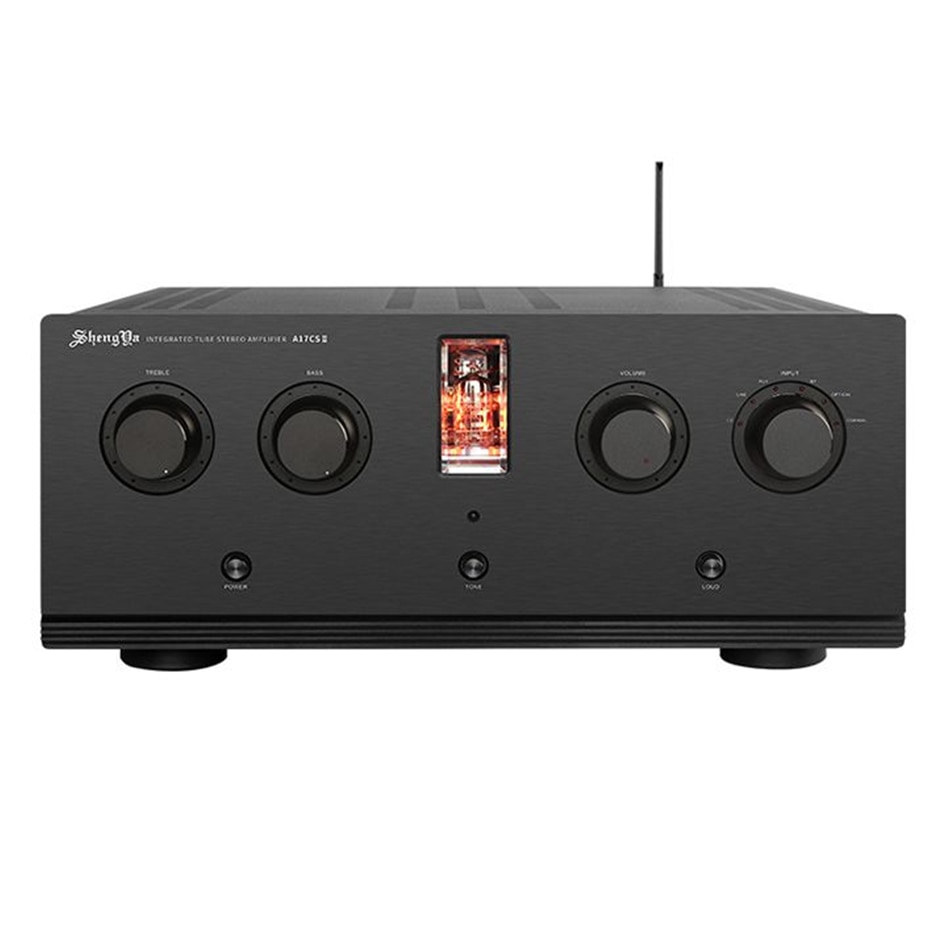

1. The A17CSII is a hybrid power amplifier with digital optical fiber, coaxial and wireless Bluetooth input.
2. Its audio signal amplification circuit is common cathode amplification and buffer amplification of vacuum tube. 12AX7LPS/12AU7 were made from Russia.
3. It uses vacuum tube, field effect transistor and integrated circuit hybrid high voltage regulator power supply.
4. The voltage gain stage of the transistor power amplifier consists of a cascode amplifier consisting of a field effect transistor; Toshiba Brand Power Tube for Class A Current Amplification; Output power up to 150W (8Ω); Easily drive all kinds of speakers.
5. The interconnection and de-interconnection capacitors of vacuum tube circuits are the special capacitors for WIMA MKP series acoustics. The filter capacitor used in transistor power supply is ELNA FORAUDIO series 10000uf/80v capacitor.
6. The XLO cable for signal input and output.
7. The volume Controller is ALPS Large Quadruplex High Precision Potentiometer.
8. Multifunctional Infrared Remote Controller for Aluminum Alloy
Technical parameters:
Frequency response: 20Hz-20kHz+0.5dB
Rated output power: 150W + 150W (8Ωclass AB)
Class A output power: 10W + 10W (8ΩClass A)
Harmonic distortion: < 0.1% (1kHz 1W)
Input sensitivity: 200 mV
SNR: 90dB
Input impedance: 47K
Size: (W x H x D) 430 x 180 x 456 (mm)
Weight: 20.5 kg
This form is for customers to better understand our products. If you want to know more details or purchase our products, please enter the link of the products.
|
Number |
Picture |
Name |
Frequency Response |
SNR |
Rated output power |
Price |
Link |
|
Y-001 |
|
Shengya A-22CS Tube and Transistor Combined Hybrid Amplifier HIFI Bluetooth Wireless Digital Audio Connection 24Bit / 192K |
20Hz-20kHz ± 0.5dB |
90dB |
150W + 150W (8Ω) |
1590$ |
Y-001 |
|
Y-002 |
|
Shengya / A-80CSII Pure HIFI2.0 Amplifier Professional Listening Song Gallstone Mixed Amplifier Built-in Bluetooth |
20Hz-20kHz ± 0.5dB |
90dB |
130W + 130W |
888.88$ |
Y-002 |
|
Y-003 |
|
H-80A Hybrid Power Integrated Amplifier AMP Vacuum tube Field effect tube 80Wx2 With CPU Control 12AU7 or 6922EH |
20Hz~20kHz(-1dB) |
90dB |
80W+80W(RMS:8Ω) |
1900$ |
Y-003 |
|
Y-004 |
|
Shengya A-221 High-level Class A Pure Combination of Tubes and Gallbladder Full-balanced Amp HIFI Amp Hybrid Amplifier |
20Hz - 20kHz ± 0.5dB |
90dB |
250W + 250W (8Ω) |
2799$ |
Y-004 |
|
Y-005 |
|
Shengya A17CS Power Amplifier HIFI Hi-END Combined Amplifier Tube Transistor Hybrid Amp |
20Hz-20kHz ± 0.5dB |
90dB |
150W + 150W (8Ω) |
1363$ |
Y-005 |
|
Y-006 |
|
QUEENWAY HIFI AUDIO XA6950 (II) Hybrid Power Amplifier AMP |
10Hz-100KHz (+ 1dB) |
≥95dB |
40W 40W (Class A) |
1390$ |
Y-006 |
|
Y-007 |
|
QUEENWAY HIFI AUDIO XA6200 (08 Edition) Hybrid Power Amplifier |
10Hz-100KHz (±0.5dB) |
≥85dB |
100W (8Ω) |
770$ |
Y-007 |
|
Y-008 |
|
QUEENWAY HIFI AUDIO XA6900 (II) Hybrid Power Amplifier AMP |
10Hz-100KHz (±1dB) |
≥90dB |
100W (8Ω) |
960$ |
Y-008 |
