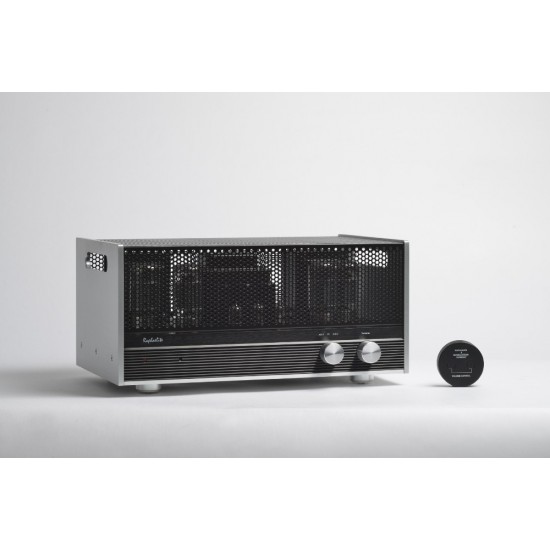

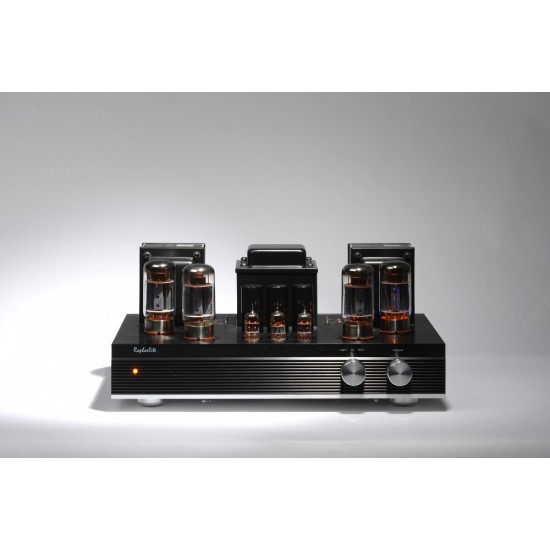

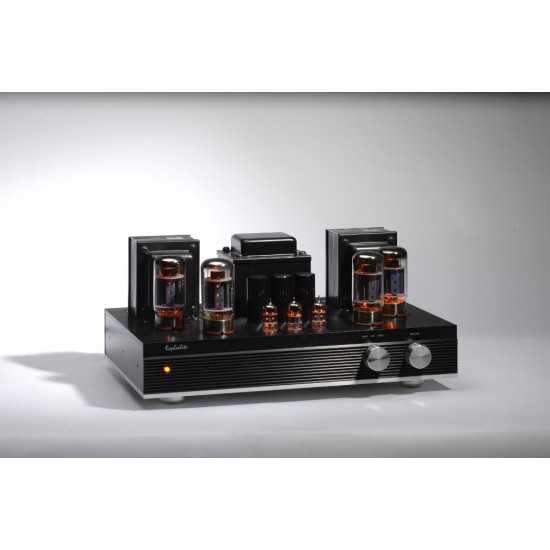

EP65 audiophile 6550x4 vacuum tube amplifier HiFi audio push-pull integrated amp with remote and protective cover
$1,820.00
Ex Tax: $1,820.00
- Stock: 10
- Model: 4001085607211
- Weight: 29.00kg
- Dimensions: 50.00cm x 32.00cm x 30.00cm
- SKU: 4001085607211
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Features:
Fully imported electronic tube
80W fully coupled output transformer

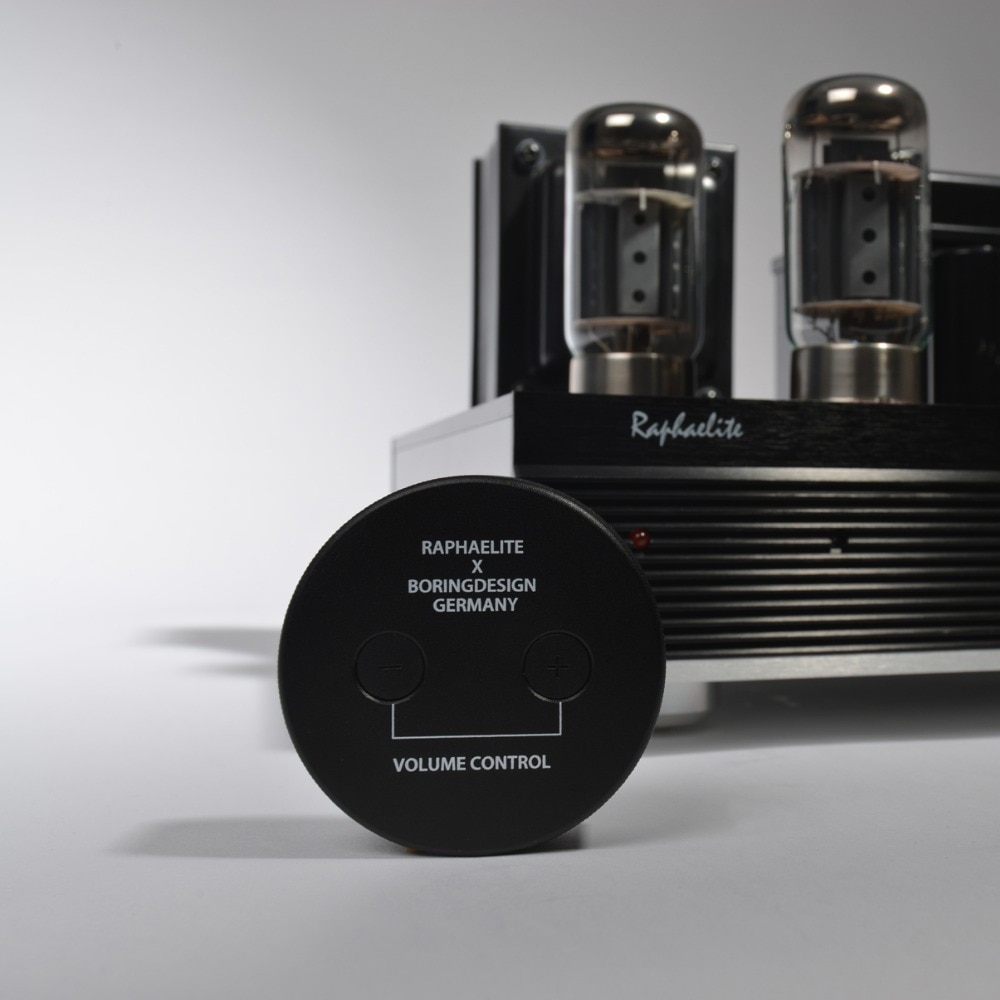

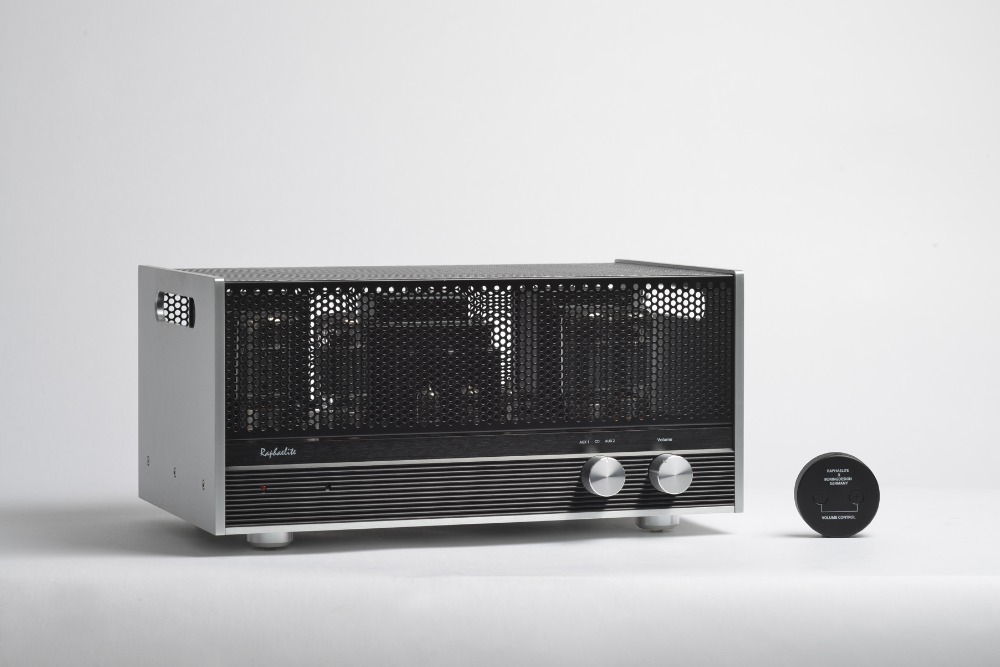

All-aluminum chassis with all-aluminum remote control
High power (50W) output, low distortion (less than 1% distortion)

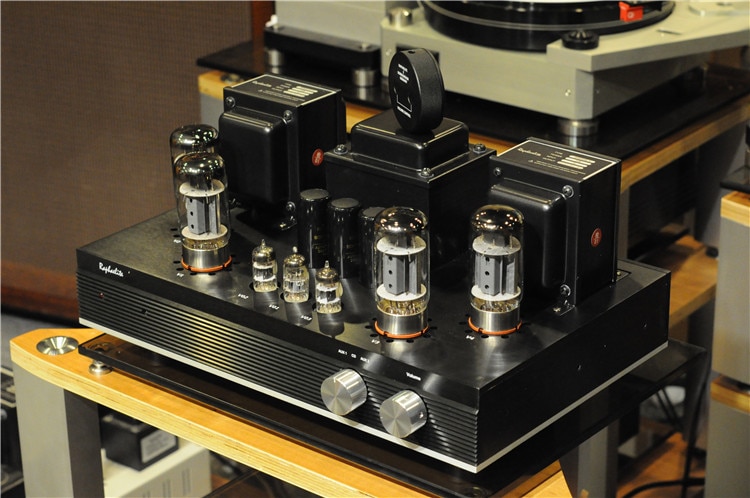

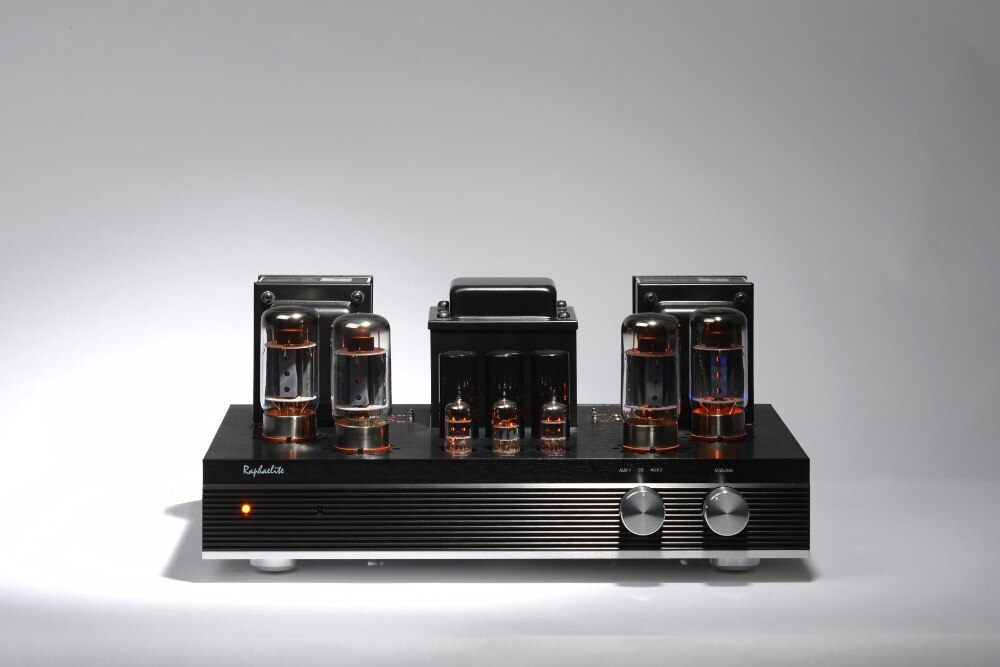

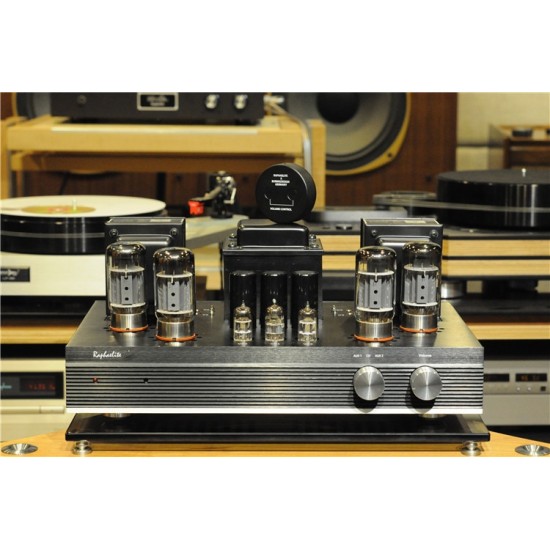

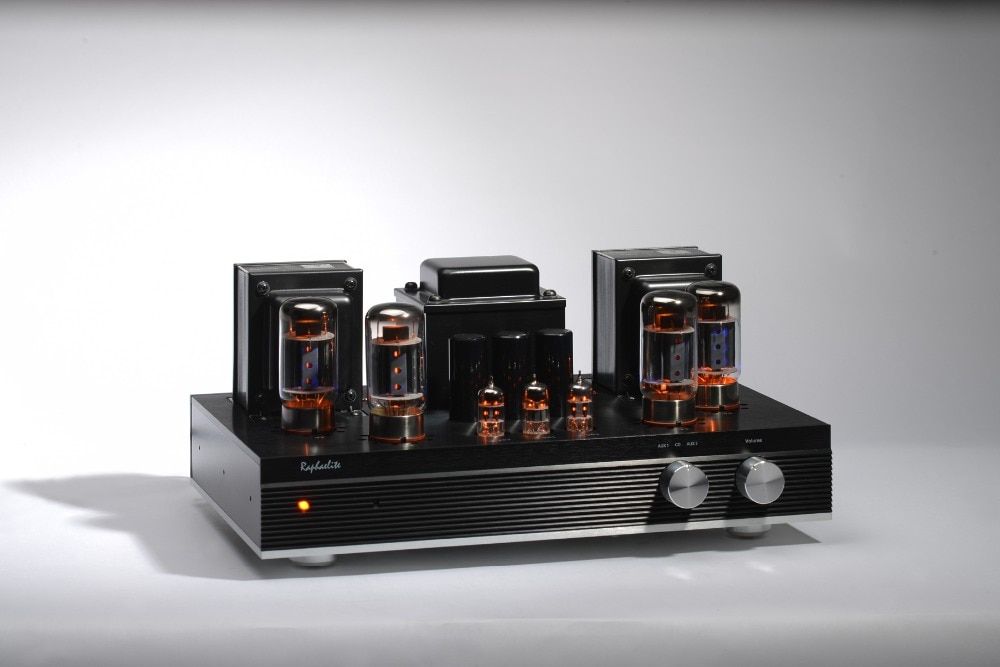

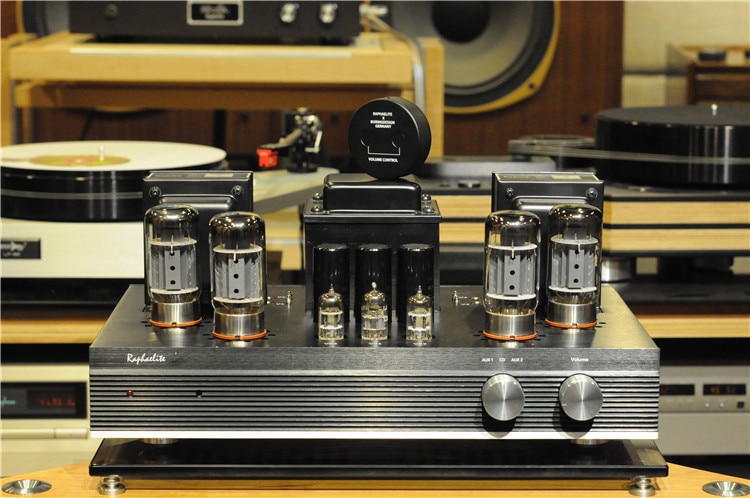

The EP65 is the 6550 push-pull integrated amplifier in the Raphaelite series. The EP65 uses an all-aluminum body and is simple in appearance. Using 4 Russian svetlana 6550 power tubes for standard-push push-pull amplification, each channel can output 8 ohms and 50W rated power with less than 1% distortion. These parameters indicate that EP65 can drive sensitive speaker units with good sensitivity.

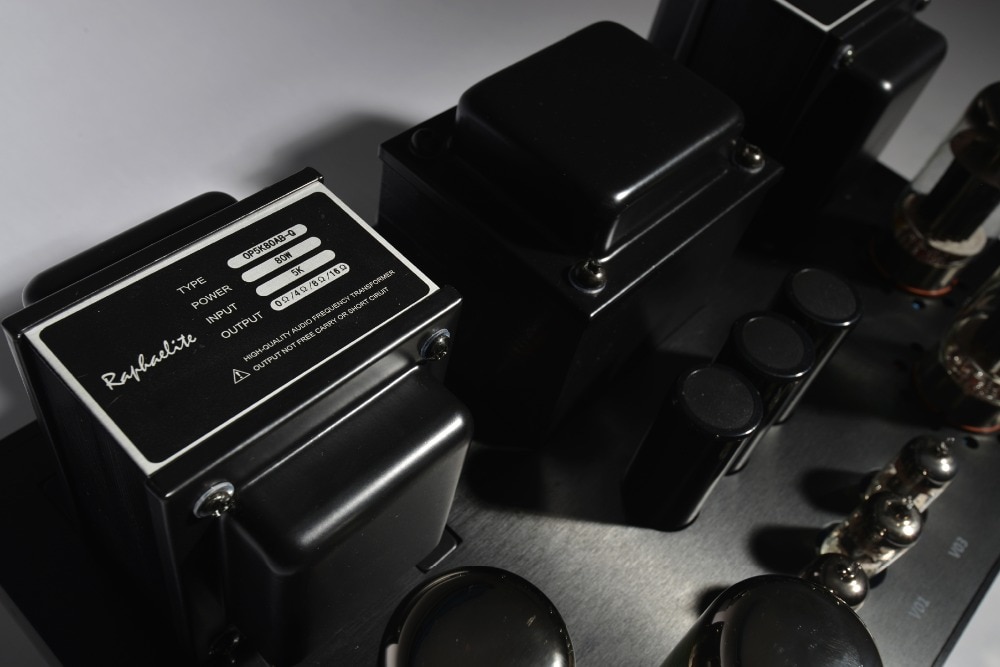

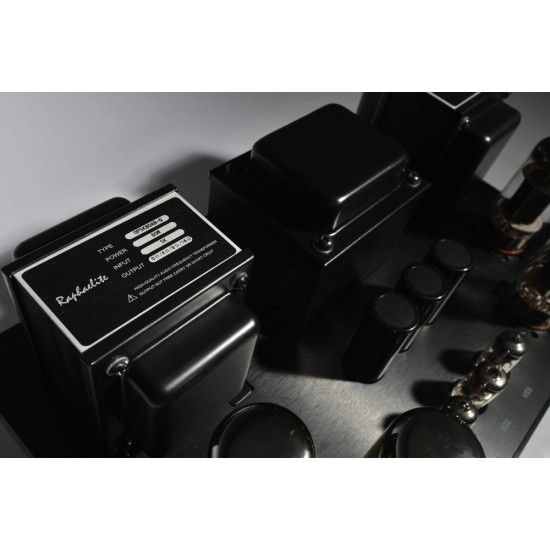

The EP65 circuit is designed to be simple, stable and reliable. Using a transistor rectifier circuit, a simple and easy-to-use long tail inverter circuit consisting of a Czech E88CC and two US GE 12AT7s easily drives four Russian 6500 power tubes. The core output section uses the Raphael 6550/KT88 dedicated 80W fully coupled push-pull output transformer to ensure that every detail in the music is not missed.
The sound of the EP65 is smooth and smooth, the sound field is wide, and the background is quiet. This is a push-pull integrated amplifier with less sound and less sound. It is a perfect match for classical music and British speakers.
Specifications:
Model： EP65
Tubes： E88CC×1 12AT7×2 Svetlana 6550×4
Input Sensitivity： 300mV
Power Output： 2×50W （RMS THD<1%）
S/N Ratio： 80dB
Input Impedance： 100KΩ
Output Impedance： 4Ω、8Ω
AC Input： AC 220V/230V
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.
Power Consumption： 220W
Frequency Response： 7Hz – 30KHz -3dB
Dimension： 454×280×225（W-D-H）
Net Weight： 25KG
ONE-YEAR WARRANTY !!!
Features:
Fully imported electronic tube
80W fully coupled output transformer
All-aluminum chassis with all-aluminum remote control
High power (50W) output, low distortion (less than 1% distortion)
The EP65 is the 6550 push-pull integrated amplifier in the Raphaelite series. The EP65 uses an all-aluminum body and is simple in appearance. Using 4 Russian svetlana 6550 power tubes for standard-push push-pull amplification, each channel can output 8 ohms and 50W rated power with less than 1% distortion. These parameters indicate that EP65 can drive sensitive speaker units with good sensitivity.
The EP65 circuit is designed to be simple, stable and reliable. Using a transistor rectifier circuit, a simple and easy-to-use long tail inverter circuit consisting of a Czech E88CC and two US GE 12AT7s easily drives four Russian 6500 power tubes. The core output section uses the Raphael 6550/KT88 dedicated 80W fully coupled push-pull output transformer to ensure that every detail in the music is not missed.
The sound of the EP65 is smooth and smooth, the sound field is wide, and the background is quiet. This is a push-pull integrated amplifier with less sound and less sound. It is a perfect match for classical music and British speakers.
Specifications:
Model： EP65
Tubes： E88CC×1 12AT7×2 Svetlana 6550×4
Input Sensitivity： 300mV
Power Output： 2×50W （RMS THD<1%）
S/N Ratio： 80dB
Input Impedance： 100KΩ
Output Impedance： 4Ω、8Ω
AC Input： AC 220V/230V
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 220V version is in stock.
Power Consumption： 220W
Frequency Response： 7Hz – 30KHz -3dB
Dimension： 454×280×225（W-D-H）
Net Weight： 25KG
Tube Amplifier Precautions:
1. Tube amp must connected with speakers before turning ON. Strictly prohibit send signals to amp without connected loads(speakers) or load short circuit when the switch is ON.
2. Too high or too low power supply voltage does irreversible harm to the amp,preferably less than 5% of the specified voltage. If your mains voltage exceeds this value, often best to use with the AC power supply.
3. Temperature is higher when tube amps working, placing attention to ventilation, cooling.
4. In the boot or just shut down for a period of time (within 30 minutes) Do not spill liquid on the tubes.
5. You should take about 100h time to operate the amp.RUN-IN to the amp gives it's best and stable sound.so during the first 100h use time the sound maybe is not the best,you can also use your own run-in method.
6. If you donot sure how to plug the tubes, please contact us before try it

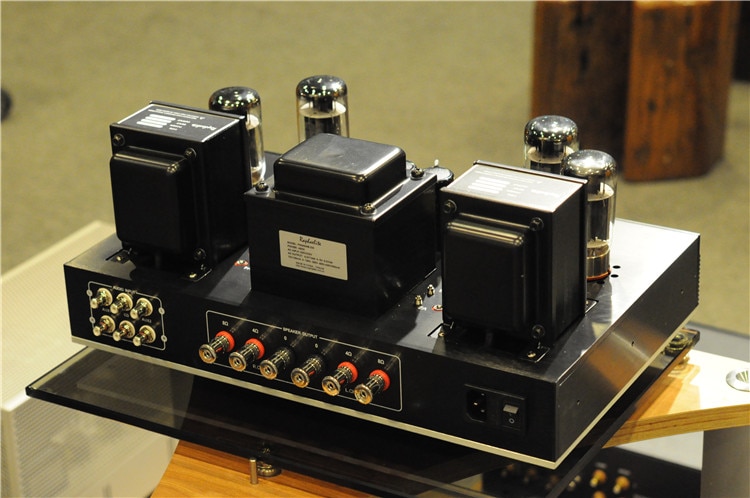

Speakers connection:
All tube amplifier used with stereo mode: L(left) and R(right) speakers.
Normally there are 6 speaker cable connectors: +8L, +4L, -0L, -0R, +4R, +8R
Example: +8L and -0L are for connecting with your Left 6-8ohms speaker
-0R, +4R is for connecting with your Right 4ohms speaker
