- Stock: 39
- Model: 32828469104
- Weight: 0.50kg
- Dimensions: 25.00cm x 15.00cm x 10.00cm
- SKU: 32828469104
1.Use LLC resonant half bridge topology.
2.The utility model has the advantages of high conversion efficiency, small interference, fast dynamic response, stable output voltage, etc. And integration of over-current, overvoltage, overheating, output, short-circuit and other protection functions.
3.It is the best collocation of middle and high end power amplifier products..
4.Power amplifier for 100-400W. 25℃environmental temperature, continuous power of 200W(Power equivalent to 300W*2 amplifier for maximum volume play music) Peak power up to 600W
Parameters:

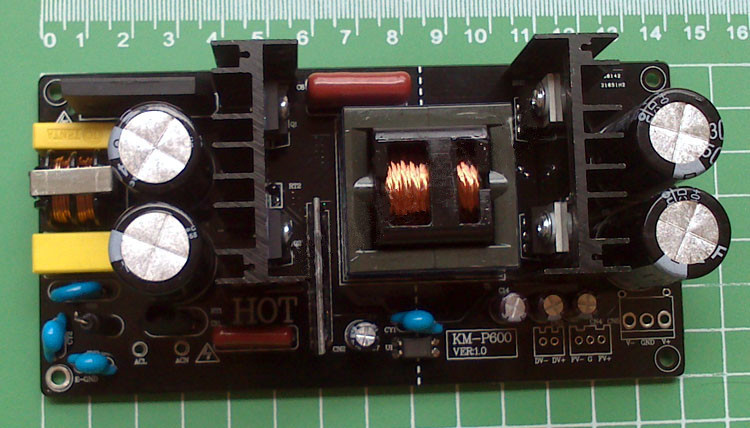

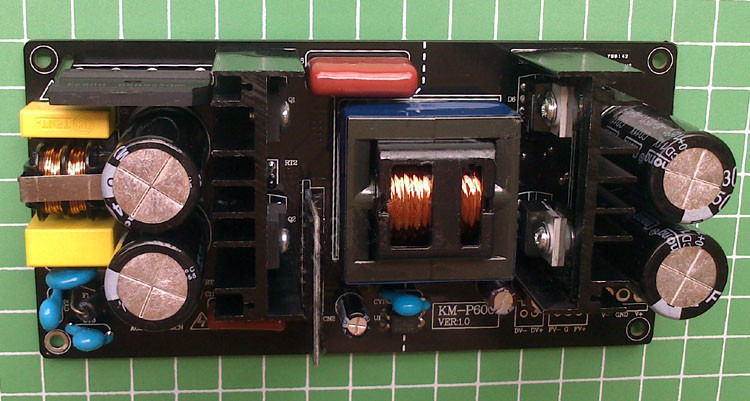

Product Model:KM-P600
Input Voltage: AC 200-240V
Output Voltage: Main:±48V
Auxiliary :±12V
Independent :12V(the output voltage can be customize )
Stabilized Voltage precision :Main no-load ±10% ; With load ±5%;Auxiliary, independent no-load ±15% ;with load ±15％(When input of AC 220V)
Output Current :±48V/ 2A ; ±12V/ 0.5A ; 12V/ 0.5A (the output current can be customize)
Continuous Power: 200W (25℃ the environment temperature can work continuously)
Rated power：400W（25 ℃ of environmental temperature can work for about 6 minutes）
Instantaneous Power：600W（The power produced by dynamic signal impact , less than 100ms）
Conversion Power： Max 94 %
Using Environment： -10~40℃
Storage Temperature： -30~85℃

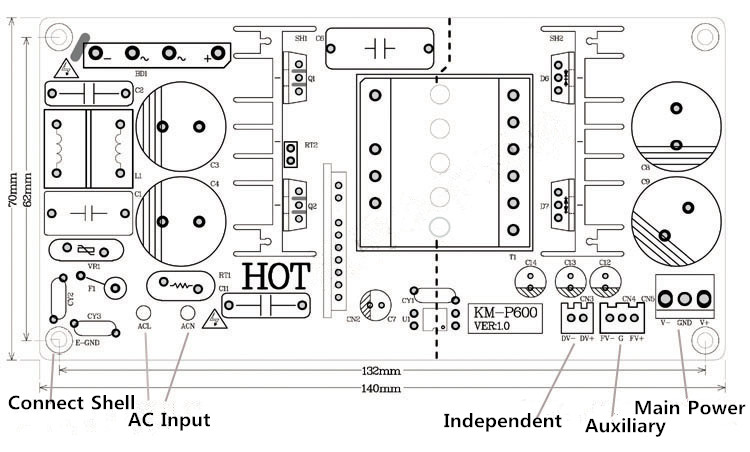

Dimension: 70*140*40mm
PS:
Default Specifications : Main Power: ±48V ; Auxiliary Voltage: ±12V/0.5A ; Independent Voltage : 12V/0.5A (the output voltage can be customize )
Customized Specifications: （Please consult before you buy）
