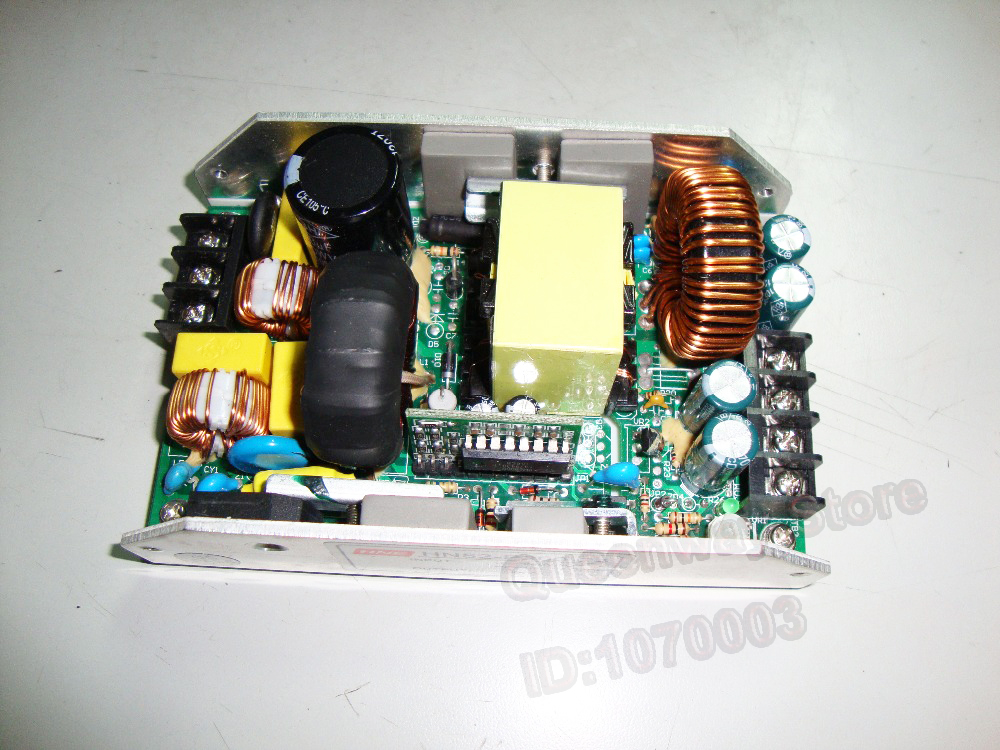

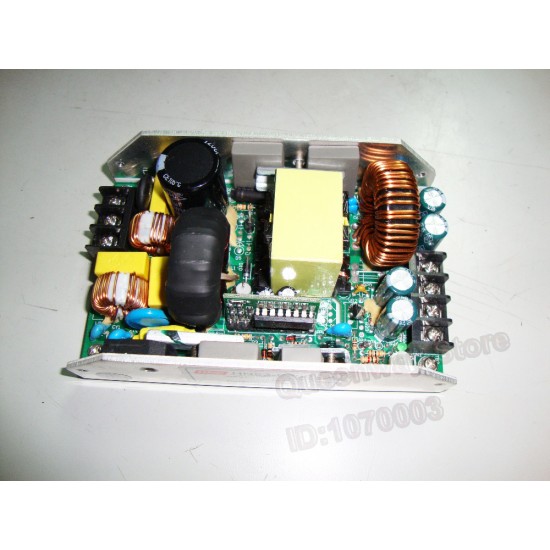

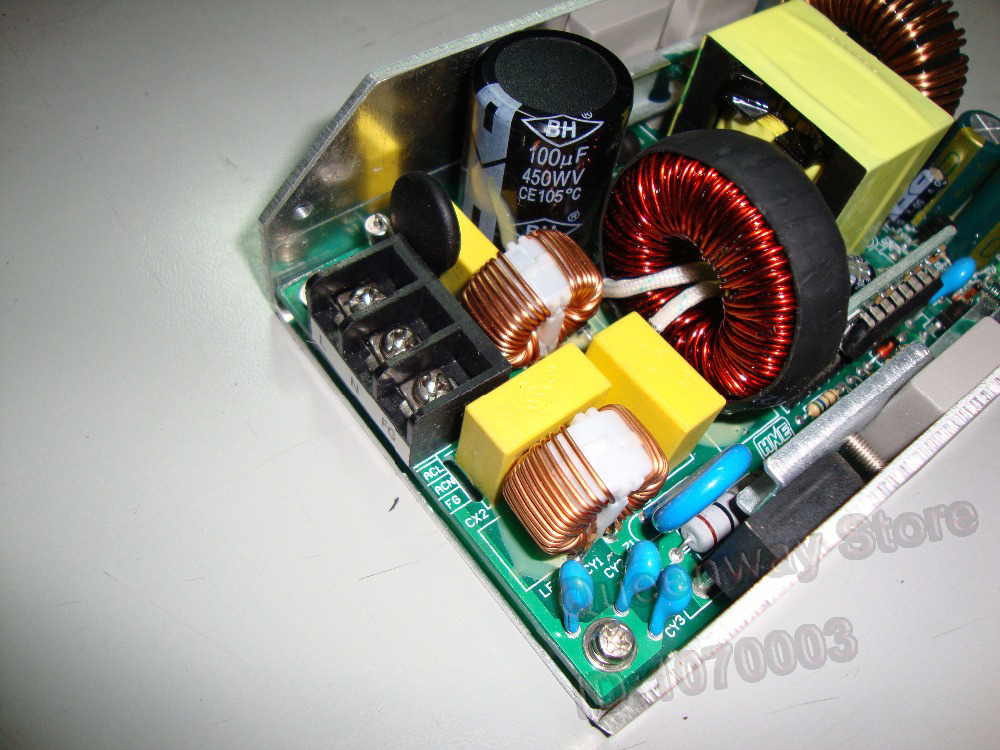

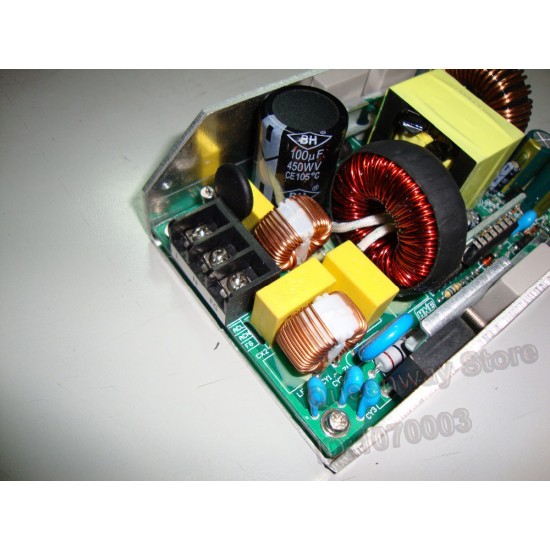

QUEENWAY PFC Dual Voltage Output

+36V/5.5A -36V/5.5A 400W HI-FI Amplifier Power Supply

Parameters:

Overall dimensions: 127mm * 82mm * 38mm.

Weight: 400g

Cooling: air-cooled

Input voltage: 88~264VAC

Output voltage: +36V  -36V

Output current: 5.5A    5.5A

Output ripple: less than 150mV

Total output power: 400W

Output voltage adjustment range: 10%

Line stability: ±0.5%

Load stability: ±2%    ±5%

Start, rise, hold time: 2s, 500ms, 20ms

Input voltage 230VAC output can full load

Withstand voltage:

Input - Output 1.5KVAC; Input - Case 1.5KVAC; Output - Case: 500VAC

Insulation resistance:

Input - output, input - shell/case  500VDC / 100MΩ

Operating temperature, humidity: -20 ℃ ~ 60 ℃, 20% ~ 90% RH Humidity  No condensation

Storage temperature: -40 ℃ ~ 60 ℃

Protection: over temperature,over voltage,over current, over power

Safety standards: GB4943, UL60950, EN60950
