- Stock: 46
- Model: 32816275127
- Weight: 0.60kg
- Dimensions: 8.00cm x 8.00cm x 5.00cm
- SKU: 32816275127
Integrated Amplifier:2*VU Meter + VU Driver
Monoblock Amplifier:2*VU Meter + 2*VU Driver
Parameters:
Pointer material Nickel silver strips
Pointer color Black
Pointer direction Left to right
Pointer length 23plusmn 1 mm from the center axis to the needle end
Pointer width 0.45 plusmn 0.05 mm
Meter usage direction Vertical
Characteristics:
Standard test conditions temperature 20 degrees C, humidity 70%
( Can also be tested under normal temperature and humidity.)
Internal impedance 600 Omega plusmn 10%
Using the temperature limits -10℃to +60℃ RH 35 to 85%
Storage temperature limits -20℃ to +60℃ RH 35 to 85%
Lamp spec Yellow LED 12V 20m A

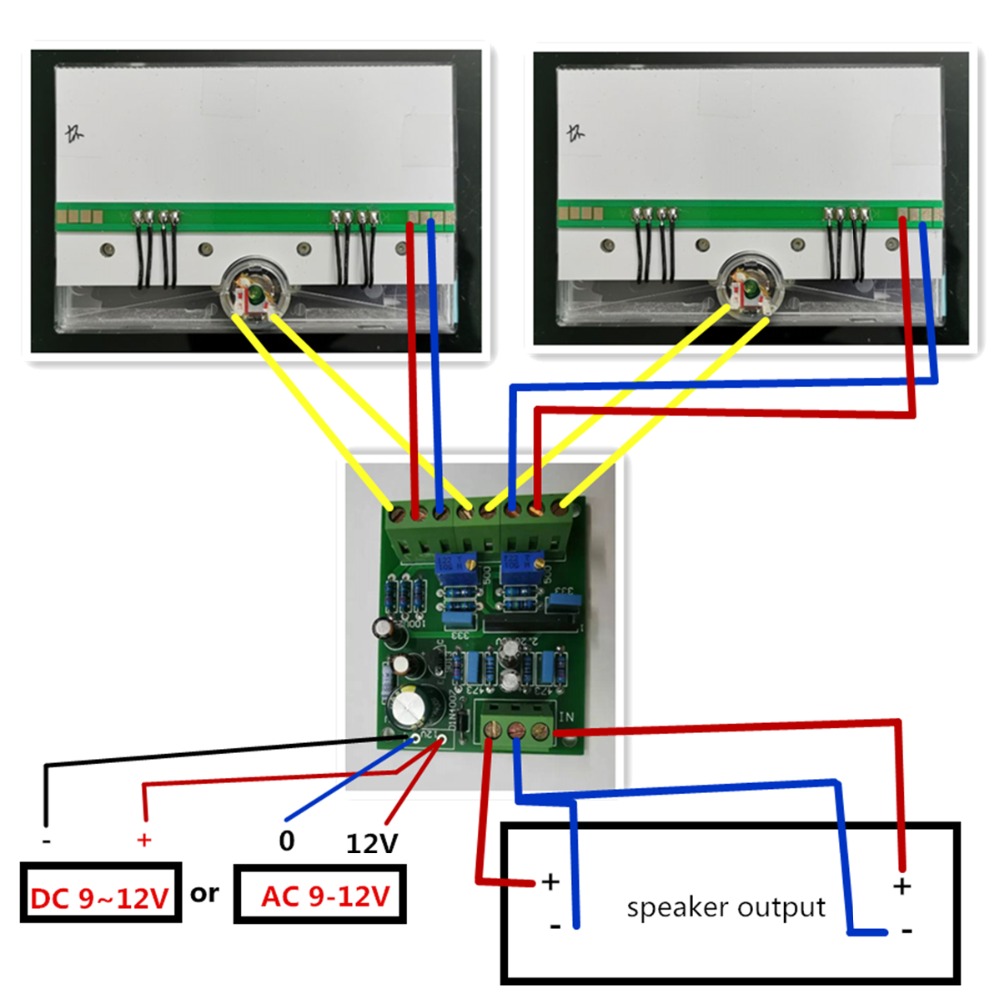

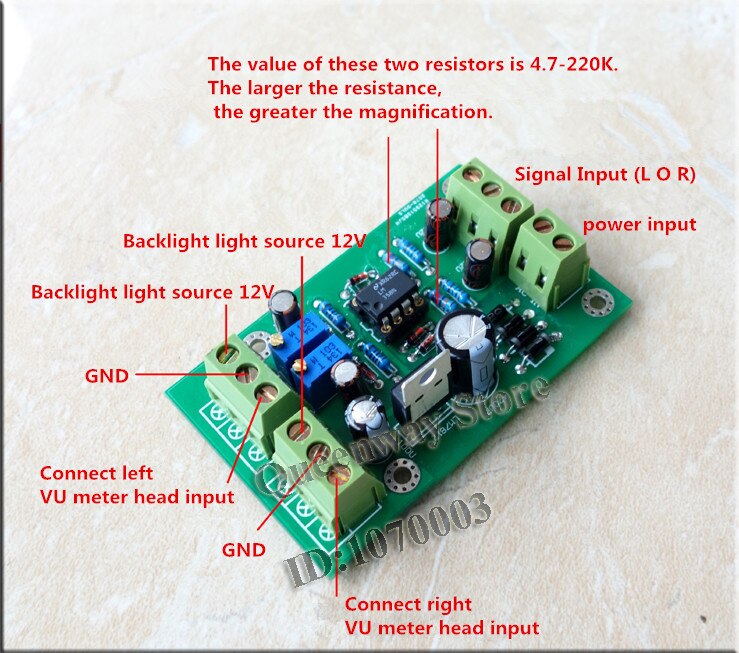

New VU Meter Driver Board Dual Channel Stereo Module Upgraded Version TA7318P
