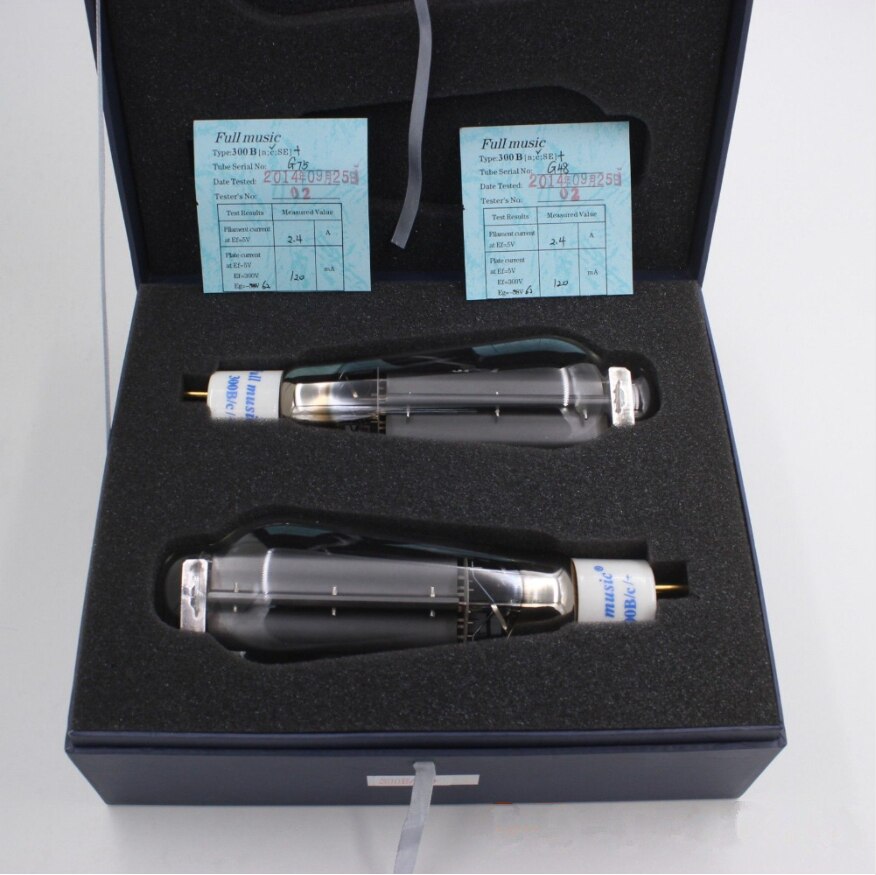

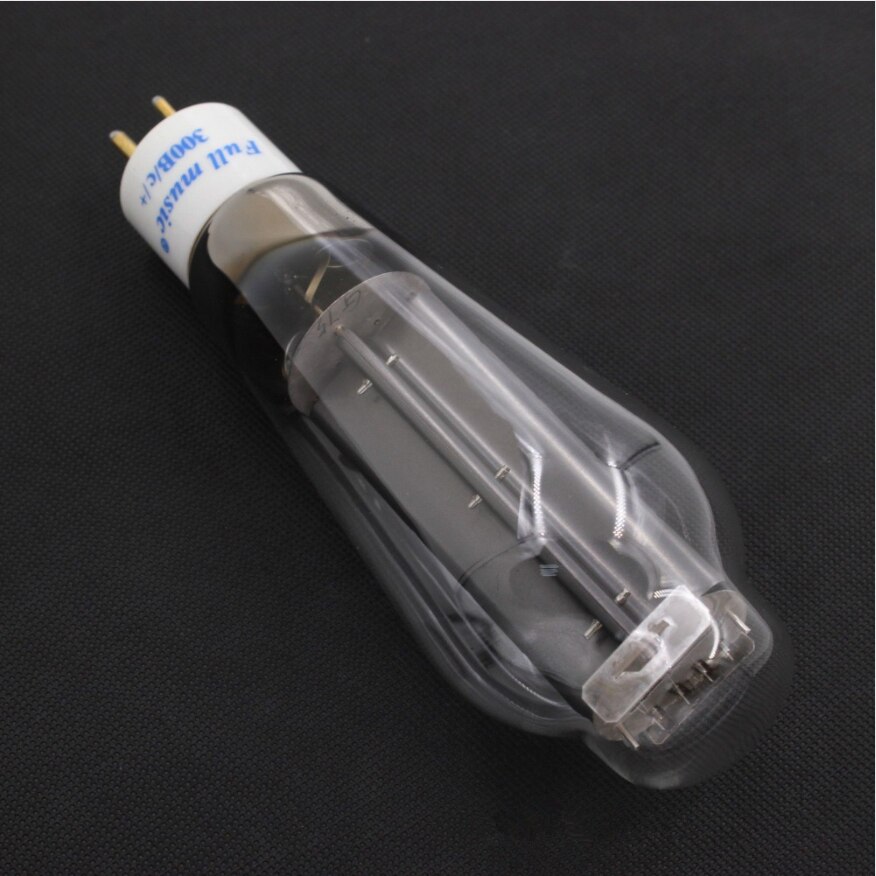

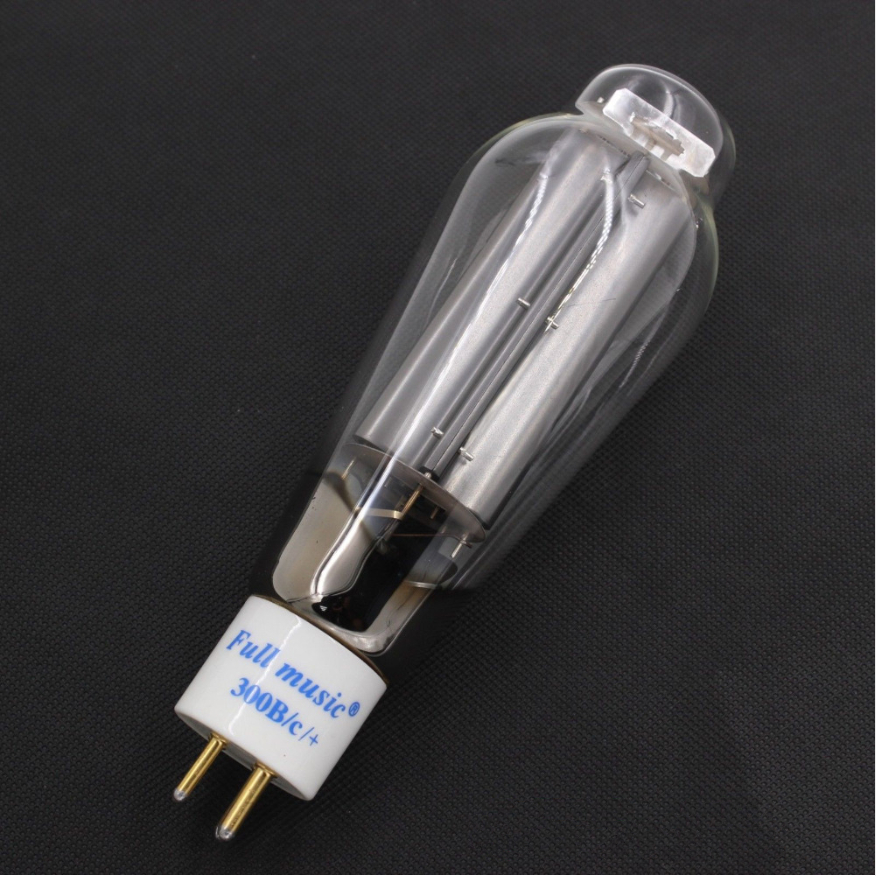

Classification- Dome-type bulb of glass, a white ceramic base with four-prong bayonet golden pins, oxide coated filamentary, carbon plate triode.



Application -Audio frequency amplifier where power outputs of approximately 22.5watts or less is required at relatively low plate voltages.

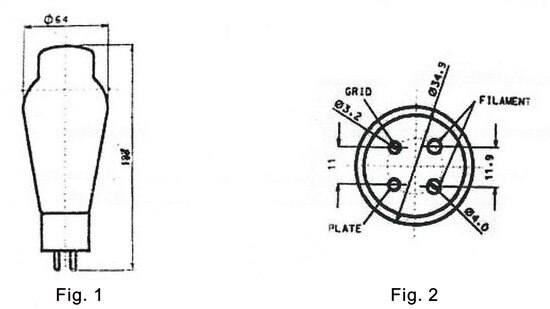

Dimensions -Dimensions, outline diagrams of the tube and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1, 2.





Nominal operating conditions and parameters

Filament voltage* ………………………………………………………… 5V

Nominal filament current …………………………………………… …… 2.4A

Plate voltage ………………………………………………………………… 400V

Grid voltage** ……………………………………………………………… -70V

Plate current ………………………………………………………………… 120mA

Amplification factor …………………………………………………………… 3.85

Grid to plate transconductance …………………………………………… 8.5mA / V

Grid current ………………………………………………………………… 0.05 μ A

Plate resistance ………………………………………………………… …450 ohms

Load resistance …………………………………………………………… 2.0 kohms



*Alternating-current filament supply or Direct-current filament supply.

**Alternating-current filament supply is used. The grid and plate returns should be connected to a center tap on the secondary of the filament transformer.

Direct-current filament supply is used. The grid and platter returns are connected to the negative end of the filament.



Characteristics-Average characteristics

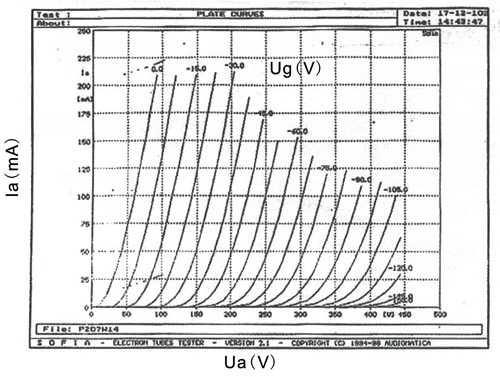

Figure 3. shown typical curves of plate currents of grid voltage for several values of plate voltages. It is alternating-current filament supply.





Limiting Operation Conditions for Safe Nor simultaneous ratings

Maximum plate voltage ………………………………………………… 450 volts

Maximum plate dissipation …………………………………………… 80 watts
