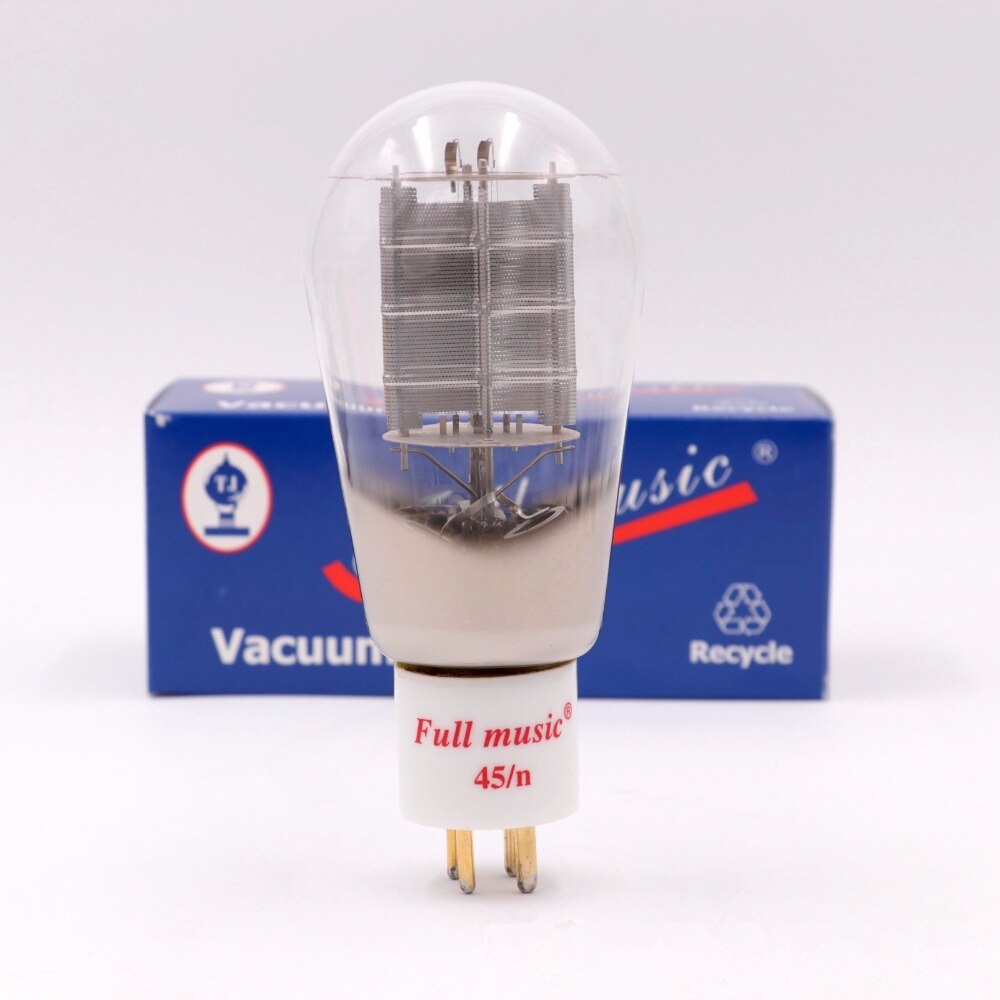

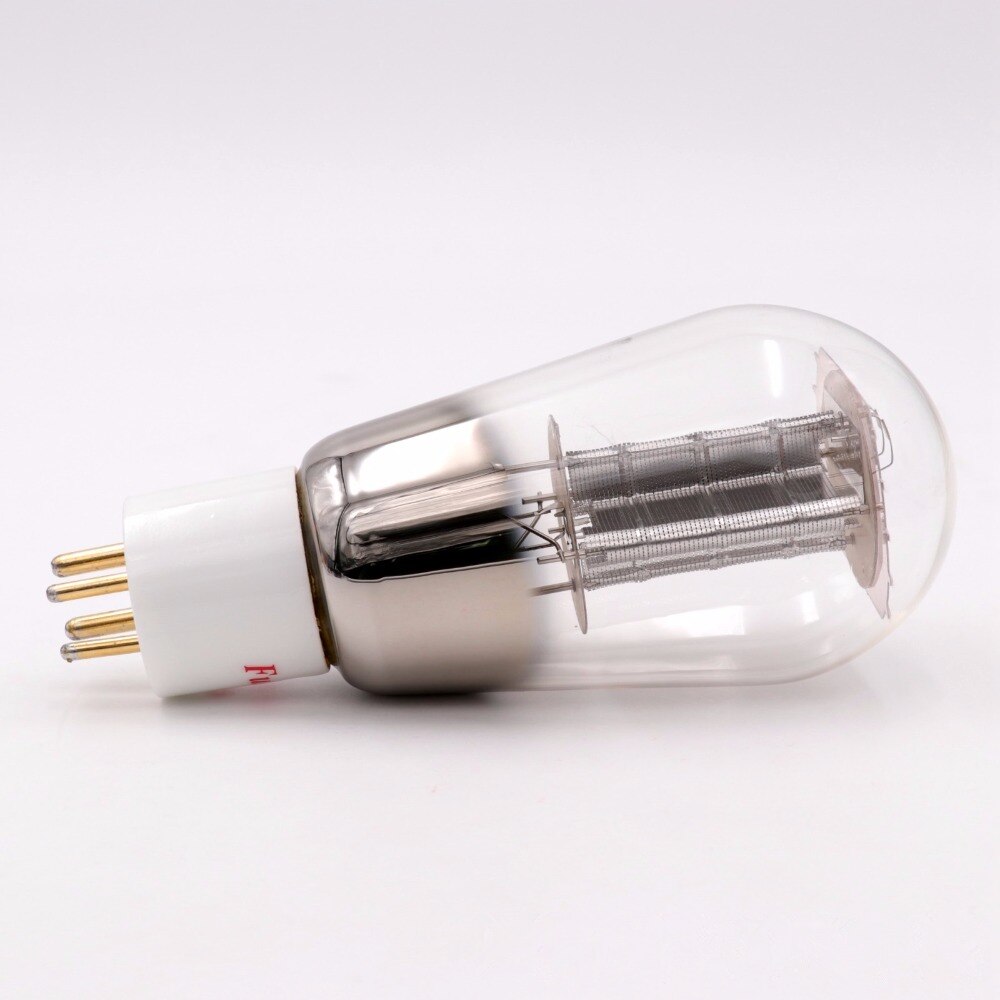

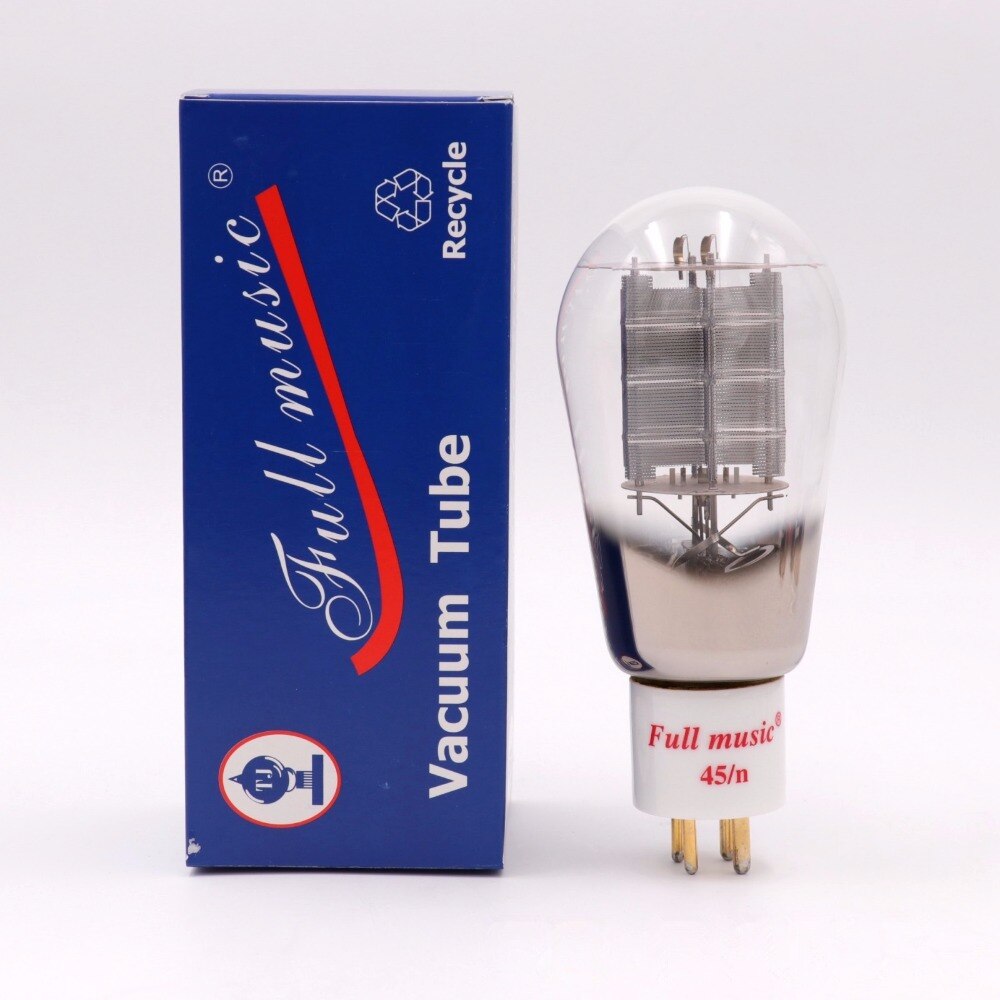

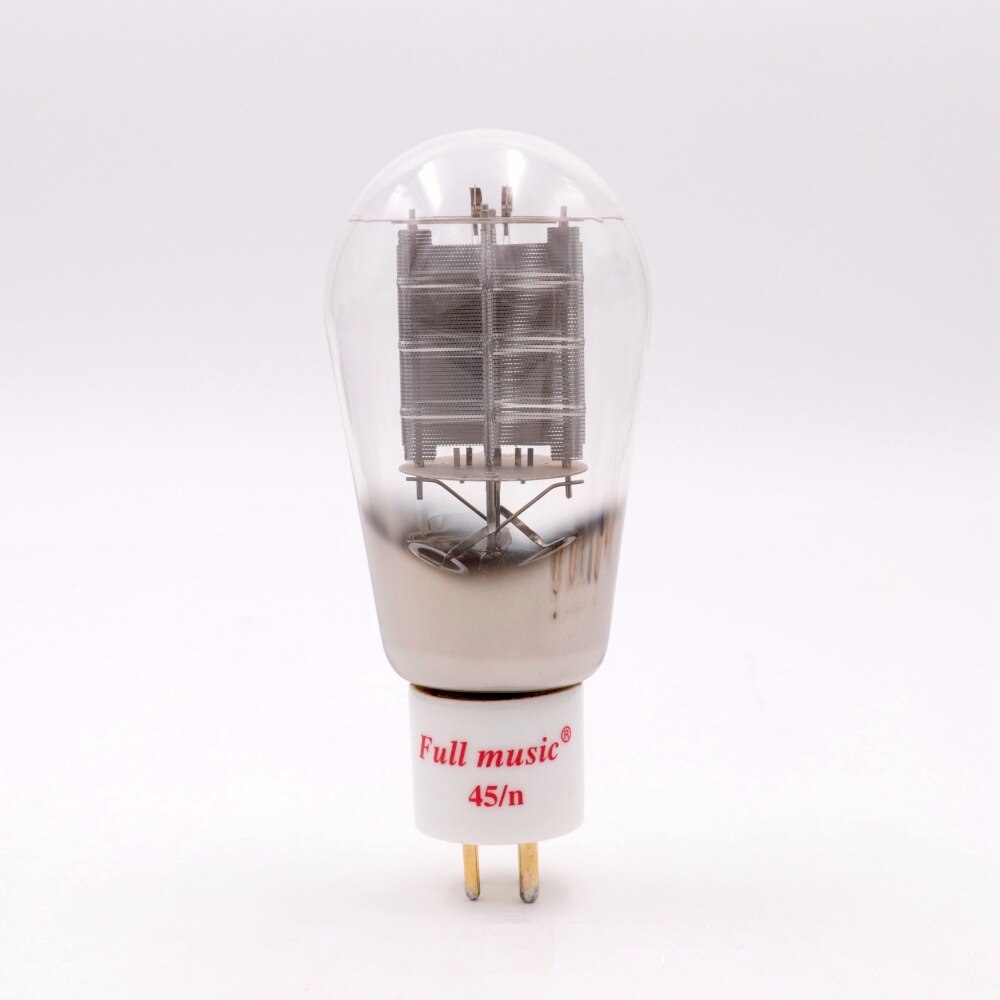

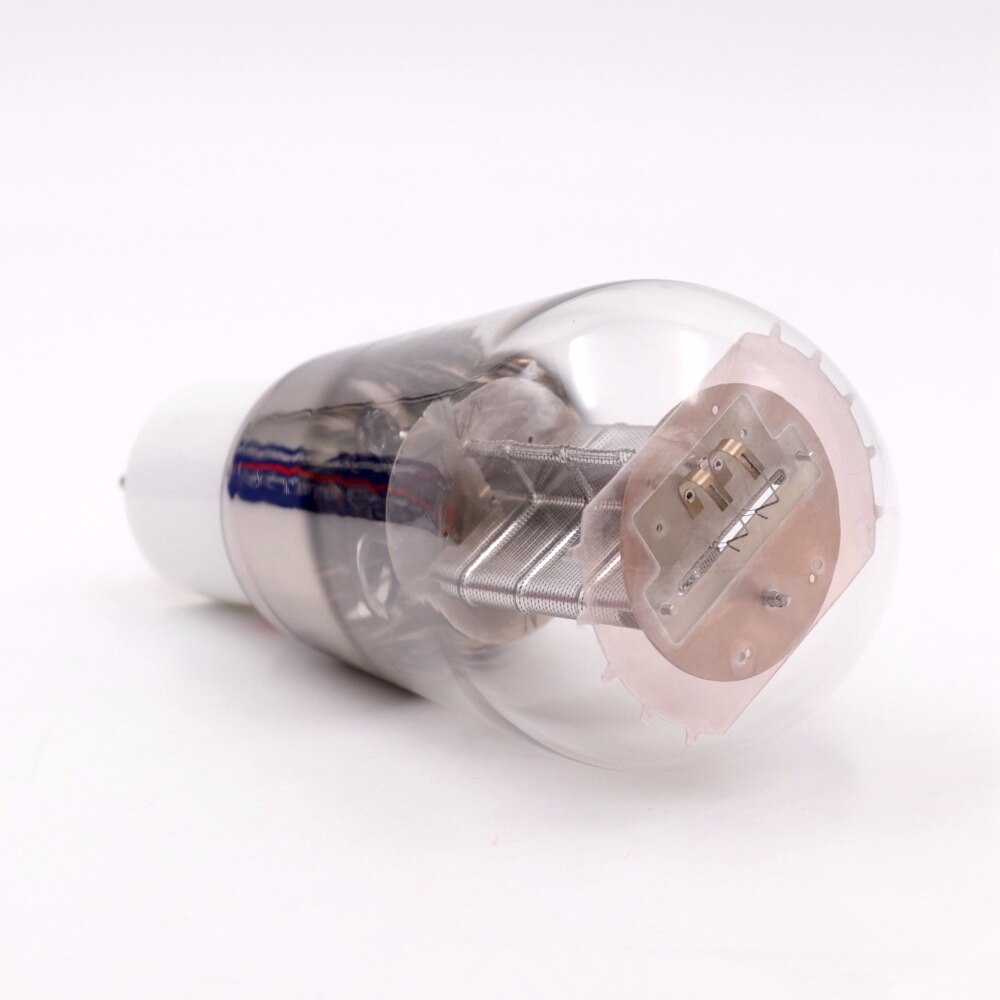

Brand New TJ FULLMUSIC VACUUM TUBE

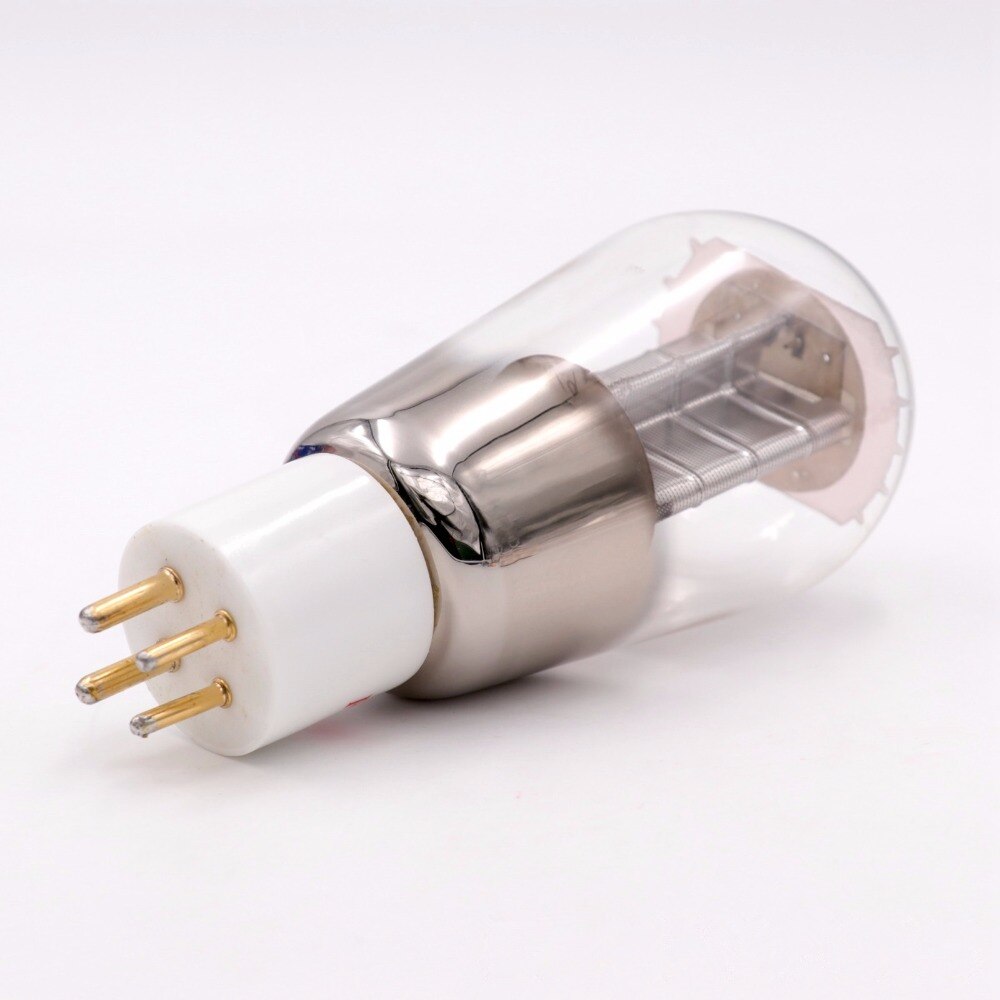

Classification- Dome-type or Aubergine-type bulb of glass, a white ceramic base with four-prong bayonet golden pins, oxide coated filamentary, mesh plate or carbon plate triode.



Application -Audio frequency amplifier where power outputs of approximately 1.6 watts..

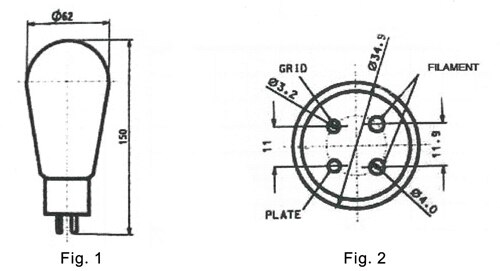

Dimensions -Dimensions, outline diagrams of the tube and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1 and 2.





Nominal operating conditions and parameters

Filament voltage* …………………………………………………………… 2.5V

Nominal filament current …………………………………………………… 1.5A

Plate voltage ………………………………………………………………… 250V

Grid voltage** ……………………………………………………………… …-50V

Plate current ………………………………………………………………… 34mA

Amplification factor …………………………………………………………… 3.5

Load resistance ……………………………………………………………… 3900 ohms

Grid Current ………………………………………………………… …………0.05 μ A



*Alternating-current filament supply or Direct-current filament supply.

**Alternating-current filament supply is used. The grid and plate returns should be connected to a center tap on the secondary of the filament transformer.

Direct-current filament supply is used. The grid and platter returns are connected to the negative end of the filament.



Characteristics-Average characteristics

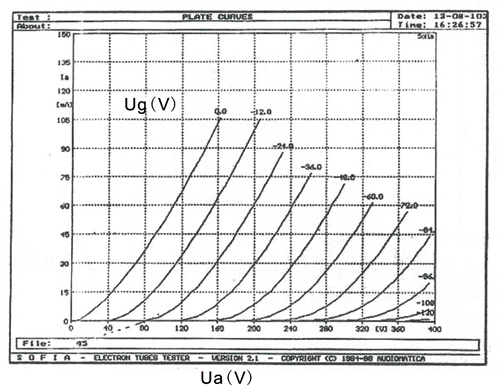

Figure 3. shown typical curves of plate currents of grid voltage for several values of plate voltages. It is alternating-current filament supply.





Limiting Operation Conditions for Safe Nor simultaneous ratings

Maximum plate voltage …………………………………………………… 275 volts

Maximum plate current …………………………………………………… 10 watts
