T-048 Fullmusic 300B/N 300BN Vacuum Tube Mesh Plate Replace EH JJ 300B Tubes Dome Globe Type Vintage HIFI AMP DIY Audio
$764.00
Ex Tax: $764.00
- Stock: 10
- Model: 33046111063
- Weight: 1.00kg
- Dimensions: 10.00cm x 10.00cm x 5.00cm
- SKU: 33046111063
Hello visitors and buyers,
Welcome to Queenway store!
About the products details, there we carefully tell you: these specifics produced by AliExpress system, some of these are not correct or even wrong. So the correct products specifics is from the detailed description. Usually the description has some pictures and much words. And if you are in 110V rear. Please notice the items input voltage. As we can not mark it on few items.
About the international shipping/transportation fee, if the shipping fee is expensive, please contact us. Sometimes we can find few cheaper shipping way and we will 100% reply to you! Please carefully check the packing/box/parcel when the sender delivery. .

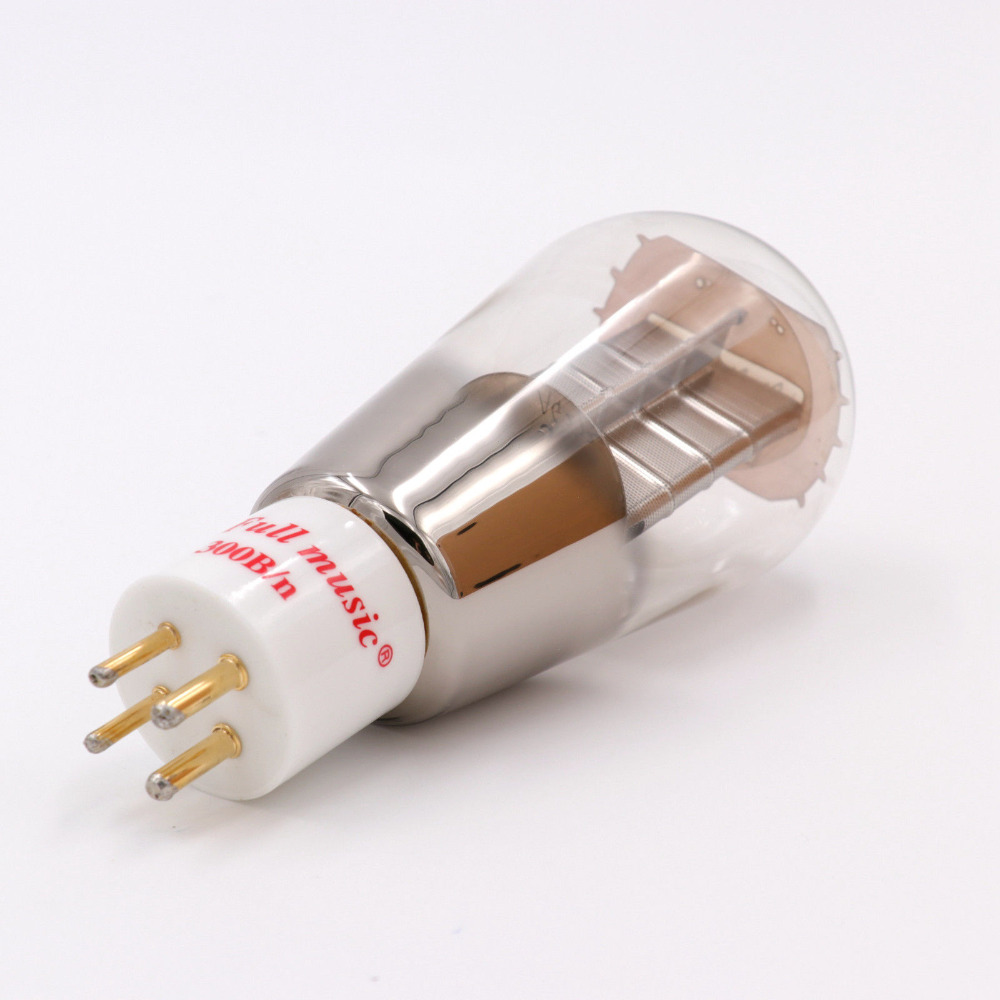

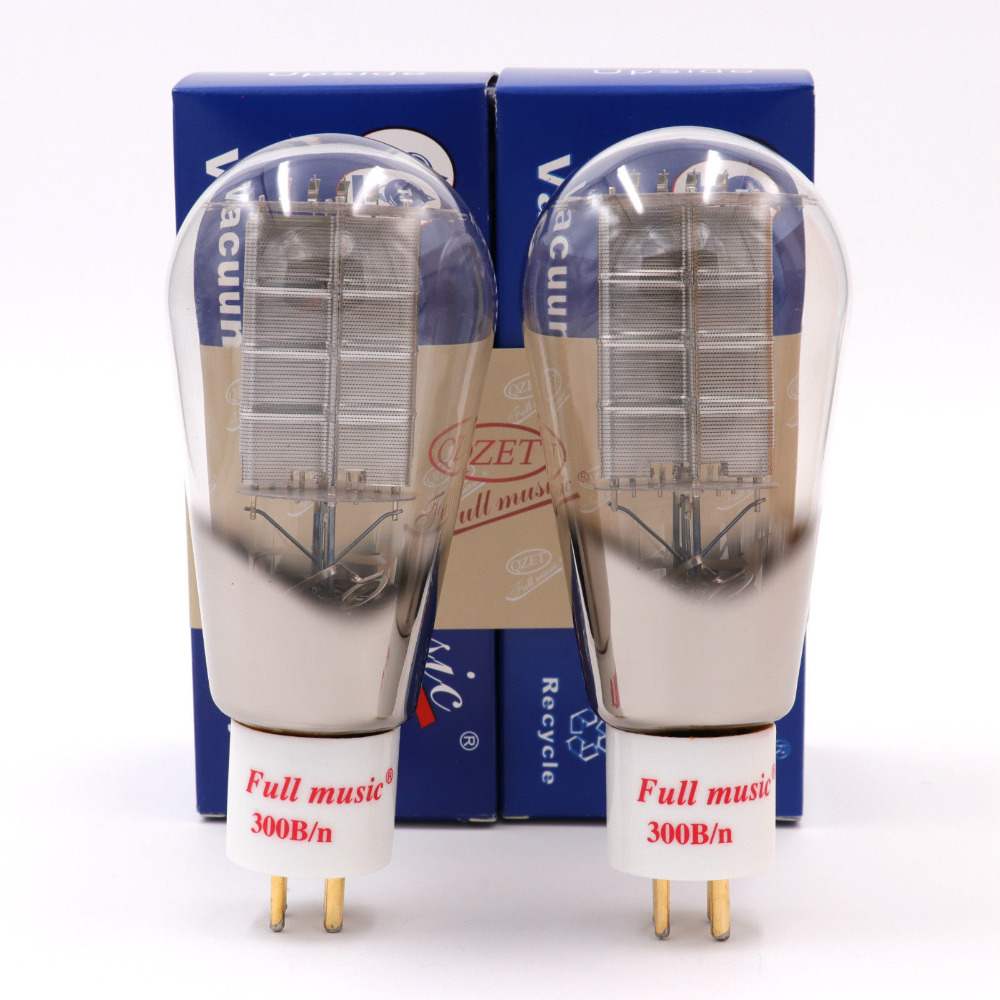

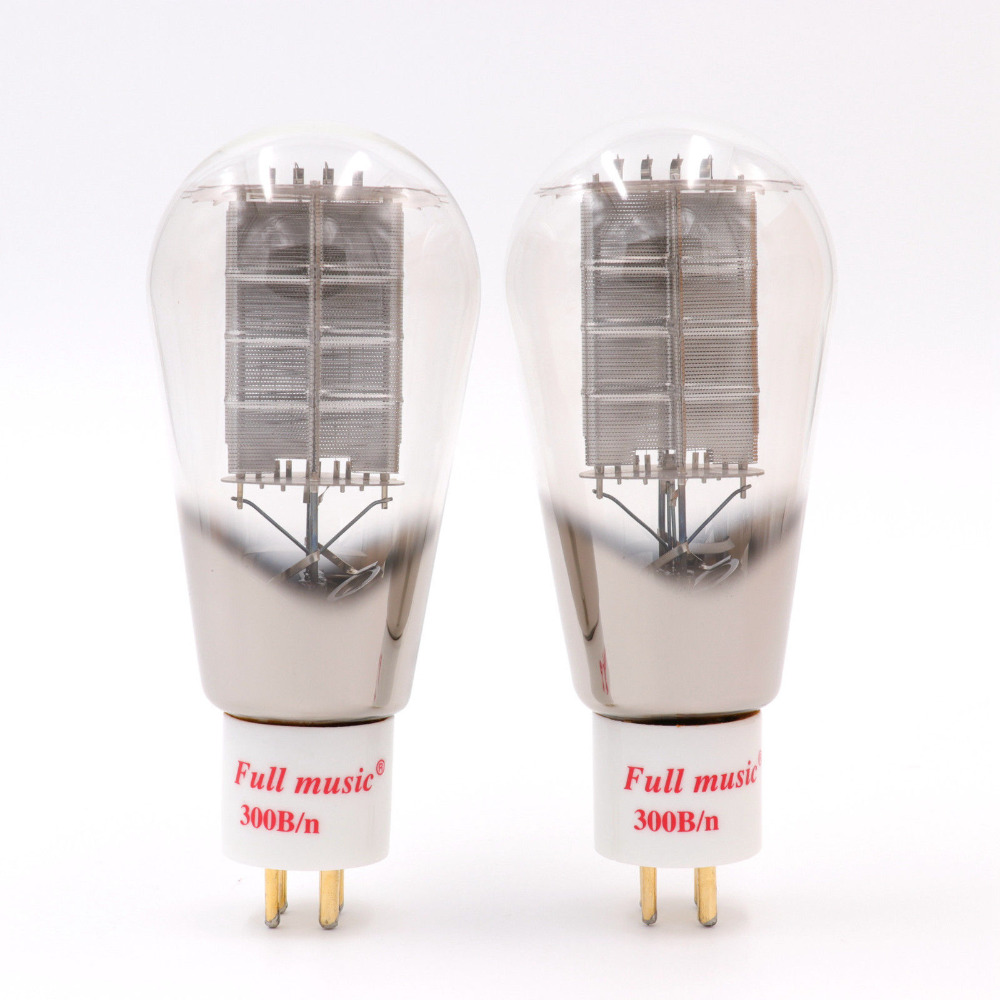

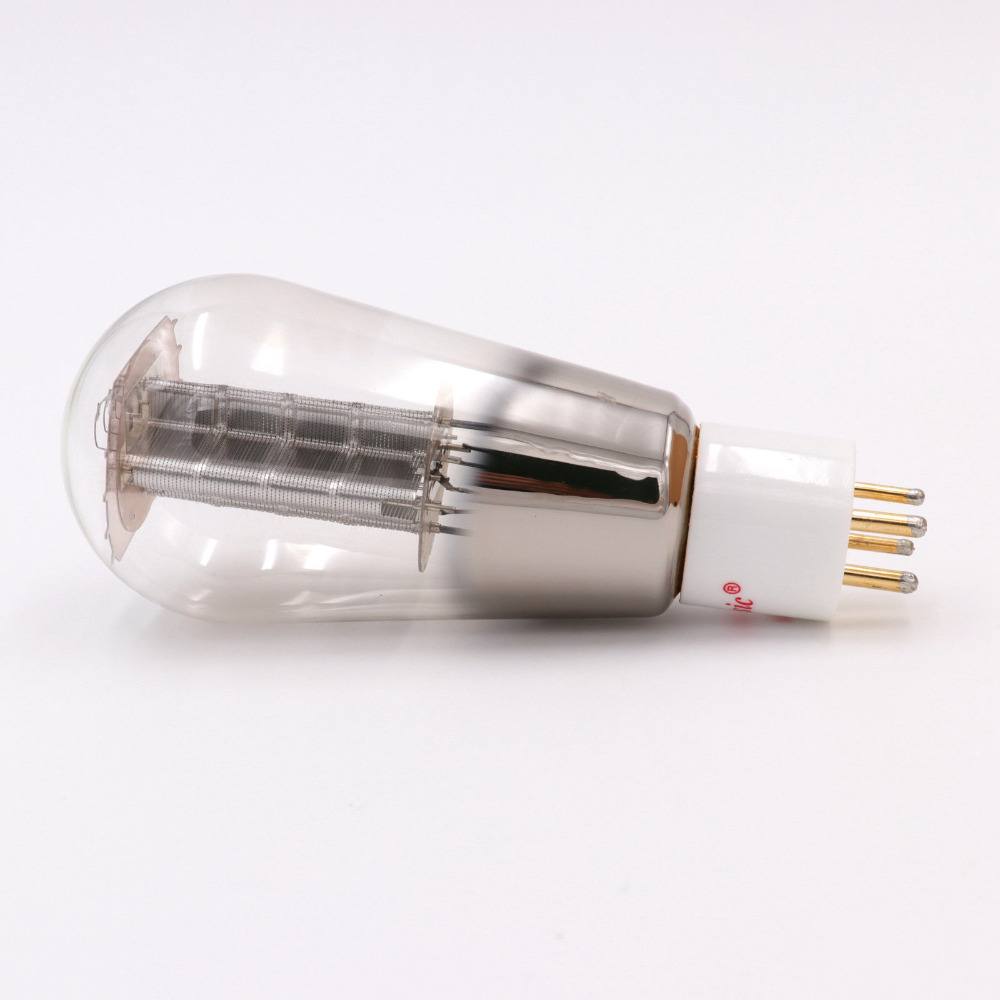

Brand New TJ FULLMUSIC VACUUM TUBE
Item No.: 300B/n, Mesh plate, DOME or GLOBE type
Replace other 300B tubes directly (5v)
The price is for 1 Matched pair (2PCS, factory matched&test)
Mesh plate,ceramic base,gold plated brass pins
Nominal operating conditions and parameters
Filament voltage* ..................................................................... 2.5V
Nominal filament current ............................................................ 1.5A
Plate voltage ........................................................................... 250V
Grid voltage** ........................................................................ ...-50V
Plate current ........................................................................... 34mA
Amplification factor ..................................................................... 3.5
Load resistance ........................................................................ 3900 ohms
Grid Current ..............................................................................0.05 u A
Limiting Operation Conditions for Safe Nor simultaneous ratings
Maximum plate voltage ............................................................ 275 volts
Maximum plate current ............................................................ 10 watts
