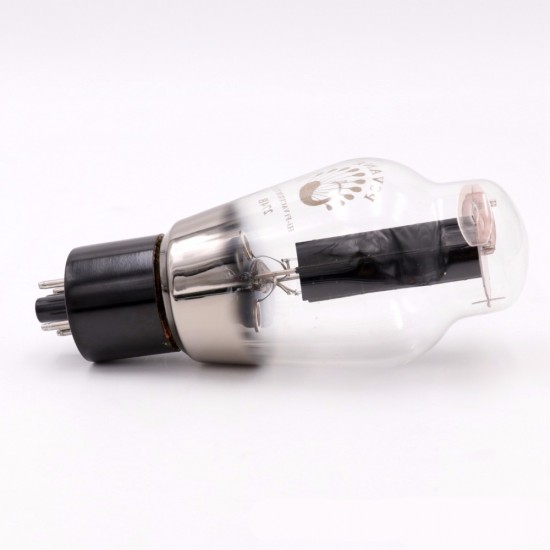

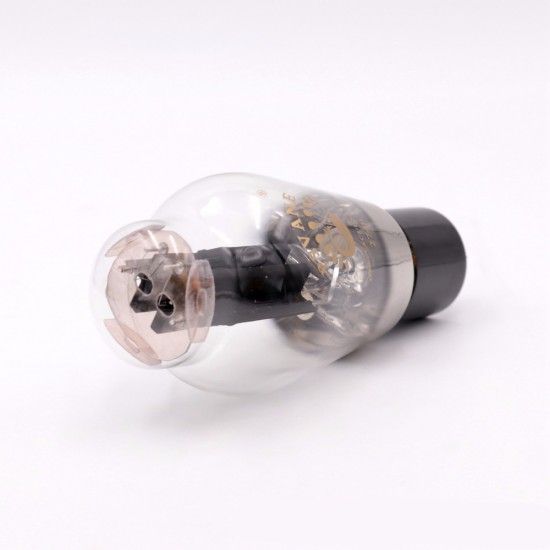

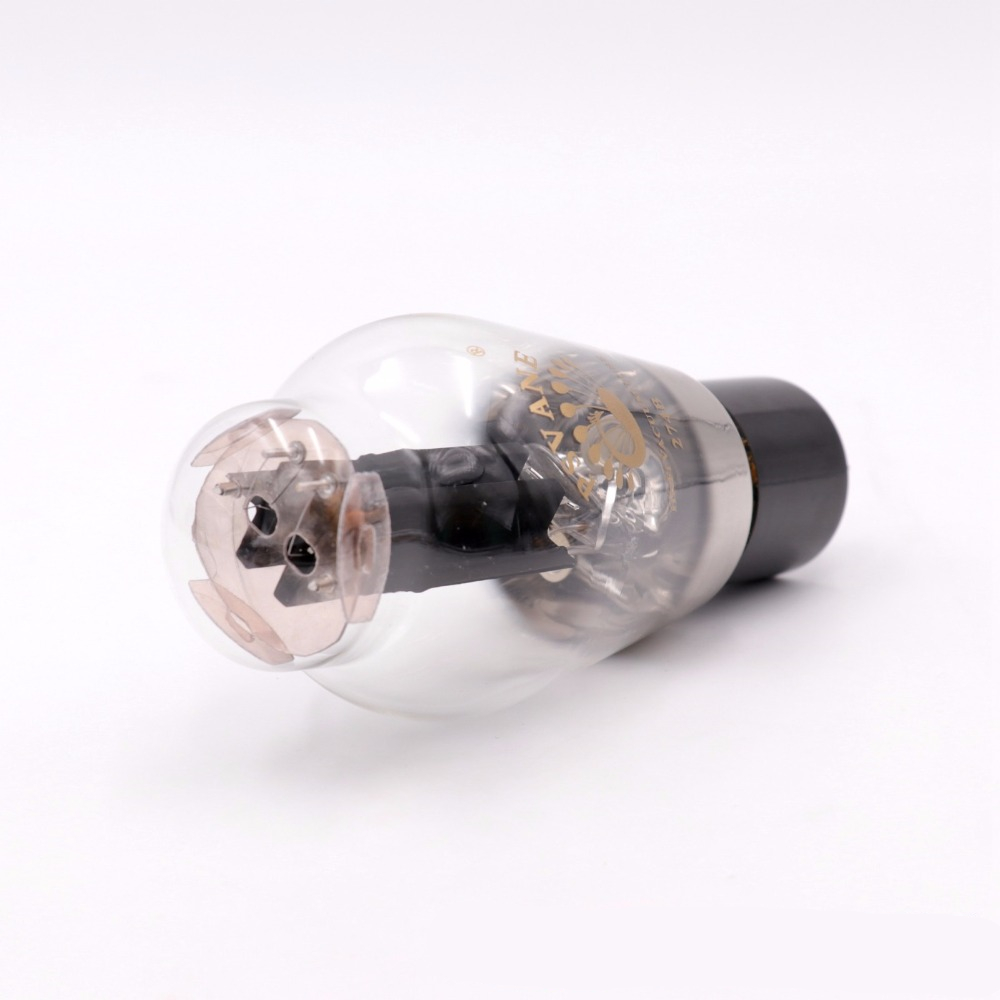

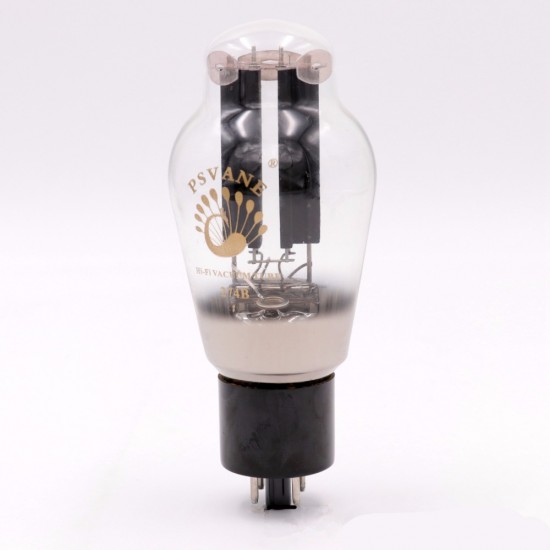

T-002 PSVANE 274B Vacuum Tube Vintage Rectifier Tube Replace GZ34 5U4G 5AR4 Western Electric WE274B Replica Hifi Vintage Audio
$132.00
Ex Tax: $132.00
- Stock: 9
- Model: 33042575342
- Weight: 0.50kg
- Dimensions: 10.00cm x 10.00cm x 5.00cm
- SKU: 33042575342
Hello visitors and buyers,.
Welcome to Queenway store!
About the products details, there we carefully tell you: these specifics produced by AliExpress system, some of these are not correct or even wrong. So the correct products specifics is from the detailed description. Usually the description has some pictures and much words. And if you are in 110V rear. Please notice the items input voltage. As we can not mark it on few items.
About the international shipping/transportation fee, if the shipping fee is expensive, please contact us. Sometimes we can find few cheaper shipping way and we will 100% reply to you! Please carefully check the packing/box/parcel when the sender delivery. .

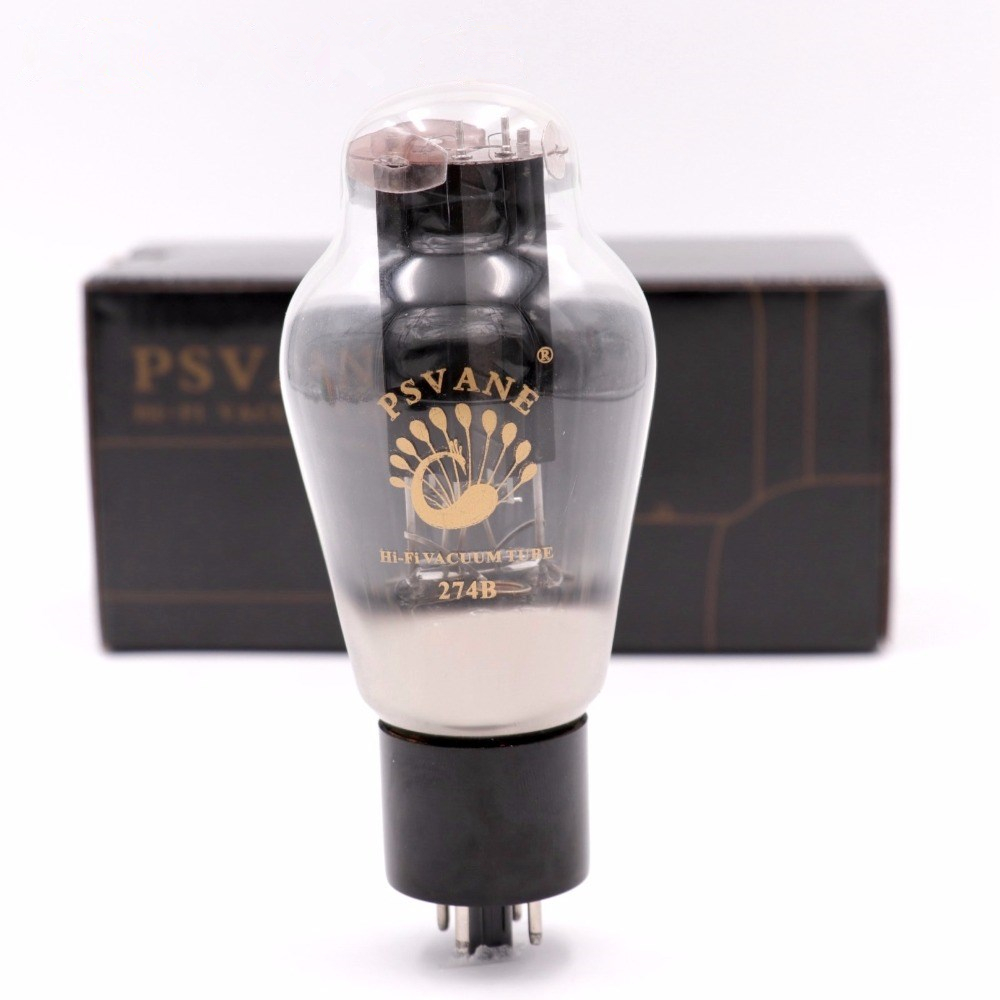

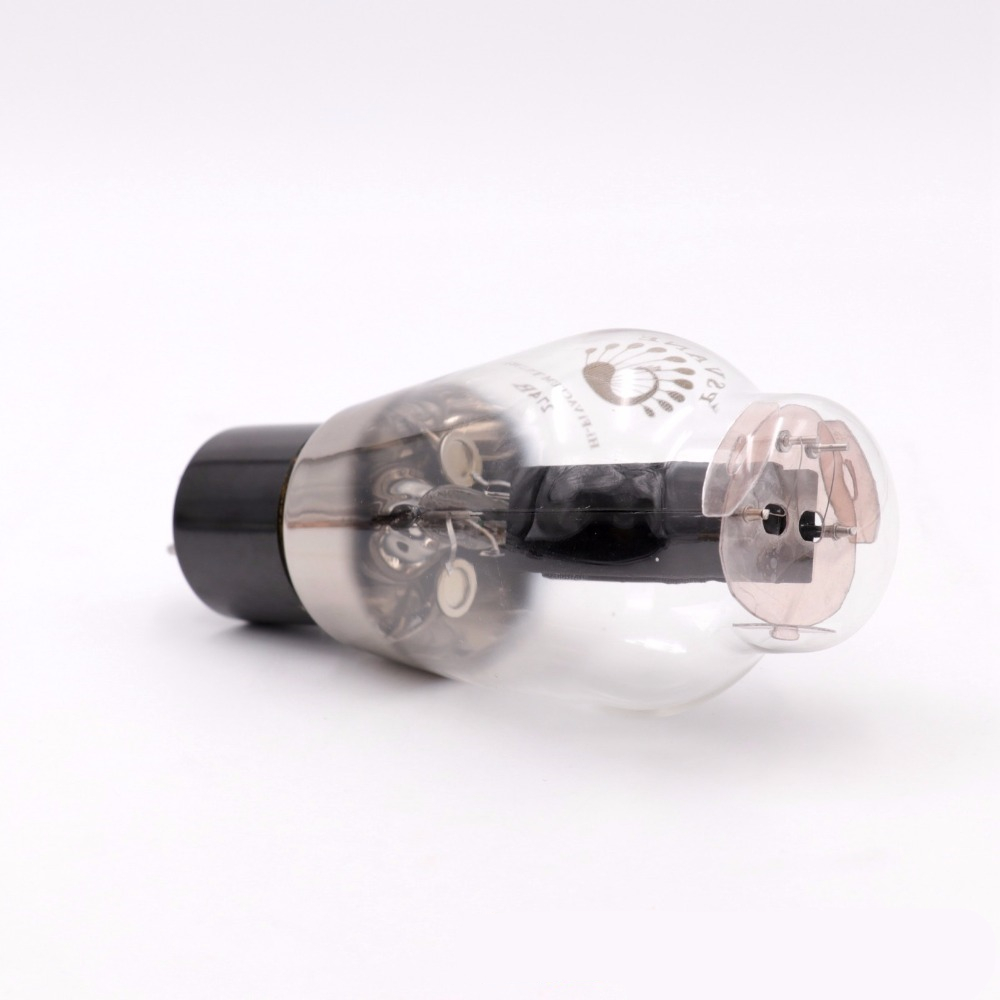

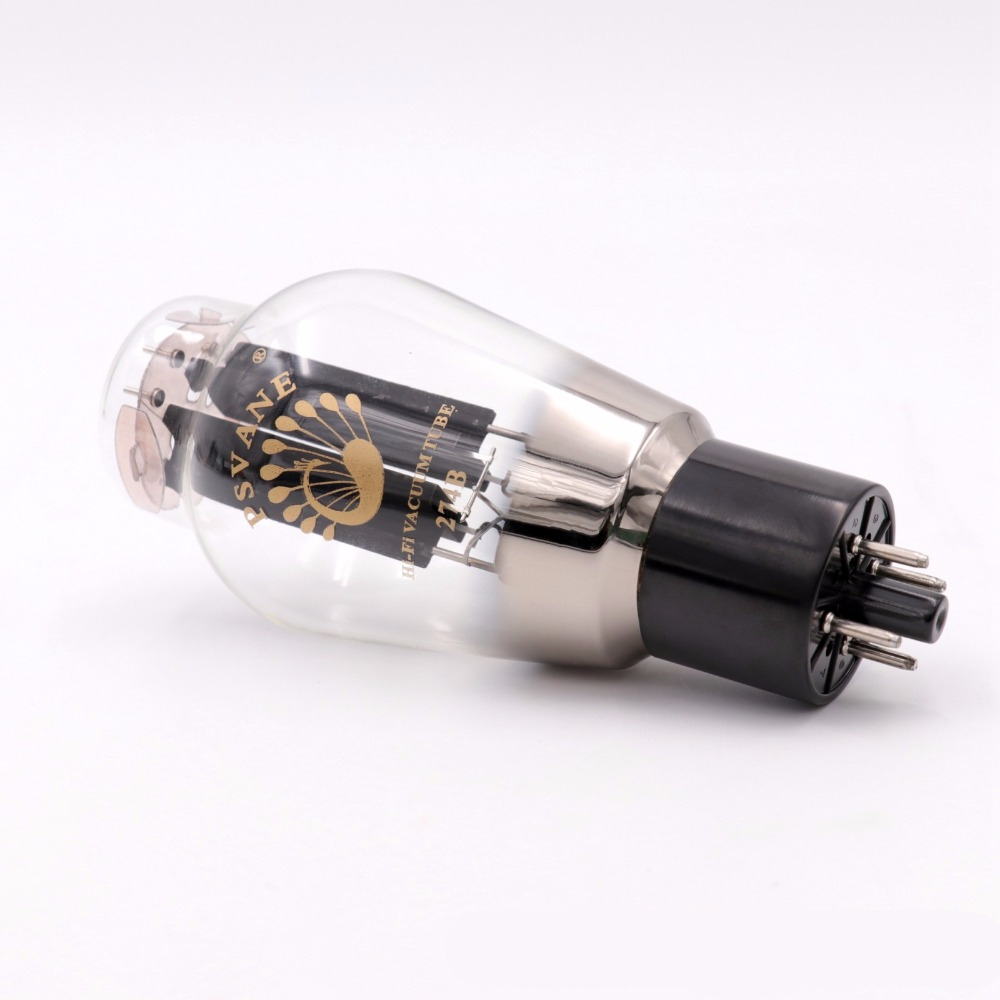

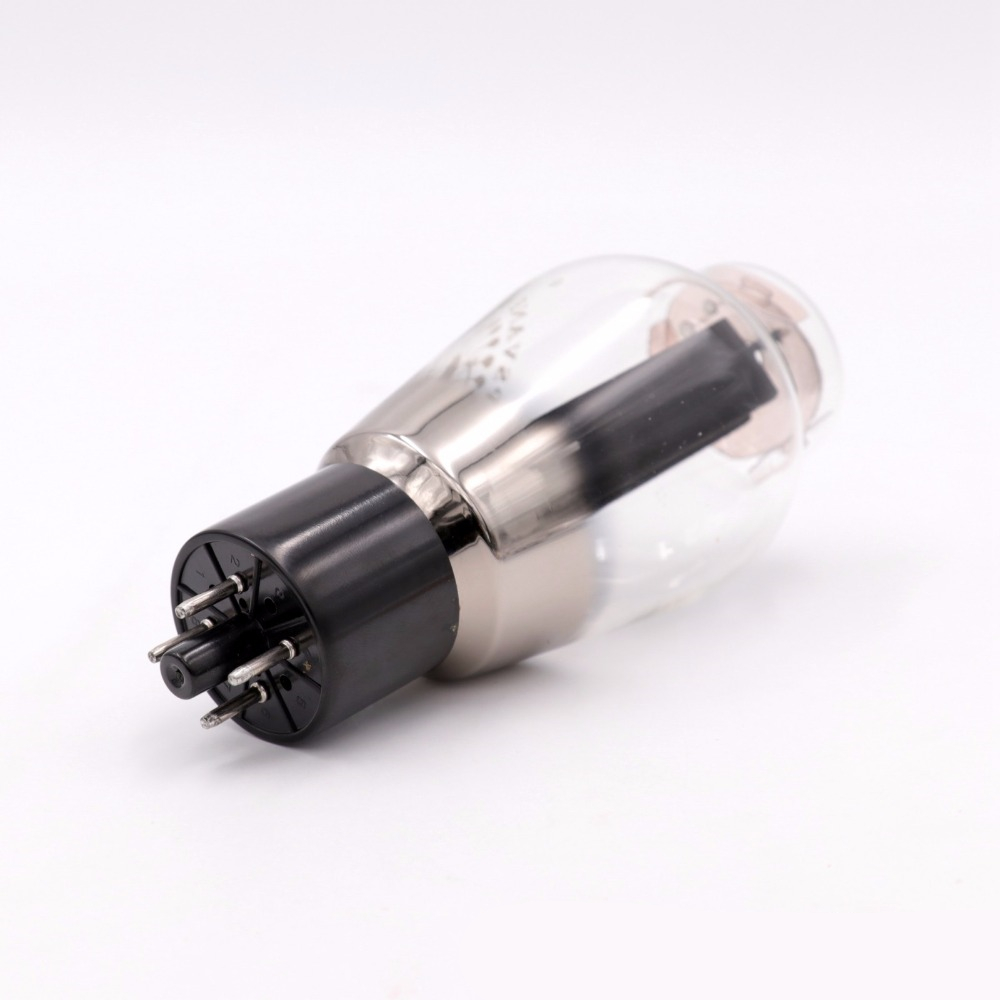

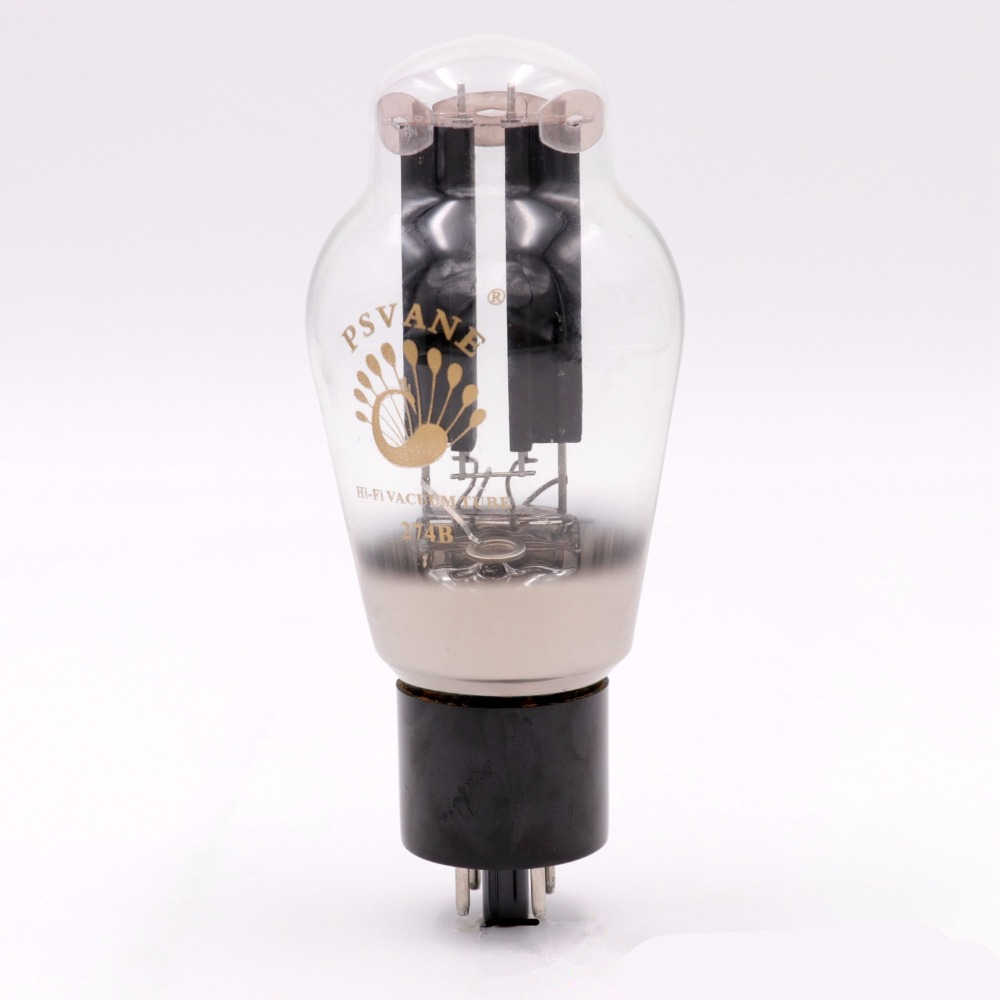

Brand new&original PSVANE Vacuum Tube
Item No.: 274B, Hifi Series, WE274B replica
Rectifier tubes: Replace 5U4G,5Z3P,5R4GY,5AR4,GZ34,U52,5V4 etc.
Quantity: 1PC/lot

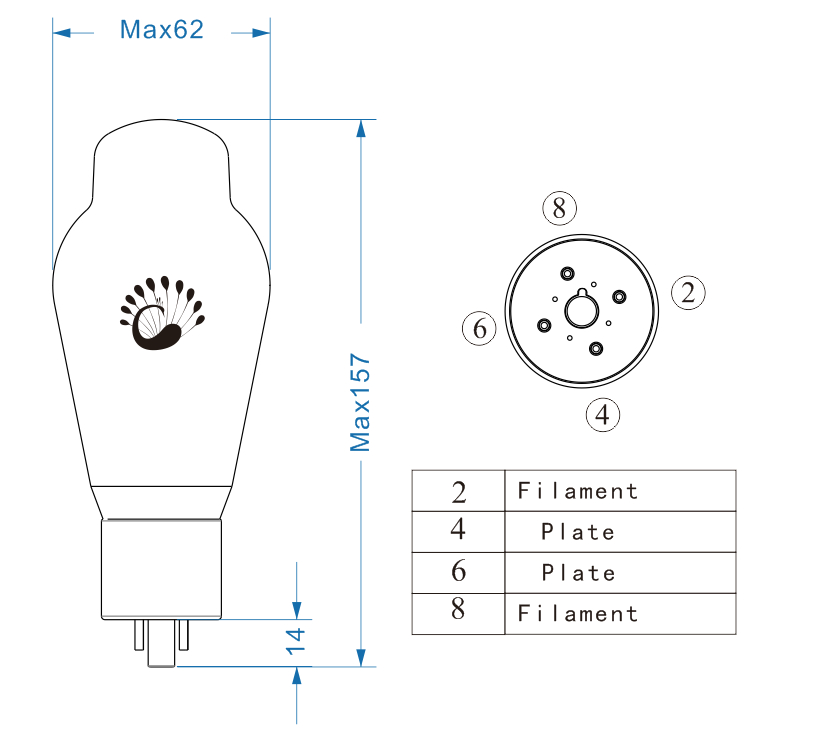

Glass shell eight feet directly heated full-wave rectifier，274B is very similar with 5U4G and 5Z3P, which can be
replaced by each other.
Heater
Uf………………5V
If…………… 2.5A
Maximum Rating
anode inverse peak voltage……………1550V
anode peak current ………750mA
Recommend working condition
Anode supply voltage 2×500V
Each arm impedance 75Ω
load impedance 2000Ω
Filter capacitor 4μF
Rectifier current ≧230mA
