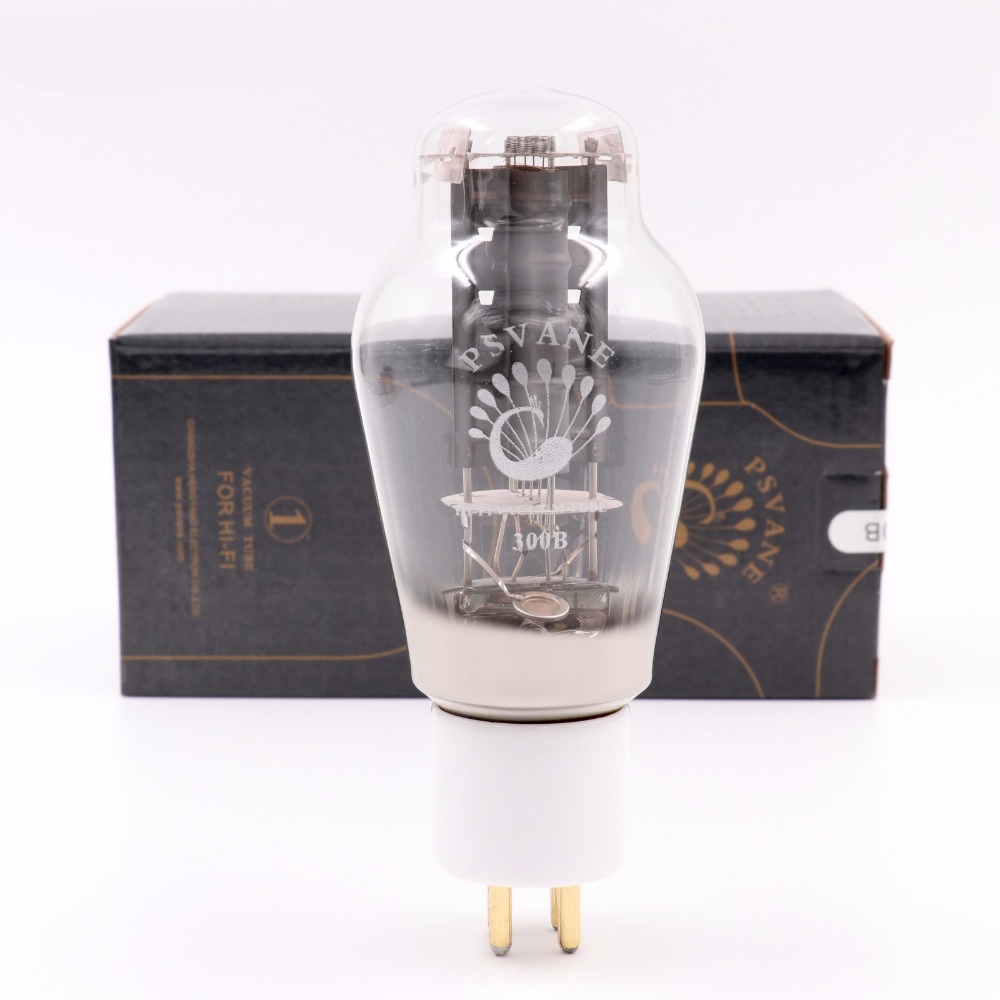

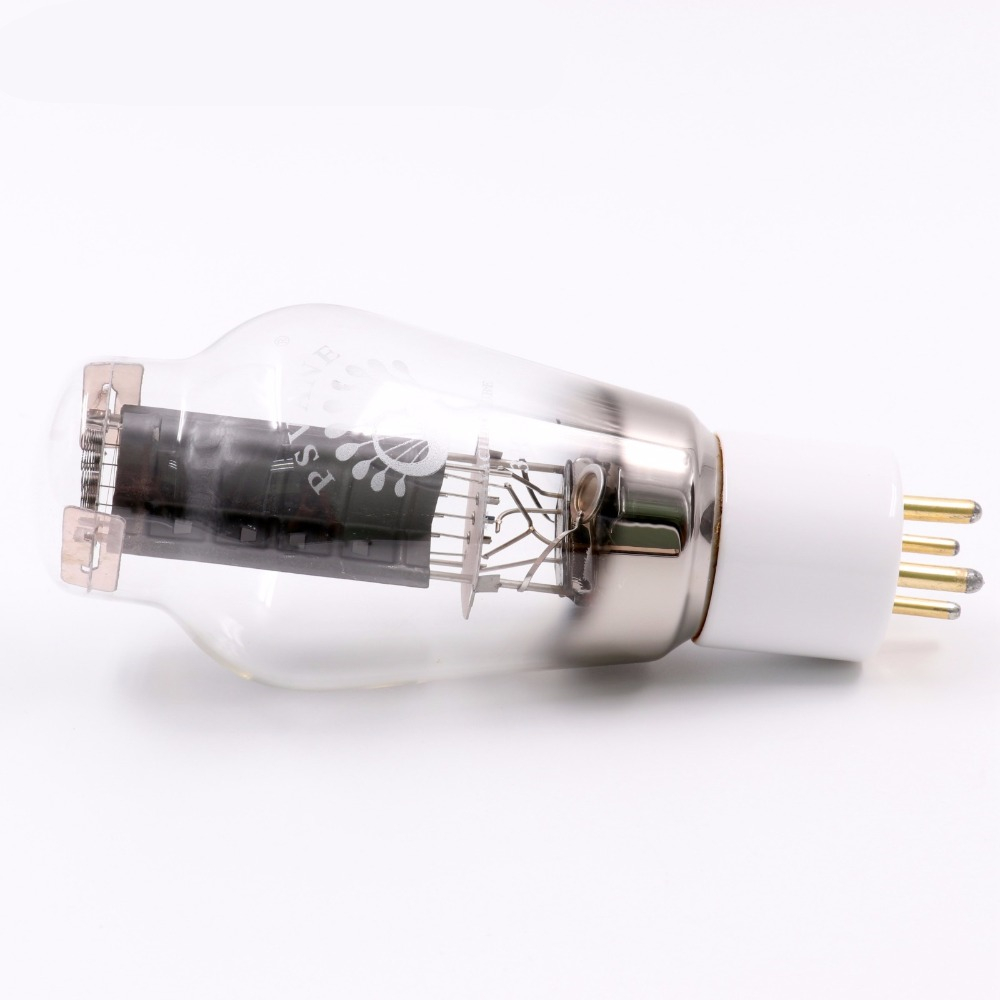

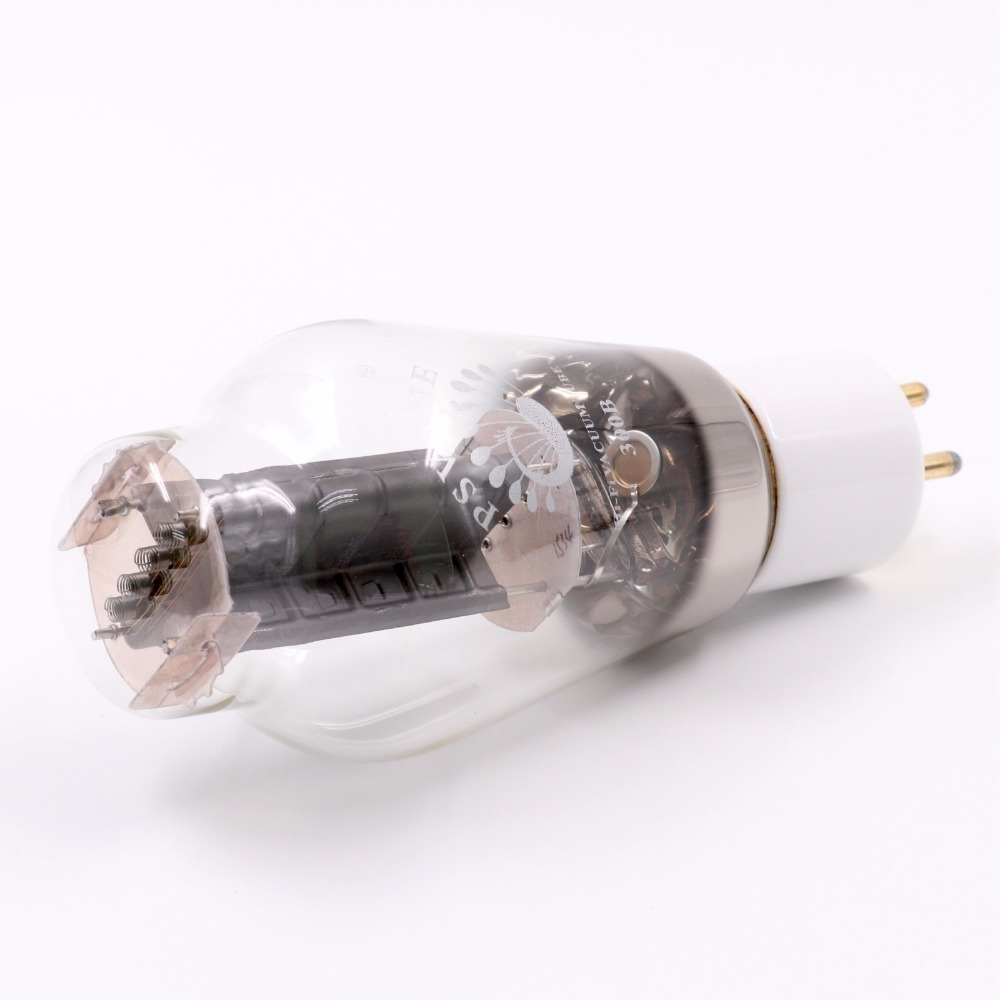

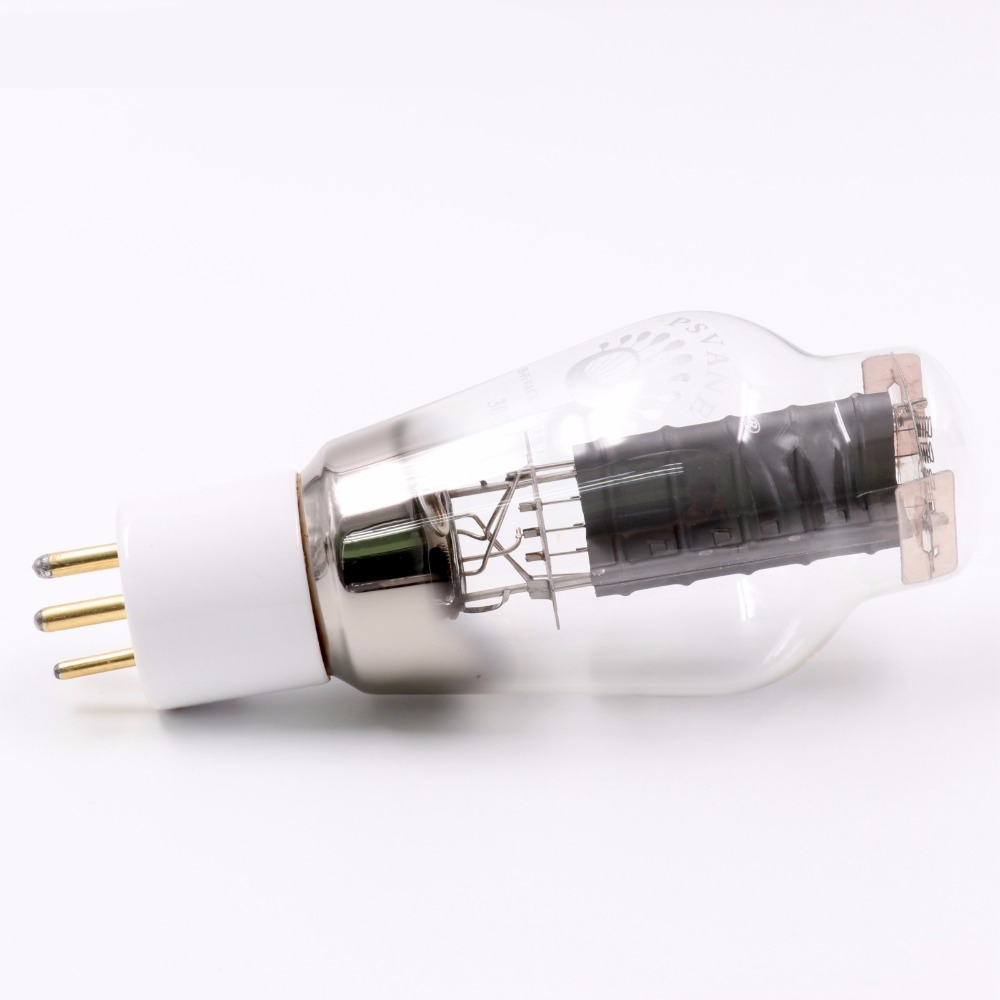

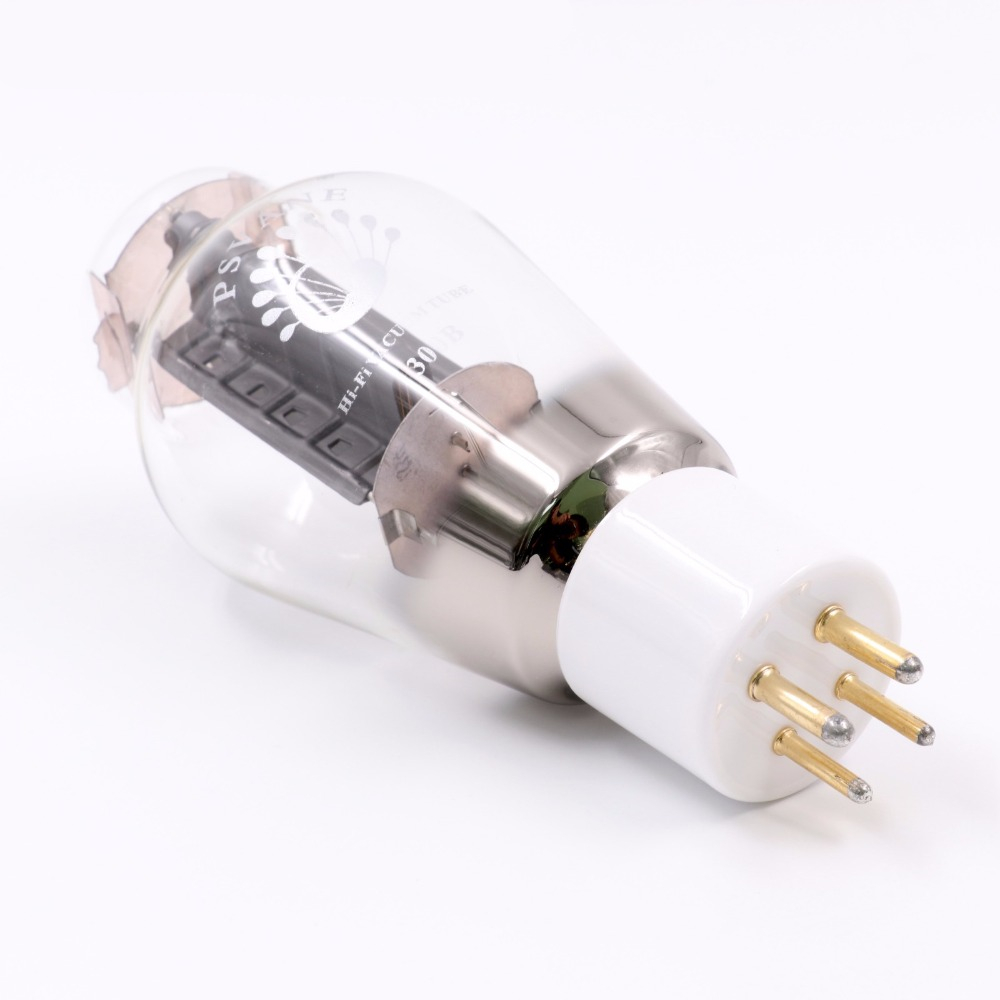

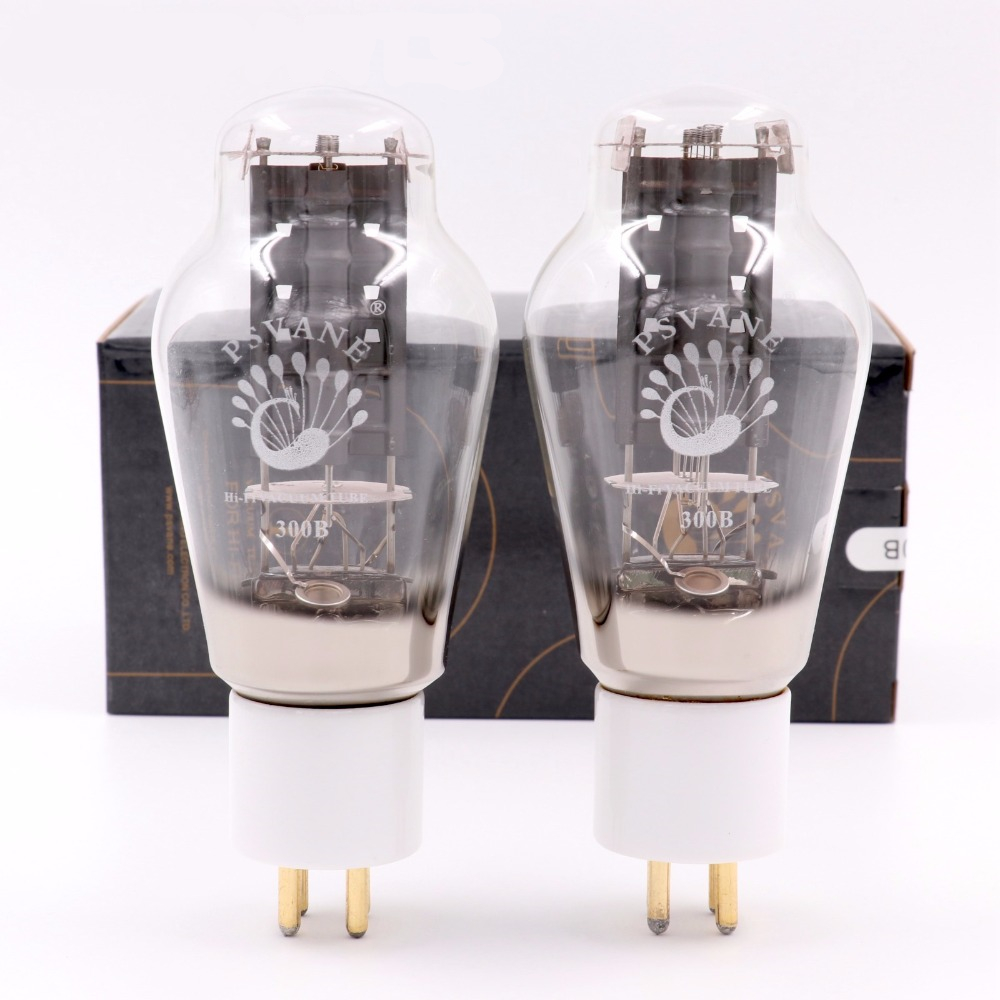

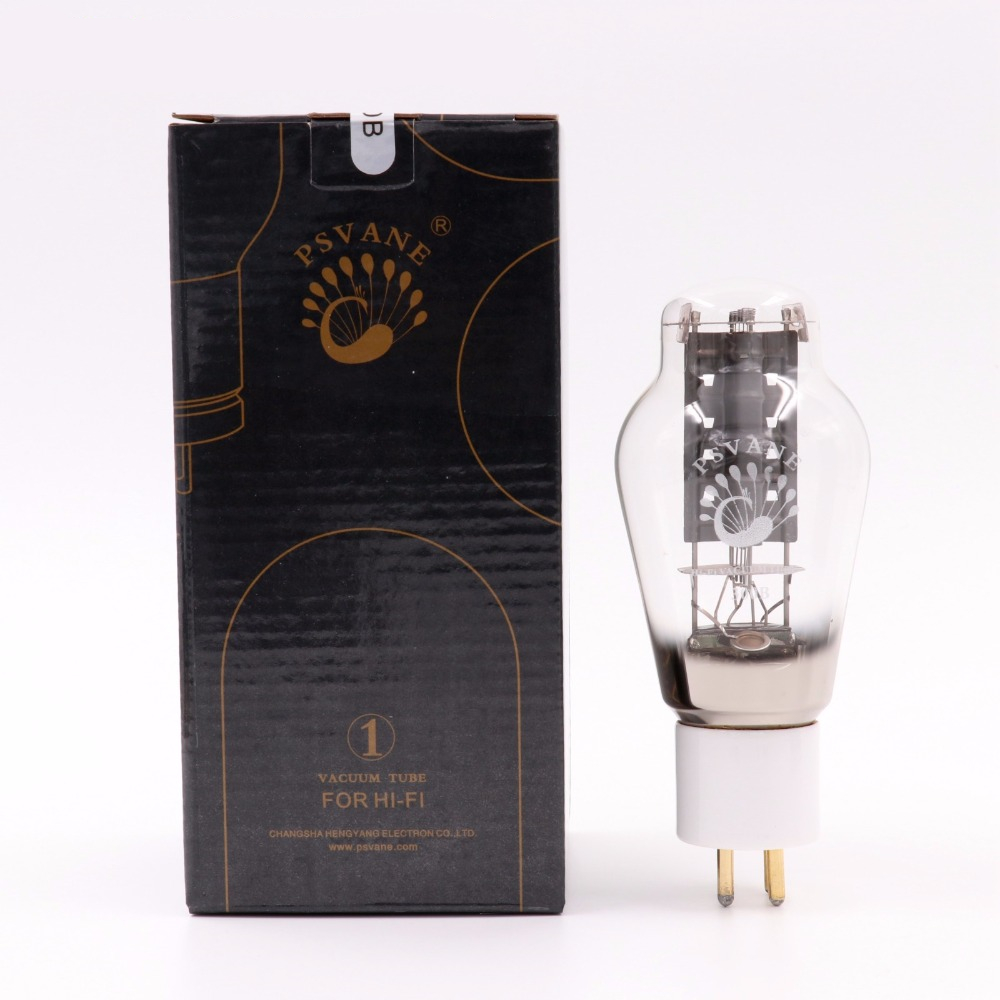

Brand New PSVANE  300B  Vacuum Tube



300B is directly-heated type cathode triode, used as class A1. In audio amplifier it suits for the condition that the output power is 10W.





Heater

Uf(DC)………………5V

If(DC) …………… 1.2A



Maximum Rating



Ua……………480V

Pa………40W



Ik

with cathode bias………………100 mA

with fixed bias……………70 mA



Direct Interelectrode Capacitances

input……………9PF

output……………4.3PF

grid to plate……………15PF



Static parameter





Ua……………………300V

-Ug………………… 60V

Ia……………………60mA

Gm……………………5.5mA/V

ri……………………0.7 KΩ

u ……………………3.85

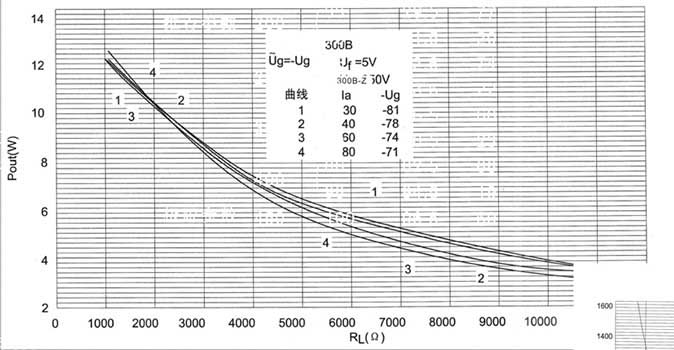

Pout…………………6.6W
