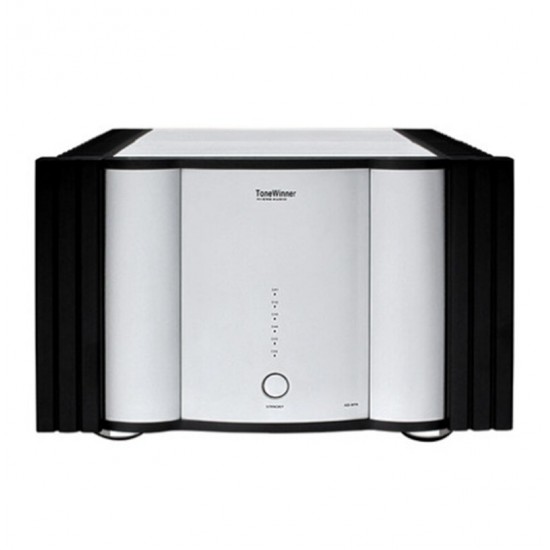

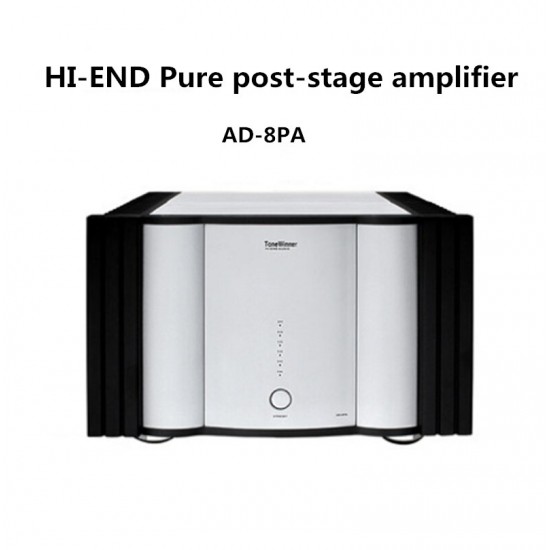

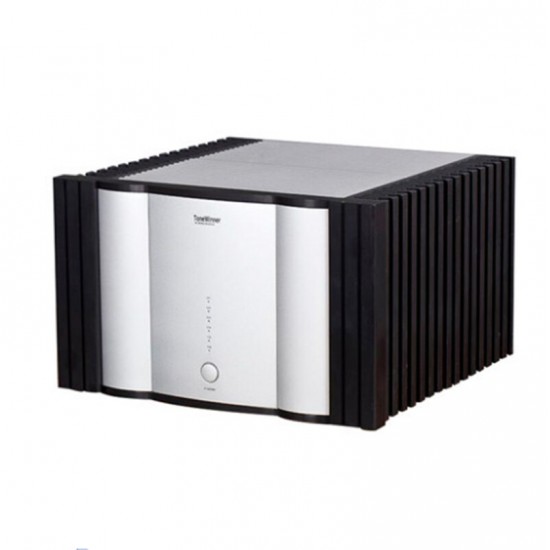

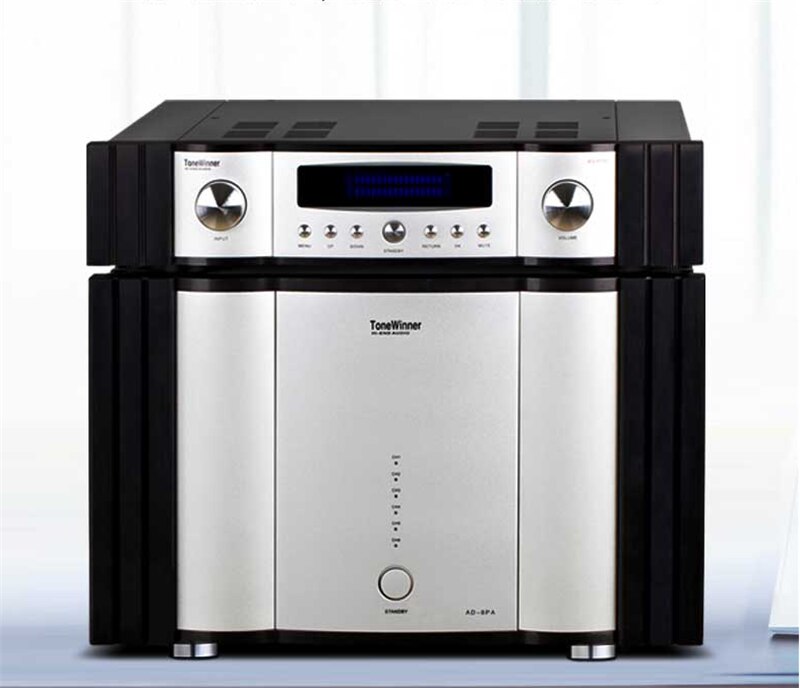

Winner/AD-8PA three-way fully balanced electronic crossover six-channel high-power HIFI rear stage 8 ohm
$3,960.00
Ex Tax: $3,960.00
- Stock: 10
- Model: 1005001516396775
- Weight: 59.00kg
- Dimensions: 66.00cm x 50.00cm x 65.00cm
- SKU: 1005001516396775
Product parameters：
Signal to noise ratio: ≥ 107dB (A-weighted)
Frequency response range: 10Hz ~ 70kHz (+ 1 / - 3dB)
Distortion: ≤ 0.008% (1kHz, normal working condition)
Output power: CH1, CH2, CH5, CH6, CH3 & CH4 bridging mode
200W (THD = 1% 1kHz, 8 Ω mono test)
CH3, CH4 normal mode
65W (THD = 1% 1kHz, 8 Ω mono test)
Number of channels: 6
Rated impedance: 8 Ω
Resolution: ≥ 75
Overall gain: 29.5db ± 1dB

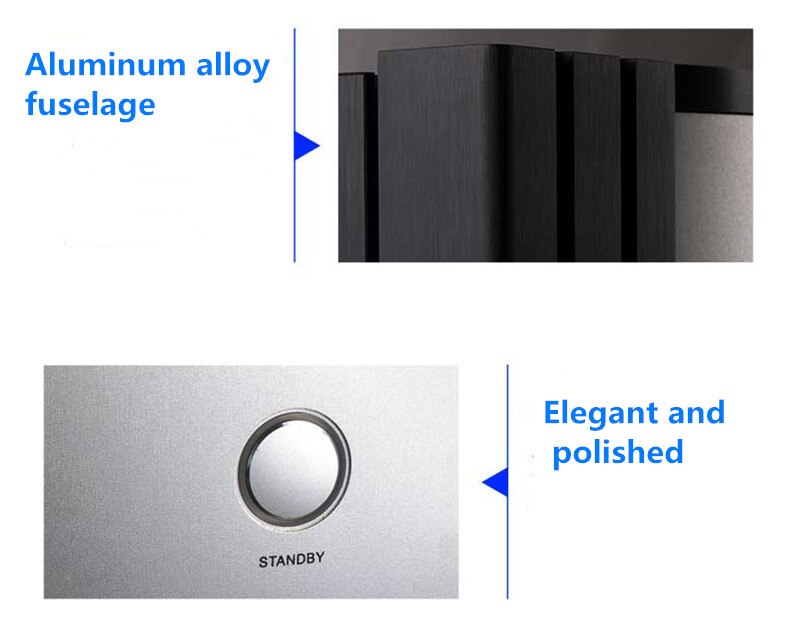

Product material: aluminum alloy
Appearance color: Silver Black
Overall size: 444 × 294 × 449mm, width × height × depth (including machine foot)
Package size: 614x446x606mm W x H x D
Net weight: 47.3kg
Gross weight 54kg
