Product parameters:

Maximum output power: 24W+24W (8Ω, THD=5%)

Power consumption: 142W

Signal to noise ratio: 94db (A weighting)

Sensitivity: ≤300mV

Total harmonic distortion: ≤1.0% (1KHz, 8Ω, when the rated output is 16W)

Frequency response: 10Hz-64KHZ (-2dB)

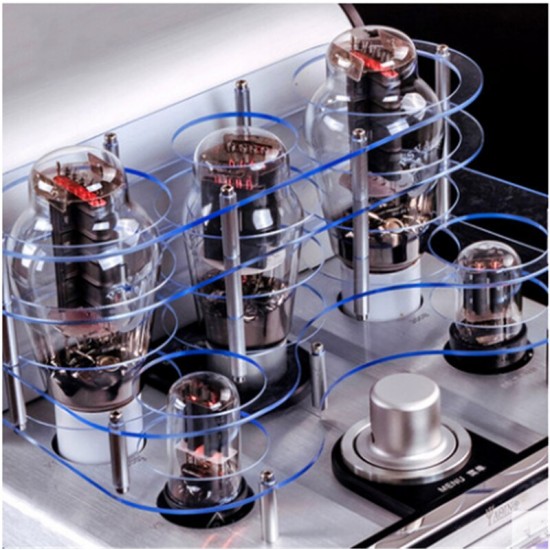

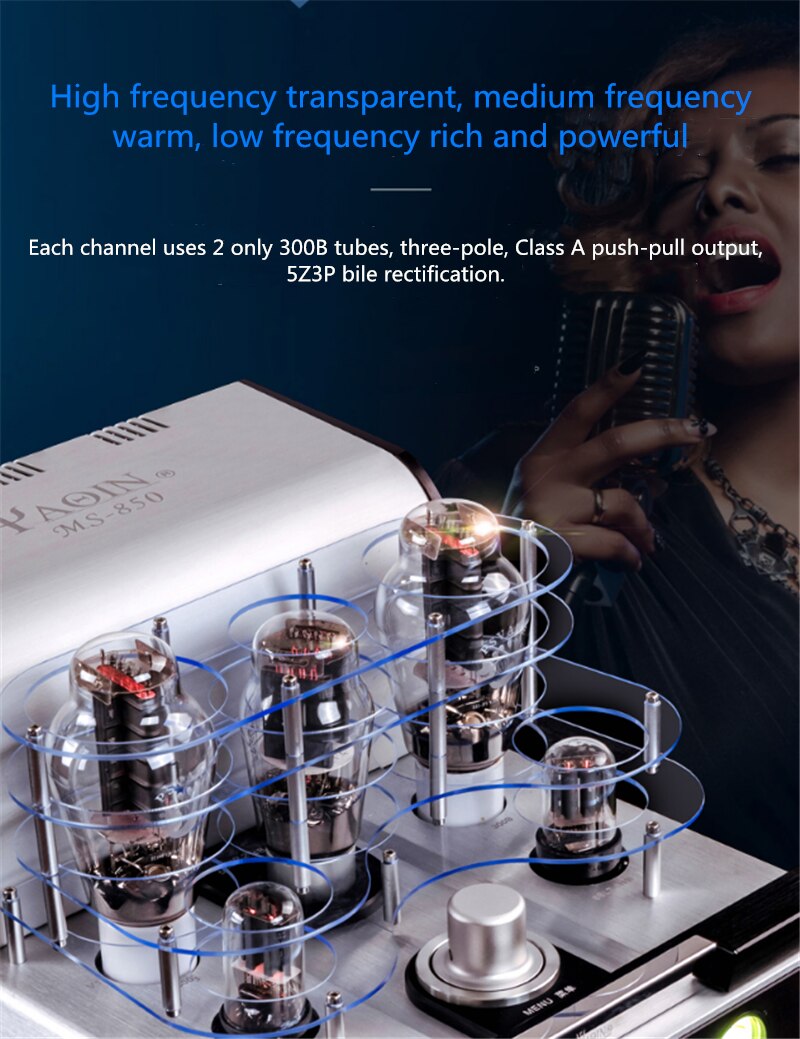

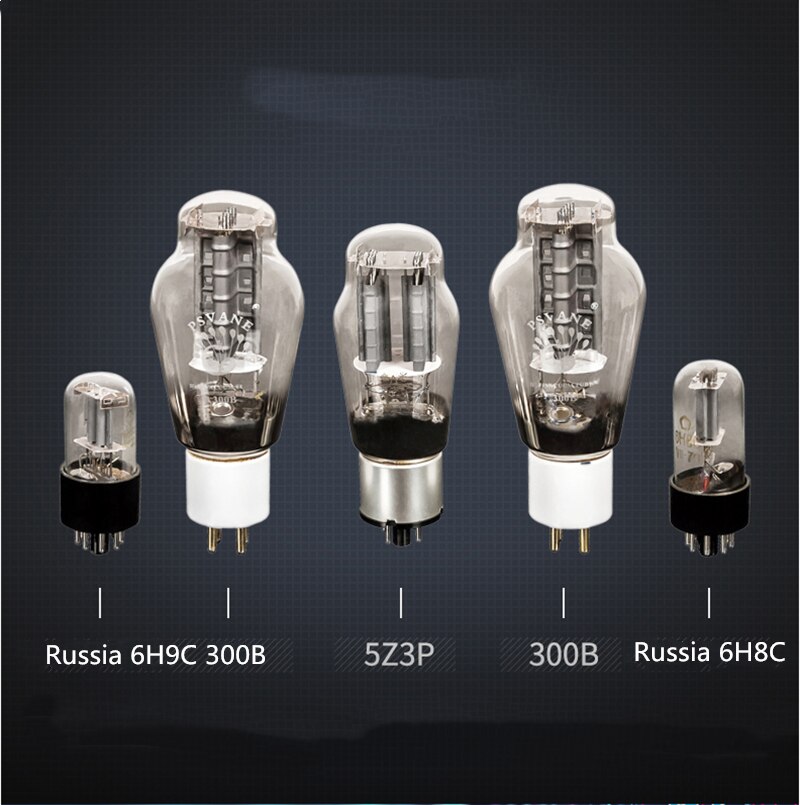

Vacuum tube: 300B*2, Russia 6n8p*2, Russia 6N9P*1, 5Z3P*1

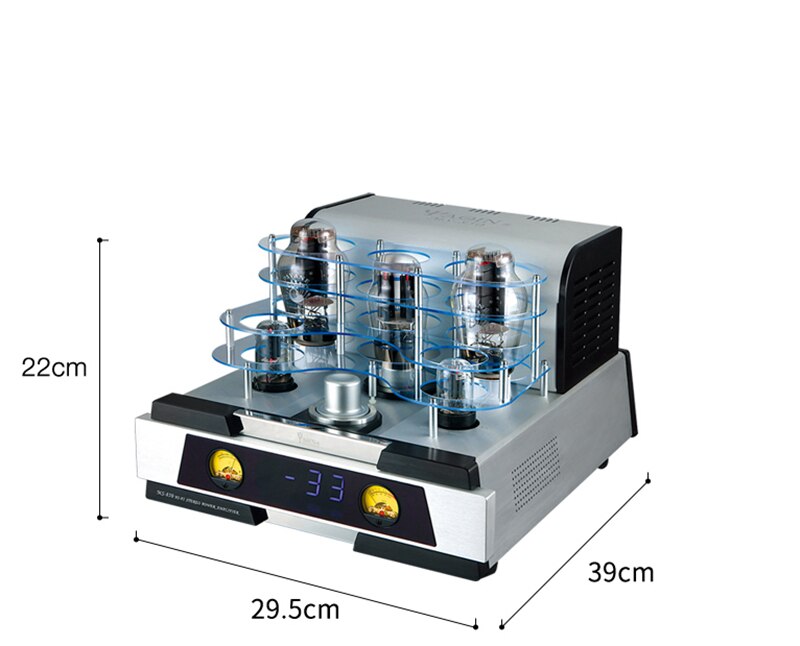

Volume: 29.5cmx22cmx39cm (W*H*L)

Net weight: 15kg

Gross weight: 18kg

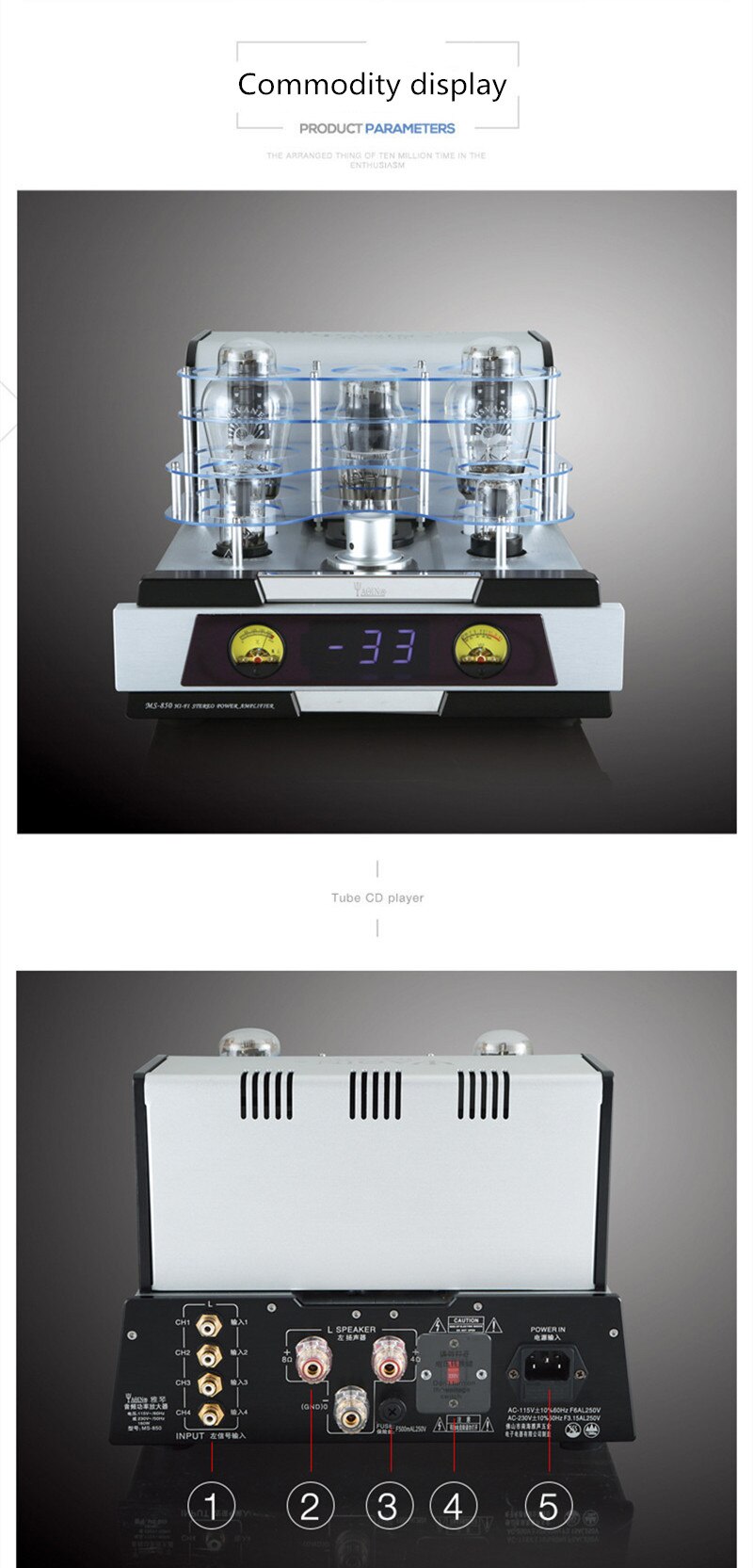

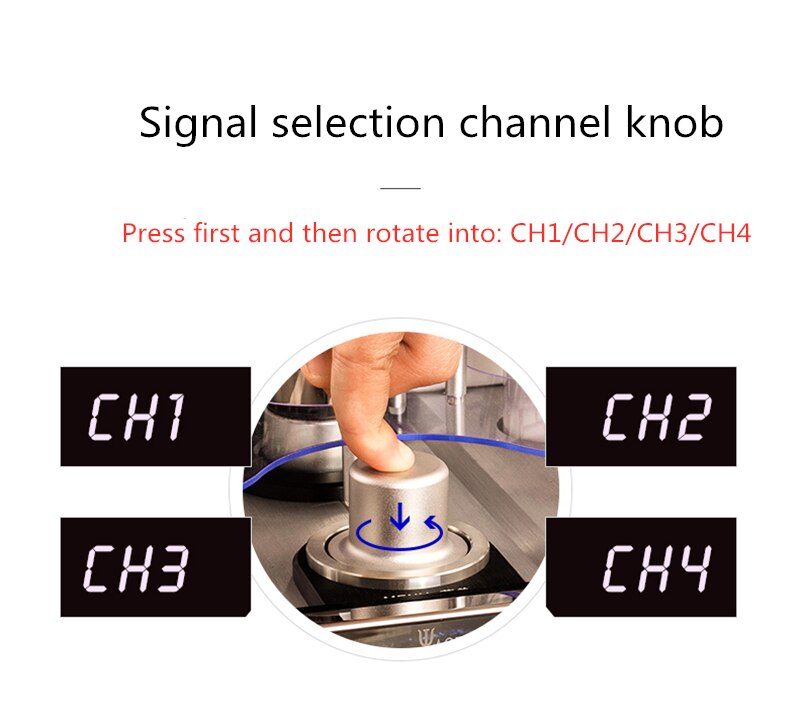

1. The signal input RCA sockets are: CH1, CH2, CH3, CH4.

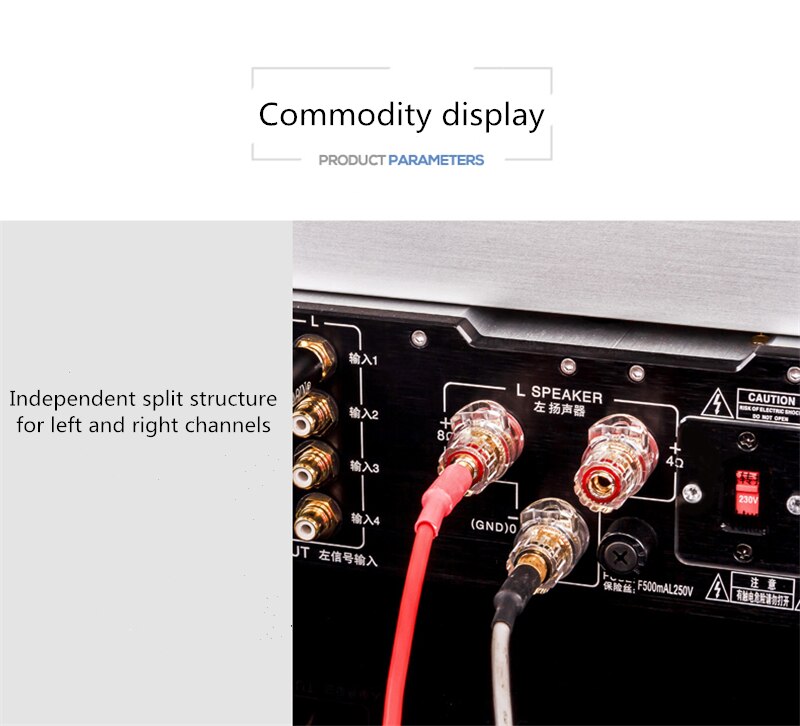

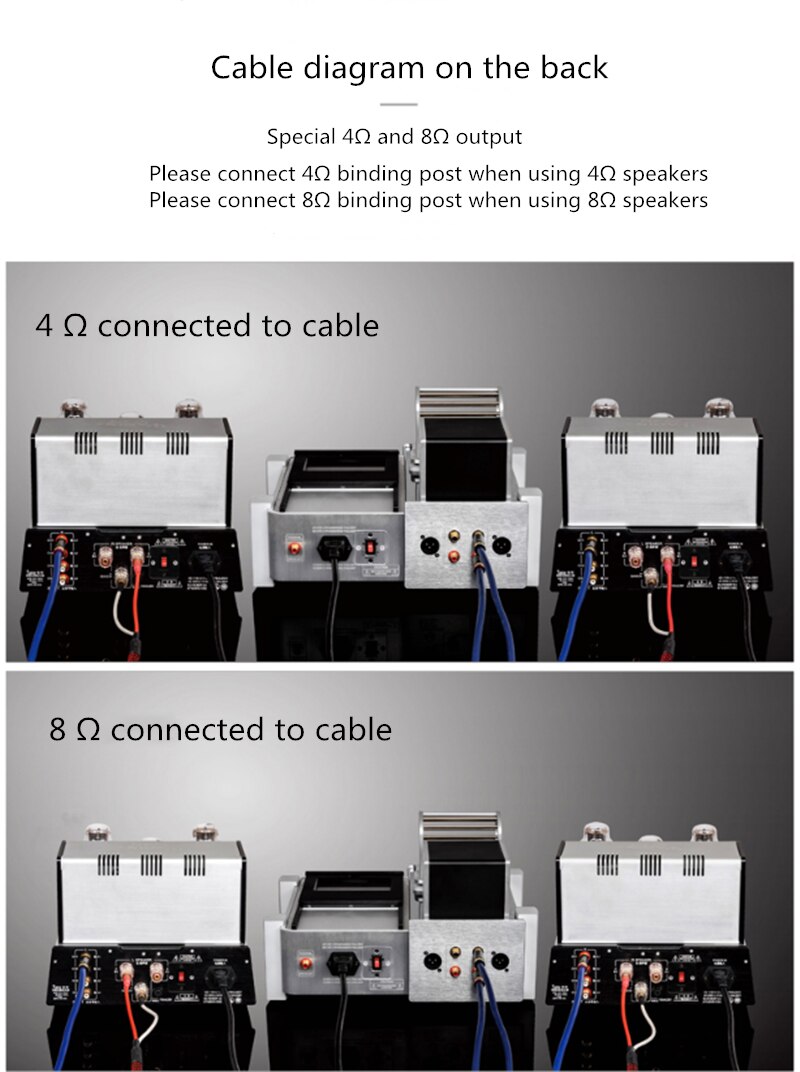

2. Enter the right speaker terminal separately (4Ω or 8Ω).

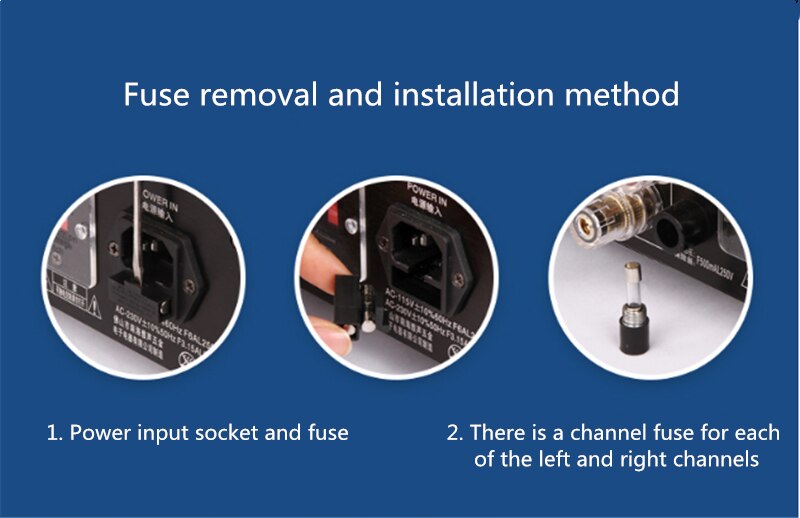

3. Channel fuse: F500mAL250V.

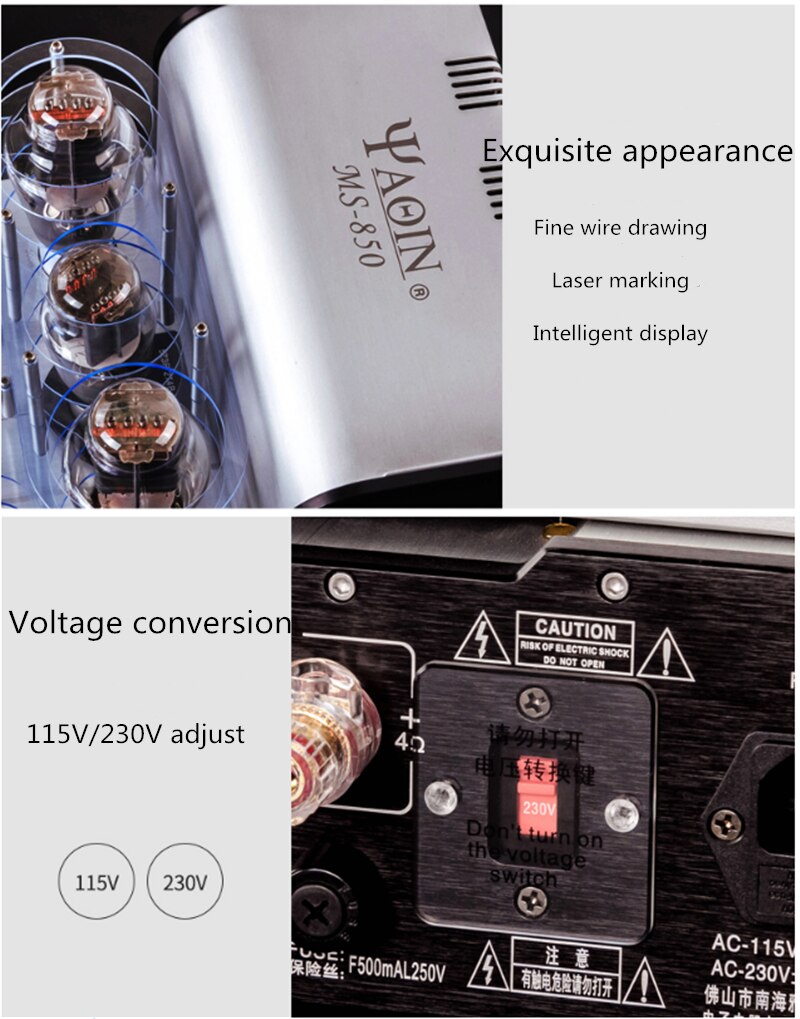

4. Voltage selection key (Note: This machine can use two voltages, please select the voltage file for the input voltage when using it).

5. Power input socket and insurance tube.

When the voltage AC230 input is selected, the insurance tube is: F3.15AL250V.

When the voltage AC115V input is selected, the insurance tube is: F6AL250V.
