Product features:

1: Use five-pole tube 6J1 for pre amplifier amplification and screen negative phase inversion

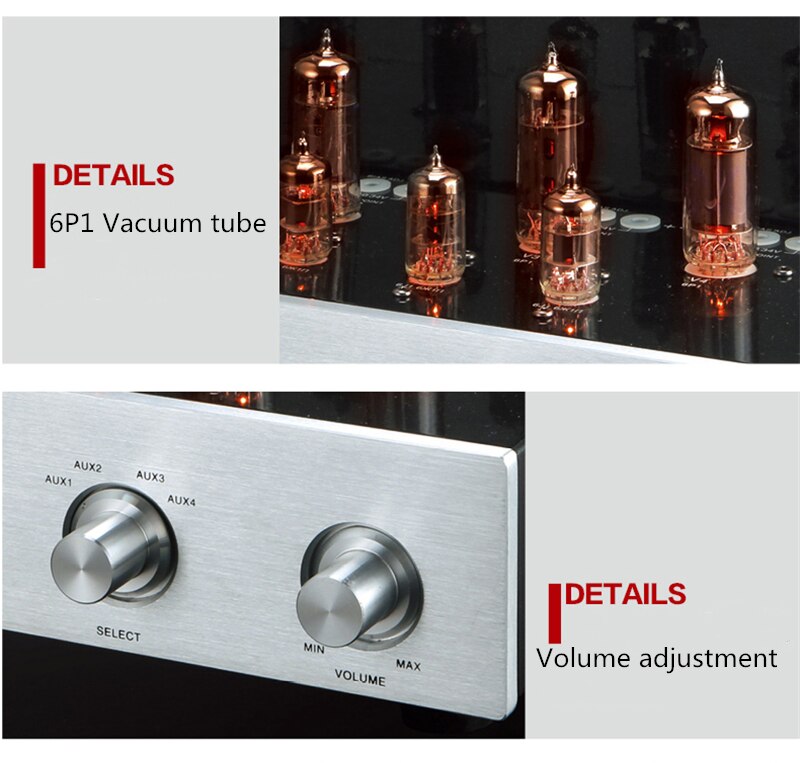

2: 6P1 for A and B push-pull power amplifier output

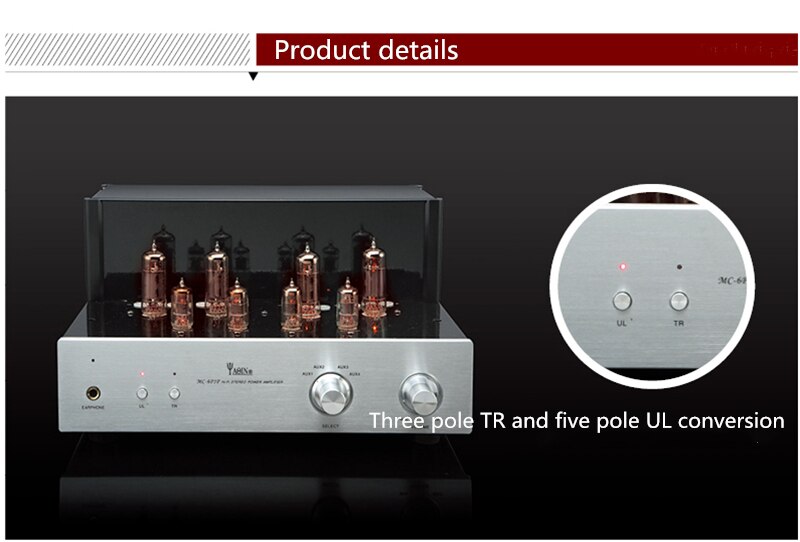

3: With three-pole, five-pole conversion function, to provide users with two different sound quality to enjoy music

4: With headphone output function, it can be used as a headphone amplifier

use

5: Dual voltage input conversion, suitable for use in many countries and regions.

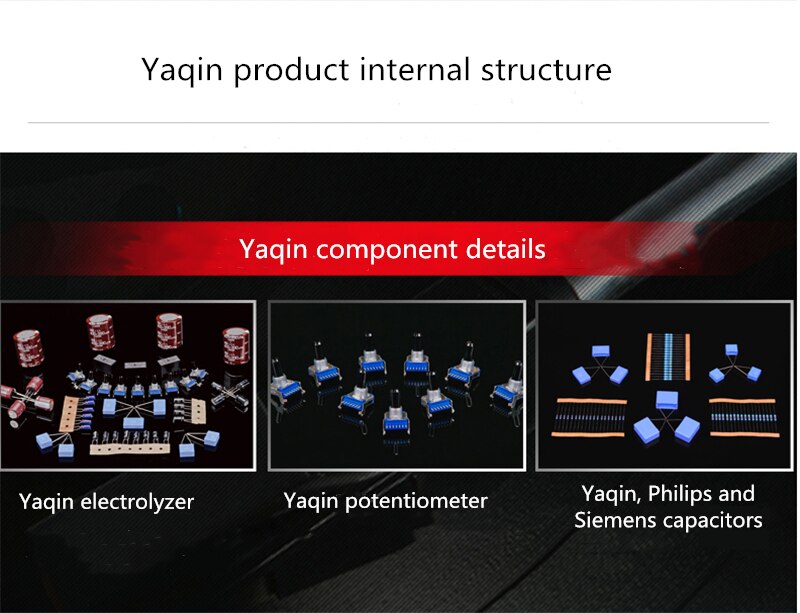

6: This machine is all made of famous foreign factory speakers, HIFI grade electrolytic capacitors and audio, Philips (MKP) non-polar cross-connected capacitors and high-precision gold resistors, using imported Japanese (ALPS) volume potentiometers, with a quiet music background, Low noise, no sound staining and durability

7: The transformer is made of Japanese imported audio silicon steel sheet (0.35mm thick), high-strength oxygen-free copper enameled wire and special multilayer layered grouping process to ensure that the machine has a good high, medium and low frequency sound, transparent and powerful..

Product parameters:

●Output power: Five poles: UL12W+12W (6Ω) Three poles: TL6W+6W (6Ω)

●Distortion factor: 1.2% (at 1KHz, 1.2W)

●Frequency response: 5Hz-65KHz (-2dB)

●Signal to Noise Ratio: 83dB (A weighting)

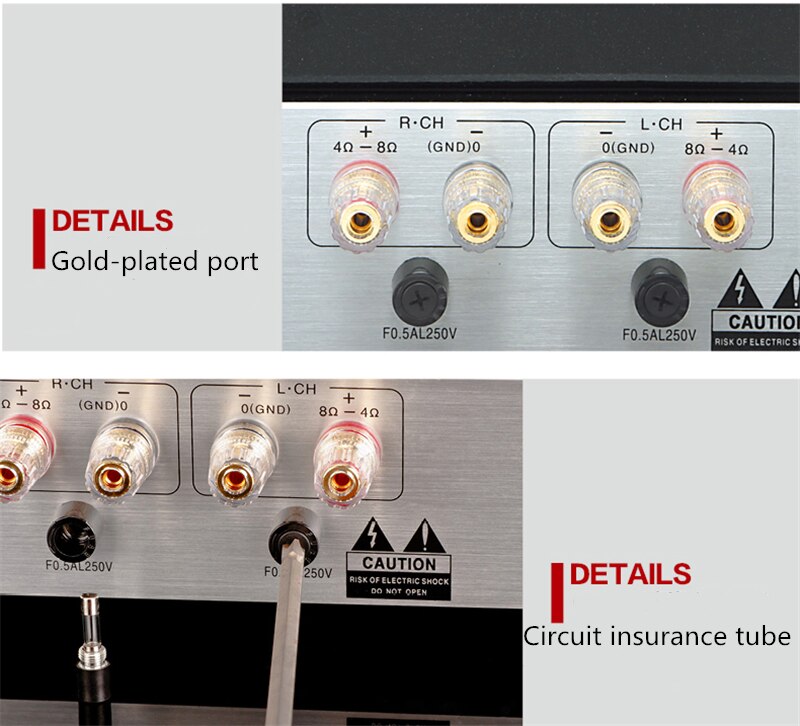

●Load impedance: 4Ω-8Ω

●Maximum power consumption: 100W

●Sensitivity: 270mV

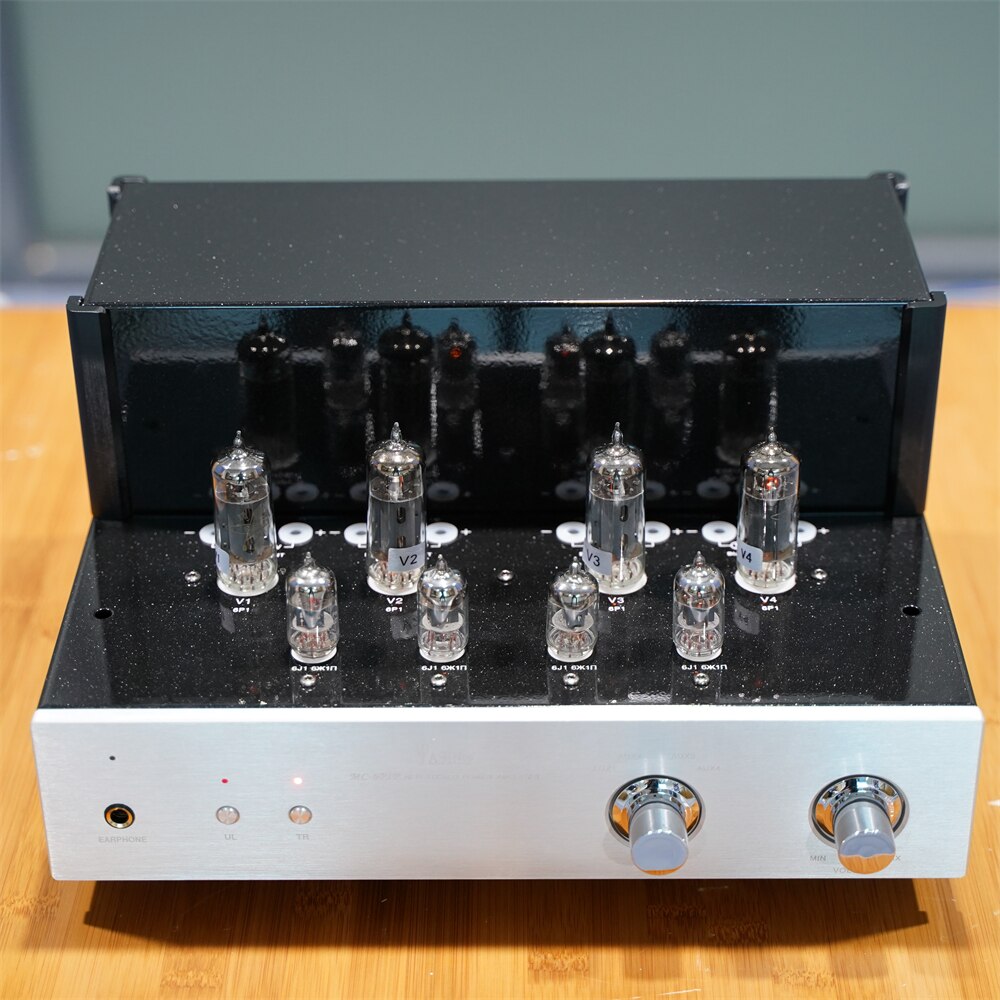

●Vacuum tube: 6P1×4 6J1×4

●Gross weight: about 13.8 kg

●Net weight: about 11.7kg

●Machine size: 310mmx320mm×180mm(L*W*H)

●Outer package size: 420mmx385mmx290mm(L*W*H)
