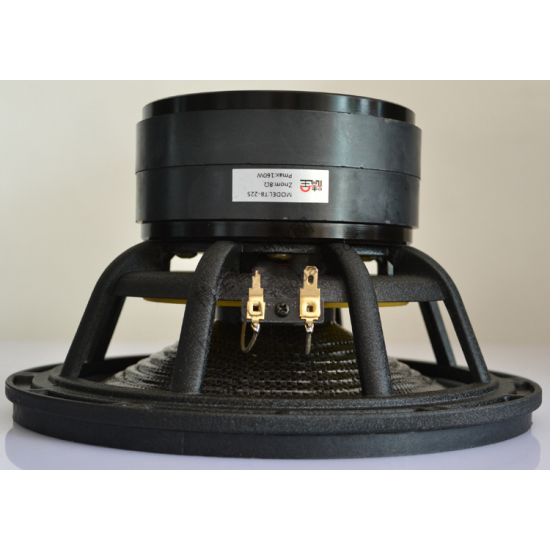

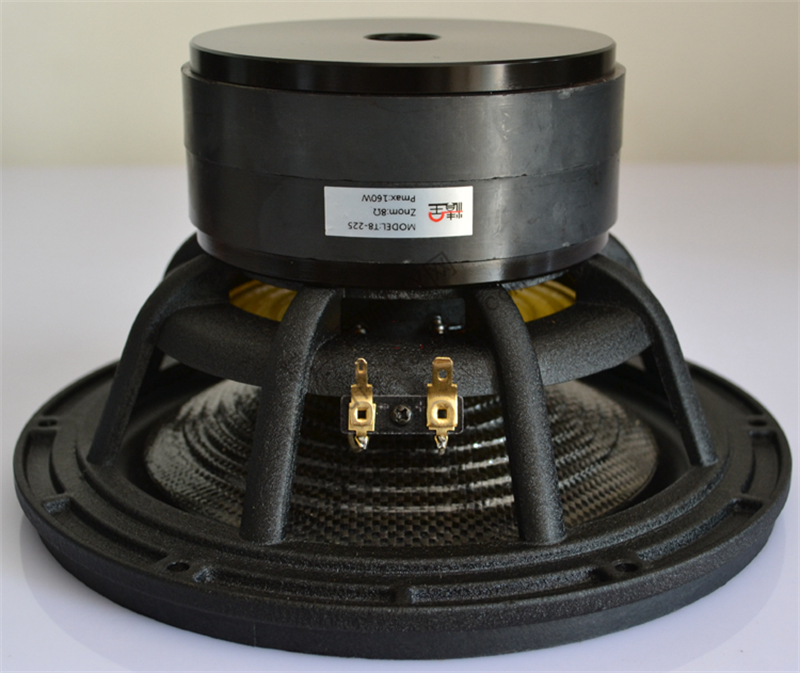

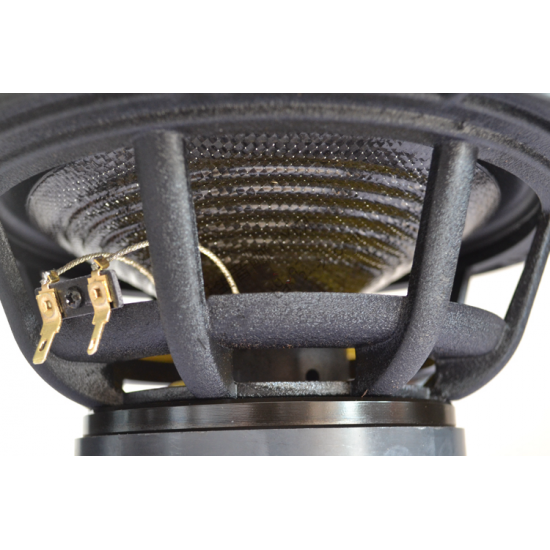

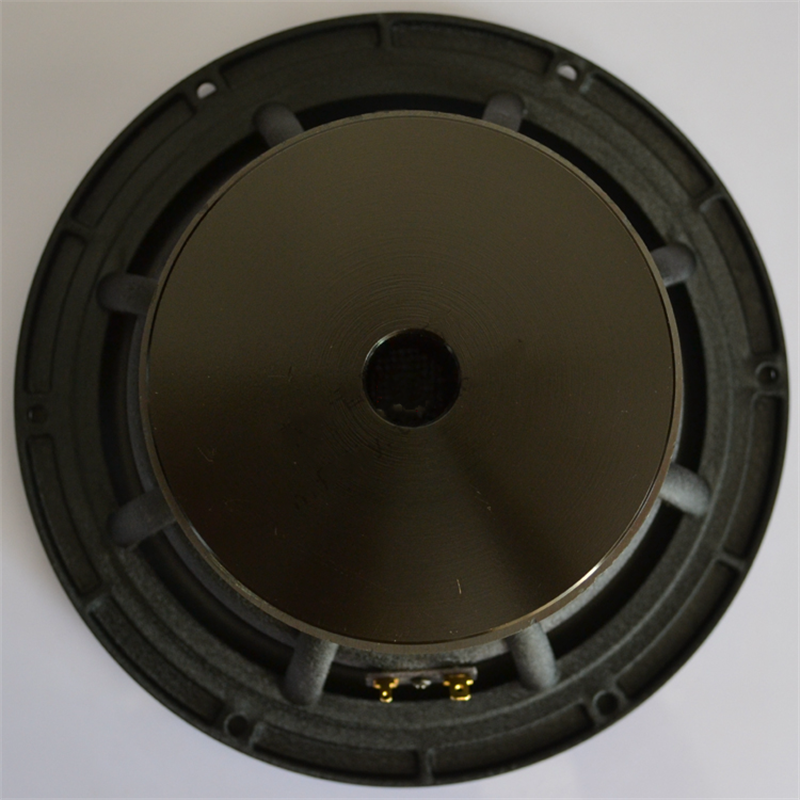

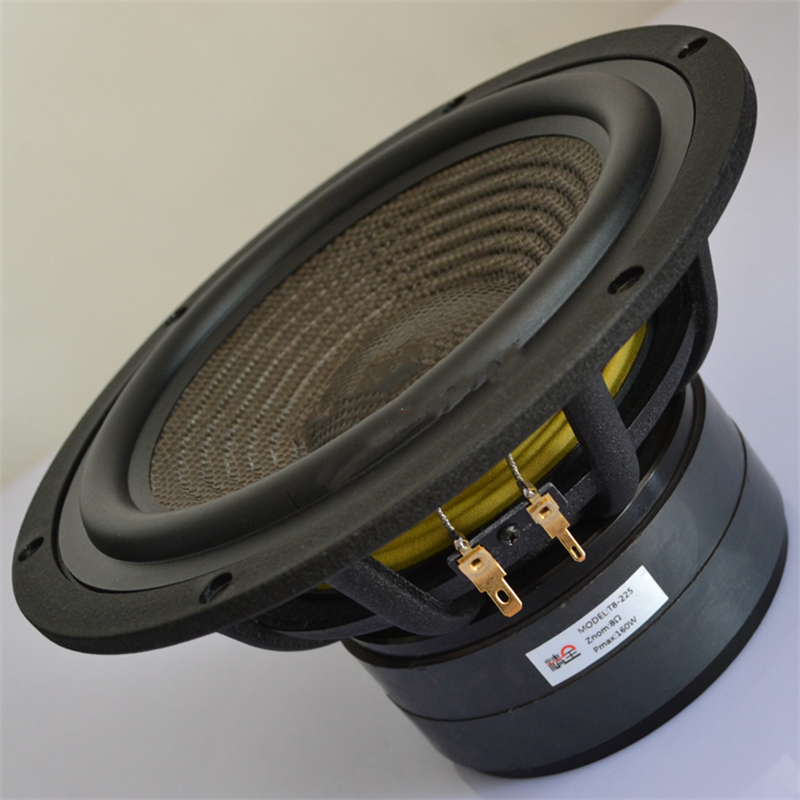

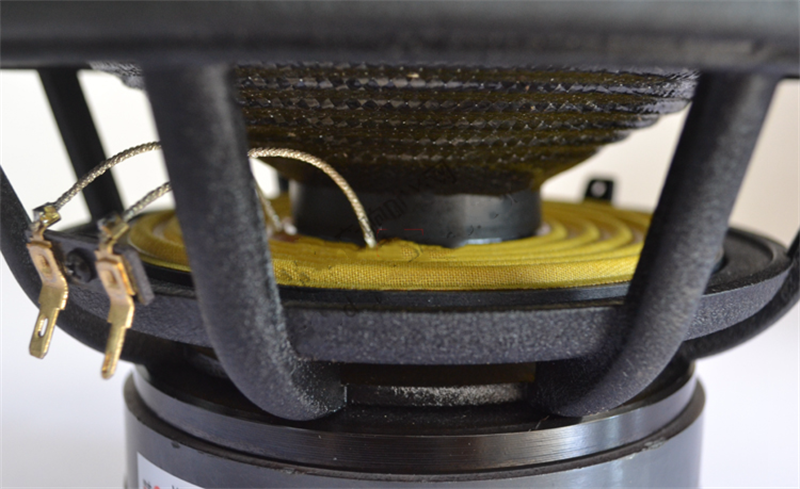

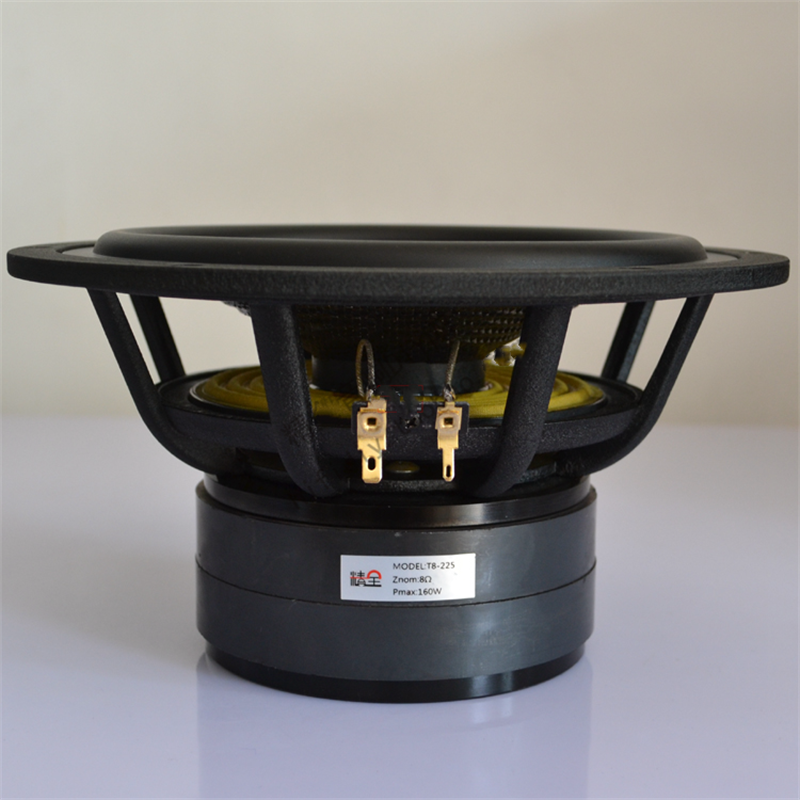

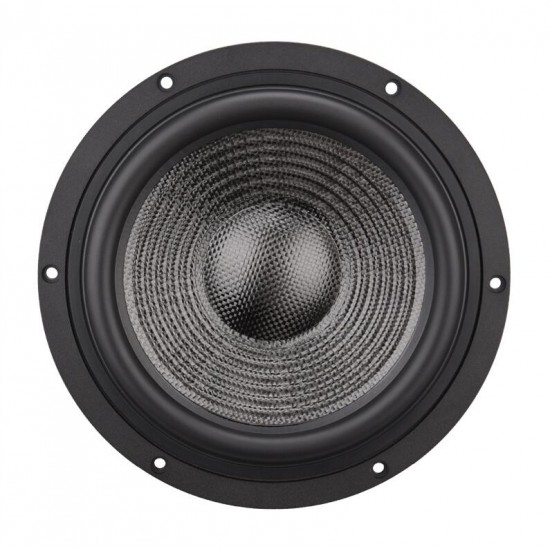

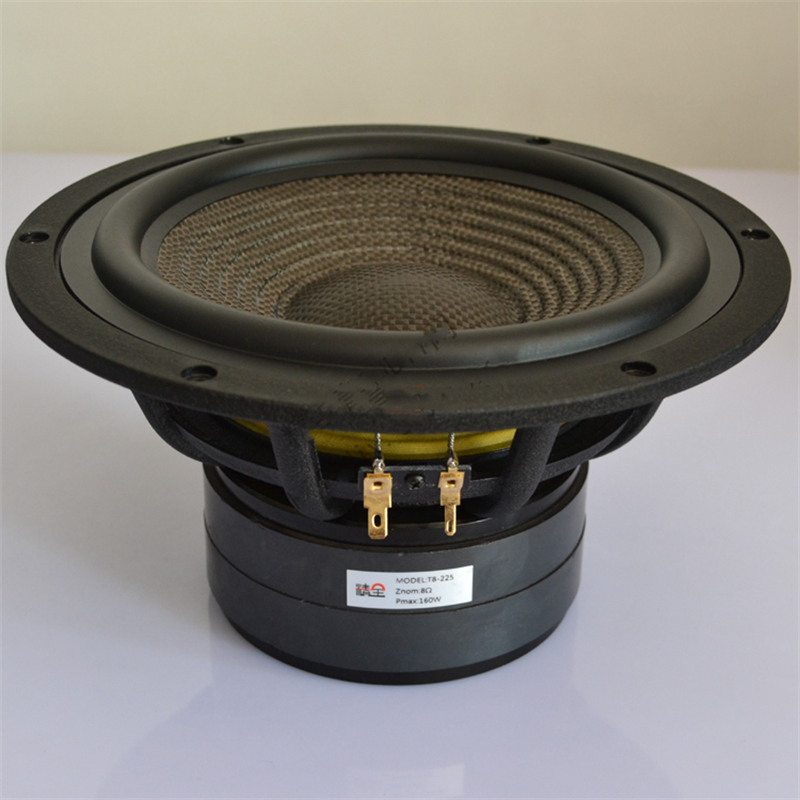

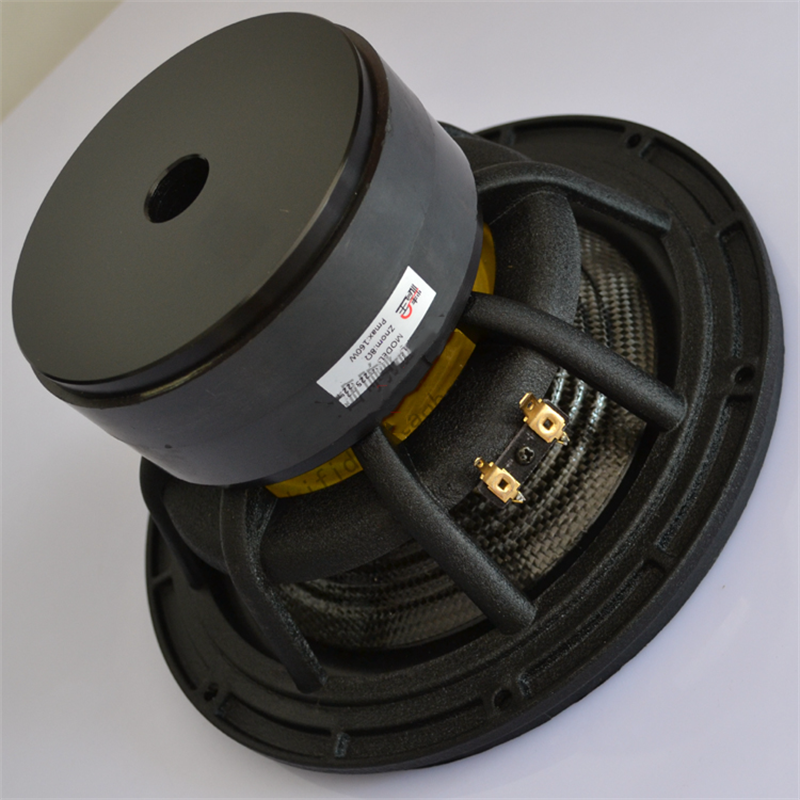

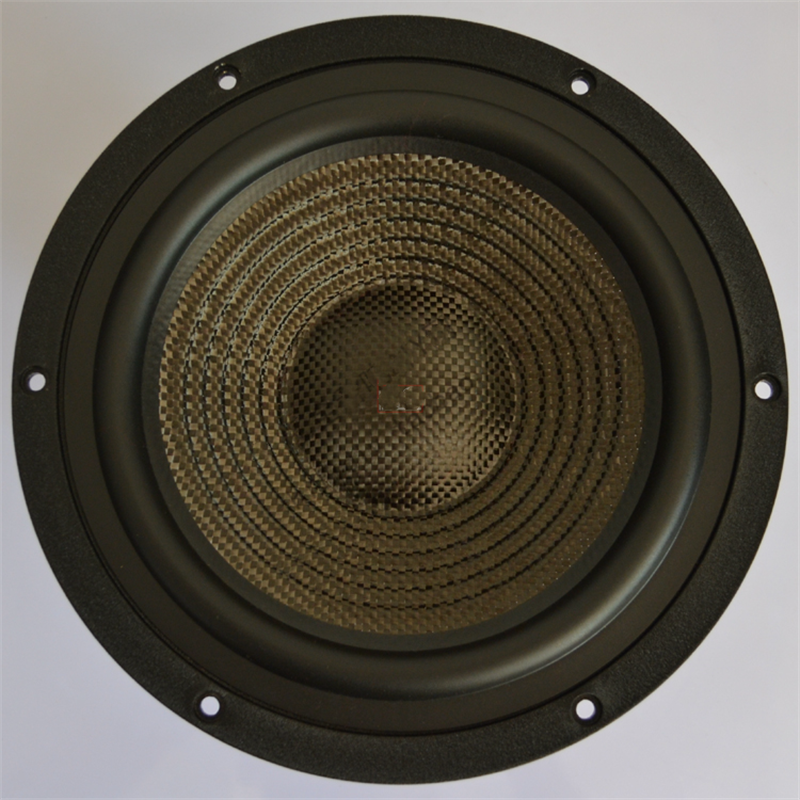

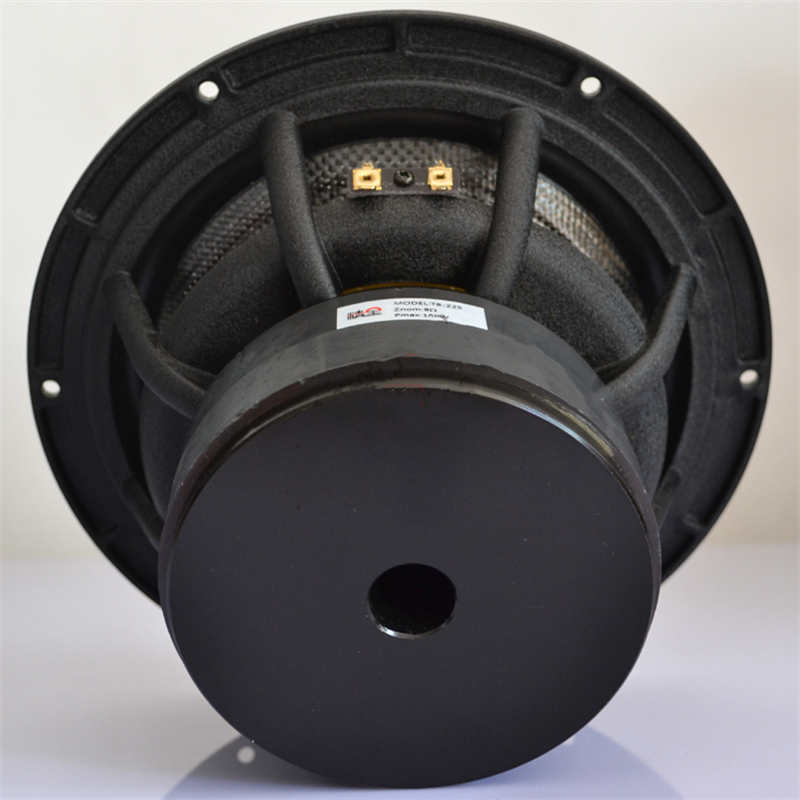

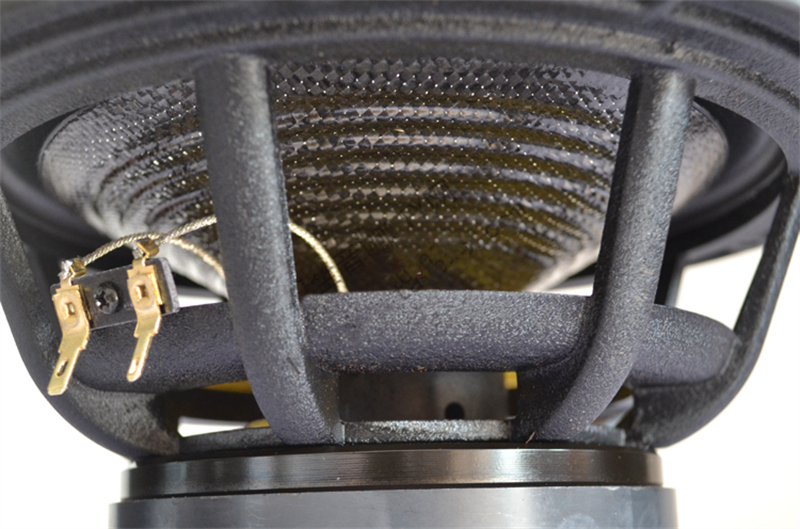

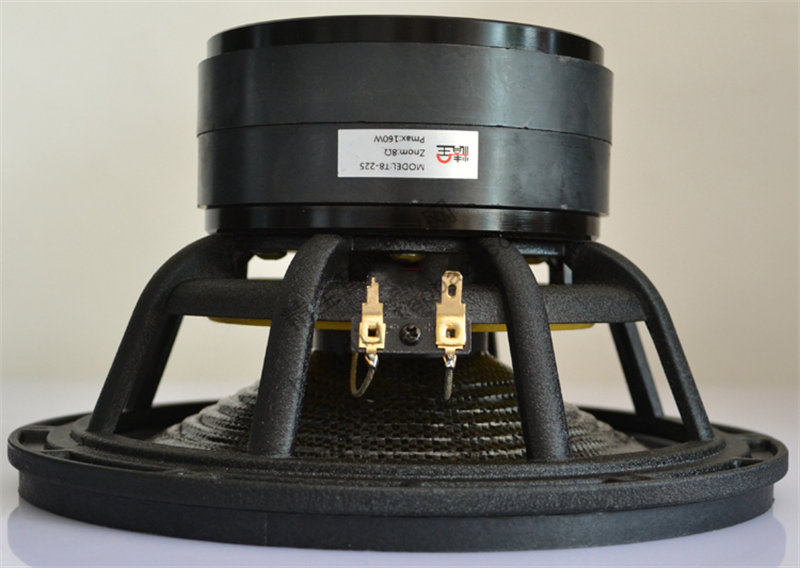

T8-225 8 inch OD=225mm 50mm Invoice Coil Mid-woofer Speaker 80W~160W Sensitivity 90dB Frequency 36Hz 3.9kg/PCS
$112.00
Ex Tax: $112.00
- Stock: 10
- Model: 3256801451226160
- Weight: 9.00kg
- Dimensions: 30.00cm x 35.00cm x 25.00cm
- SKU: 3256801451226160
Product Parameters | |||
Item | 15 inch Mid-woofer Speaker | Brand | OEM |
Place of Production | China | Net weight | about 3.90kg |
Outer OD | about 225mm | Magnetic | woofer 120mm |
Screw hole OD | about 211mm | Voice coil | 50mm |
Installation hole OD | about 191mm | Material of the paper cone | paper |
Height | about 120mm | Material of the frame | Aluminum |
Rated impedance | 8 | ohm | |
DC impedance | 6 | ohm | |
Rated power | 80 | W | |
Peak power | 160 | W | |
Sensitivity | 90dB | 1W/1m | |

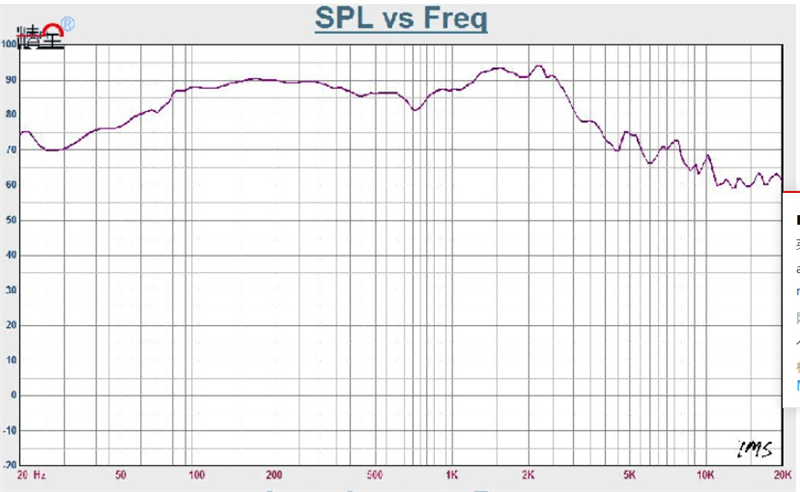

Frequency range | 36-3500 | Hz | |
Resonance frequency | Fs | 39.452Hz | |
DC Impedance | Re | 6ohm | |
Electrical Q factor [Qes] | Qes | 0.421 | |
Mechanical Q factor [Qms] | Qms | 1.674 | |
Total Q factor [Qts] | Qts | 0.335 | |
Effective volume | Vas | 36.563L | |
Vibration area | Sd | 20.106cm² | |
Magnetic force | BL | 9.502Txm | |
Moving quality | Mms | 25.550g | |
..
