Product parameters:

Rated output power: 150W+150W(8Ω)

Class A output power: 10W+10W (8Ω)

Input Sensitivity: 200mV.

Input Impedance: 47kΩ.

Frequency response: 20Hz-20kHz±0.5dB

Harmonic Distortion:≤0.1%1kHz1W).

Signal-to-noise ratio: 90dB

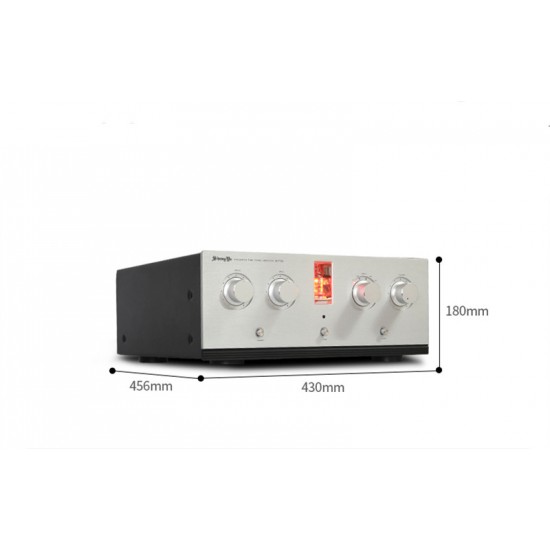

Volume (WXHX D): 430×180×456(mm)

Weight: 20.5kg.

Class A current amplification adopts Toshiba brand power tube

Output power of 150W (8Ω)

​

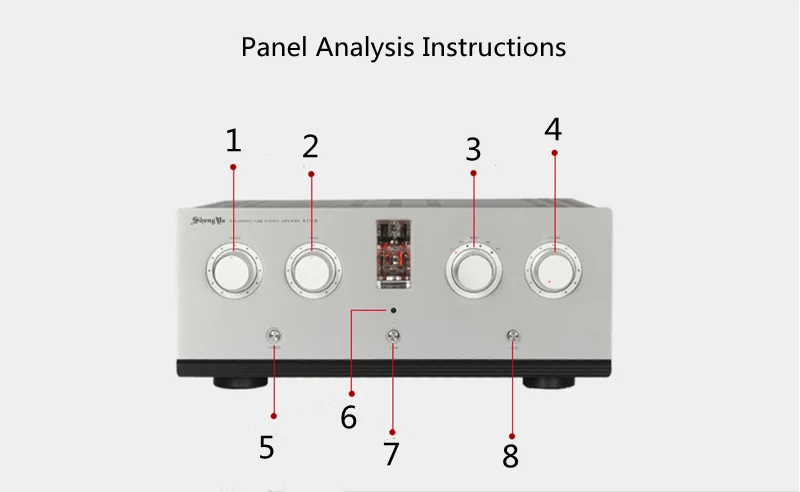

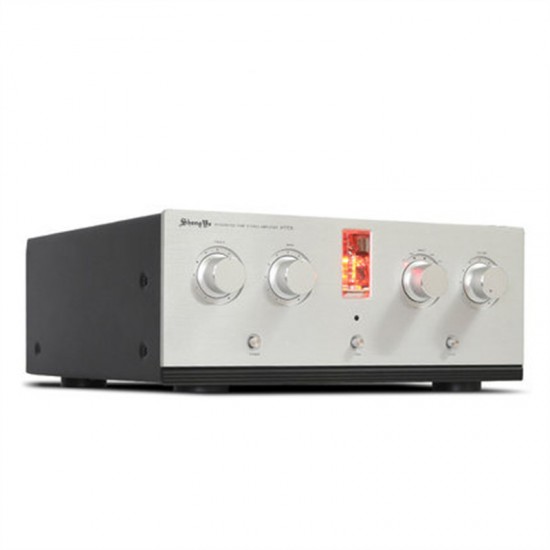

1: Tweeter adjustment

2 : Woofer adjustment

3 :Input selection

4 :Volume

5: switch

6 : Remote control receiver

7: Tweeter and Woofer switch

8: Equal Loudness Switch

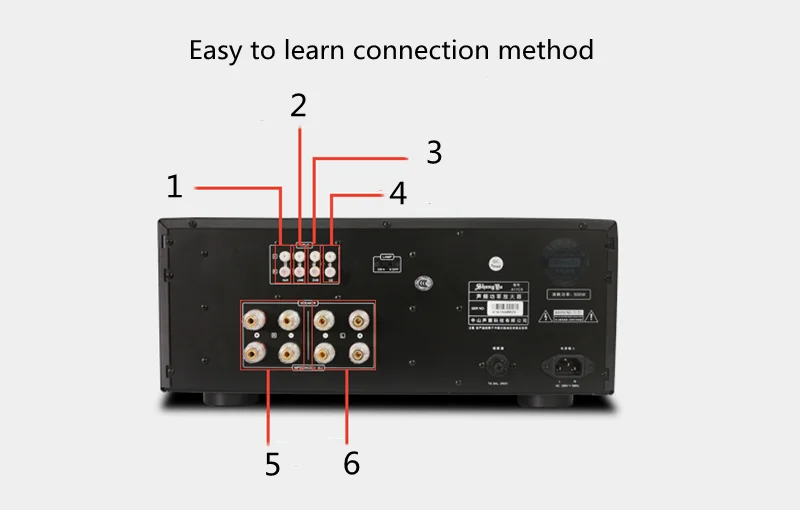

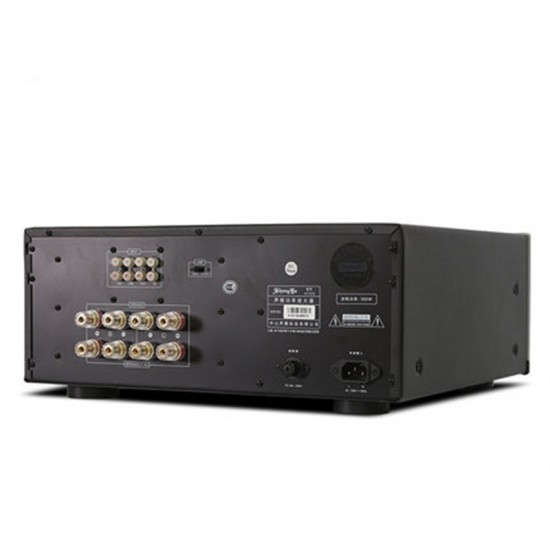

1: Audio input terminal

2 : Decorative window backlight switch

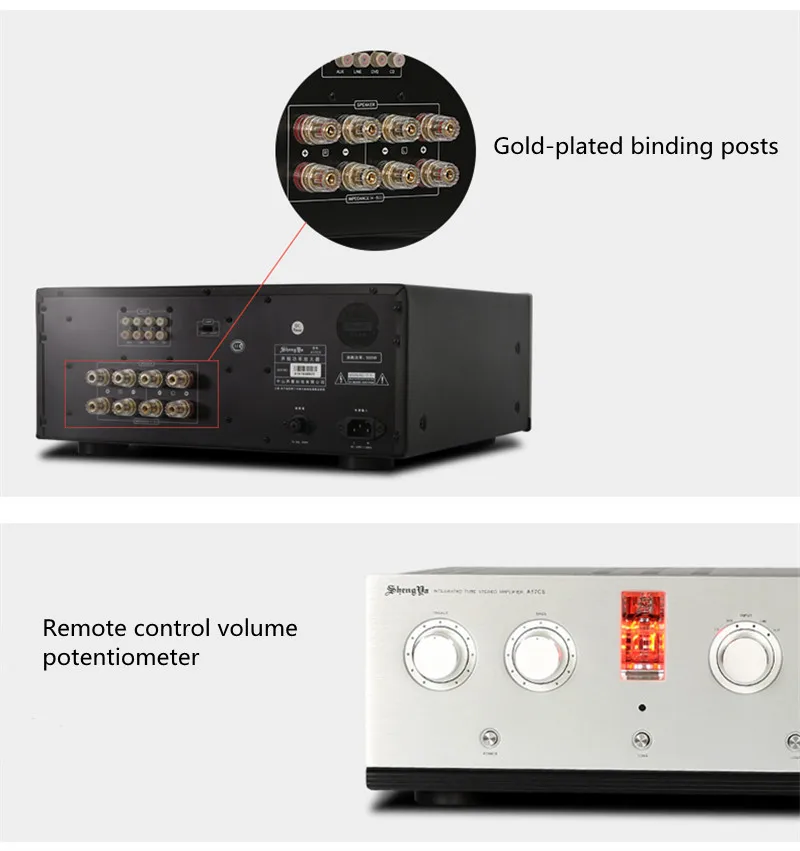

3 : Right channel output binding post

4: Right channel output binding post

5: AC power fuse box

6: Power input socket

1: Mobile phone

2 : TV

3: DVD player

4 : CD player

5 : Right speaker

6: Left speaker
