Circuit configuration

Single-ended Class A Class A, zero negative feedback, automatic bias design..

Power supply.

Imported high-quality non-fractured toroidal core transformers are used, one for each of the left and right channels, and the left and right channels are completely independent for power supply. Japanese Ruby, Nikon, Italian Kendeil fever-grade power filter capacitors, together with left and right independent filter inductors, provide pure and abundant power supply for the tube amplifier circuit.

output cattle

Imported Z11 EI iron core, oxygen-free copper enameled wire is wound in multiple layers.

Vacuum tube

The pre-amplifier and push tube use 6J8P (6SJ7) pentapole vacuum tube dedicated to audio amplification, and the power amplifier tube uses Tungsol (Tissot) KT120 or KT150. Two parallel channels for each channel provide 55W continuous output power. KT series power tubes have a long history and have the advantages of large output power, high energy efficiency, balanced sound, both rigidity and softness, and excellent transient response while moisturizing the sound.

Components

Use high-quality American military-grade Dani resistors, American CDE 940 series coupling capacitors, Philips from the Netherlands, Ruby from Japan, Kendeil from Italy and other fever-grade filter capacitors, and Japanese ALPS motor remote control volume potentiometers.

Speaker output

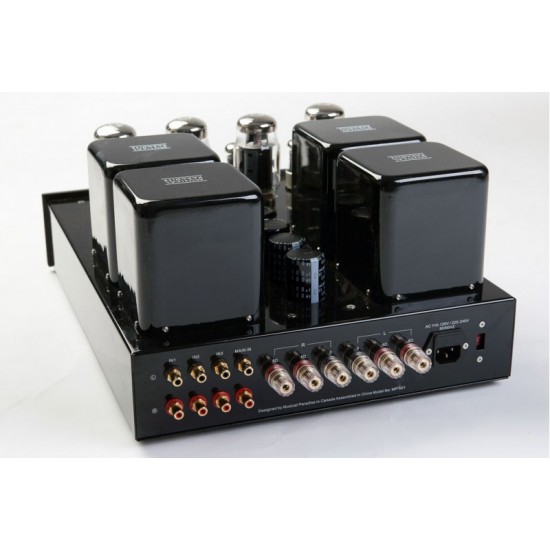

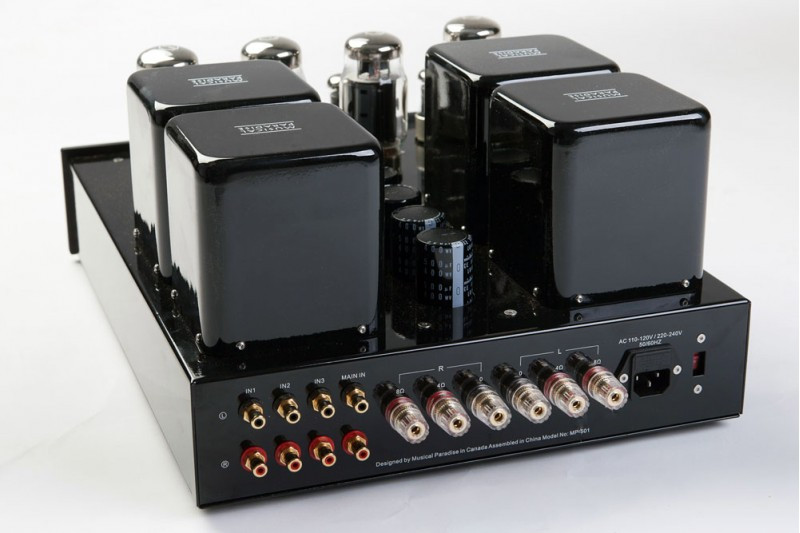

Support 4 ohm-8 ohm speakers, KT120/KT150 power tube (55W per channel), gold-plated output terminals, support banana plug, Y plug, and direct twisted wire.

Exterior

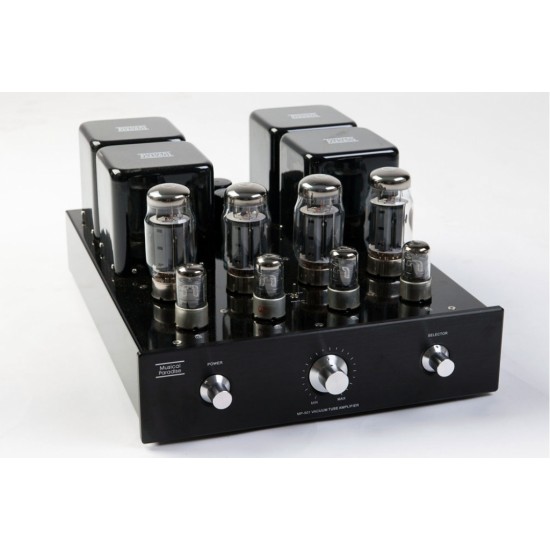

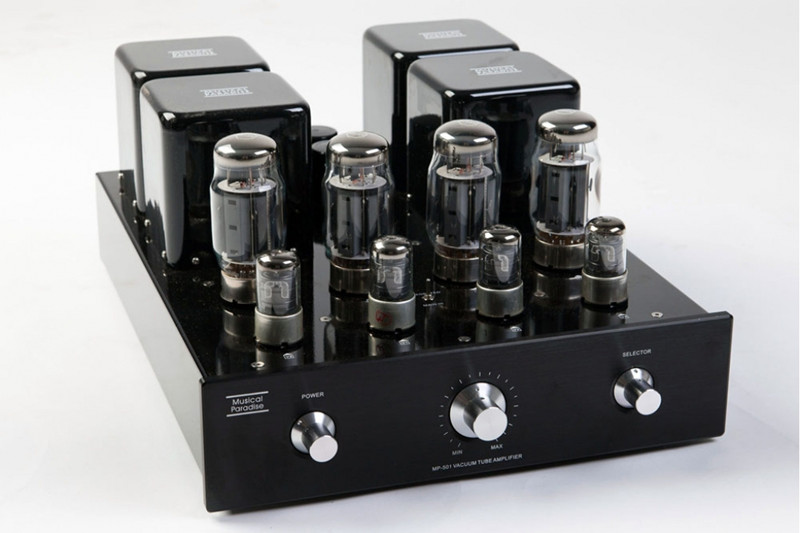

The box body is made of high-strength thick steel plate, and the panel and knob are made of solid aluminum alloy material CNC. The simple panel design allows you to learn how to use it in just a few minutes without pre-reading the manual. Volume: (W 35CM x L 45CM x H 20CM), Weight: 30KG

Sound characteristics

The sound is vivid and natural, smooth and delicate, and durable. The sound field is wide and the three-dimensional effect is strong. The low frequency is full of dynamics, the mid frequency is precise and moist, and the high frequency is delicate and elegant. The vocals, strings, and symphony are all excellent. It is a flagship integrated amplifier with powerful comprehensive performance and full thrust.

Remote control

IR remote control volume

Frequency Response, THD

20-20Khz, <1%.
