- Stock: 10
- Model: Combinations AVplay A-75
- Dimensions: 51.00cm x 52.00cm x 32.00cm
Please search AVPlay A-75 for trial videos.

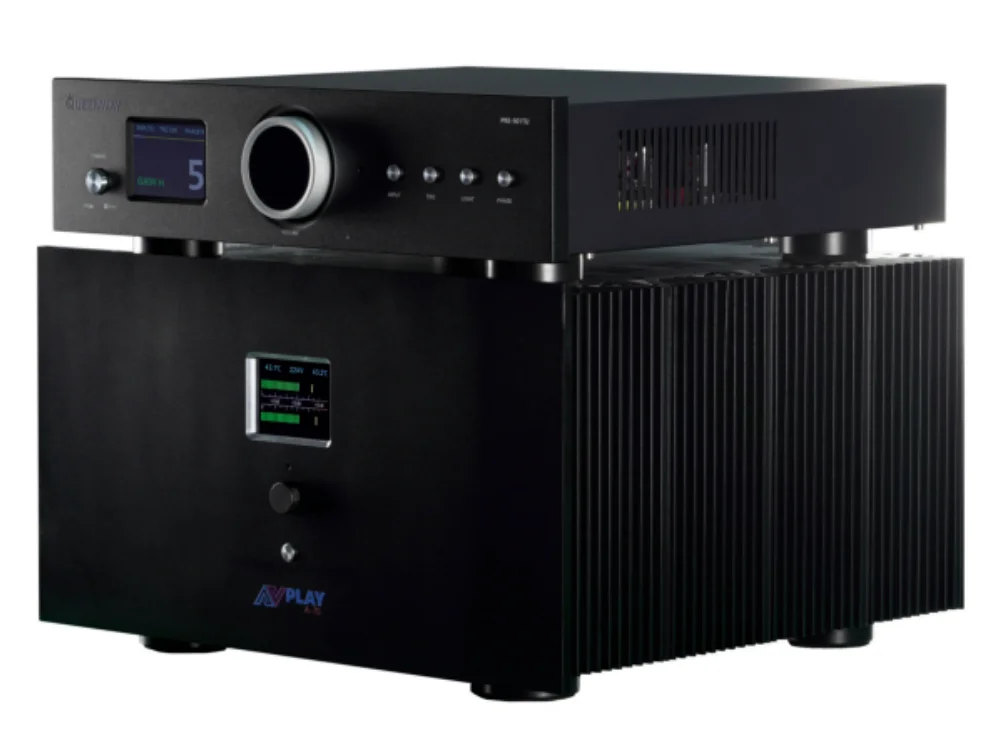

CombinationAVplay A-75 HIFI Class A 80~300W*2 Power Amp Amplifier Voltage Digital Temperature LCD Display Bridge 800W*1 A+B Output+Queenway PRE-501TU 12AU7/ECC82*4 Large Dynmic Stronger Power Driving Giving Out Tube Preamplifier
Just need Queensway PRE-501TU 12AU7/ECC82 * 4 Large Dynamic Stronger Power Driving Giving Out Tube Preamplifier. Please click on the image to view the description
Just need AVplay AVplay A-75 HIFI Class A 80~300W*2 Power Amp Amplifier Voltage Digital Temperature LCD Display Bridge 800W*1 A+B Output Please click on the image to view the description
AVplay A-75 HIFI Class A Power Amp Amplifier parameter:
Voltage gain: 26dB
2 Channel Output Power: 80W+80W （at 8 ohm, THD≤0.00275%） Class A
150W+150W （at 4 ohm，THD≤0.00275%）Class A
300W+300W （at 2 ohm，THD≤0.00275%）Class A
Bridge Connection 1 Channel Output Power: 280W*1 （at 8 ohm, THD≤0.00275%） Class A
478W*1 （at 4 ohm，THD≤0.00275%）Class A
800W*1 （at 2 ohm，THD≤0.00275%）Class A
Load impedance: 2-16 ohms
SNR (S/N): ≥108 dB (20Hz~60KHz)
Frequency Response: 20Hz～63KHz ±0.1dB
Total harmonic Distortion: 0.00275% 1khz 5W 8ohm
Intermodulation Distortion: 0.00275% 1khz 5W 8ohm
Input Impedance: 47K ohm(XLR) 22.5K ohm（RCA）
Static Power consumption: 480 Watts
Power Supply: 220V (110 V can be customized)
Dimensions of the fuselage with terminal and heel: 46 (Width) x 27 (Height) x 47.5 (Depth) CM
Power Amplifier Size: 41 (width) × 23 (height) × 44 (depth) CM
Net Weight: 49.5 kg
Package Weight: 60kg
1.AVplay A-75 Class A HiFi amplifier (80-300W)*2 load in the state of 8/4/2 ohms, bridged 280 ~ 80W load in the state of 8/4/2 ohms, the designer in the learning and absorption of the Golden Voice A series of excellent Class A amplifier circuit on the basis of the ability to output more power, with a new chassis heatsink design, the sound characteristics: the sound of warmth and a sense of grain, good phase, accurate positioning, the singer as if in front of you. The sound features: warm sound with a sense of grain, good phase, accurate positioning, the singer as if in front of you, the sound field is full of dynamic range wide, large dynamic put and take freely, low-frequency corresponding to the speed of fast bounce good.
If you want to know more about the sound of the machine, you can open the YouTube link:
2 .The A-75 has 40 high-power field effect transistors together with a large number of ELNA/ENA, NICHICON/Nichicon capacitors in the elaborate circuitry. The materials and components in the circuits are better than the original amplifier; Schotly rectifier,20 Sprague and Philips large capacitors ( actual tests have found that Sprague capacitors produce better listening experience), and multi-capacitor arrays have more advantages than ‘large ponds’ capacitors design. Multiple capacitors connected in parallel will greatly reduce the internal
resistance, and charge and discharge faster during dynamics transitioning.
3. The A-75 has 2 X 1000W ring transformer, providing ample power reserve. Power Reserve: 2 x 1000W toroidal transformers, providing a powerful enough power reserve. Bridge state limit power up to 800W (2 ohms).
4. The A-75 has bridging function, the bridge power is 4 times greater, the greater the power, the deeper the bass. In bridged mode 2 X power amplifier will easily handle any speakers on the market even the highest impedance speakers.
5. The A-75 has substantial heatsink each side weighing 4.5Kg. The heat sinks is aesthetically design and yet thermally functional to radiate heat away from the core of the amplifier. The radiation effect of the heatsink induces efficient air convection than other conventionally design heat sinks, drawing more heat from the inner gut of the amplifier; achieving effective cooling to maximise the performance of the amplifier.
6. The A-75 VU meter is adjustable, the thickness of the rhythmic bar can be adjusted in 2 levels, and the brightness can be adjusted in 4 levels.

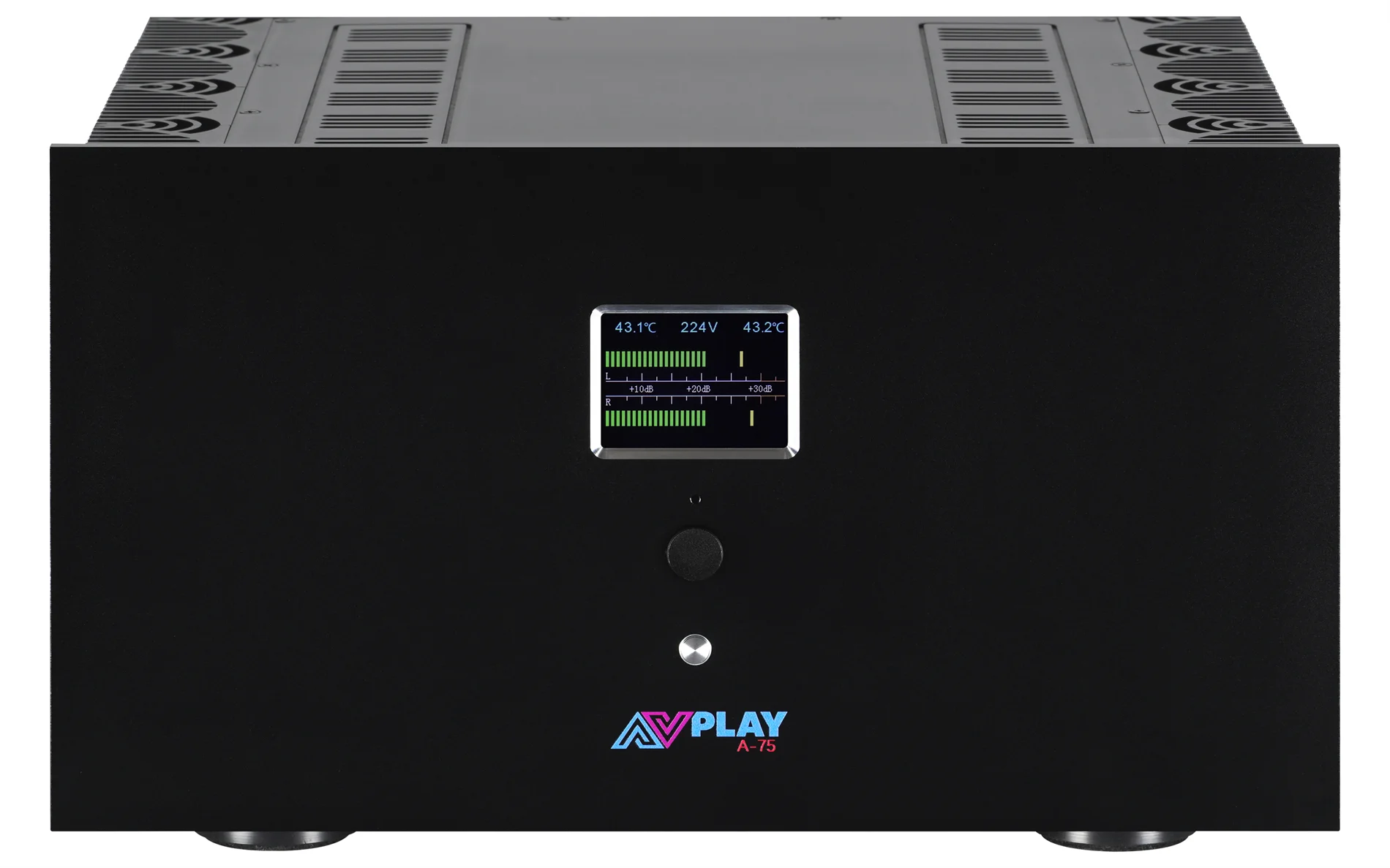

The amplifier has a large visually appealing display which indicates the operating temperature of the Class A amplification during operation. The aesthetically large designed display also presents the rhythmic beats of the music and the status of the amplifier better than traditional VU meter, and is viewable from a distance of 3-5 meters.

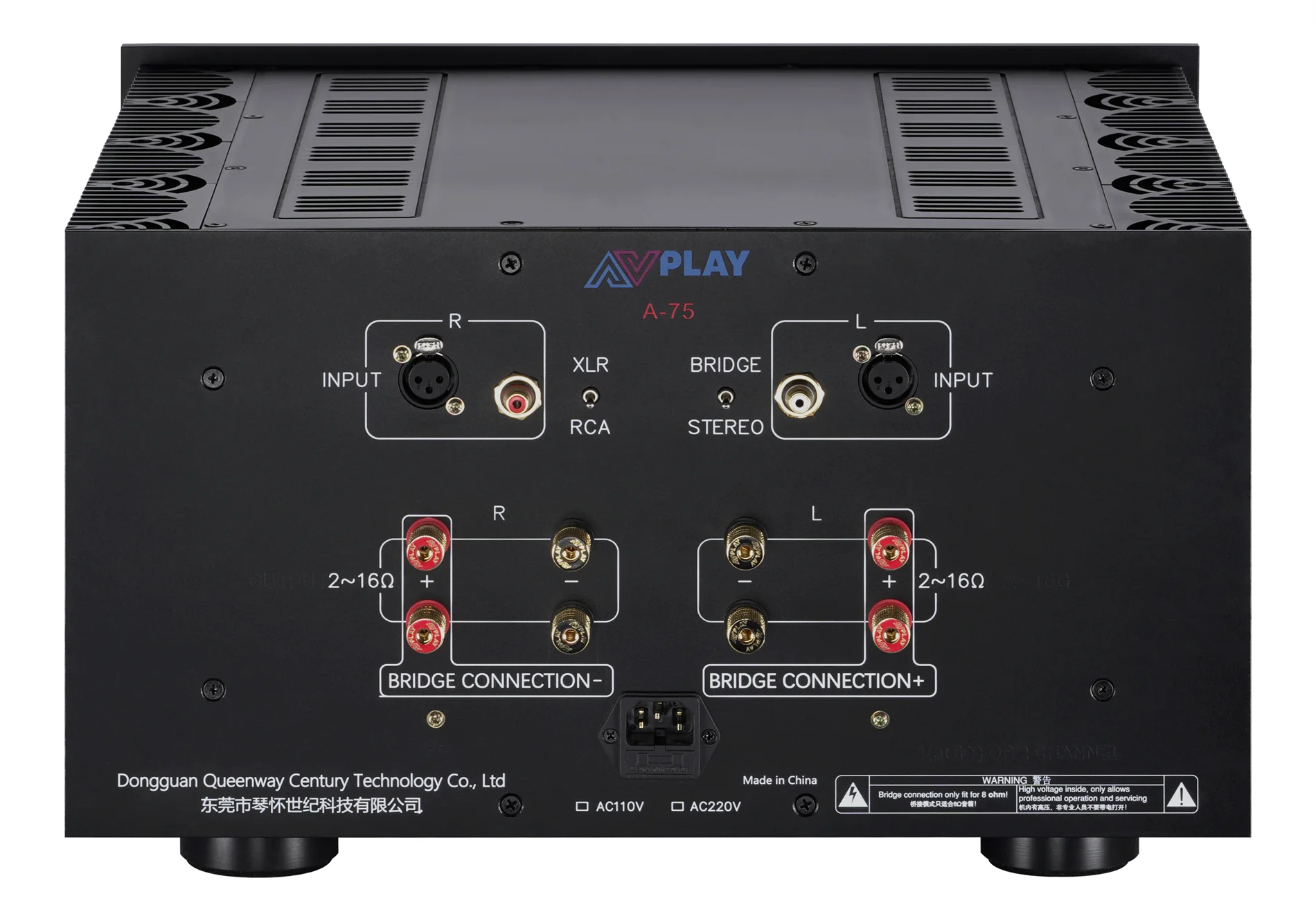

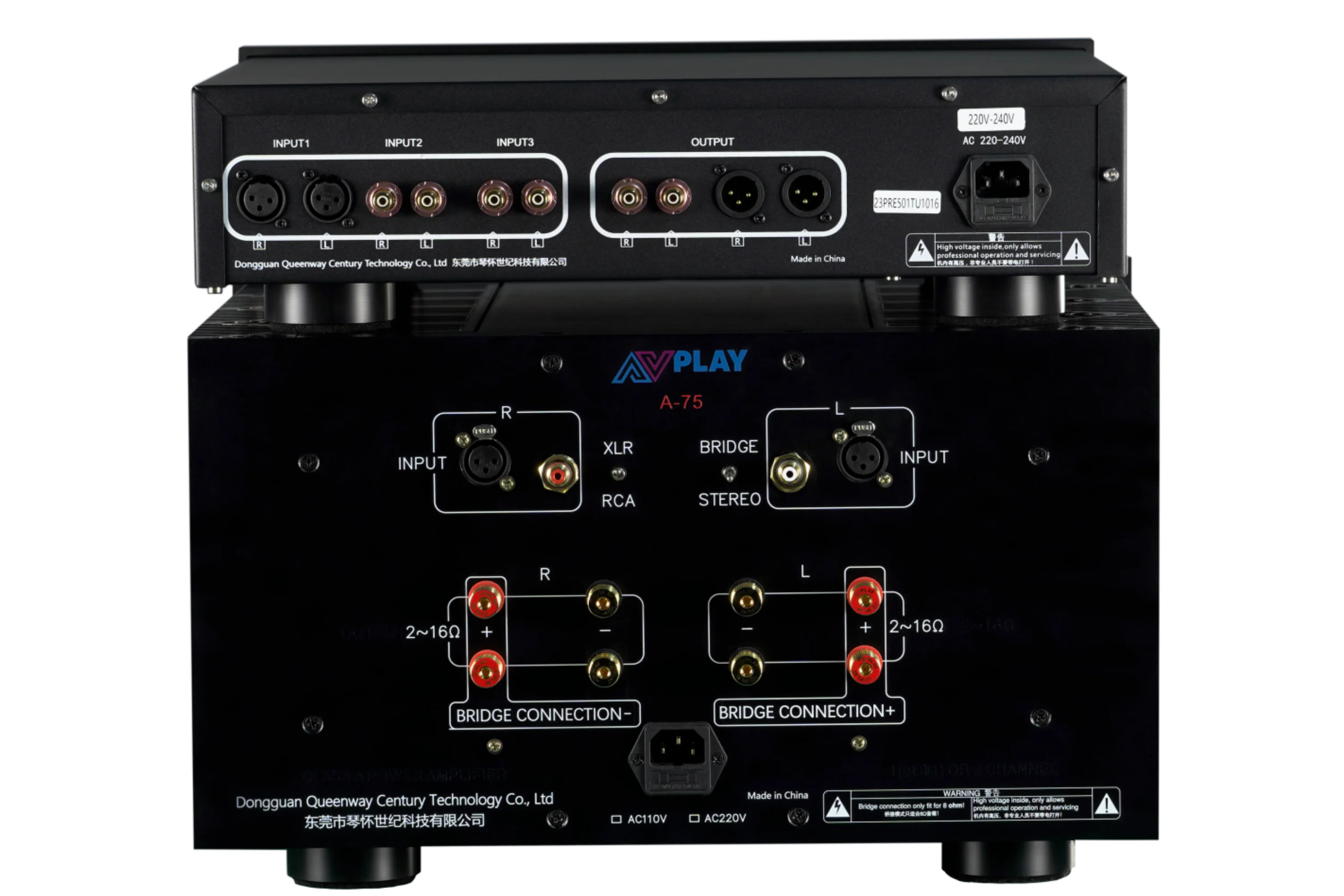

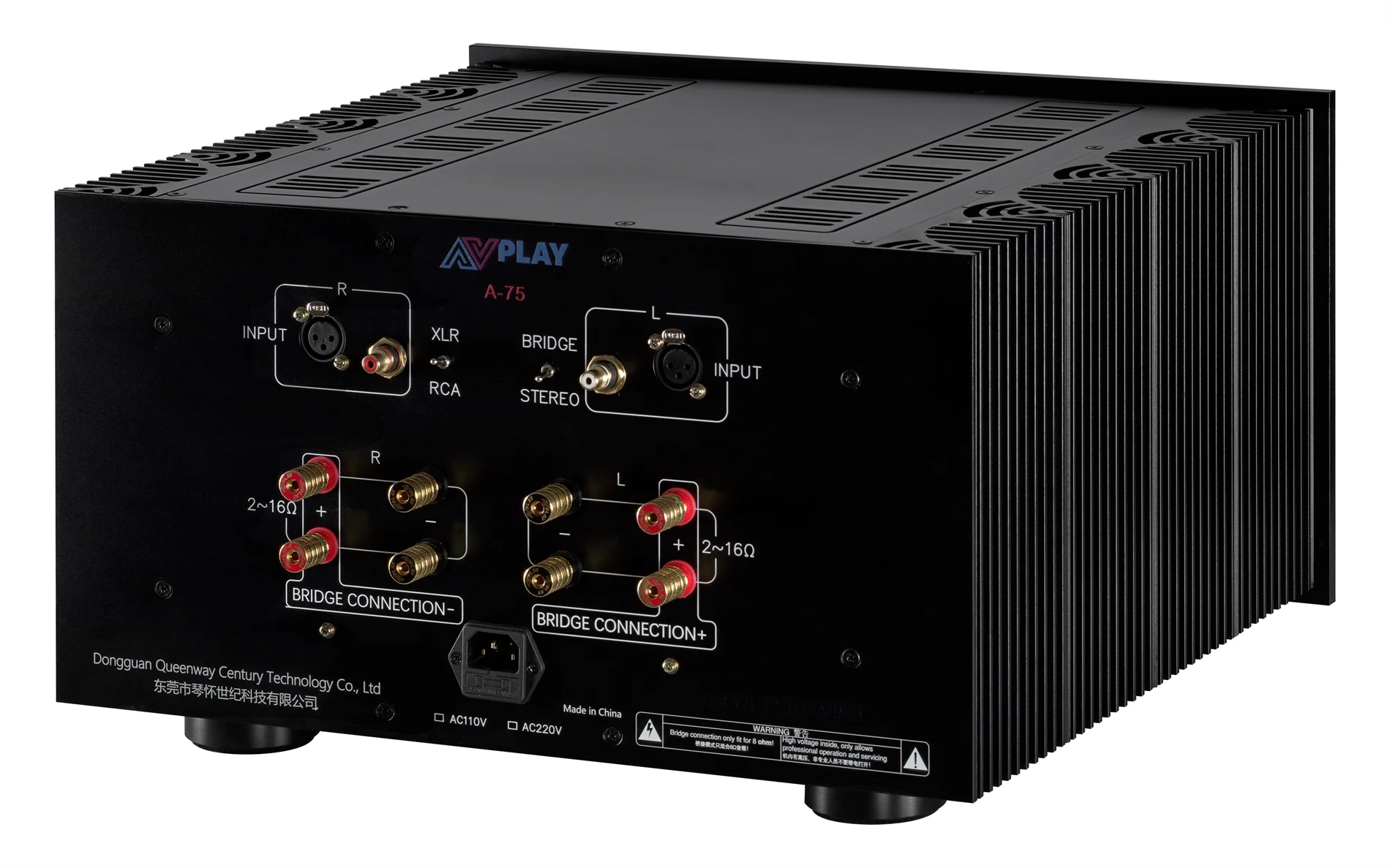

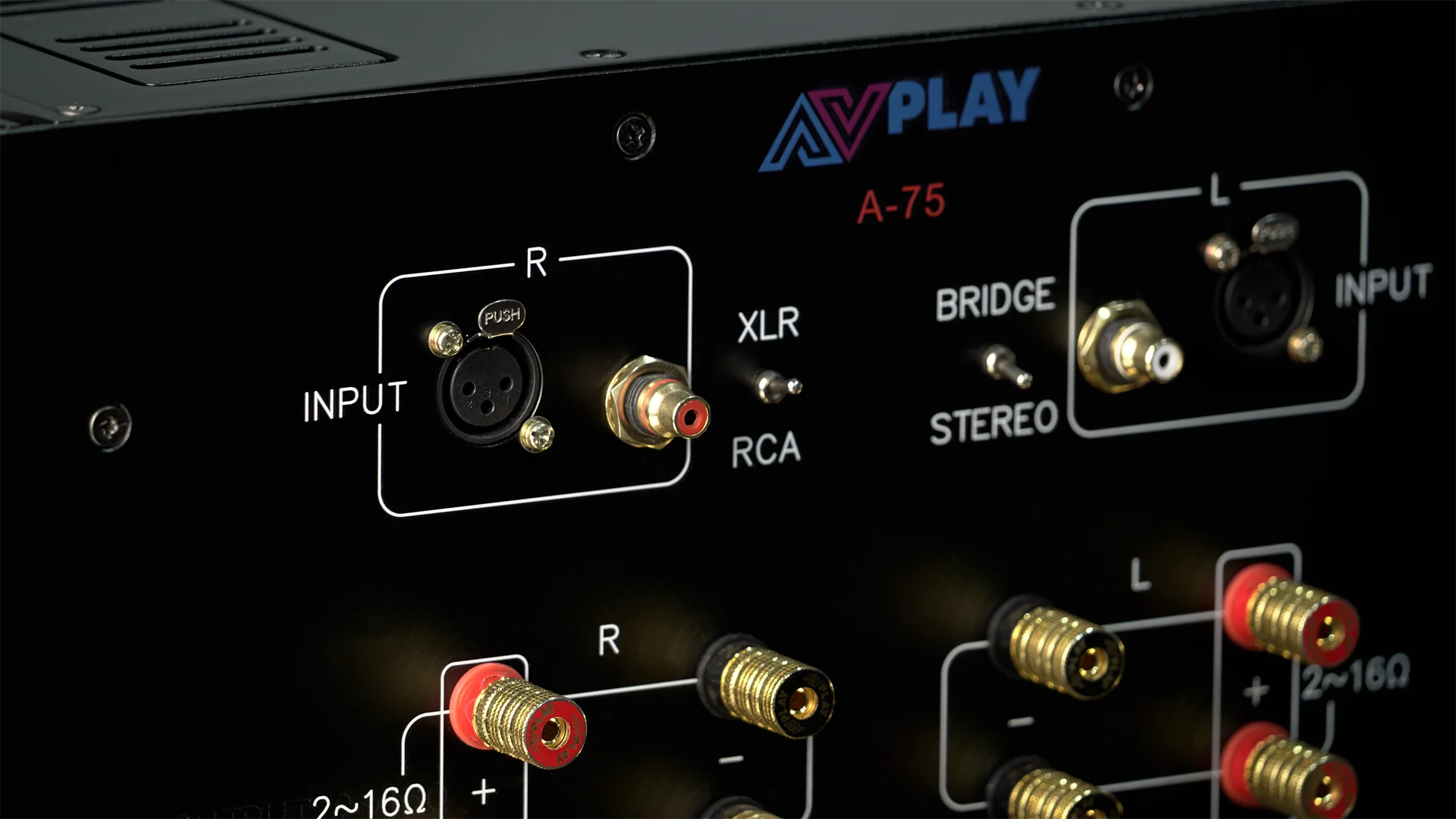

7. Bridging positive and negative, RCA/XLR functions are clearly printed, and the layout of the various terminals is symmetrical from left to right.

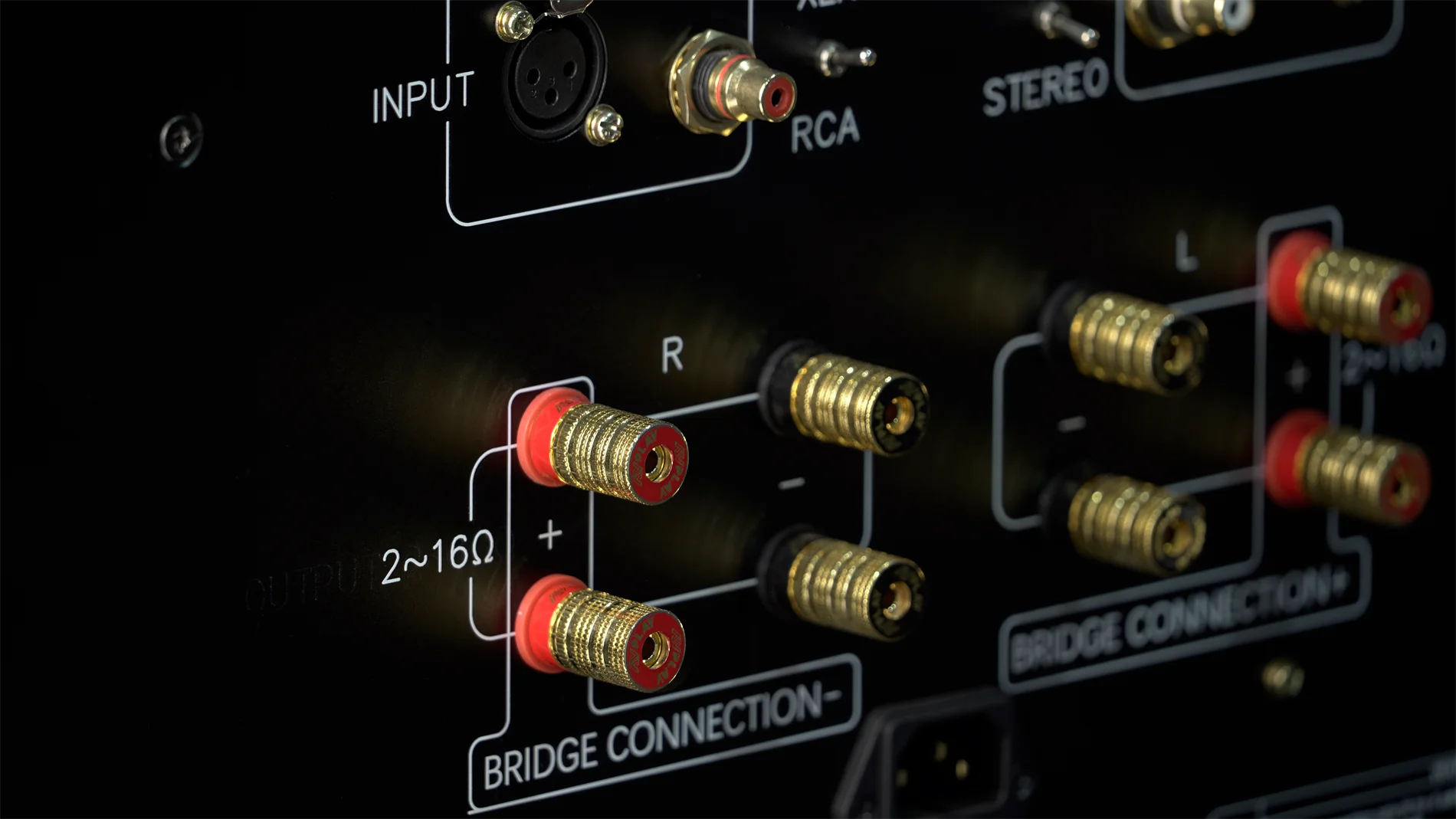

8. The A-75 bridge connection, RCA/XLR functions are clearly labelled, the terminal layout is symmetrical, using 8 X 24K electroplated real gold speaker binding posts, the bridge impedance of the speaker is 4 ohms and above.
9. Test the frequency response curve from 20-63KHz at ±0.1dB swing/fluctuation.
10： 5W/1KHz THD testing, THD=0.00275 0.00276
11. SNR testing, SNR=109dB
12. Dual-channel operating state, 88W Class A limit output state, distortion 0.0132/0.0137, it is recommended that the use of no more than 80W, and in general will not be full power continuous output.
13. Bridged Class A operating state full power output 278W test distortion of 0.0152, it is recommended that the use of no more than 250W, and in general will not be full-power continuous output.
14 : AVplay A-75 HIFI Class A Amplifier Size:
Packaging box：

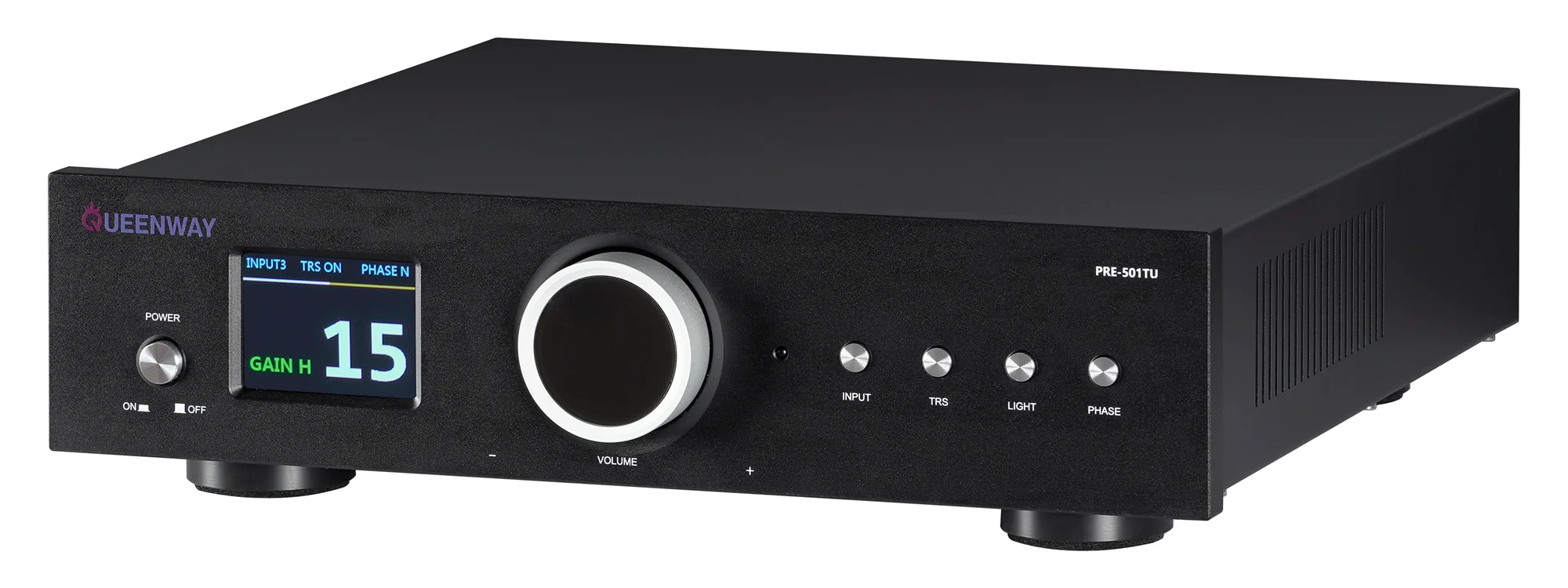

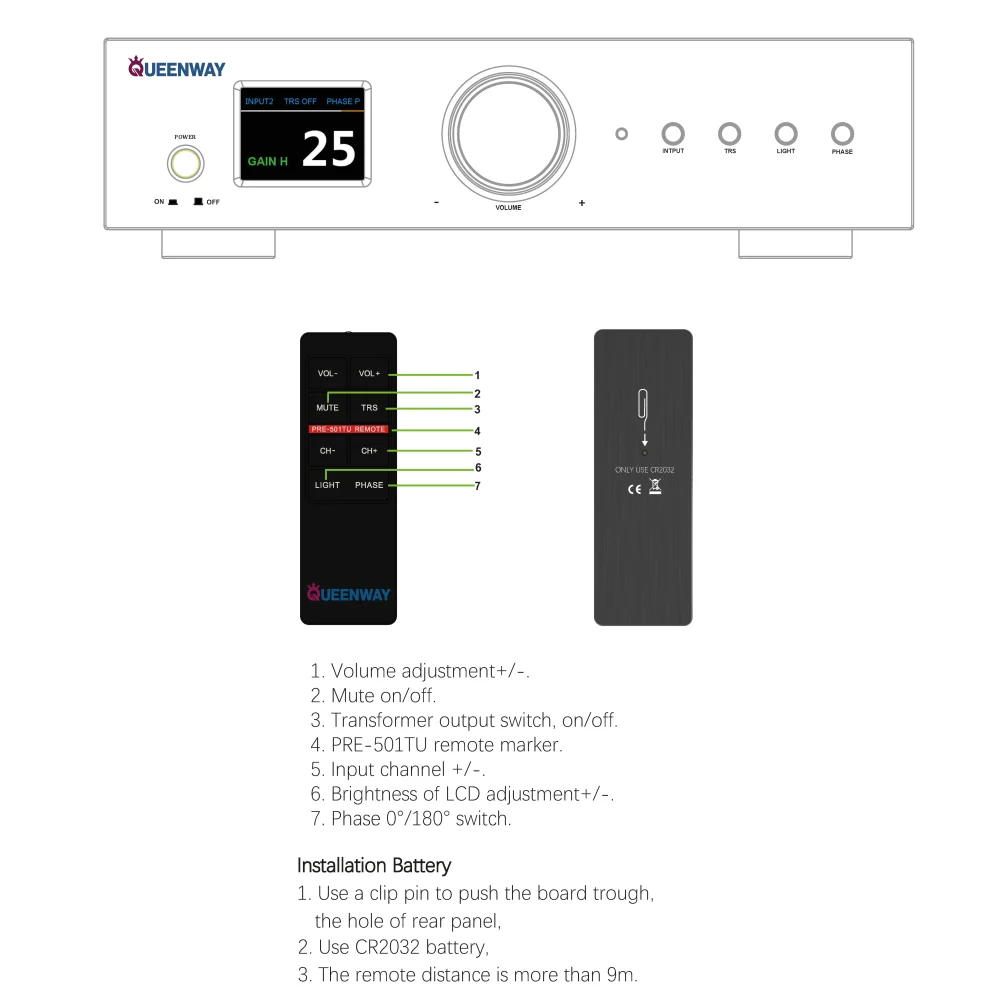

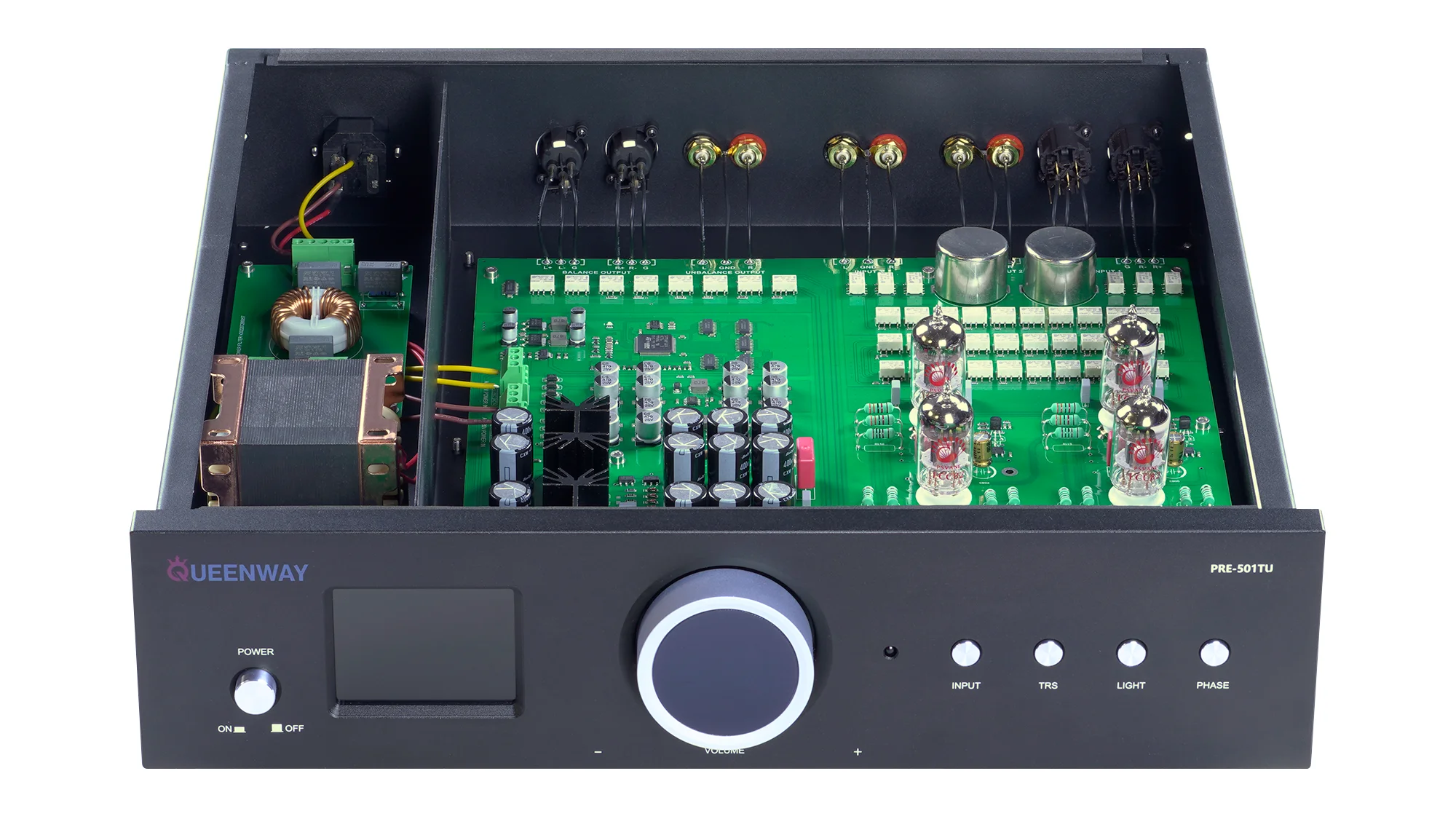

Queenway PRE-501TU 12AU7/ECC82*4 Large Dynmic Stronger Power Driving Giving Out Tube Preamplifier Technical specifications:

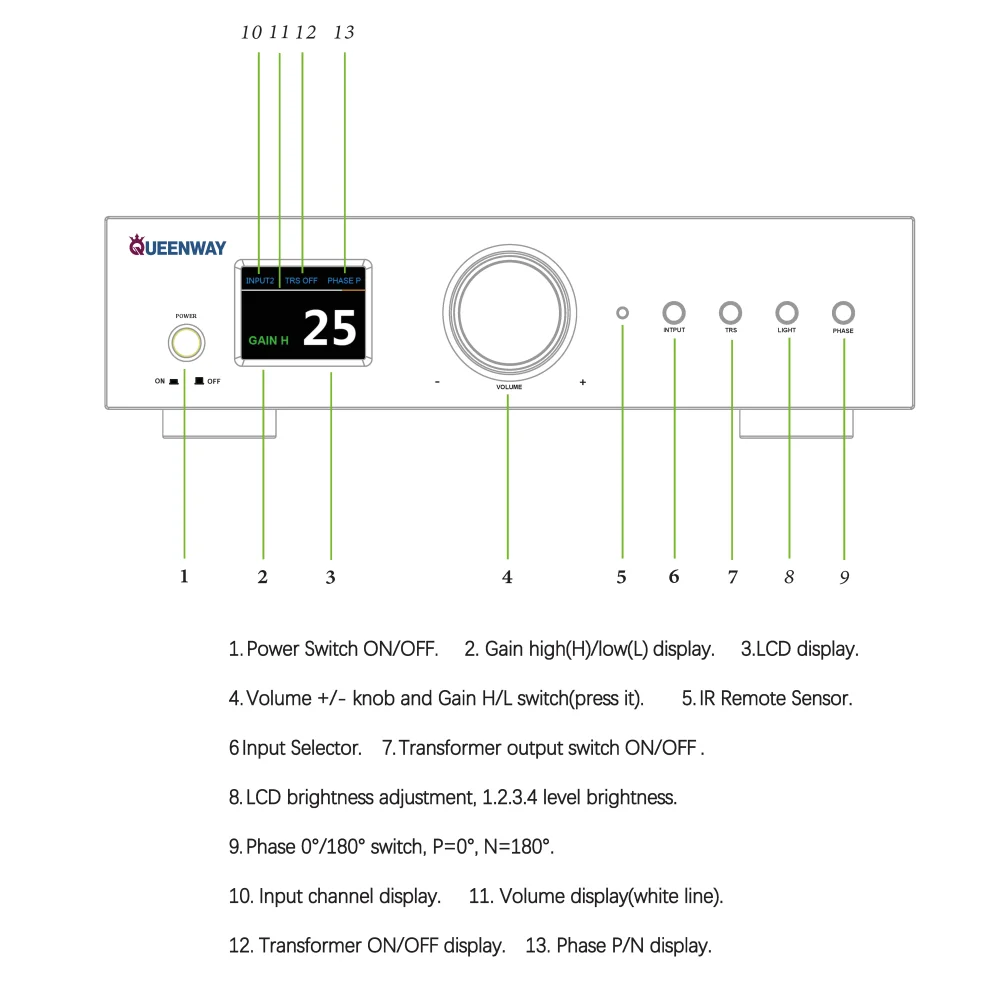

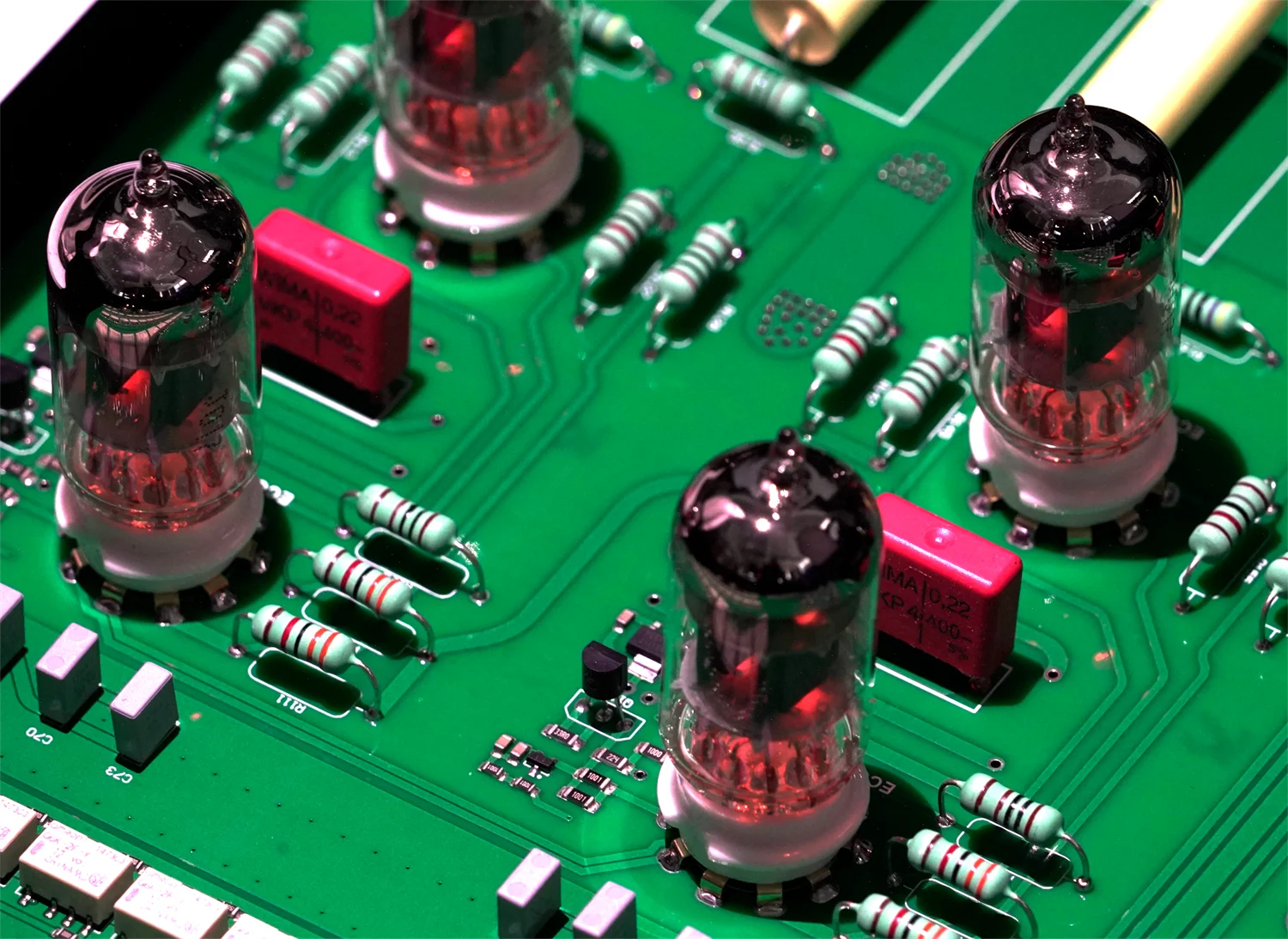

*Electronic tube: 4*ECC82/12AU7,
*Gain high(H)/low(L)display,

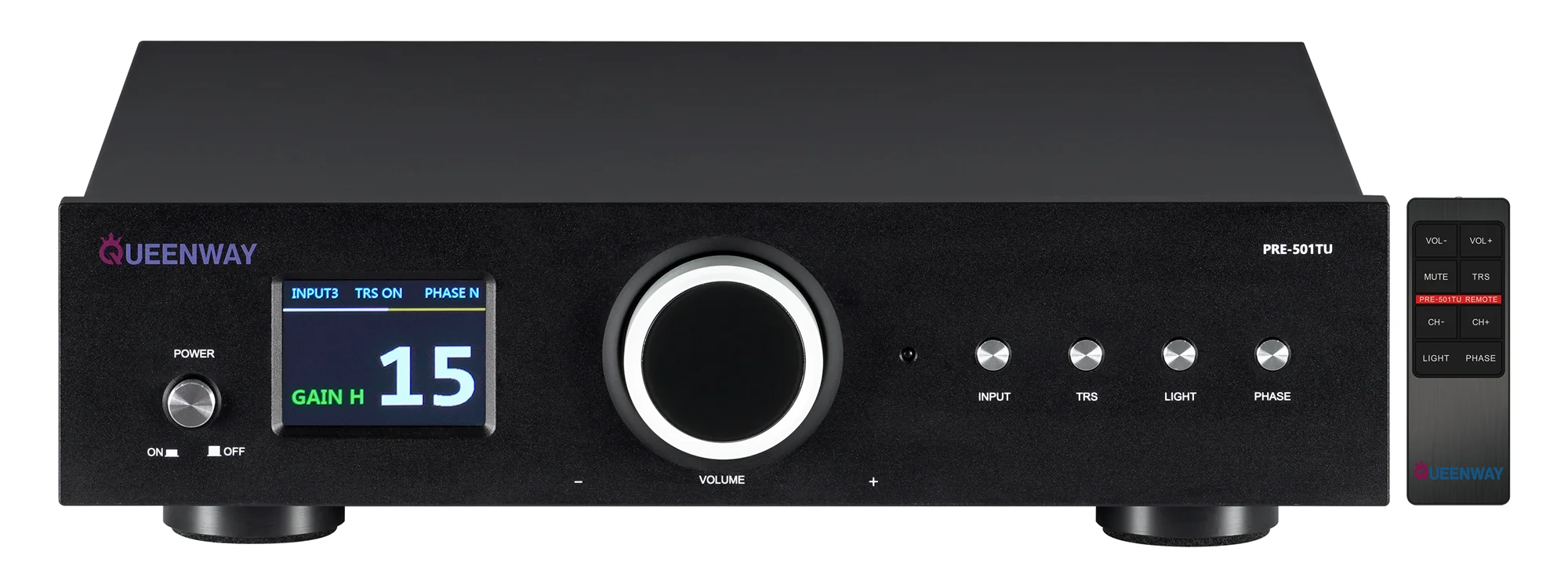

*2.4inch LCD display,
*Volume knob and Gain H/L switch (press it), Volume progress bar (white line),
*IR Remote Sensor,
*Input Selector，

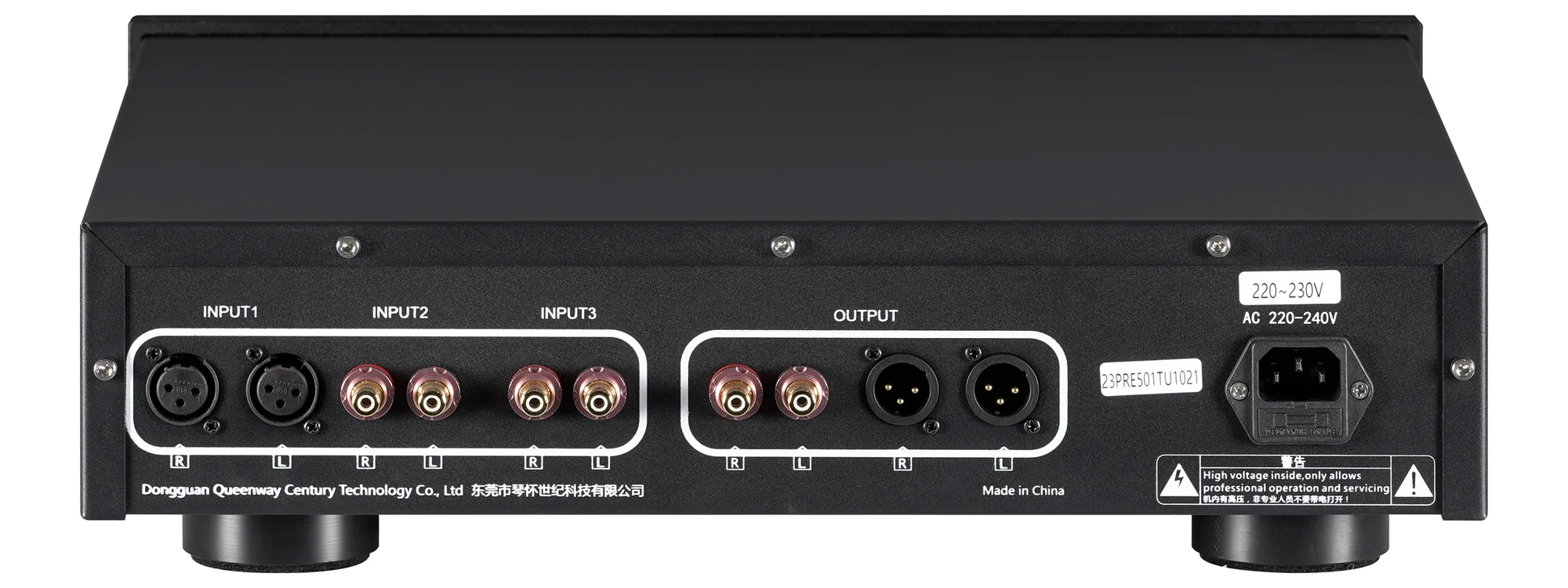

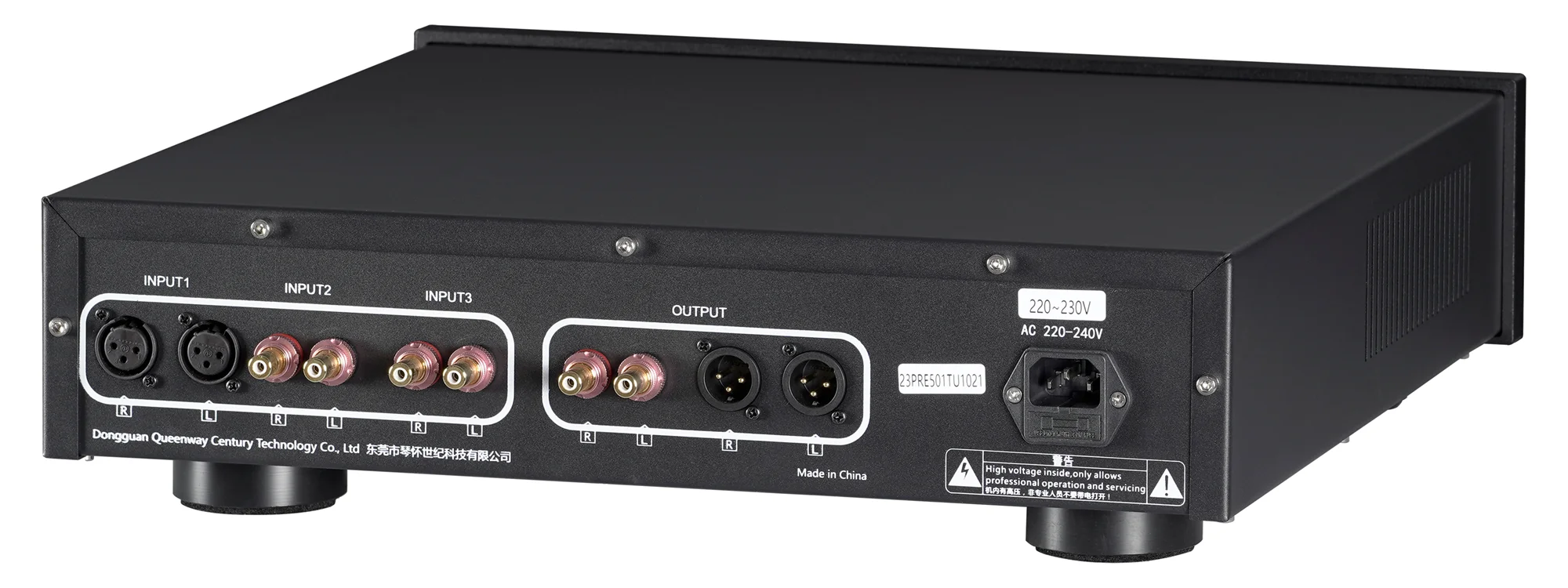

*Input: 2sets RCA,
*1set XLR (Each channel setting has a separate memory),
*Output: 1set*RCA, 1set*XLR ,
*Frequency response: 20Hz-30KHz,
*Rated harmonic distortion:<0.06%(maximum) @ 1KHz,
*Signal to noise ratio: High gain mode:90dB,
*Low gain mode: 110dB High gain mode: 100dB,
*Maximum output voltage: 12V
*Input impedance: 100KΩ @ RCA input, 50KΩ+50KΩ @ XLR input,

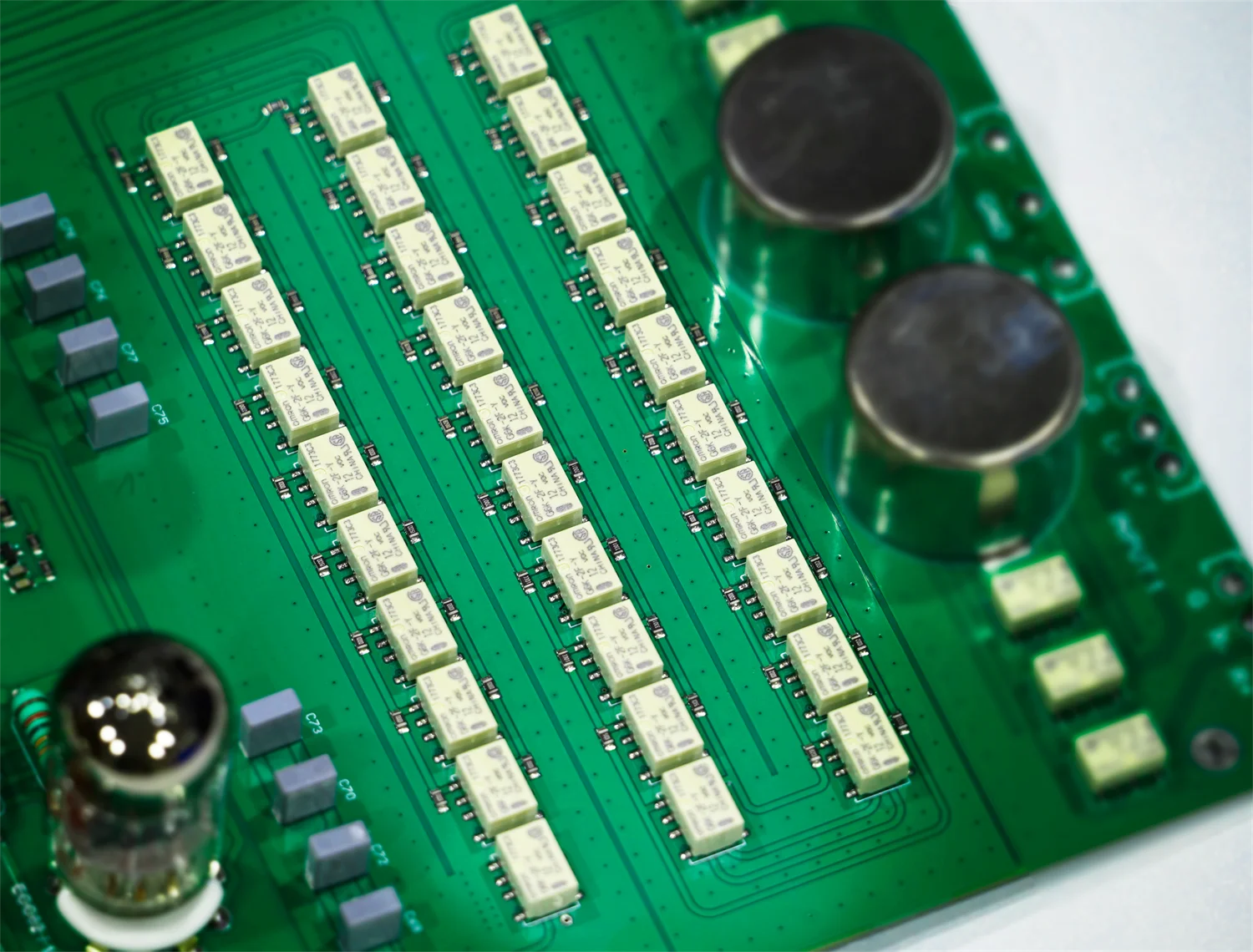

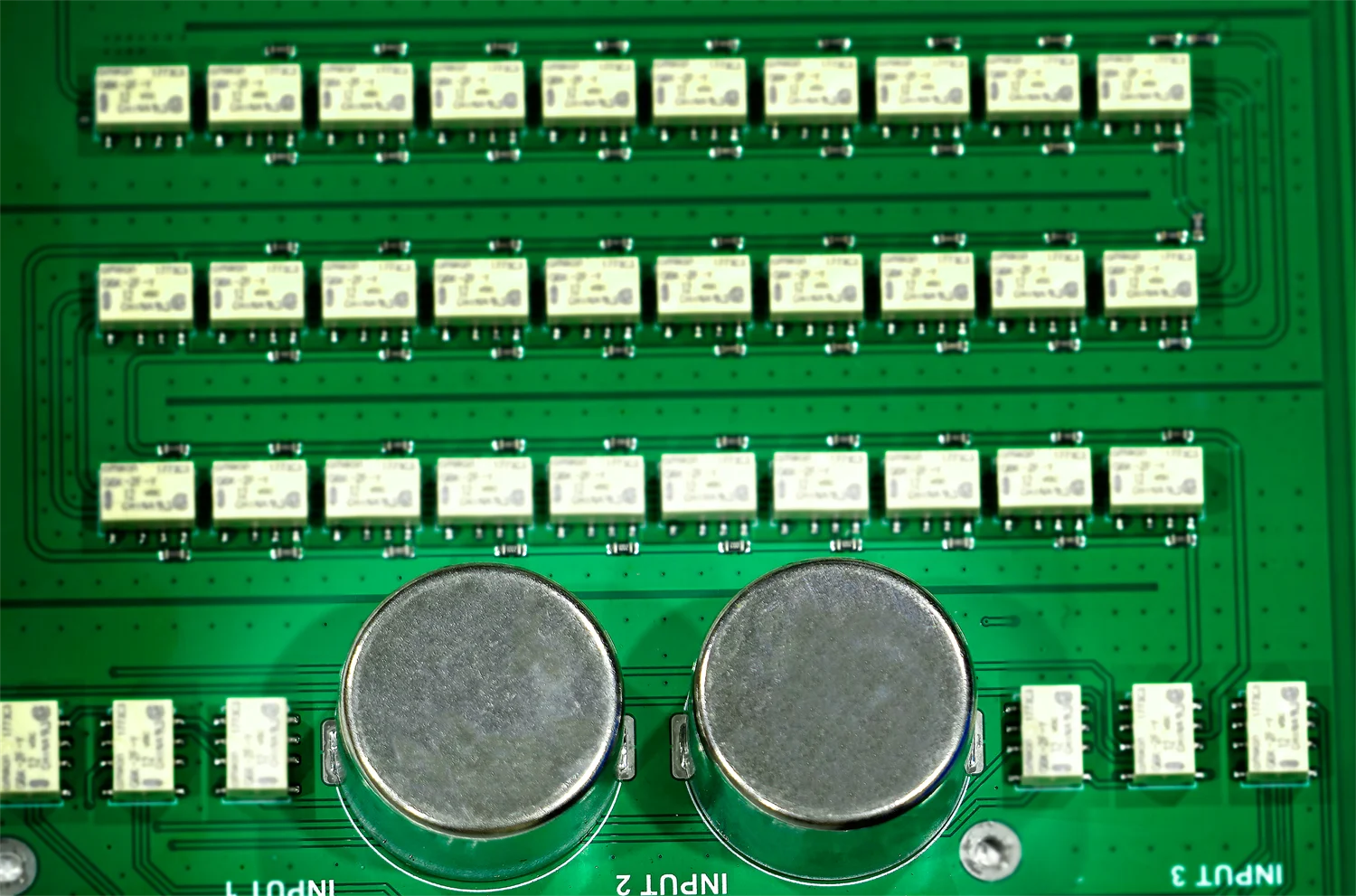

*Volume attenuation: 30 step relay array volume attenuation circuit ,
*Gain: Low gain mode -6dBHigh gain mode:12dB,
*Transformer input switch (only fit for input2-3),
*LCD brightness adjustment, 1.2.3.4 level brightness,
*Phase 0°/180° switch, P=0°, N=180°,
*Transformer ON/OFF.
*Power supply: AC 110V or 220V 50-60Hz *Power consumption: 40W
*Size: 430mm(wide)*430mm(high)*120mm(deep)
*Net weight 12.5Kg
Note: This video is a bit compressed, you can view the video in the link

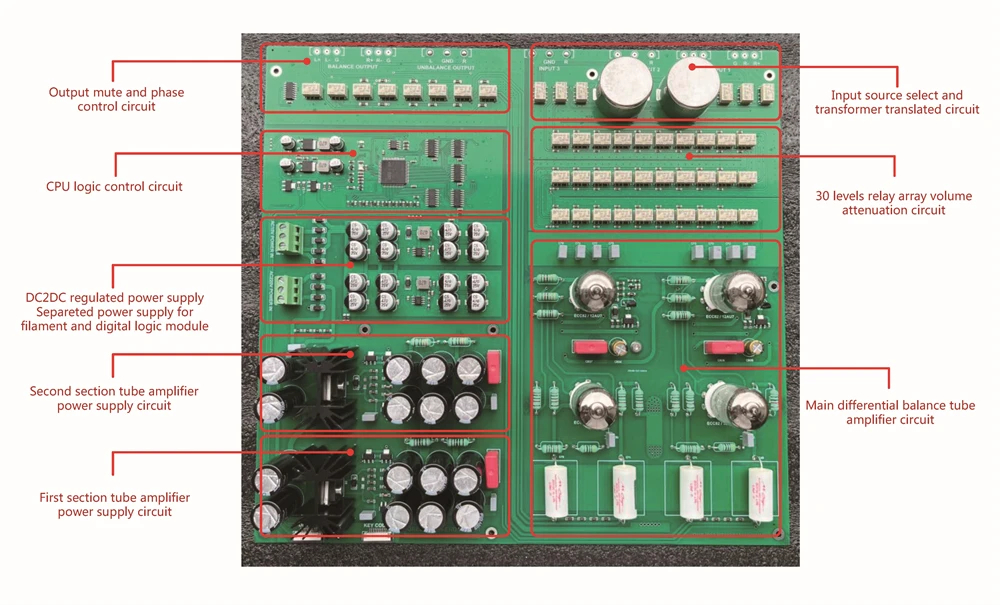

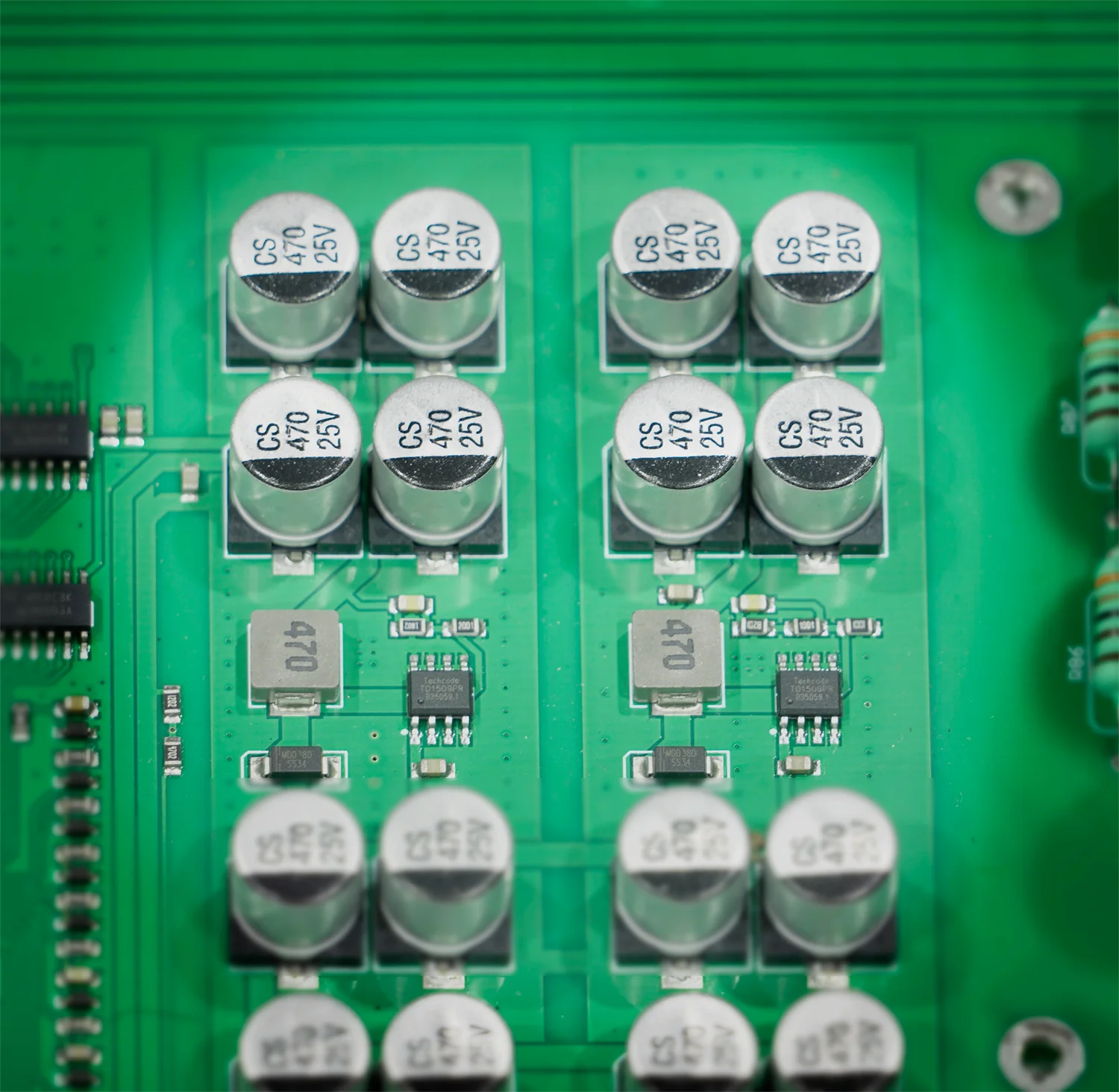

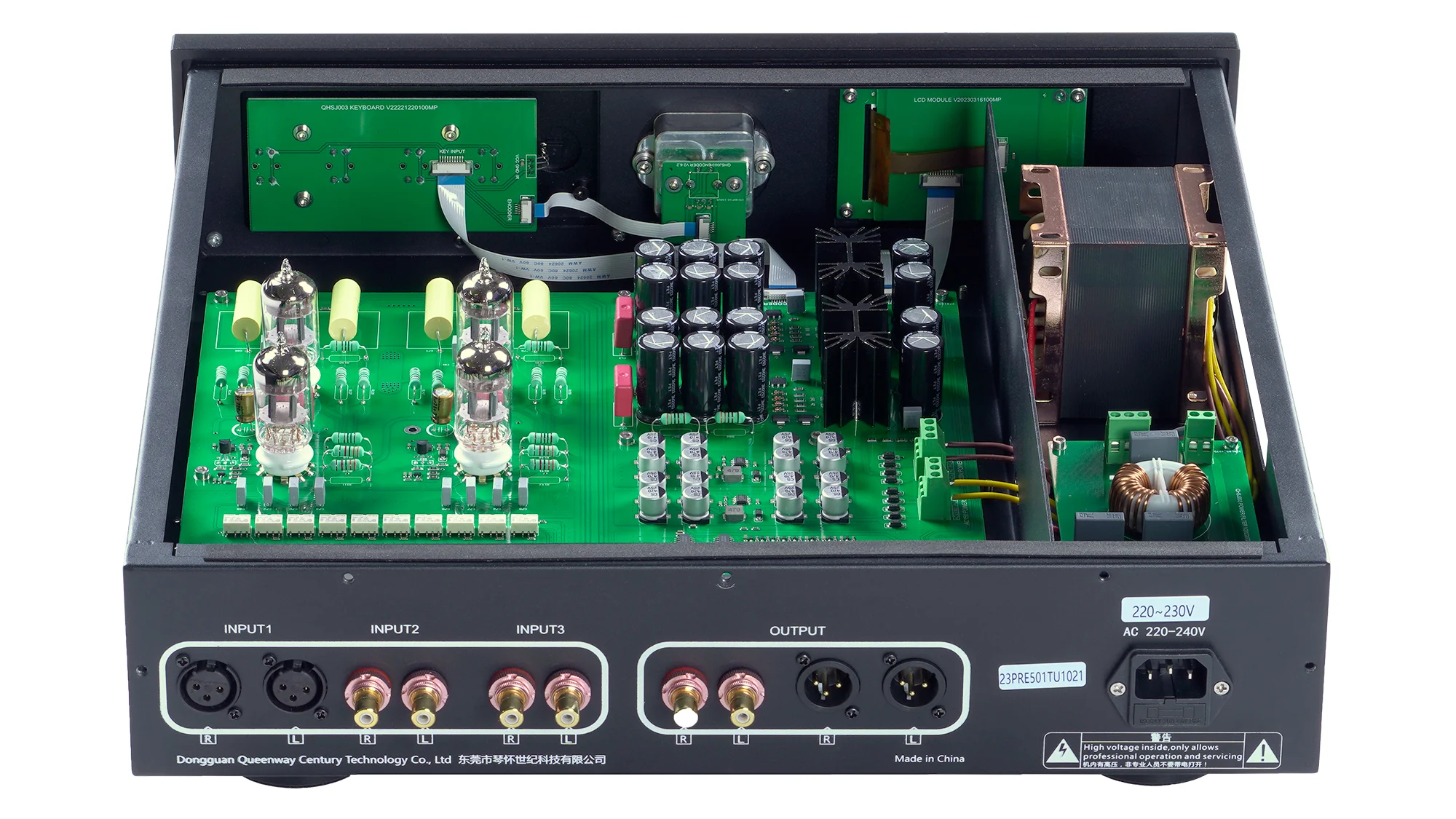

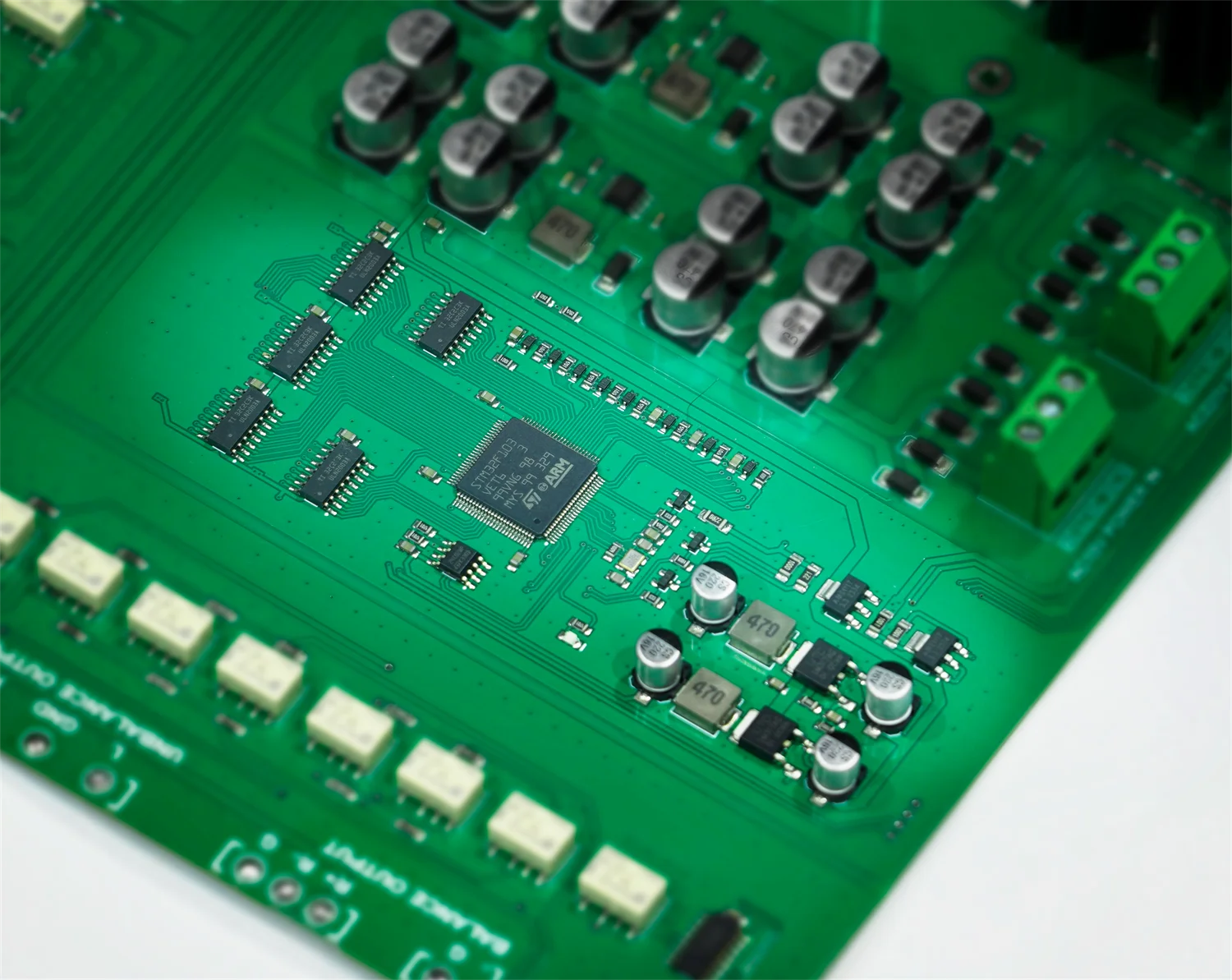

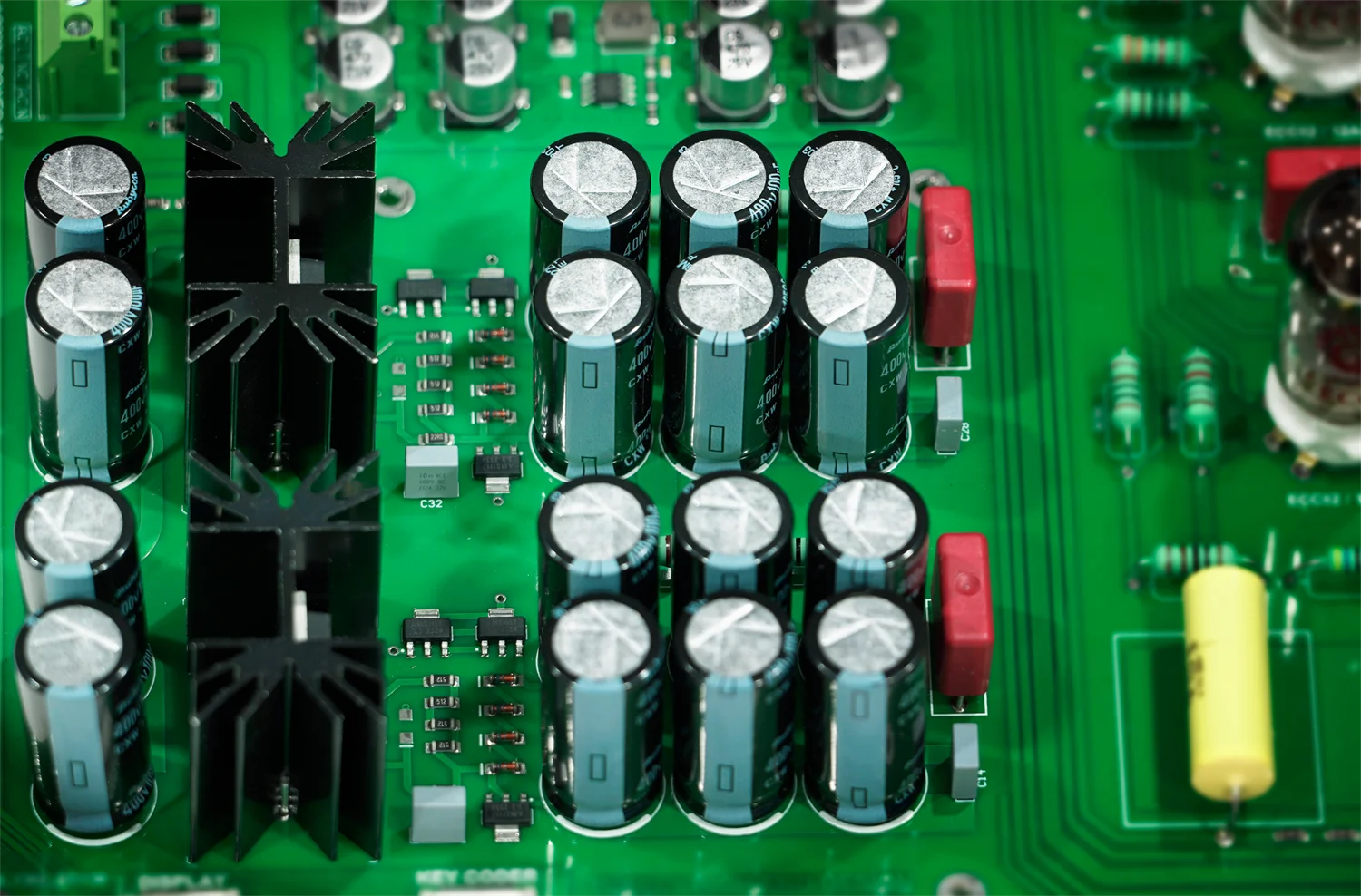

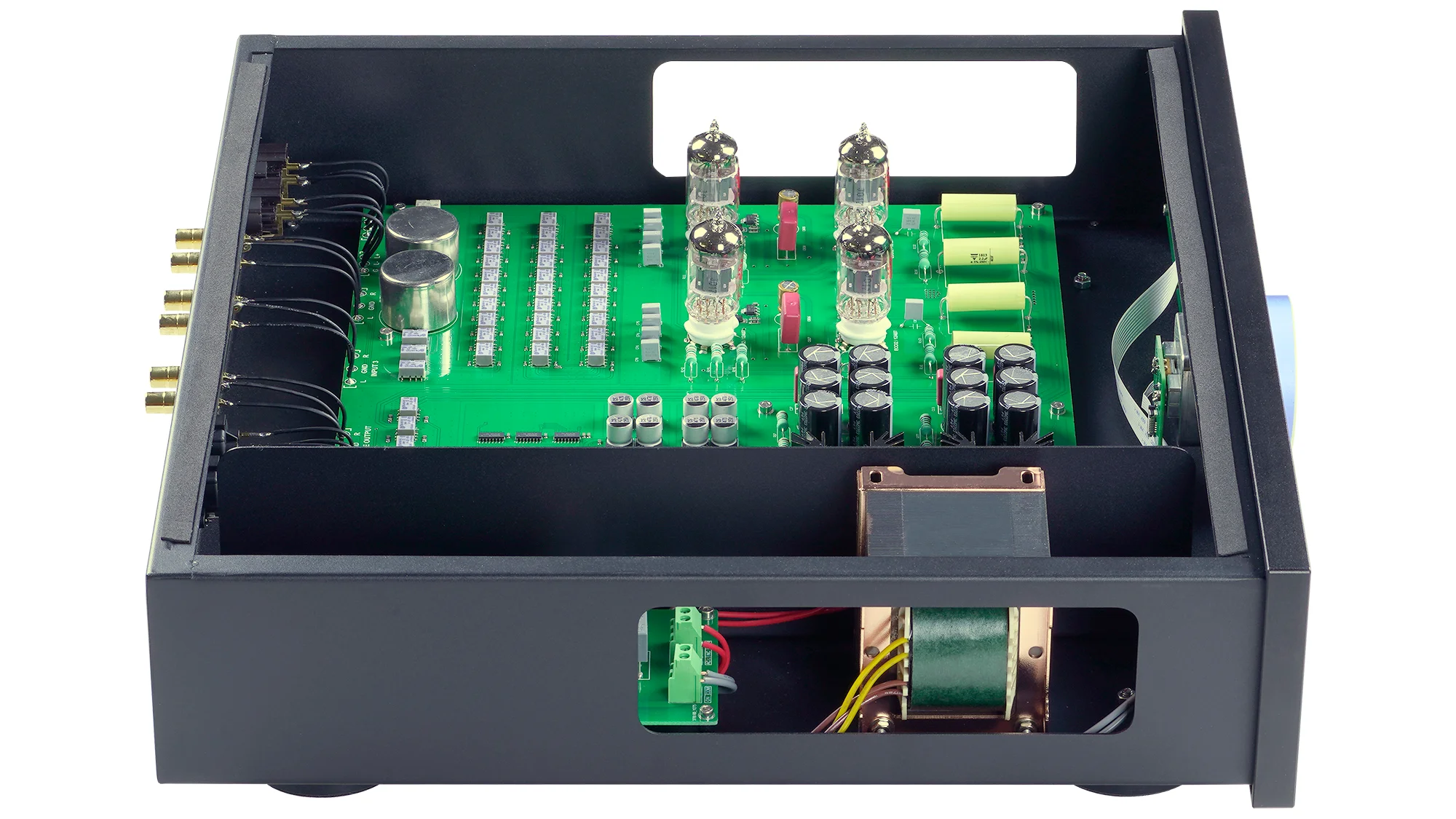

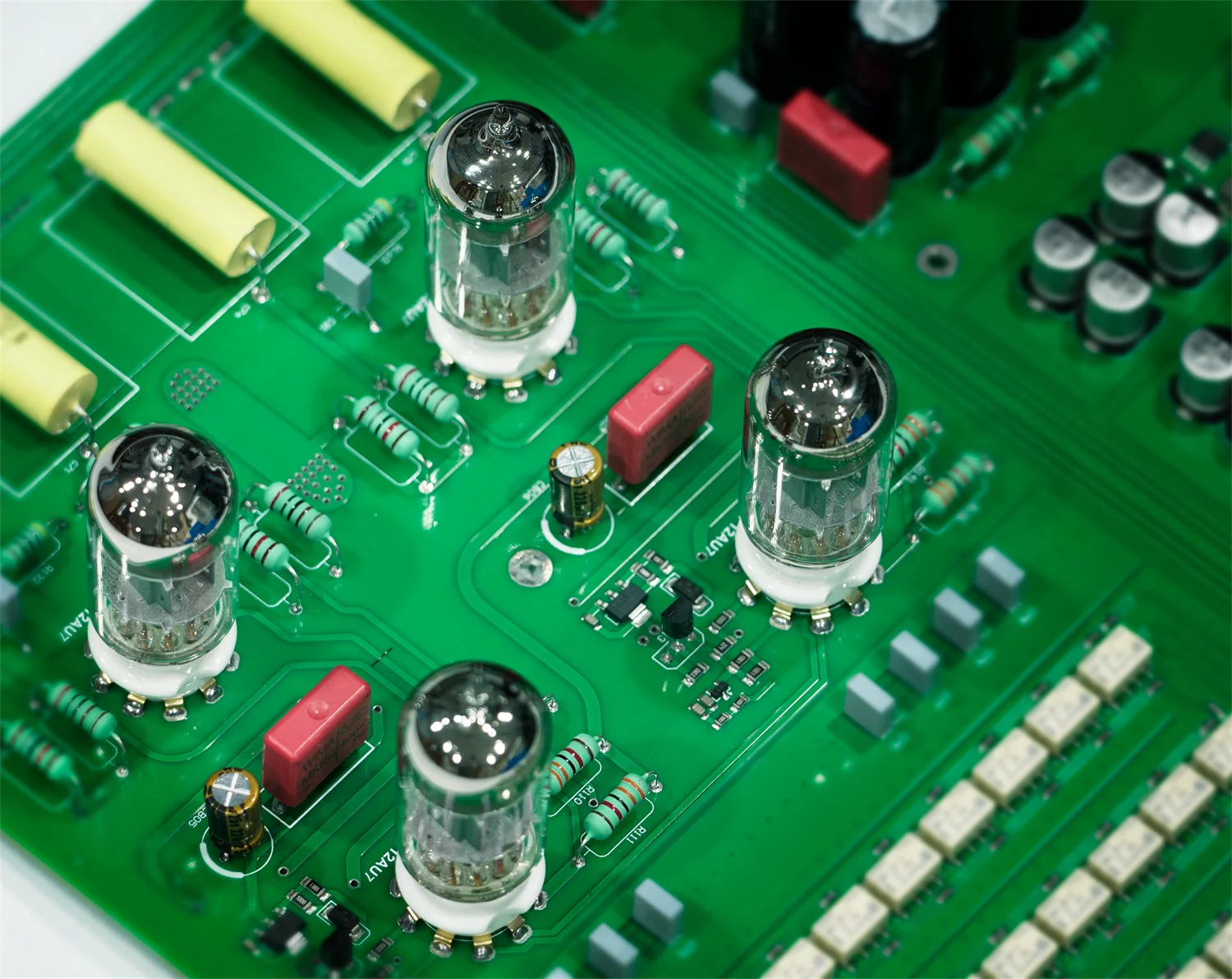

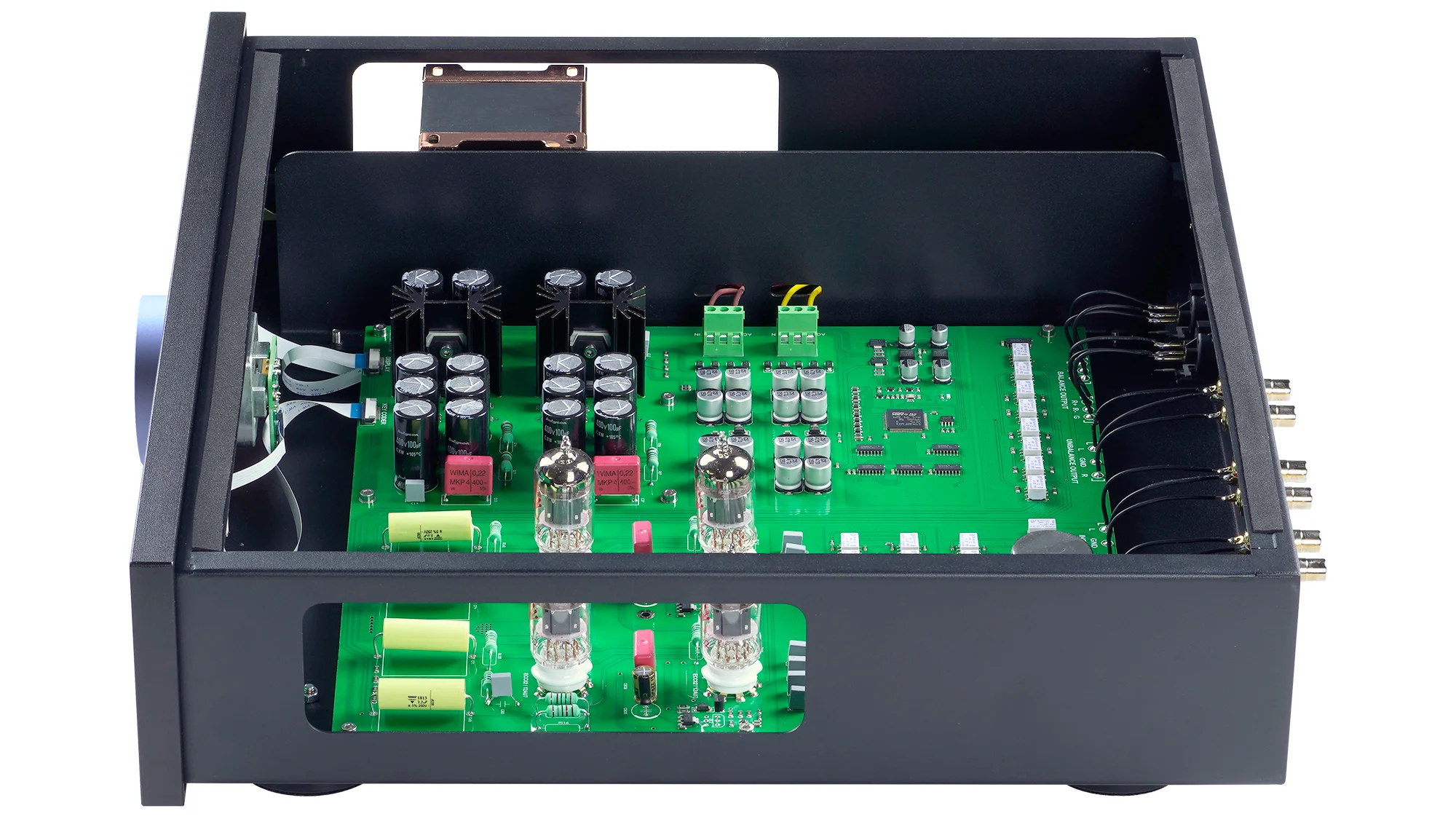

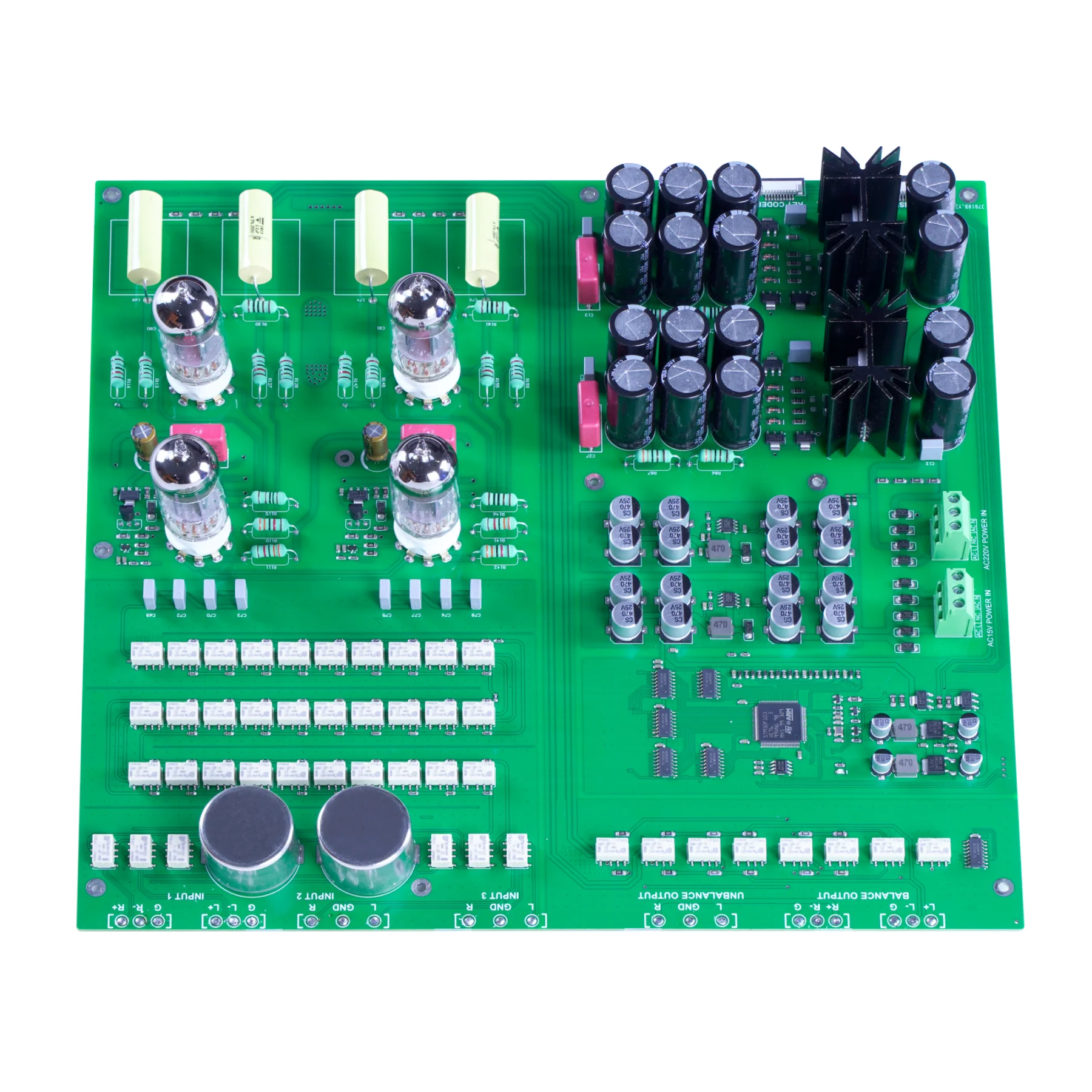

Internal detail circuit board
