Chuansheng 002 A50 HiFi amplifier KSA50A pure class A line 50w*2/8 ohm 100w*2/4 ohm AC110v&AC220v
$792.00
Ex Tax: $792.00
- Stock: 20
- Model: 1005003210355997
- Weight: 24.00kg
- Dimensions: 50.00cm x 20.00cm x 42.00cm
- SKU: 1005003210355997
Features:

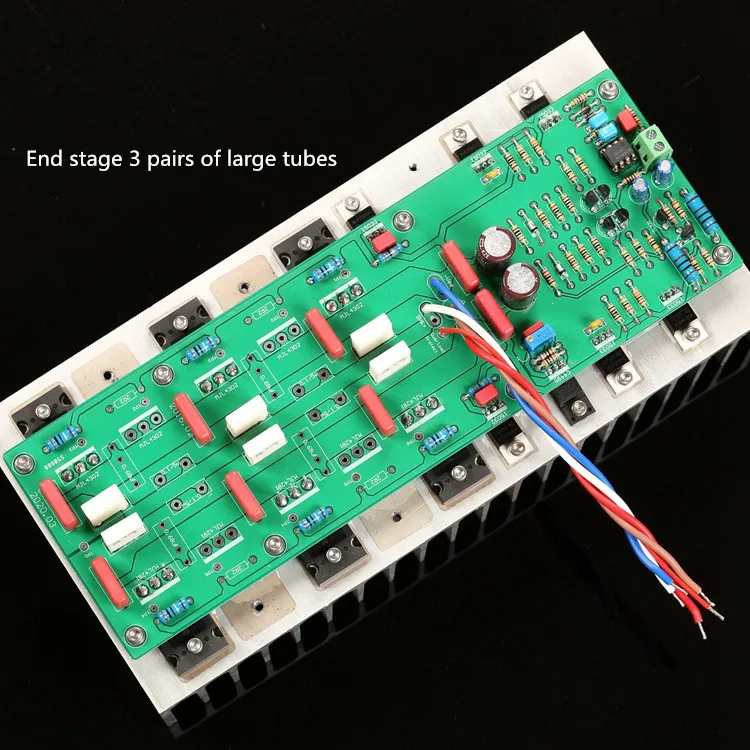

Each channel uses 3 pairs of precisely matched ON tube kings in parallel MJL4281/MJL4302.
Each pair of tube quiescent current 400mA 1.2A per channel.
800w Nippon Steel Transformer, completely independent power supply for left and right channels.
With transformer soft-start and anti-interference module.
Each channel uses 6 large electrolysis ELNA AUDIO audio electrolysis 10000uF63V.
Comprehensive speaker protection over current, midpoint, start-up delay, instant shutdown.
Product parameters:
Power supply voltage: AC110V/AC220V.
Chassis color: silver/black.
Output power: 50w*2/8 ohm 100w*2/4 ohm.
All aluminum case: 450*149*370mm, wider than the standard 430mm case.
Net weight of the whole machine: 19kg.

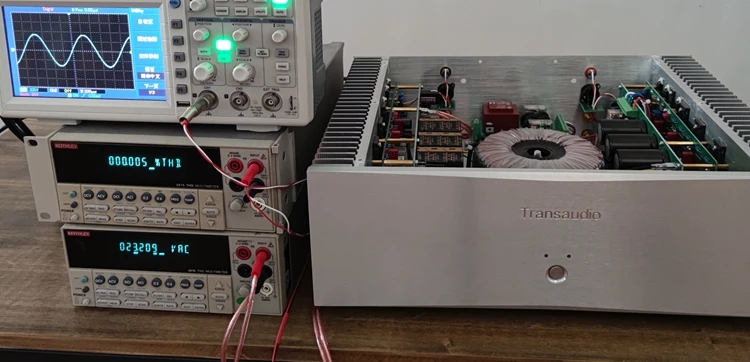

A50 full power distortion: 0.005%

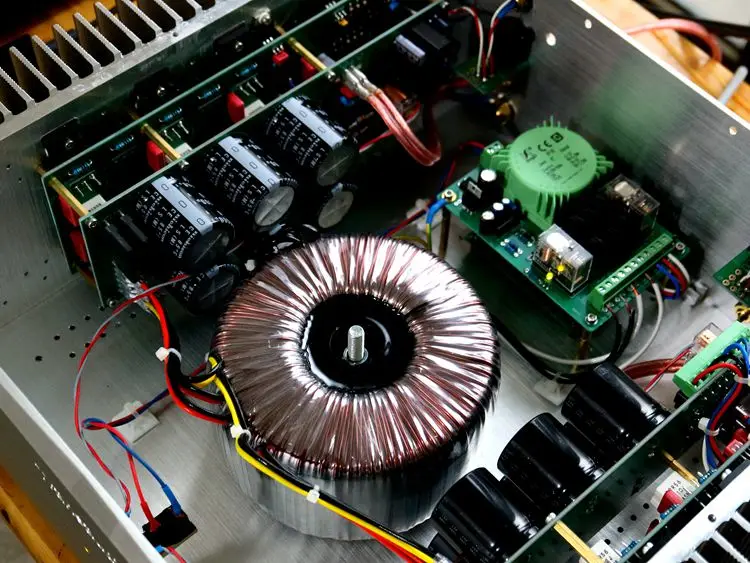

The picture below shows the 800w Nippon Steel Transformer

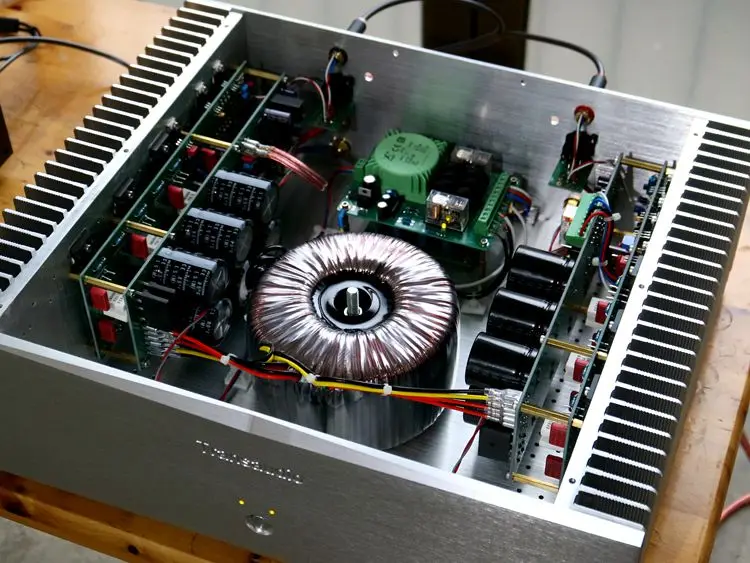

Mono amplification, power supply and protection module used in the A50

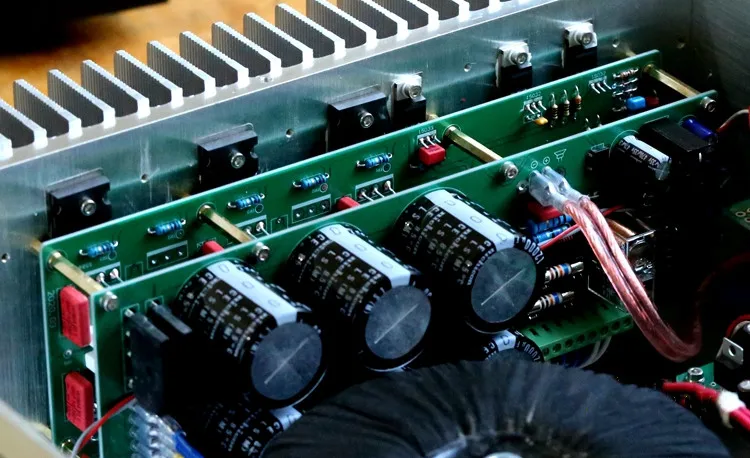

Each large tube is connected in parallel with a decoupling capacitor
