Product features:

●Eight watts per channel, Single Ended design, Pure Class A Integrated Stereo Amplifier

with 300B output power tubes.

●All tube Integrated with 12AX7 input tubes, 310A driver tubes and 300B output tubes.

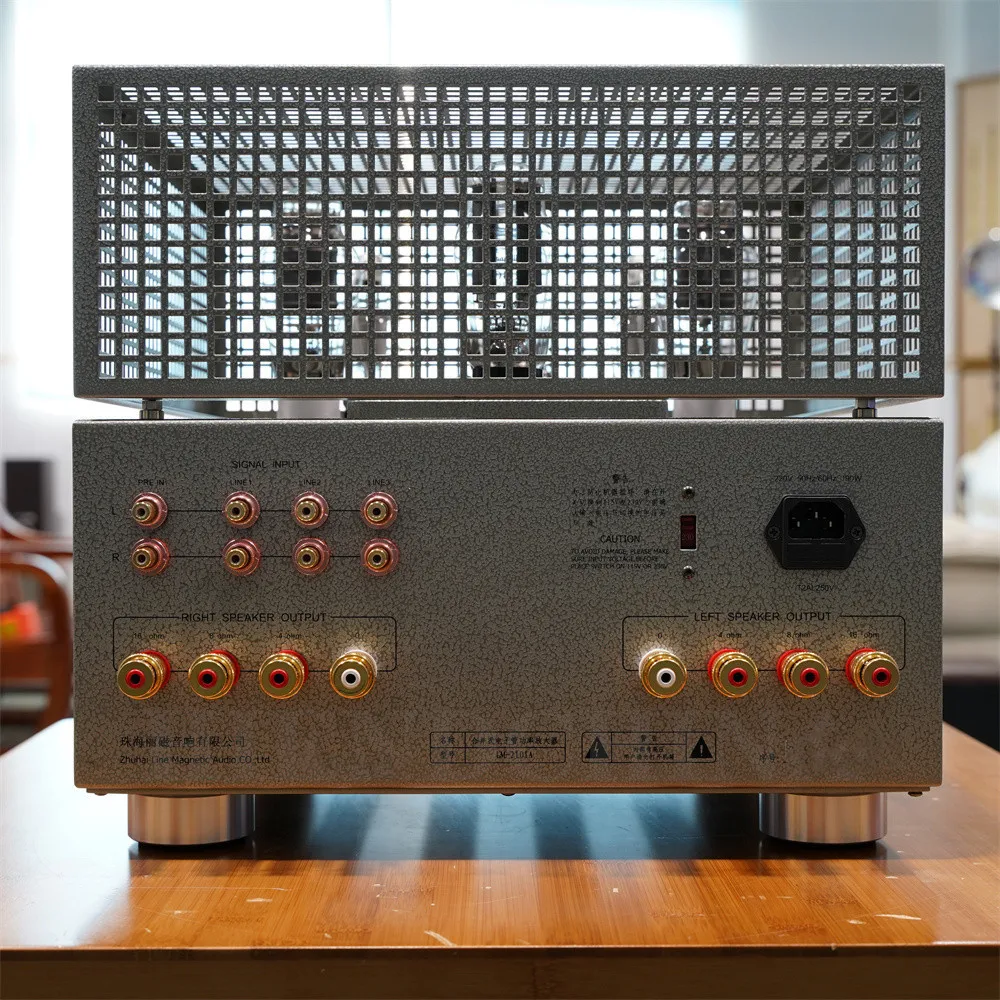

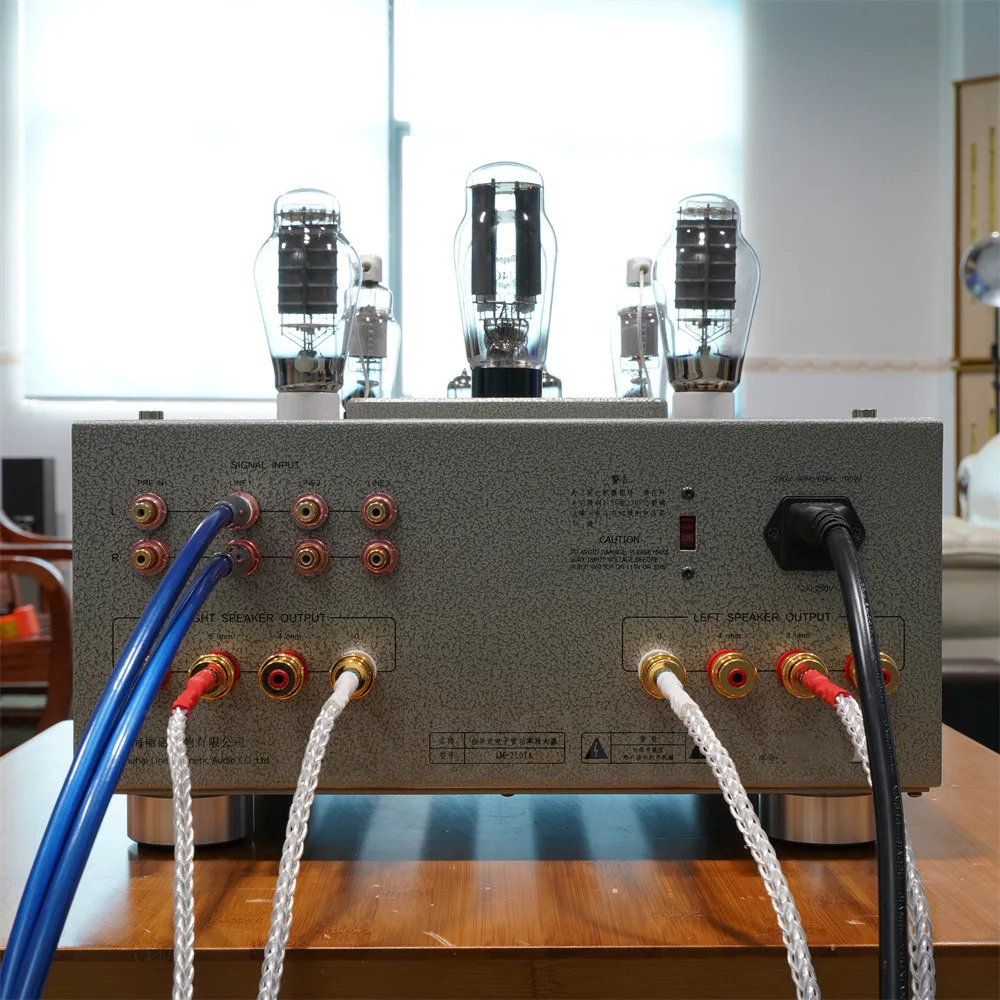

●4 pairs of input and speaker terminals for 4, 8 or 16 ohm speakers are located on the

back panel.

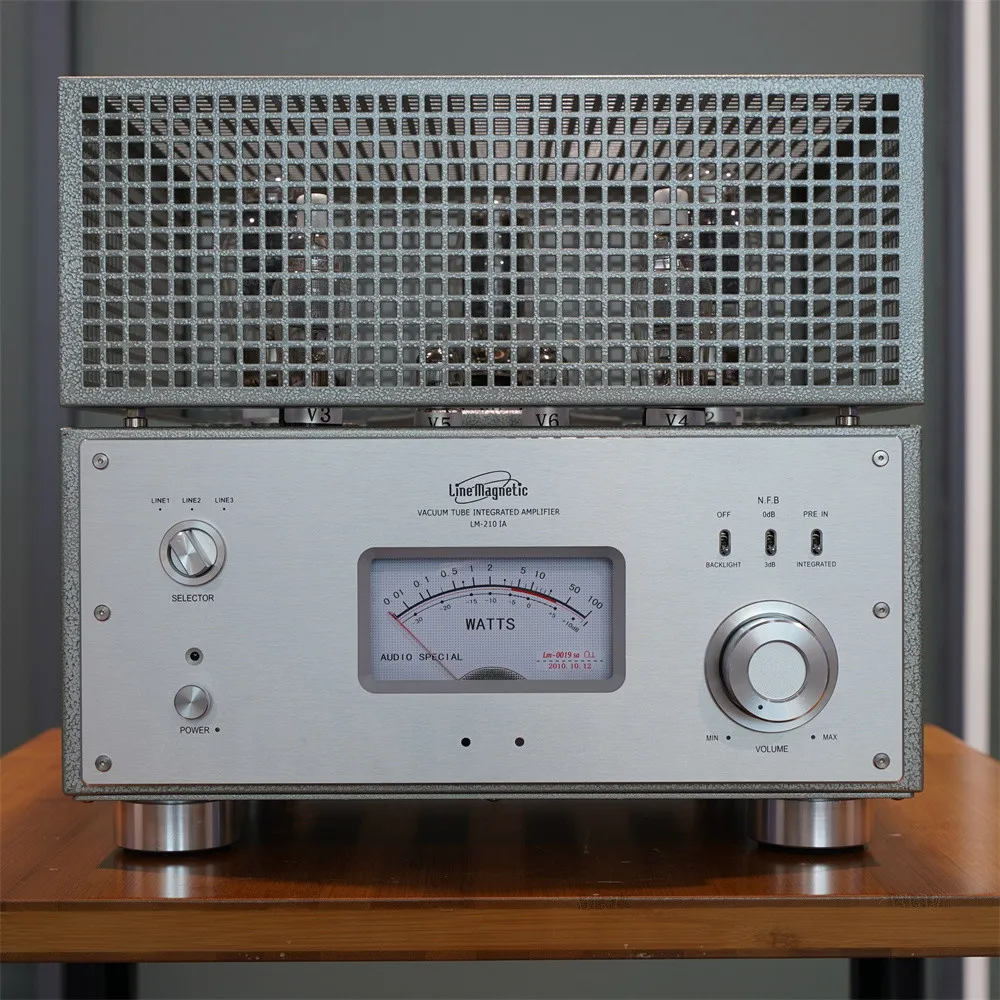

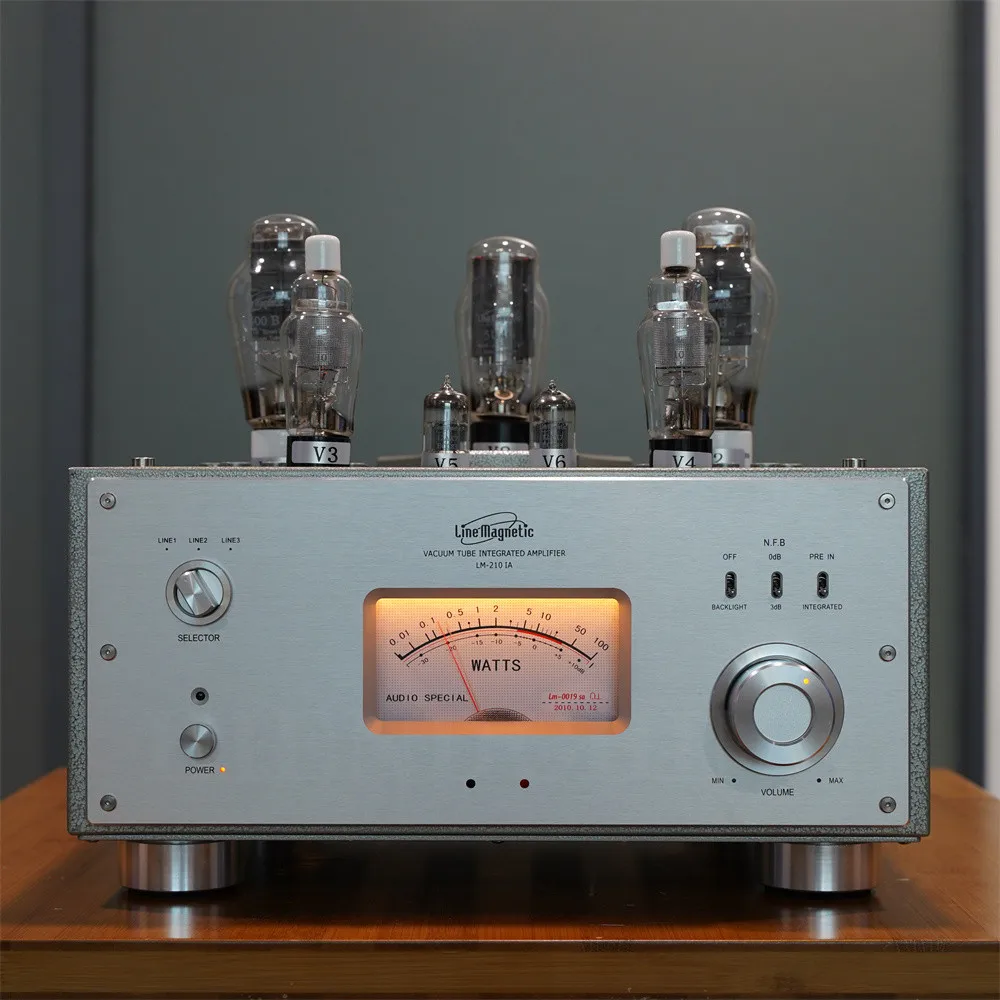

●One Meter with two pointers is located in the middle of front faceplate to allow you to

monitor the power output of each channel.

●One piece of specially designed big power EI transformer for power supply and two

pieces of Single-ended EI output transformers with wide bandwidth are applied.

●Japanese Audio grade ALPS volume potentiometer has been applied.

●Standard with remote control for volume control and muting operation.

●Hand made construction with the finest point-to-point wiring.

●Easily installed tube cover for better protection.

Specification:

－THD：1%（1kHz）

－Frequency response：10Hz～50kHz（-1.5dB）

－S/N Ratio：87dB(A weighted)

－Input Impedance：100kΩ

－Output impedance: 4 Ω, 8 Ω, 16 Ω

－Input Sensitivity：400mV (Integrated)   1000mV (Pre-IN)

－Tube Complement：12AX7×2、310A×2、300B×2、5U4G×2

－Dimension (WxDxH)：380mm x 405mm x 345mm

－Net weight: 30kg

－Power Consumption: 190w

－Working conditions: temperature: 0 ℃ to 40 ℃ Moisture: 20% ~ 80%

－Storage conditions: temperature: - 20 ℃ ~ 70 ℃ Moisture: 20% ~ 90%
