- Stock: 10
- Model: 1005002709484180
- Weight: 8.00kg

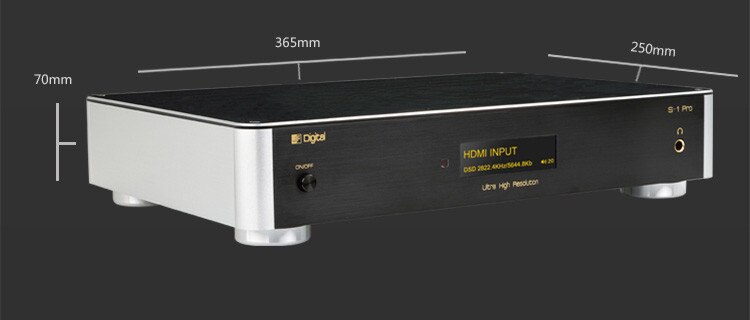

- Dimensions: 42.00cm x 30.00cm x 12.00cm
- SKU: 1005002709484180

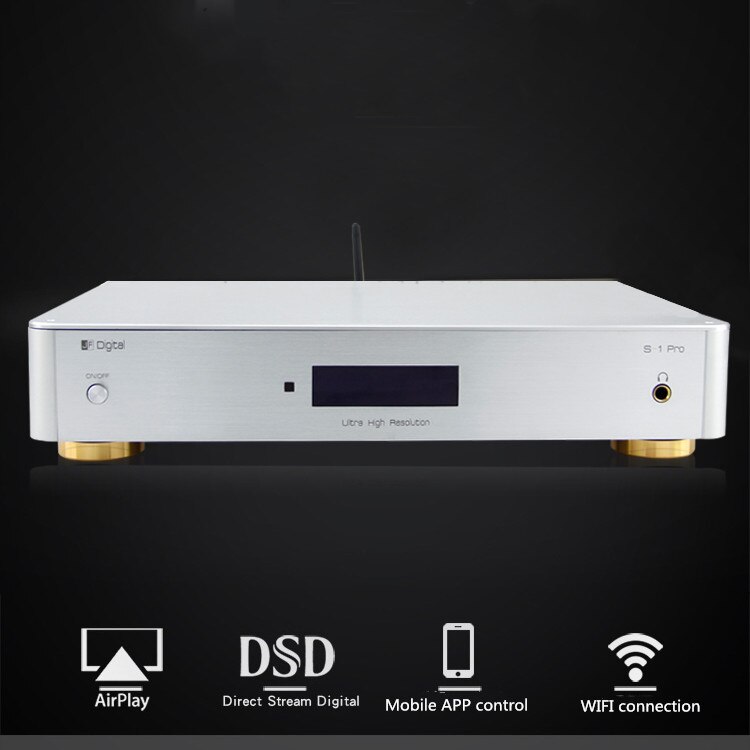

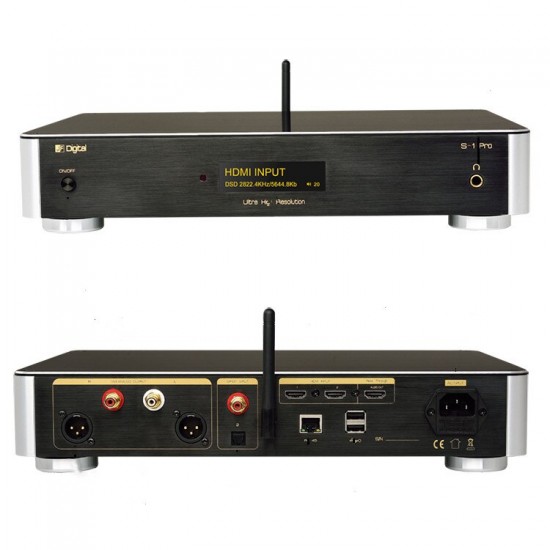

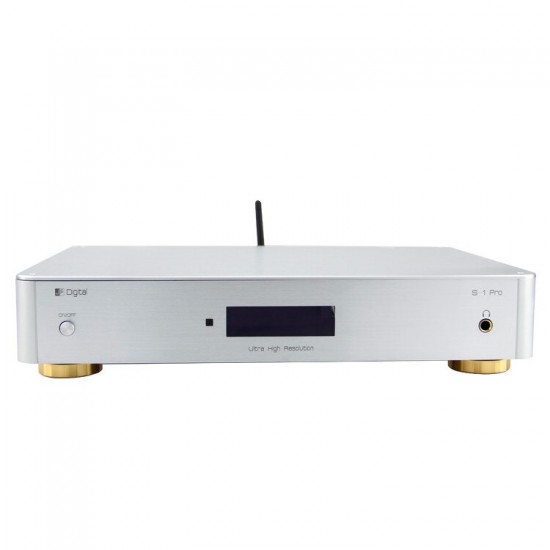

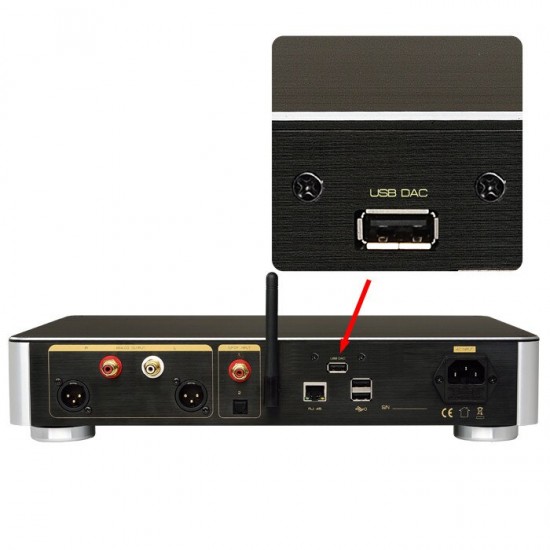

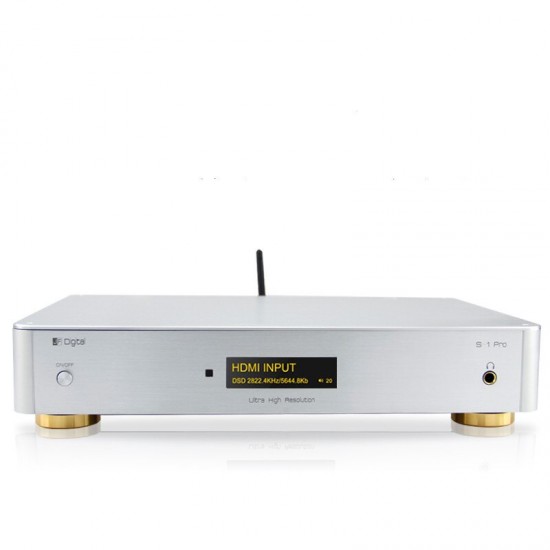

S1-Pro HIFI player Wireless decoder USB decoder HDMI decoding 32Bit/384KHz FPGA hard decoding DSD ultra-low phase noise dual clock dual ES9018 dual AK4495 decoding OLED display.

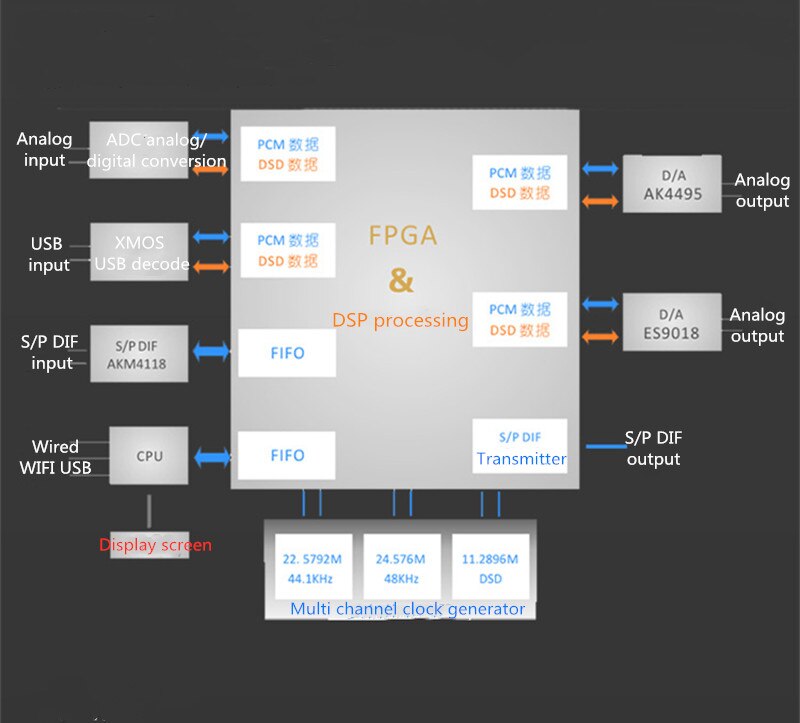

S1-Pro player has made two versions of the decoding scheme (dual ES9018 and dual AK4495 decoding), and supports XMOS input and HDMI input decoding, there are several configurations to choose from:
1. FPGA + dual ES9018 + XMOS input
2. FPGA + dual AK4495 + XMOS input
3. FPGA + dual AK4495 + HDMI input
4. FPGA + dual ES9018 + HDMI input
The difference between ES9018 decoding and AK4495 decoding:
ES9018 decoding is suitable for listening to symphony, with great dynamics and high resolution
AK4495 decoding is suitable for listening to human voices, violin and other string music.
Support PCM full format 32Bit/768KHz WAV/FLAC/APE/DTS multi-channel ALAC/AIFF/ AAC/MP3/WMA/Real Audio DSD128 and other formats playbackSupport ES9018 dual decode
Support WIFI to directly control DLNA and Airplay (built-in router)DLNA, AirPlay function

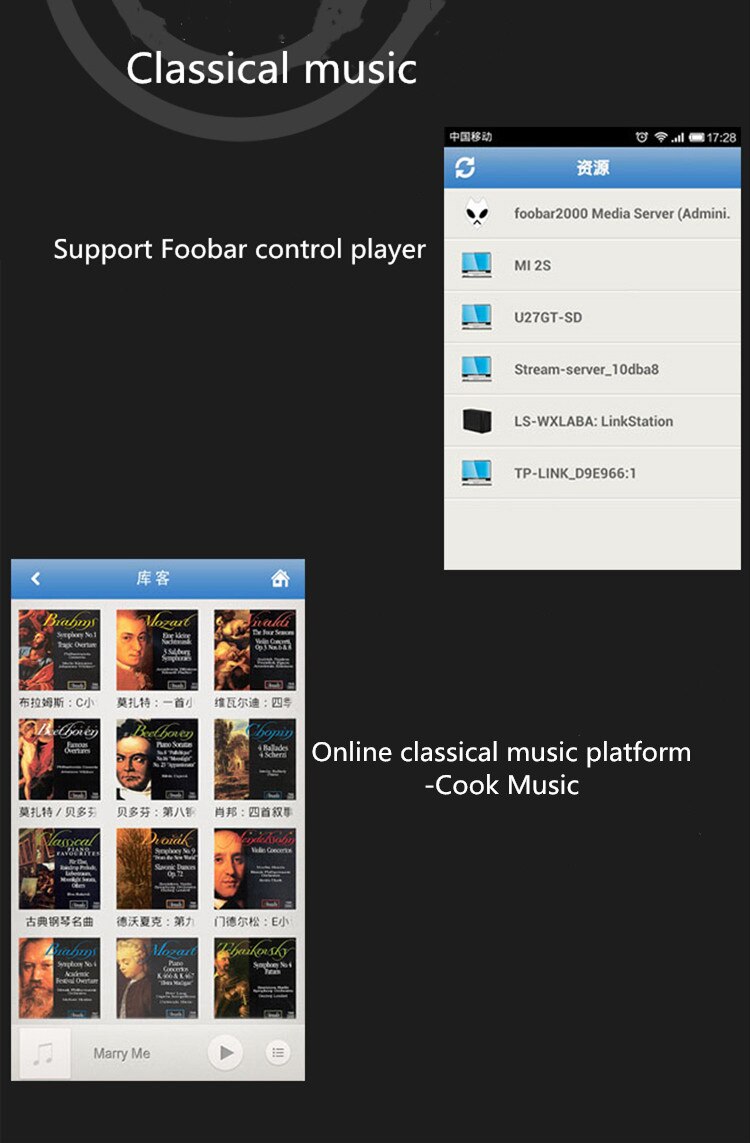

Foobar player, QQ music, Baidu music, Kugou music and other music online play.
Support all audio parameter settings, including ES9018, WM8741 PCM and DSD format digital filter modes, phase output level, S/P DIF input, output, analog recording format, etc., complete DAC parameter settings.

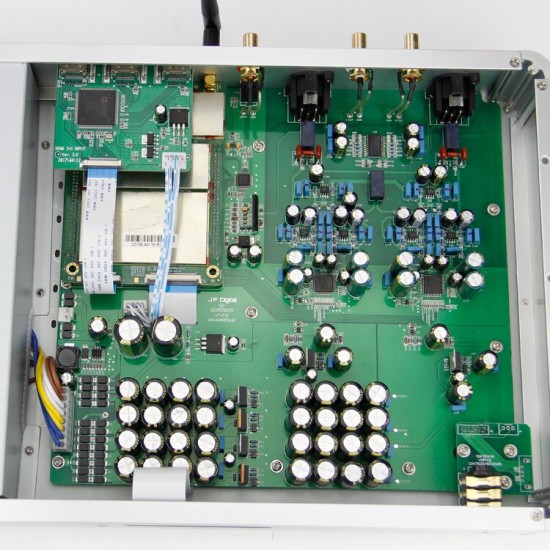

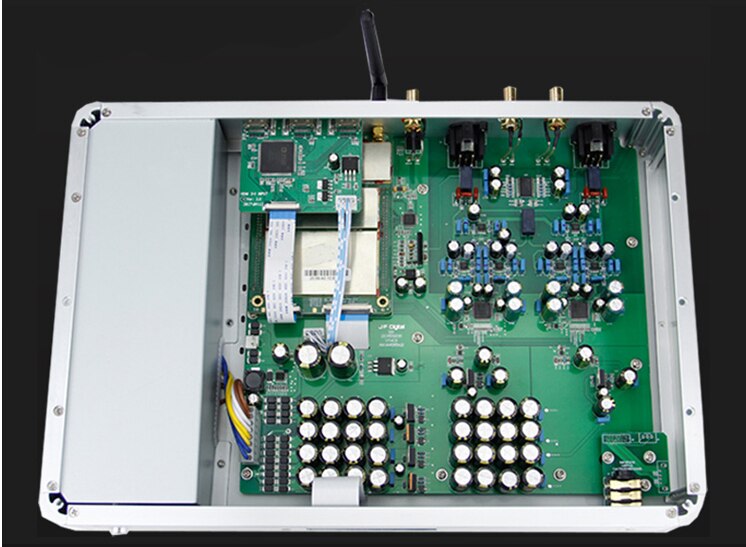

The power transformer is isolated by a shielding cover to effectively reduce magnetic leakage. As many as 8 group regulated power supply analog, digital part independent power supply, and the left and right channel dual power supplies are independently powered. The capacitor array ensures strong power supply power and provides ultra-high precision power supply for DAC Ripple reaches ≤1uv or less

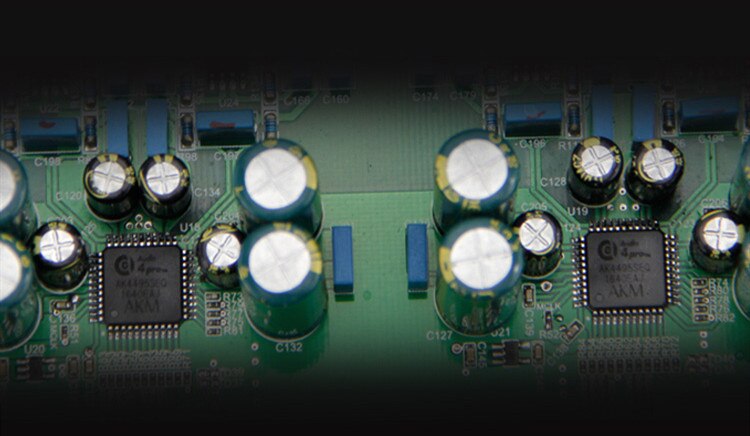

AK4495*2 decoding:
Using two AK4495 decoding chips, the left and right channels are independently decoded to ensure complete separation between the channels, and the driving ability of parallel output is more powerful. AK4495 decoding is characterized by intermediate frequency density.

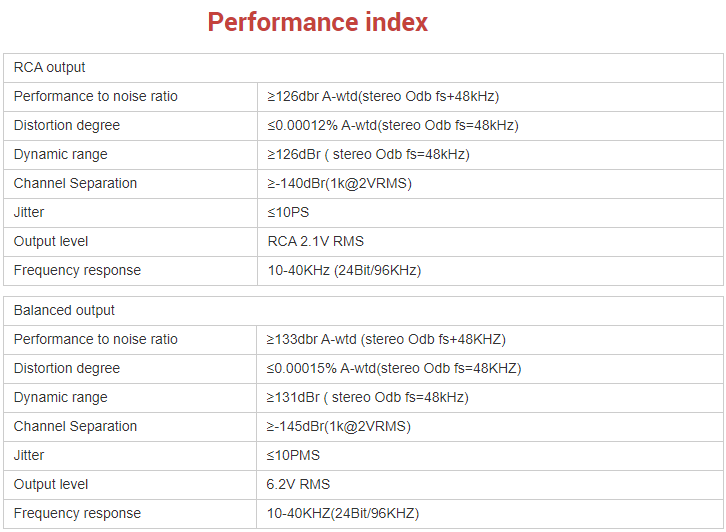

Product parameters:
Technical parameters:
2: DSD format 64/128 (DFF, DSF) source code/transcoding two kinds of playback methods HDMI transfer decoding/2 groups (DSD/PCM format)
3: Each ES9018 integrates eight independent D/A converters, double differential coupling for best performance
4; DAC chip parameter setting (PCM and DSD digital filter, phase, level, etc.)

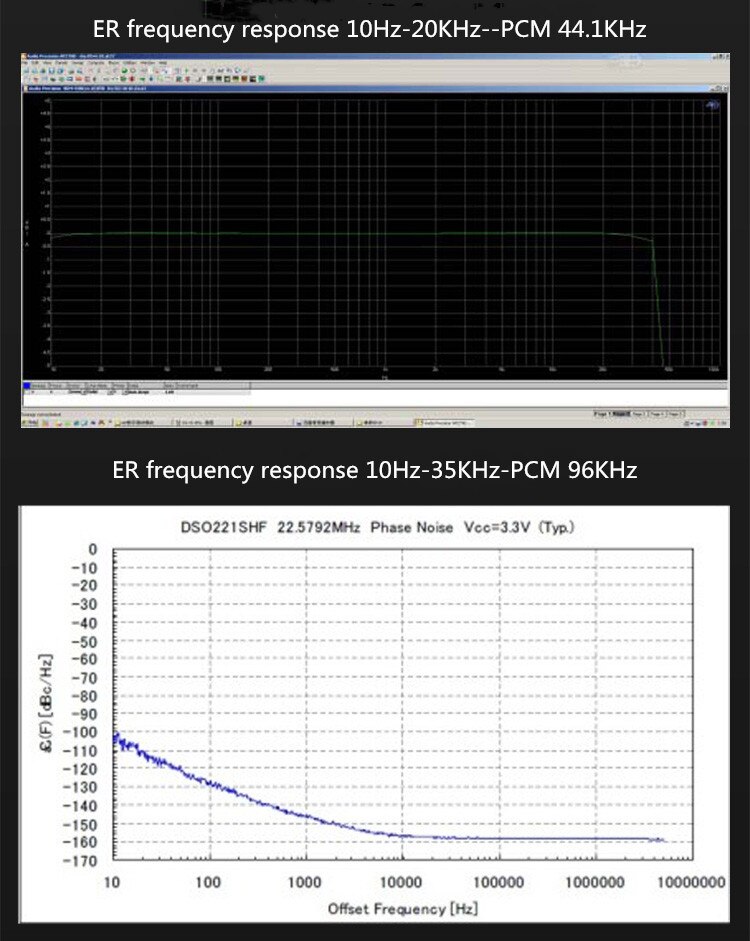

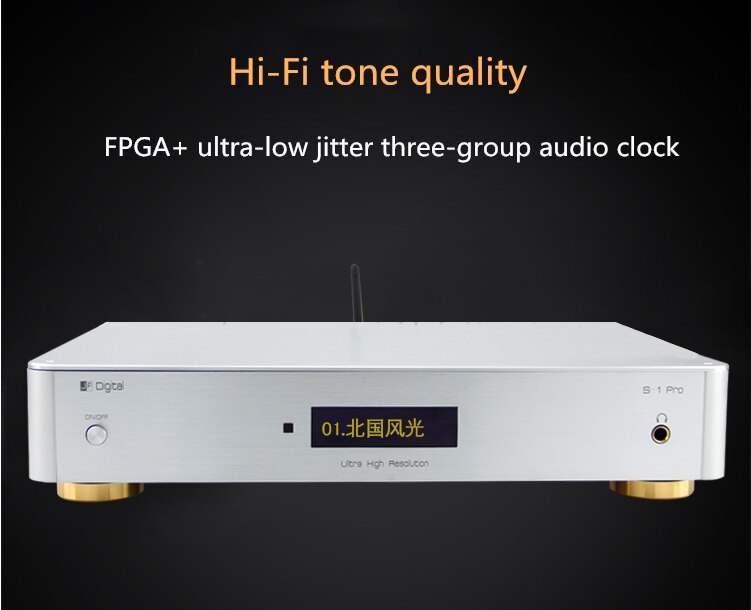

5: Ultra-low jitter, three independent crystal oscillators, phase jitter -150dBc/Hz (±1kHz)
6: S/P DIF round out supports DSD format resampling output
7: Full audio format (FLAC, DSD/ISO/DIFF/DSF, APE, AIFF Apple lossless ALAC, AAC, etc.)
8: Full linear power supply with two toroidal transformers
9: High frequency and low impedance ESR capacitor audio accessories
10: DLNA and Airplay support WIFI direct connection control (built-in router)
11: Compatible UPNPTM media server and UPnPTM control point

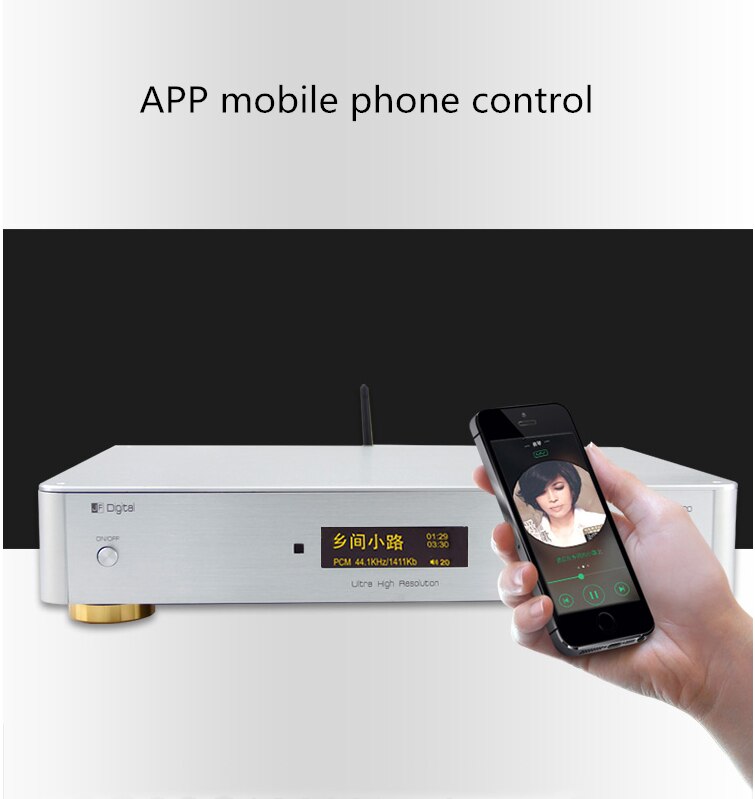

12: Support multi-platform control software-Android/IOS/ Windows PC/Mac

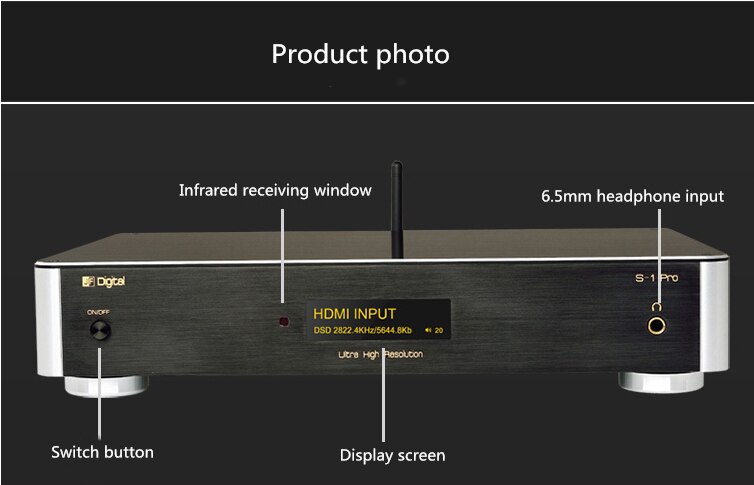

13: Infrared remote control.
