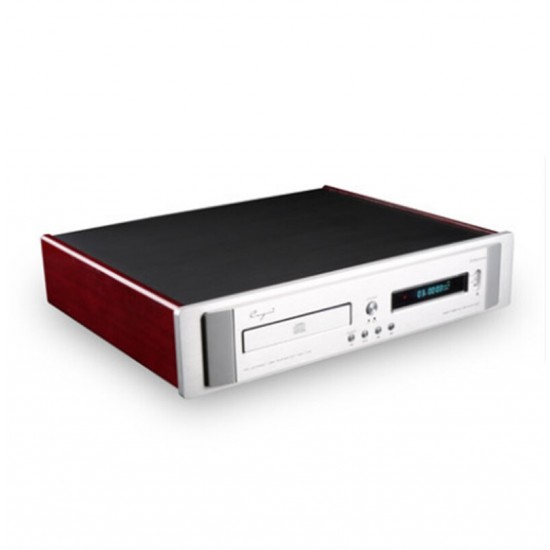

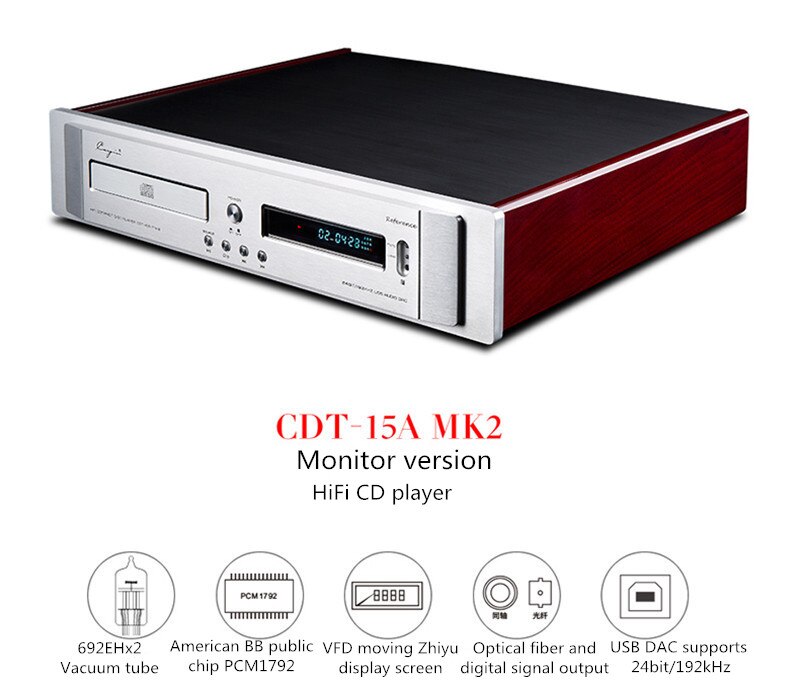

Product parameters:

Model: CDT-5AMK2 monitor version

Power supply voltage: ~220V±5% 50Hz

Frequency response: 20Hz-20kHz±0.5dB

Signal to noise ratio: ≥90dB

Crosstalk (fundamental wave 1kH2): ≥80dB

Power consumption: 30W.

Output level: 2V±1.5dB..

Distortion plus noise: ≤-60dB..

Dynamic range: ≥100dB..

Digital output: in line with C958 standards.

Volume: 440mm×350mmx100mm (W*D*H).

Weight: 10kg.

USB DAC section performance parameters

Compatible with Audio Class1.0 and Audio Class2.0

Support bit rate 16-24bis.

Support operating system: 44.1kHz, 48kHz, 88.2kH2, 96kH2, 176.4kH2, 192kz.

Support operating system: Windows XP?, Windows Vista?, Windows7? and Mac os (version 10.6.3 and above)

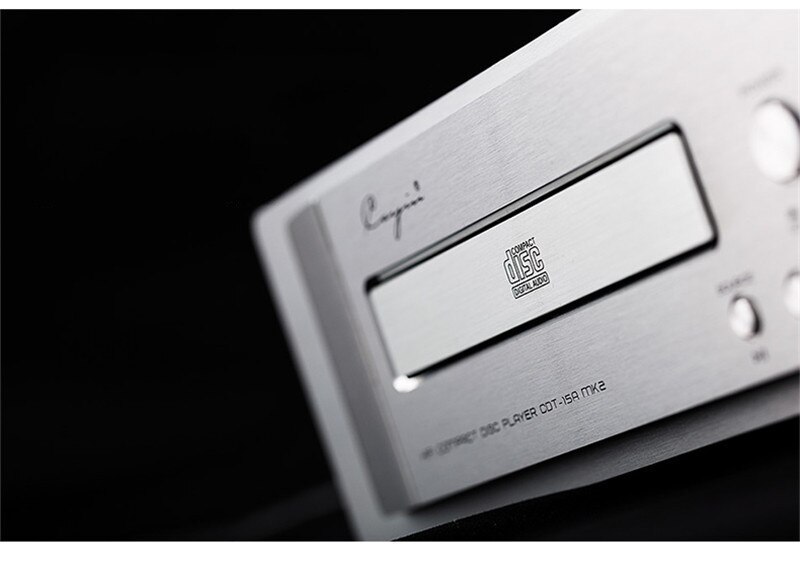

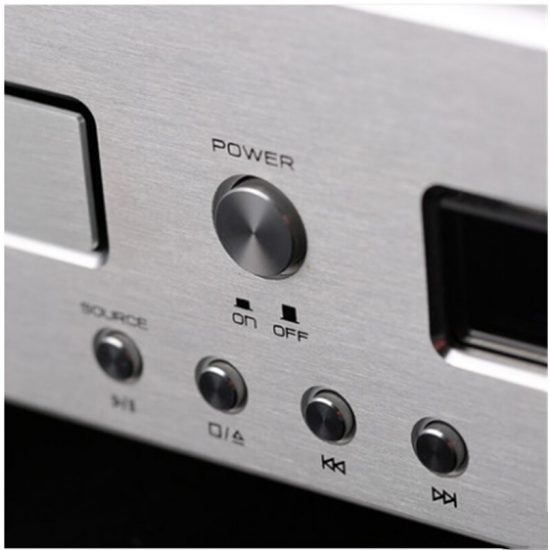

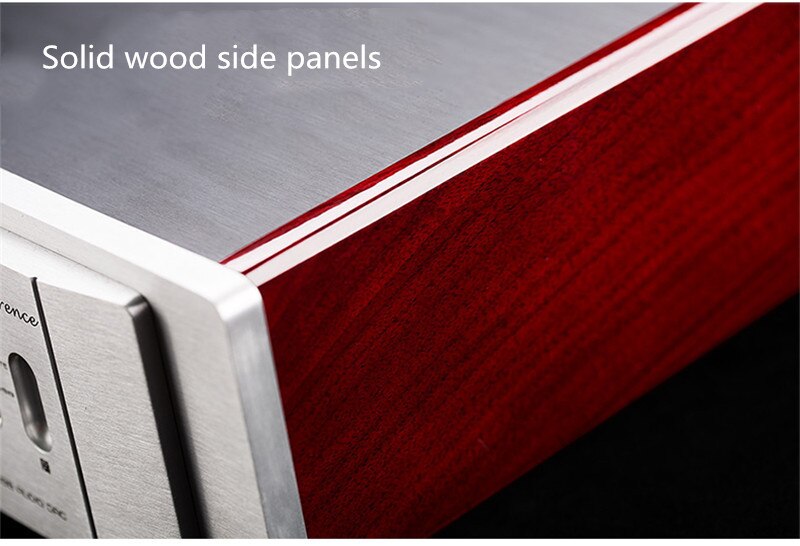

Double-layer aviation aluminum panel

The amplifier is made of an all aluminium casing with CNC precision. The low-pass filtering circuit uses National Semiconductor's LME49710 op-amp for audio, and is equipped with an SP-13G remote control for remote control of the company's power amplifier functions.

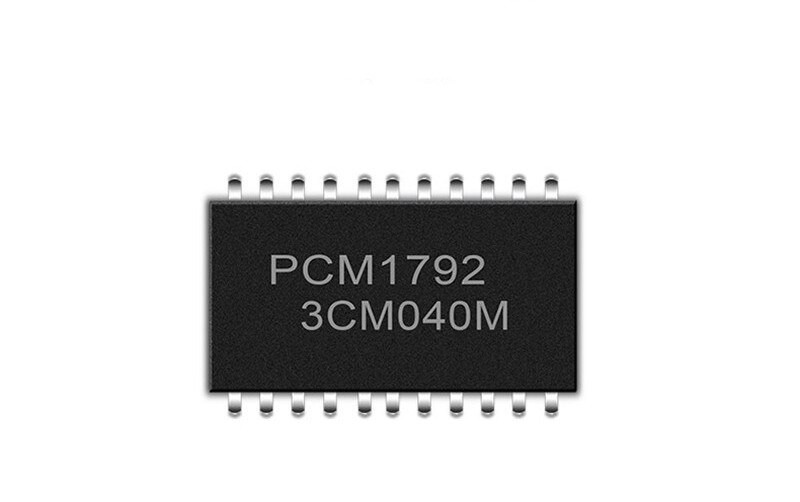

Decoder chip

It uses the American BB company PCM1792 chip for decoding, the specification is up to 24bit/192kHz, in addition to the common OGG, MP3, WAV and other formats, it also supports lossless APE, FLAC, of which FLAC, AIFF, ALAC are enough to support 24bit/192KHz code rate

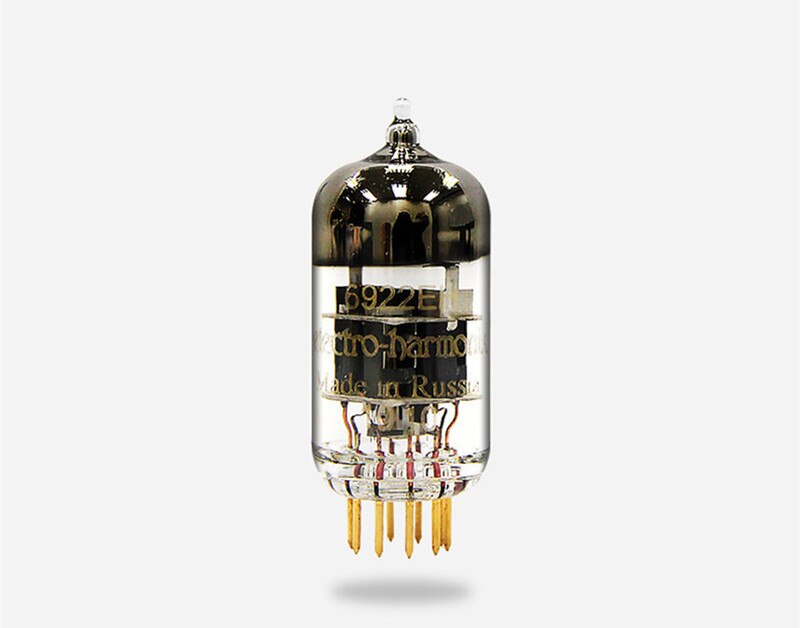

Vacuum tube

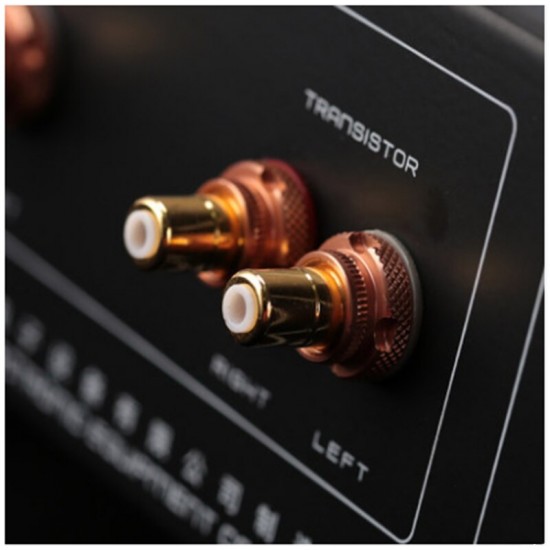

The analog audio output uses two sets of independent vacuum tubes and transistor sound-tuning circuits, the vacuum tube output circuit uses 6922EH tubes, and the transistor output circuit uses carefully selected matched field effect tubes and powerful capacitors.

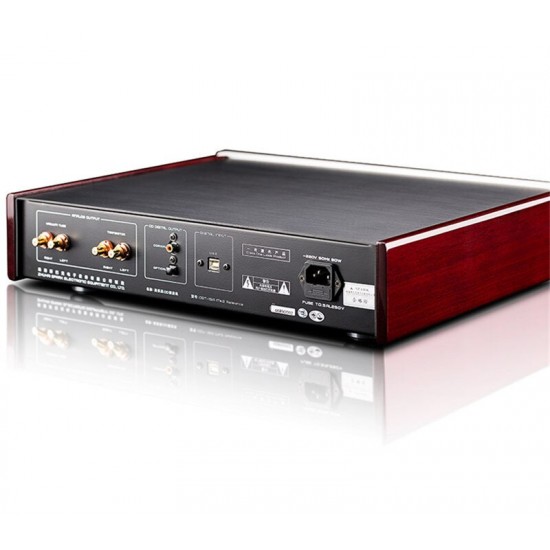

With optical and coaxial digital signal output

The CDT-15AMK2 is equipped with both optical and coaxial digital outputs and can be connected to a digital/analogue converter (DAC).

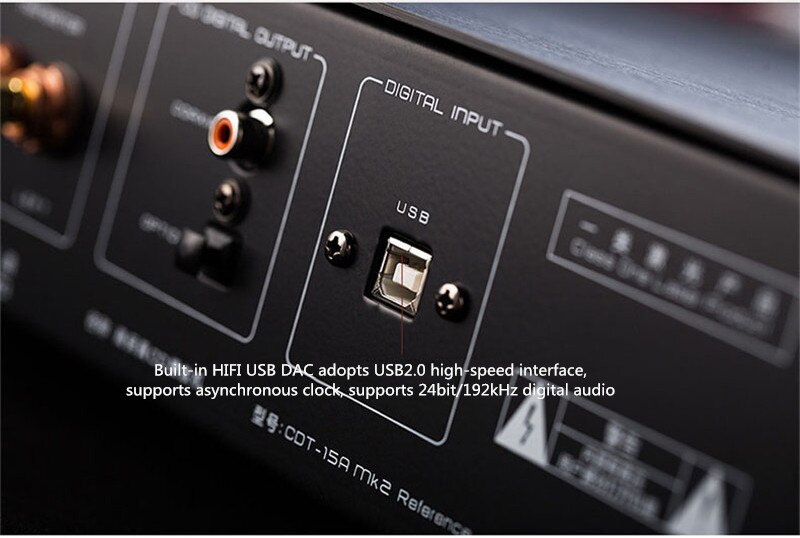

Easy to build HI-END computer music playback platform with USB digital interface

Advanced high-resolution USB AUDIO technology, through the USB 2.0 interface, it is sufficient to receive and decode the 24bit/192kHz high-definition digital audio signal output by the computer player, and easily build a HI-END-level computer music playback platform
